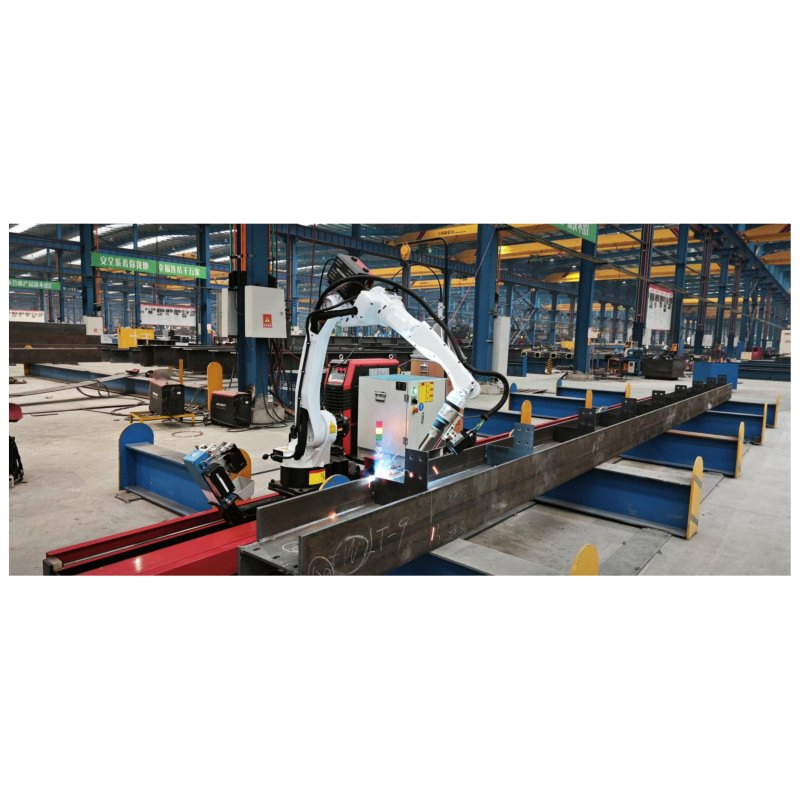

CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/Mag/CO2 Argon Arc Welding 6/30m
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/Mag/CO2 Argon Arc Welding 6/30m
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/Mag/CO2 Argon Arc Welding 6/30m
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/Mag/CO2 Argon Arc Welding 6/30m
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/Mag/CO2 Argon Arc Welding 6/30m
1 / 5
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/Mag/CO2 Argon Arc Welding 6/30m
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/Mag/CO2 Argon Arc Welding 6/30m
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/Mag/CO2 Argon Arc Welding 6/30m
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/Mag/CO2 Argon Arc Welding 6/30m
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/Mag/CO2 Argon Arc Welding 6/30m

CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/Mag/CO2 Argon Arc Welding 6/30m

Customization: Available
Accuracy: �0.1 mm
Application: Aerospace Industry, Automotive Industry, Construction Industry, Metal Fabrication Industry, Shipbuilding Industry
Send Inquiry

Product Description

Overview & Basic Info
Model NO.
SGWL-CNC-2R
Control Mode
Continuous Path Control
Type
MIG Welding Robot
Welding Speed
0.5 m/min
Materials
Stainless Steel, Carbon Steel, Copper, Aluminum
Productivity
300 Pieces/Year
Accuracy
±0.05mm
Protection Level
IP65
Voltage
220/380V 1/3 Phase
Wire Diameter
0.8mm, 1.0mm, 1.2mm, 1.6 mm
Product Description

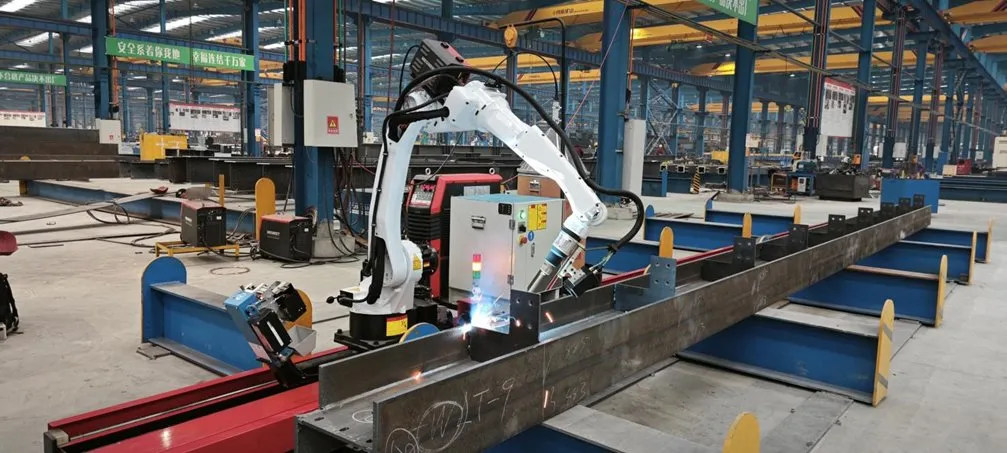

Ground Rail Welding Machine

The ground rail welding robot provides a data link from design to automated welding production, enabling fully automatic welding of small batches and multiple varieties of steel structures. It supports seamless welding connections with mainstream 3D design software such as Tekla and Solidworks, and uses workpiece models to automatically calculate welds.

🔵 Advanced 3D vision technology to automatically identify and locate the starting and ending positions of the weld.
🔵 Automated trajectory planning and programming, correcting errors and deviations automatically.
🔵 No excessive manual intervention or teaching required, realizing true intelligence in steel structure production.
Technical Parameters
Feature Specifications
Robot ModelGR-WL500
7-Axis Robot Arm Span2000mm (Customizable)
Camera System3D Vision, High and Low viewing distance functions
Walking Rail LengthStandard 9M & 12M (Customizable)
Welding FunctionsSupport dual-machine collaborative welding
Control SystemEtherCAT bus servo; Support TCP and camera hand-eye calibration
Operating ModesTeaching, Online, Remote
Gas Flow15-20L/min
Detailed Photos

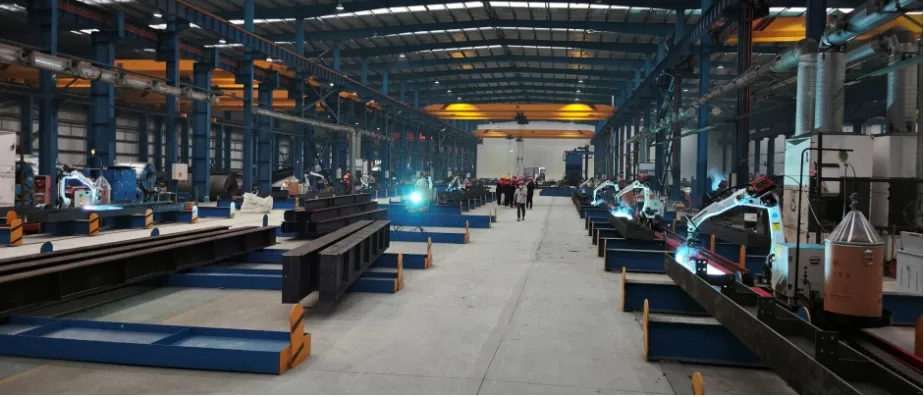

Detail 1

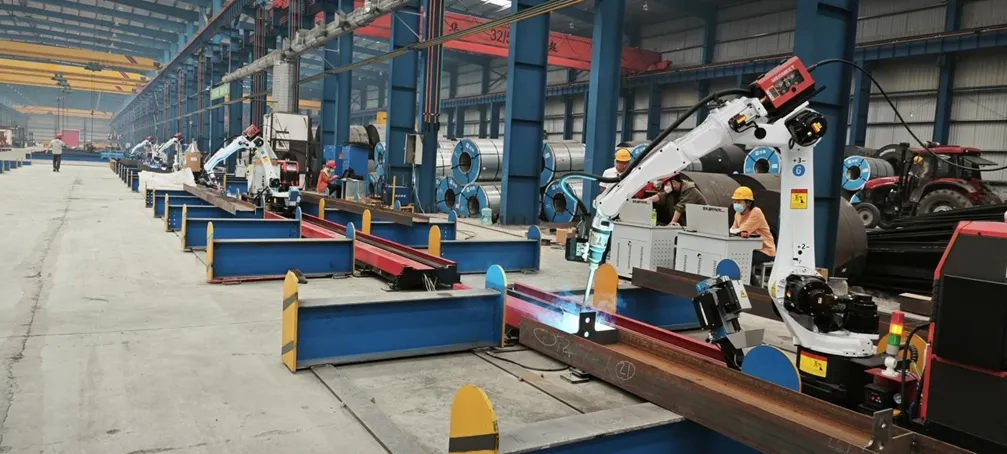

Detail 2

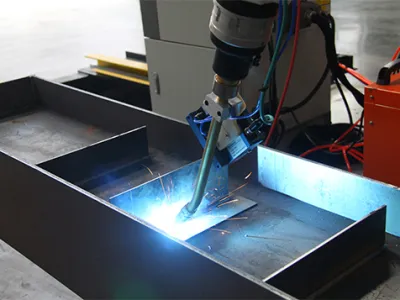

Detail 3

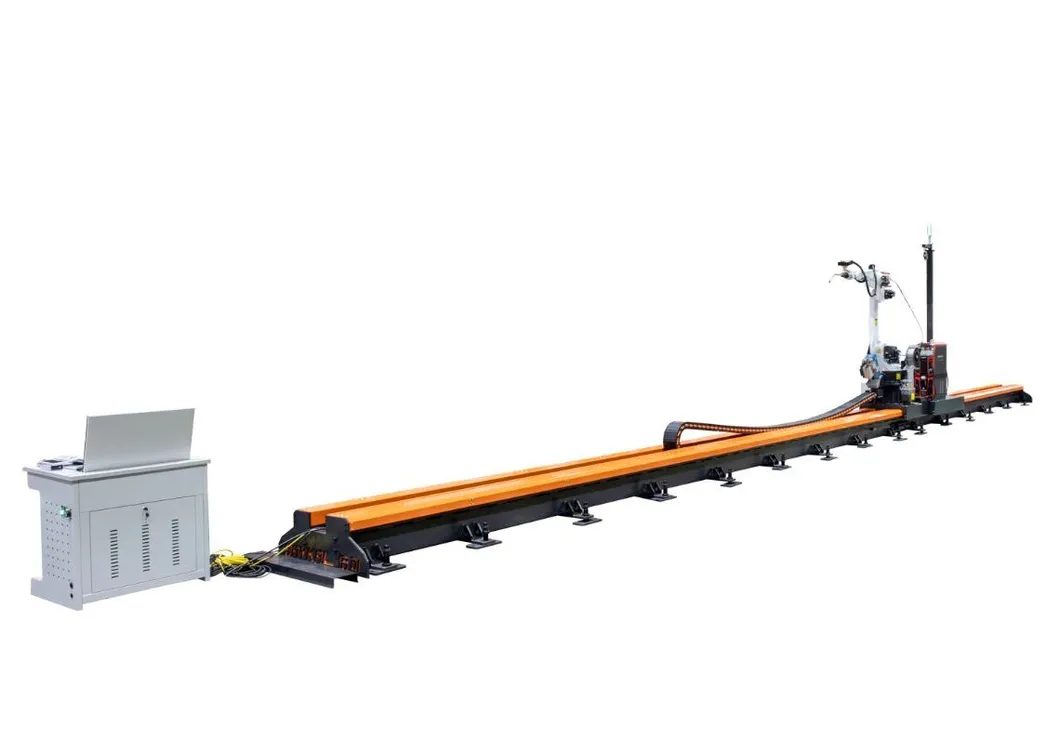

Detail 4
✔️System meets normal work of two shifts per day with stable accuracy.
✔️Reliable strength of each component through repeated demonstration and simulation.
✔️Anti-collision sensors at the end of the robot for immediate protection.
✔️Laser vision sensor for real-time path correction.

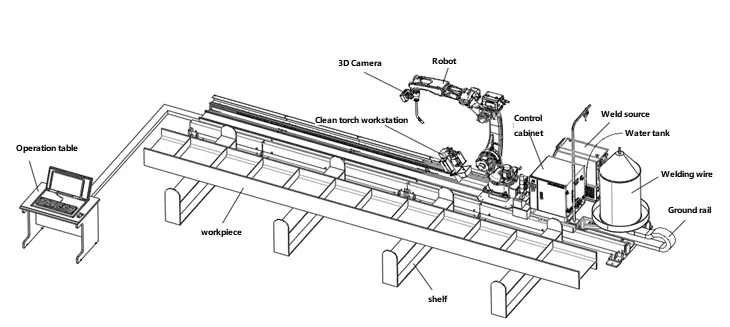

Detail 5

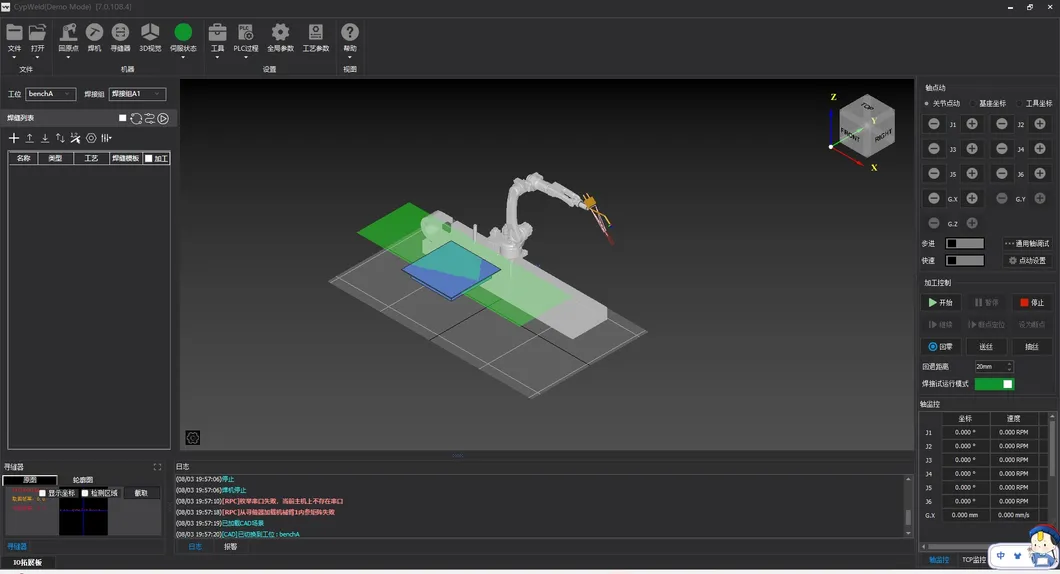

Detail 6

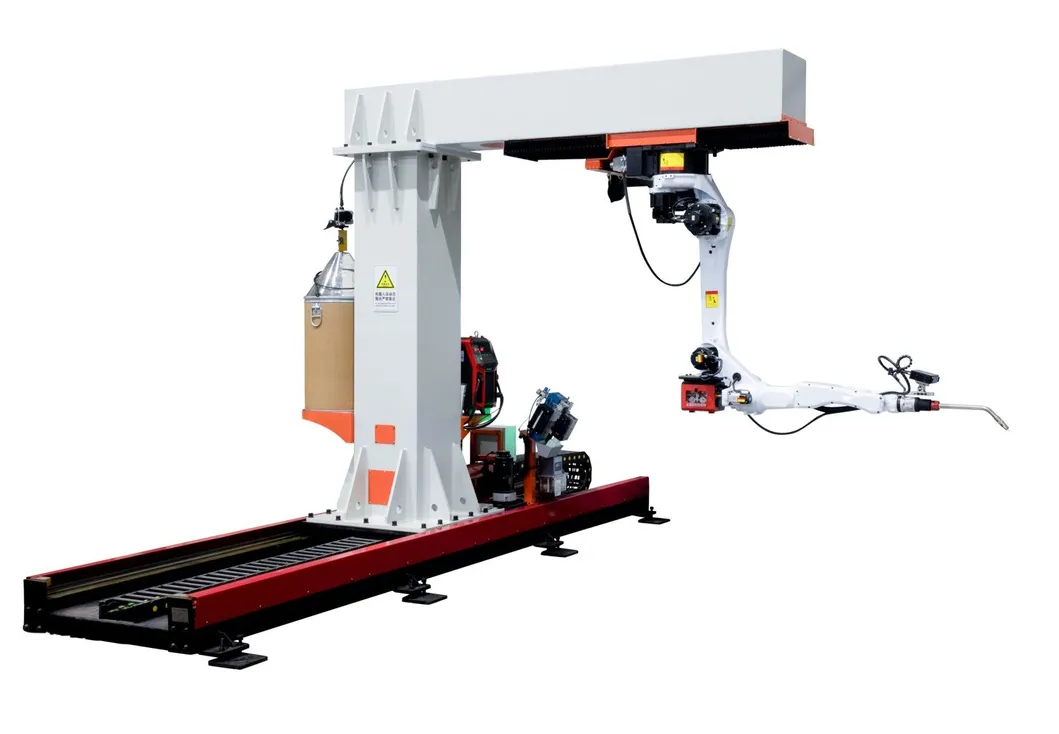

Detail 7
Detail 8
Welding Effect

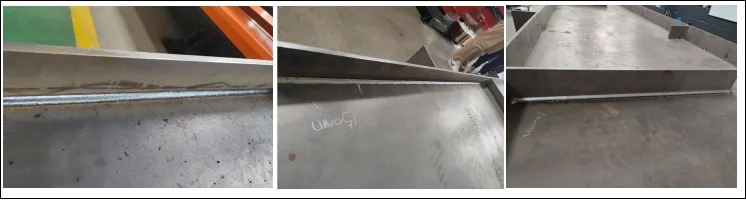

Welding Results
Manufacturing & Services

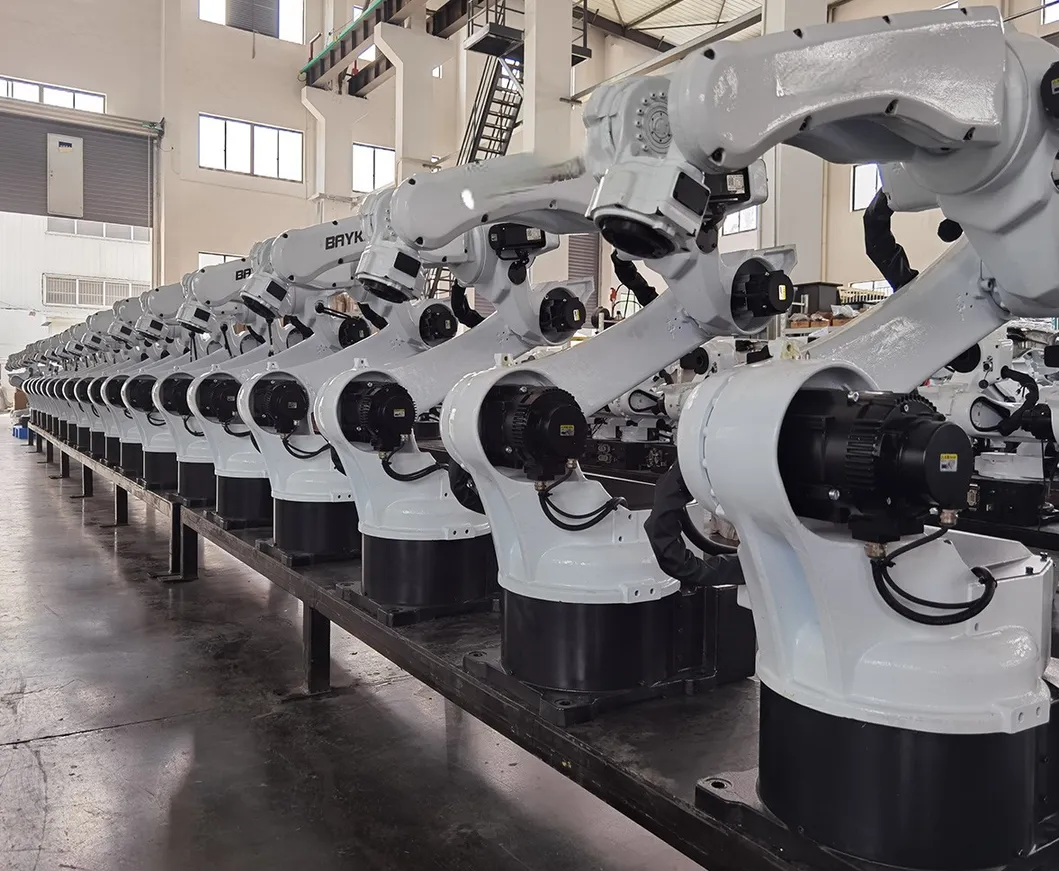

Process 1

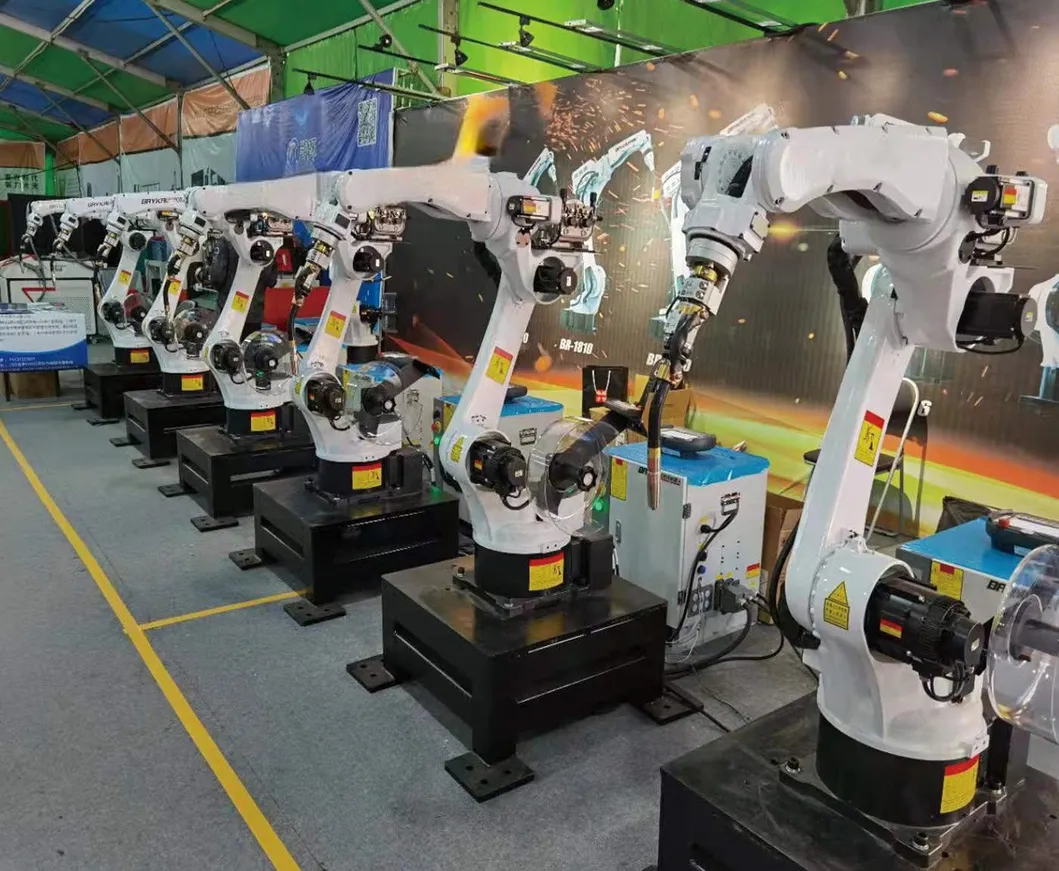

Process 2

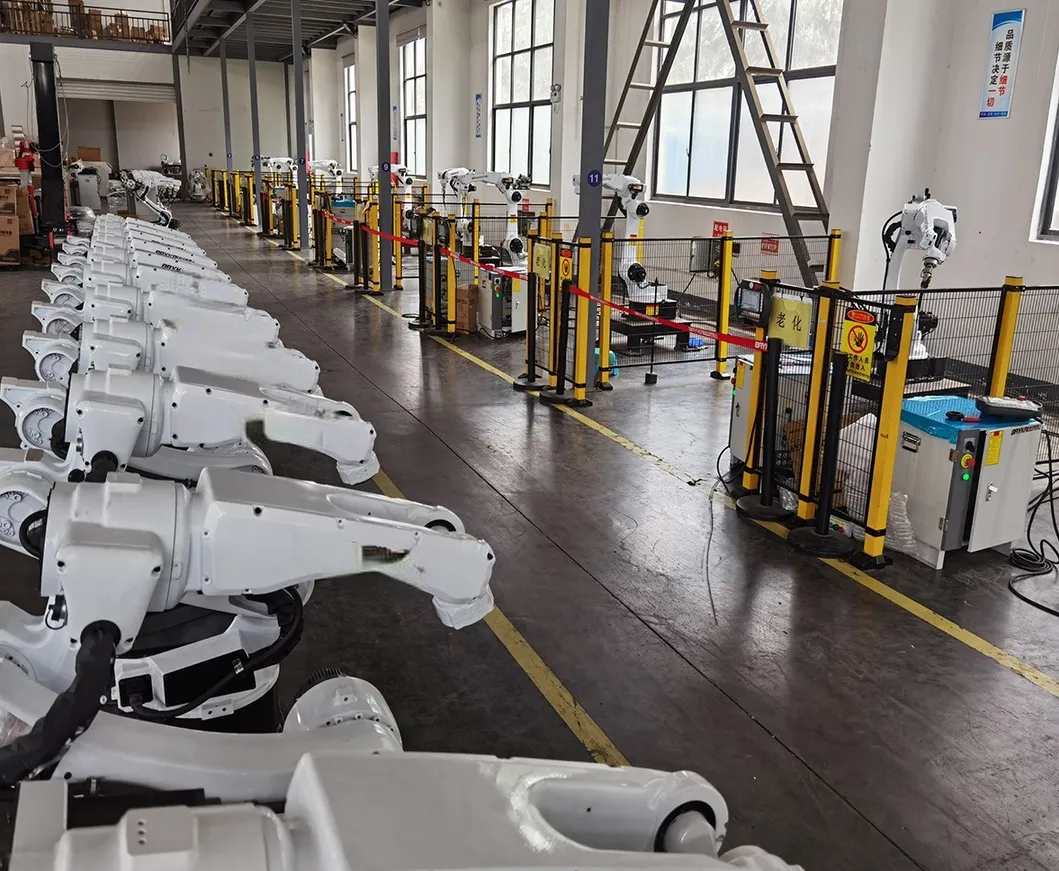

Process 3

Our solutions cover a wide range of metal processing equipment, including CNC drilling, milling, fiber laser cutting, and robotic welding. These are widely used in power towers, steel structures, automobiles, and construction industries globally.

Packaging & Shipping

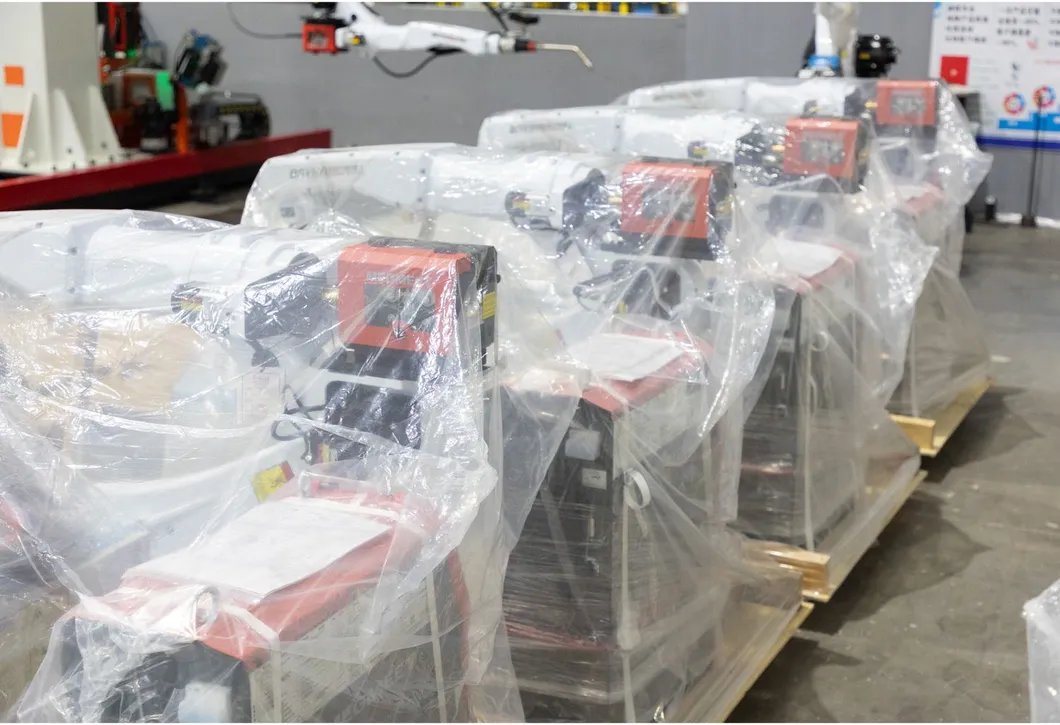

Package 1

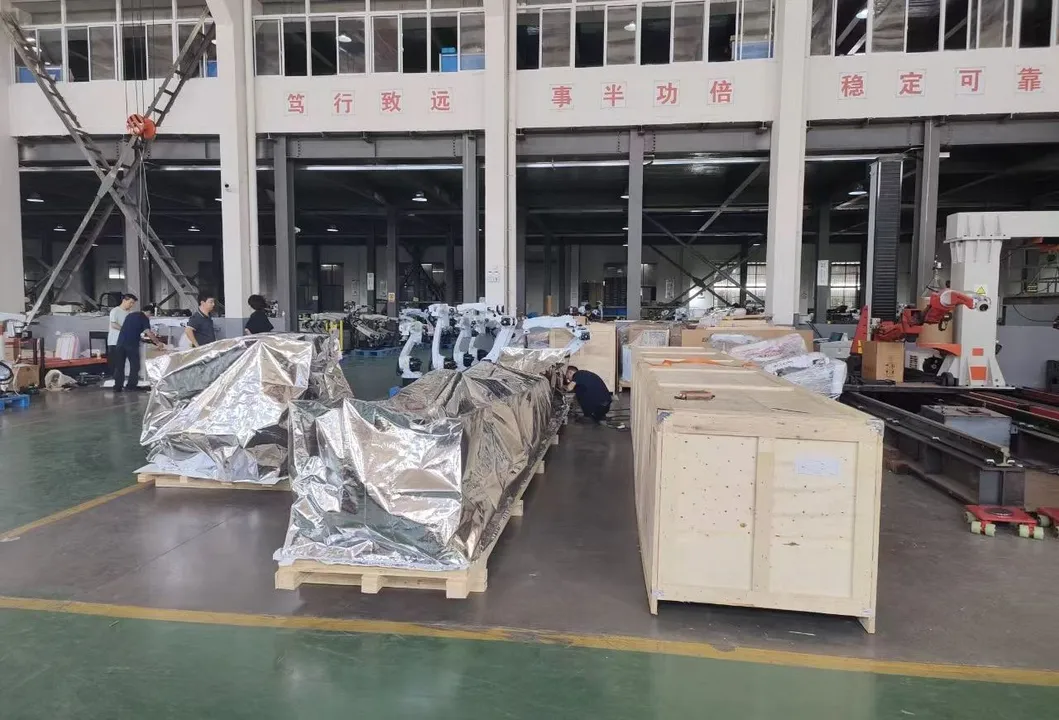

Package 2
Package Size
800cm * 220cm * 600cm
Gross Weight
800.000kg
Packing Type
Professional Wooden Packing
After Sales Service
Support
💎7*24H Quick Response Service with online support.
💎Free training provided with English manuals and video tutorials.
💎High-performance manufacturing with professional certification.
Frequently Asked Questions
What materials can this welding robot process?
The system is designed to weld various metals including Stainless Steel, Carbon Steel, Copper, and Aluminum.
Is the robot compatible with 3D design software?
Yes, it supports seamless integration with mainstream 3D design software like Tekla and Solidworks for automatic weld calculation.
What is the positioning accuracy of the welding arm?
The robot achieves a high repeatable positioning accuracy of ±0.05mm.
Does the system require manual teaching for every new workpiece?
No, the advanced 3D vision technology and intelligent planning allow for automatic identification and trajectory planning without excessive manual teaching.
What kind of after-sales support is available?
We provide 24/7 online support, lifetime service, and free training including English manuals and video guidance.
What are the installation requirements for the ground rail?
The system supports Ground, Suspended, or Side Mounted installations, and the rail length is customizable (Standard 9M/12M).
