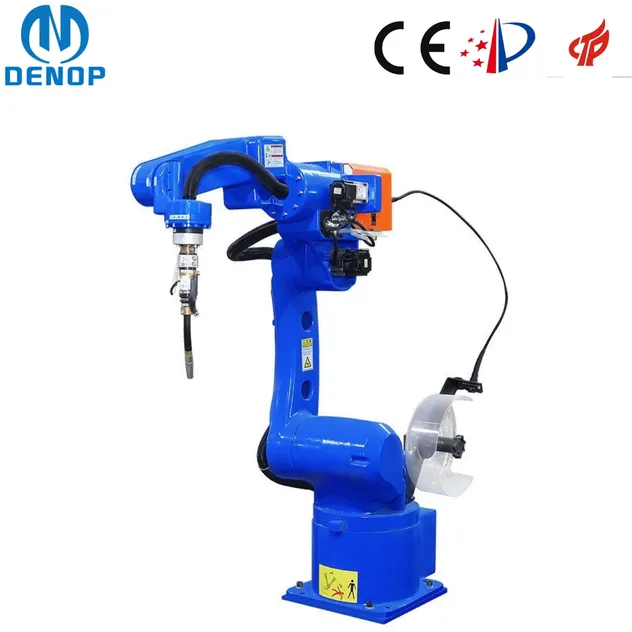

An Easy to Operate Collaborative Welding Robot
Our collaborative robots are designed for simplicity and efficiency. Users can manually move the robot arm to record points and initiate the welding process immediately, eliminating the need for complex teaching devices. These units are fast, highly accurate, and offer flexible installation options. Perfectly suited for small batches, multiple product types, and long-term industrial operations.

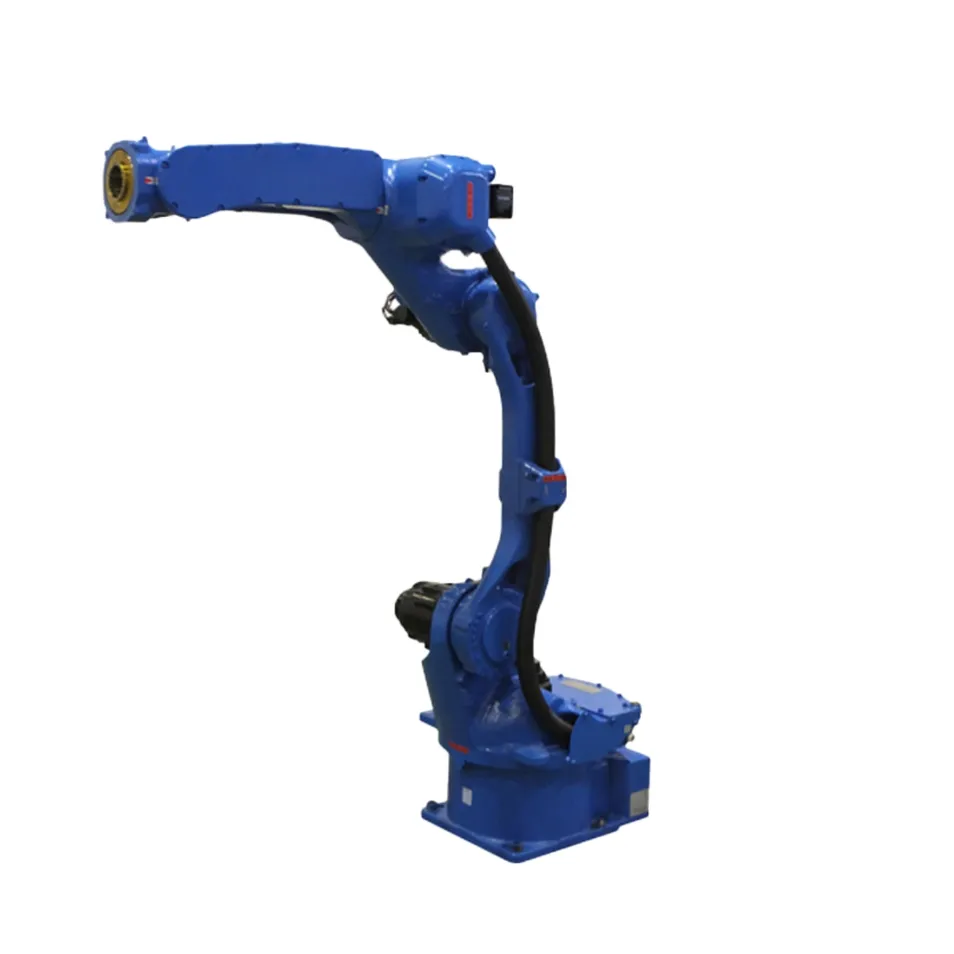

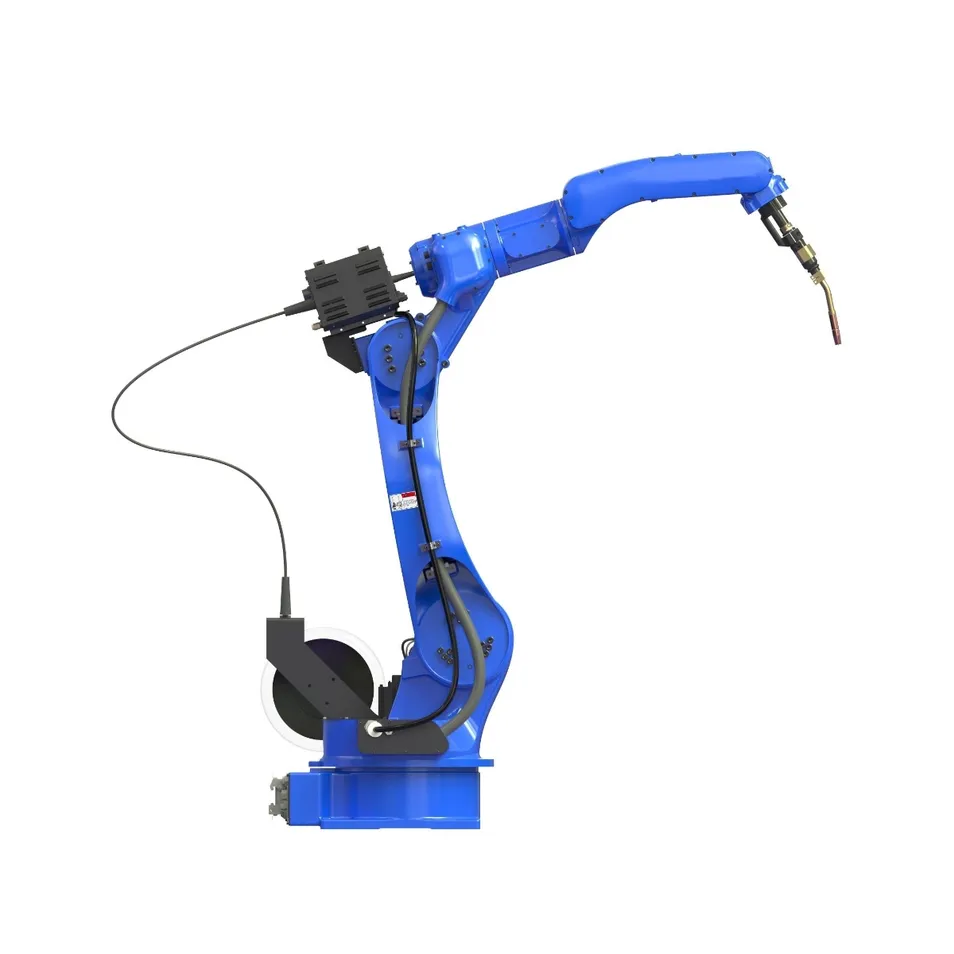

| Parameter | DNP-IR1603-10-B | Parameter | DNP-IR2000-10-B |

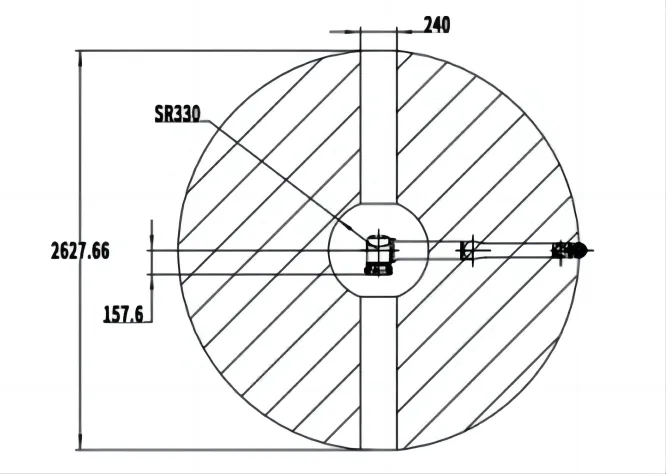

| Working Radius | 1602mm | Working Radius | 2008mm |
| Load | 10KG | Load | 10kg |
| Accuracy | ±0.05mm | Accuracy | ±0.05mm |
| Max Speed | 4900mm/s | Max Speed | 4900mm/s |
| Control Bus | EtherCAT/1KHz | Control Bus | EtherCAT/1KHz |
| Power Rating | 260W | Power Rating | 260W |
| Protection Level | IP54 | Protection Level | IP54 |
| Weight | 225kg | Weight | 328kg |
| Axis | Range | Axis | Range |
| J1 | -170°~170° | J4 | -180°~180° |
| J2 | -90°~140° | J5 | -105~105° |
| J3 | -135°~85° | J6 | -210°~210° |
