Factory Industrial Automatic Welding Robot Arm Welding Workstation for H Beam

1 / 5

Factory Industrial Automatic Welding Robot Arm Welding Workstation for H Beam

Customization:	Available
Accuracy:	±0.05mm
Application:	Construction Industry, Metal Fabrication Industry, Shipbuilding Industry, Welding

Send Inquiry

Product Description

🔷 Basic Information

Model NO.	gantry robot weld
Control Mode	Continuous Path Control
Drive Mode	Electric
Type	Arc Welding Robot
Welding Speed	0.5 m/min
Maximum Work Piece Length	11m
Flange Width	2.5m
Gantry Rail Gauge	2800 mm

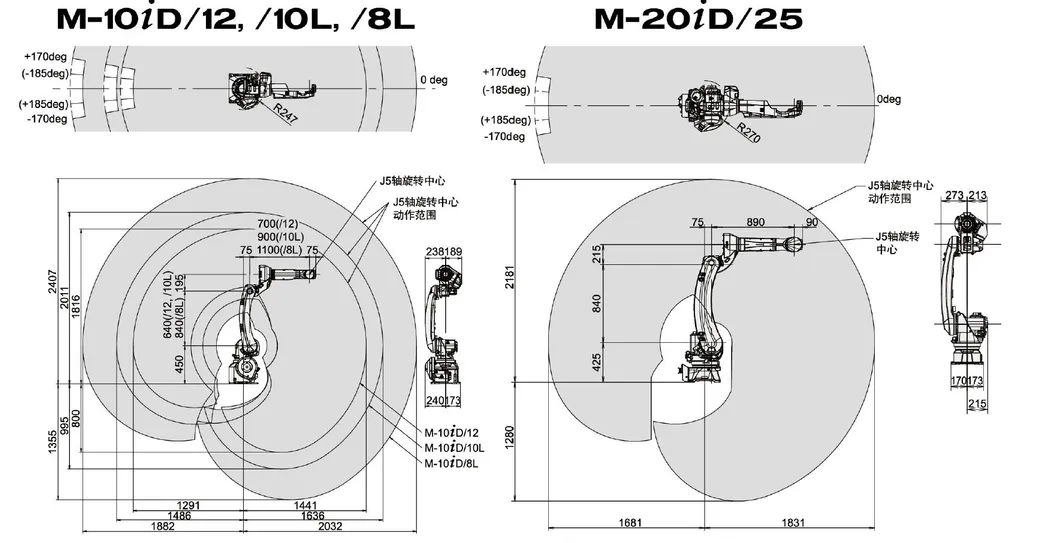

Robot Model	M-10ID/10L(Fanuc)
Power Source	Megmeet Cm500/Custom
Certification	ISO, CE
HS Code	8468800000

⚙️ Product Description

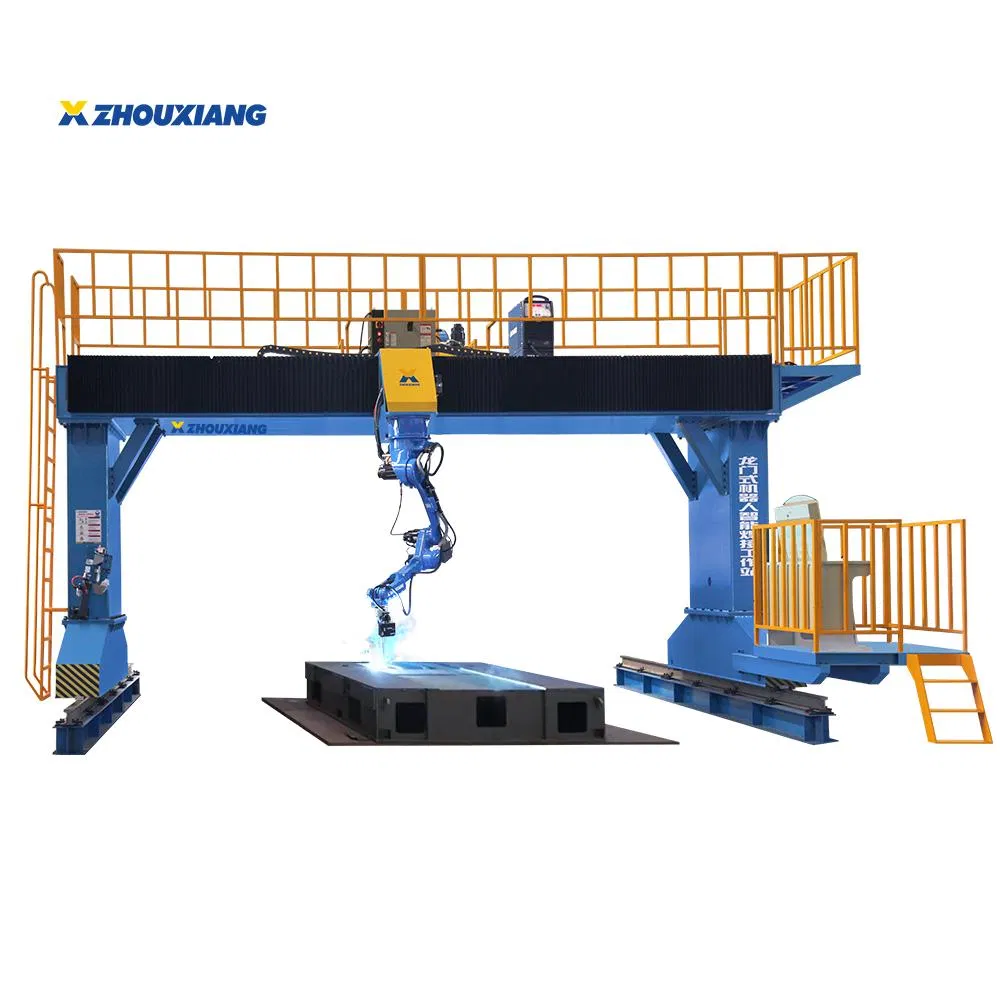

This equipment is a special welding robot for steel structures tailor-made for automated production in steel structure factories.

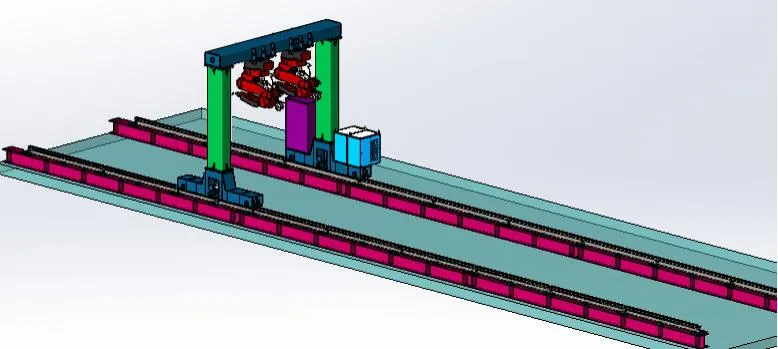

▶ Components: Includes guide rail parts, gantry parts, robot adjustment parts, electric control box, and welding power supply.
▶ Gantry Structure: Features box beam welding structure with stress relief treatment for high strength and compactness.
▶ Precision Driving: Equipped with Japanese AC servo drivers and motors with SHIMPO reducers and rack/pinion transmission.
▶ Stability: Bilateral drive method and precision-machined racks ensure longitudinal straightness and parallelism.

📊 Technical Parameters

Gantry Motor Power	2x0.75 kW
Gantry Moving Speed	100-1000 mm/min
Robot Origin	Japan (FANUC)

CP350V Laser Tracker

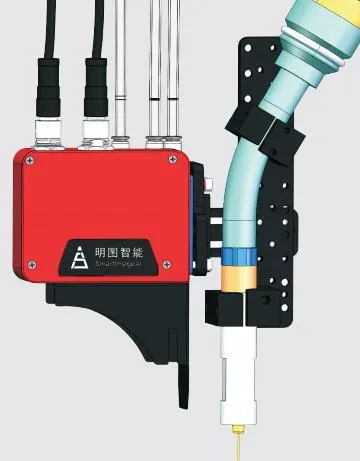

Intelligent line scanning welding seam sensor. It obtains contour information via laser scanning to guide the robot automatically. Highly integrated, resistant to arc light and spatter, and identifies weld seams intelligently.

Welding Power Source

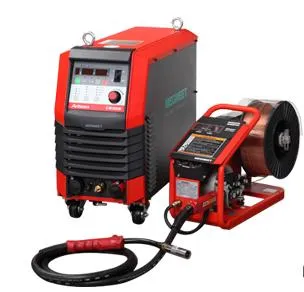

Utilizes CM500 fully digital industrial heavy-duty CO2/MAG/MMA intelligent welding machine. Designed for heavy-load operations in shipbuilding, steel structures, and rail transit.

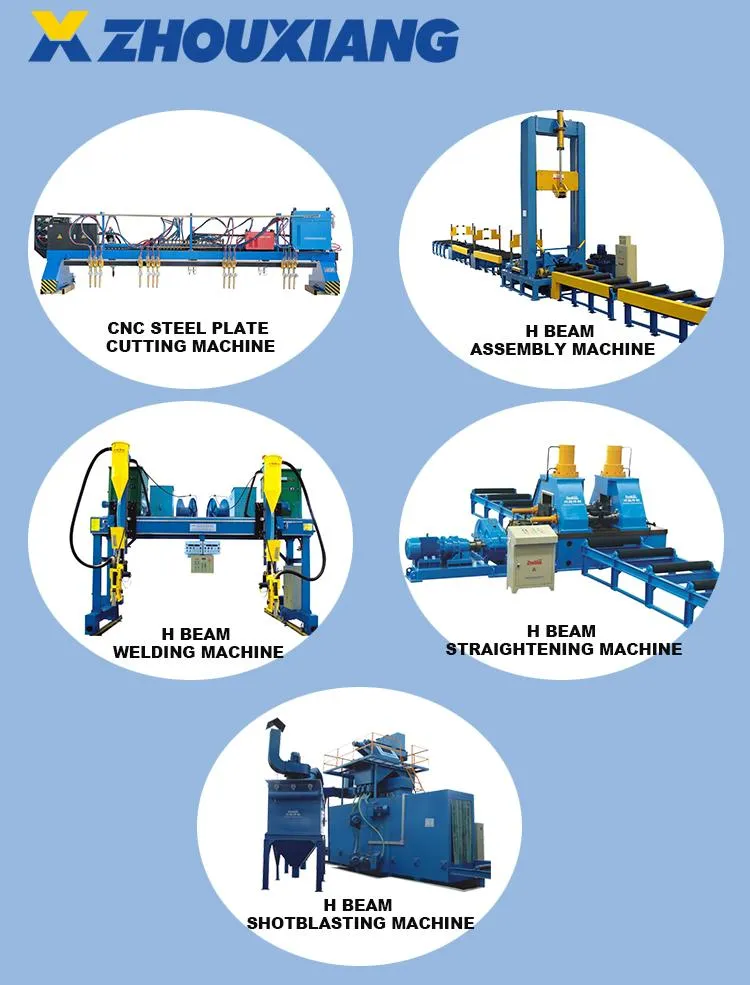

📦 Main Product Range

🌍 Global Presence

🏭 Production Facility

Founded in 1991, our production facility covers an area of 160,000 m2. We are certified to ISO9001 Quality System and many products carry China Compulsory Certification (CCC). Our technical team consists of over 100 engineering personnel specializing in CNC cutting, H-beam production lines, welding manipulators, and fiber laser cutting machines.

❓ Frequently Asked Questions

1. What are the primary applications for this gantry welding robot?

This equipment is specifically designed for the automated production of steel structures, including H-beams and box beams in industrial factory settings.

2. Which robot brand is integrated into this system?

The system utilizes Japanese-made FANUC welding robots, specifically the M-10ID/10L model, known for its precision and reliability in arc welding.

3. How does the laser tracking system improve welding quality?

The CP350V laser tracker uses line scanning to obtain real-time contour information of the weld seam, guiding the robot to adjust its path automatically while remaining resistant to arc light interference.

4. What is the maximum workpiece size this robot can handle?

The gantry robot is designed to handle workpieces with a maximum length of 11 meters and a flange width of up to 2.5 meters.

5. What kind of welding modes does the power source support?

The digital Megmeet CM500 power source supports industrial-grade CO2, MAG, and MMA welding, making it versatile for various carbon steel processing tasks.

6. Is the equipment certified for international markets?

Yes, the equipment is manufactured under ISO9001 quality systems and holds both CE and CCC certifications for global compliance.
