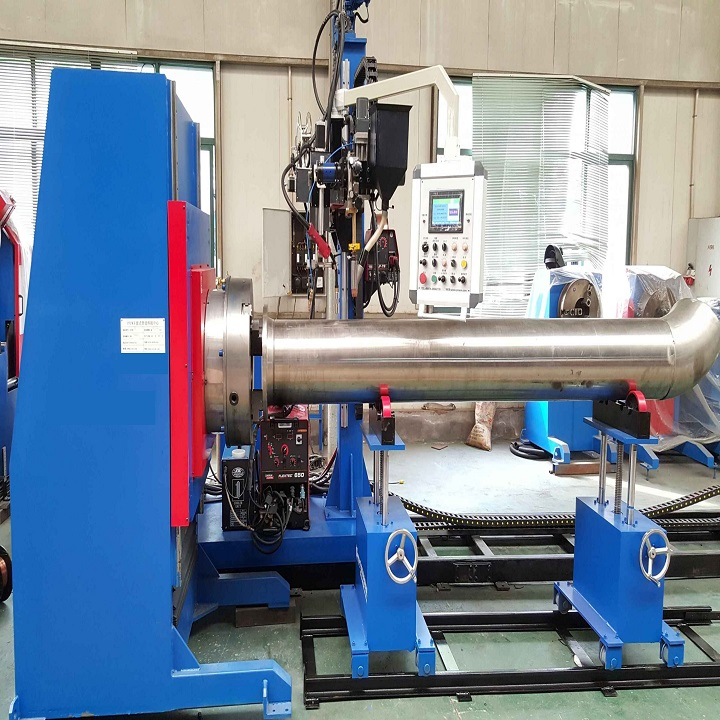

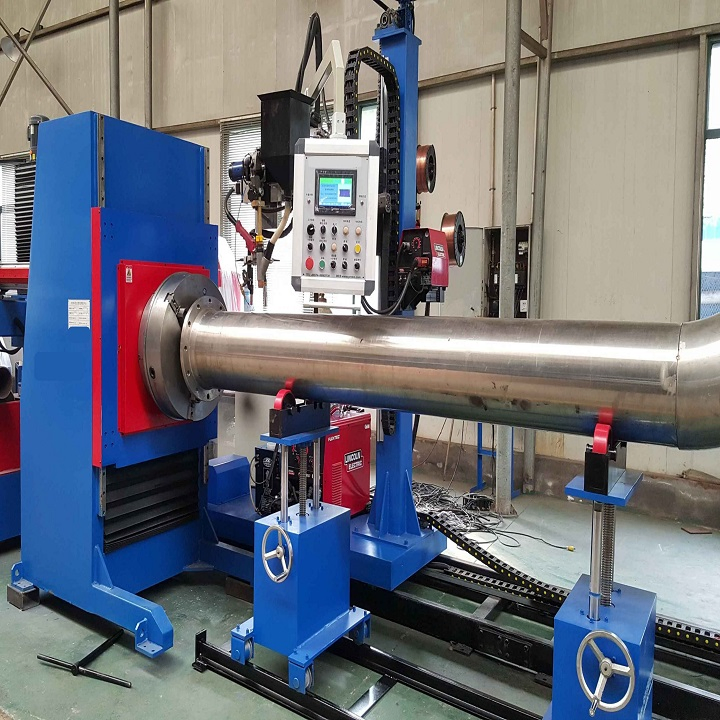

CNC Pipe Prefabrication Welding Workstation with Robotic Arm System
CNC Pipe Prefabrication Welding Workstation with Robotic Arm System
CNC Pipe Prefabrication Welding Workstation with Robotic Arm System
CNC Pipe Prefabrication Welding Workstation with Robotic Arm System
CNC Pipe Prefabrication Welding Workstation with Robotic Arm System
1 / 5
CNC Pipe Prefabrication Welding Workstation with Robotic Arm System
CNC Pipe Prefabrication Welding Workstation with Robotic Arm System
CNC Pipe Prefabrication Welding Workstation with Robotic Arm System
CNC Pipe Prefabrication Welding Workstation with Robotic Arm System
CNC Pipe Prefabrication Welding Workstation with Robotic Arm System

CNC Pipe Prefabrication Welding Workstation with Robotic Arm System

Customization: Available
Cooling Way: Air Cooling
Control: Semi-Automatic
Send Inquiry

Product Description

Basic Information Overview
Model NO. PPCW Style Tapped
Frequency Range Intermediate Frequency Electric Current DC
Keywords Cantilever Type Pipe Welding Machine Application 2"-60" Pipe
Input Capacity 50kw Suitable Length 300~1200mm
Wall Thickness 6~50mm Origin China

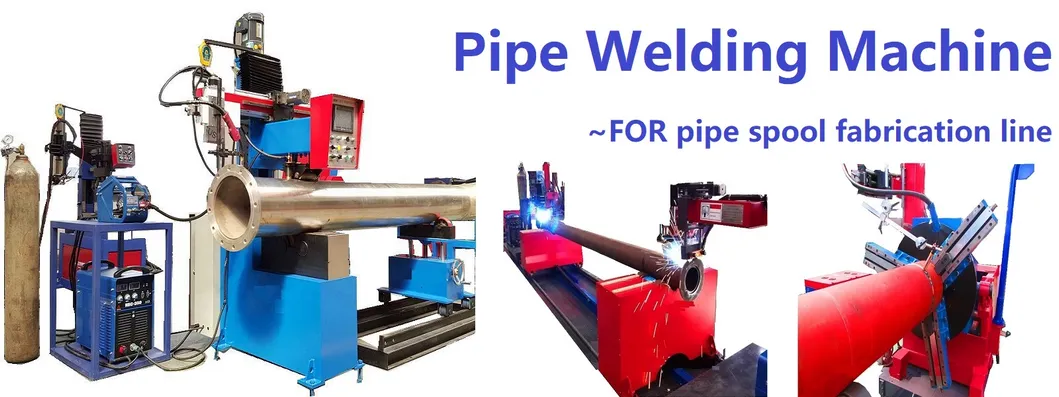

CNC Pipe Prefabrication Welding Workstation
CHUCK TYPE PIPE WELDING MACHINE

The PPCW series chuck type pipeline automatic welding machine is equipped with TIG/MAG/SAW three kinds of welding processes according to the requirements of using process, which can realize the automatic welding of the pipeline root pass, filling and cap.

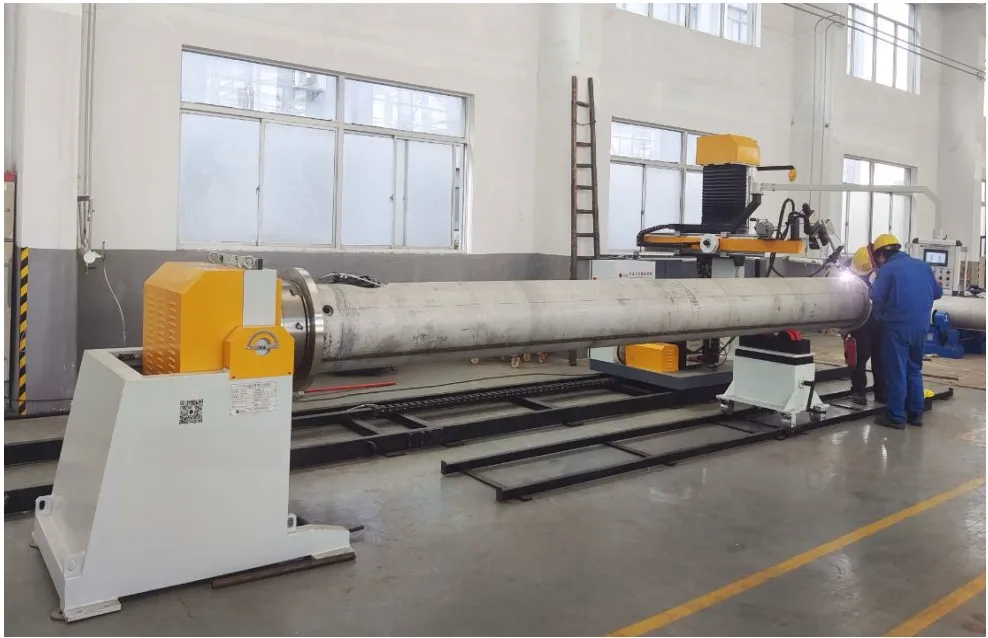

Chuck Type Welding Machine View 1 Chuck Type Welding Machine View 2
Key Welding Forms:
✔️Automatic butt welding of straight pipe and straight pipe
✔️Automatic butt welding of straight pipe and taper pipe
✔️Automatic butt welding of straight pipe and flange
✔️Automatic butt welding of straight pipe and elbow / tee

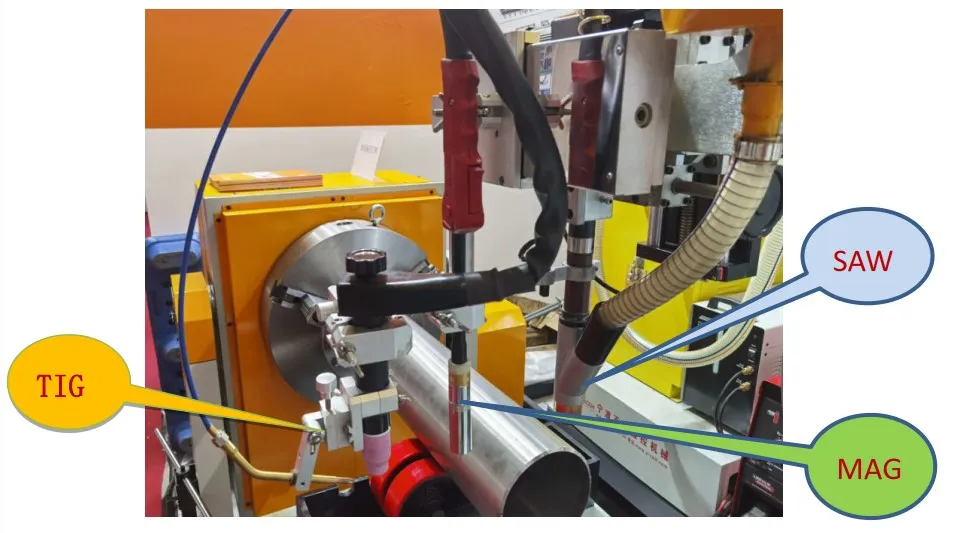

Welding Process Diagram
Product Parameters (PPCW Series)
Model Pipe Diameter Wall Thickness Welding Process Efficiency (DN/day)
PPCW-24 2-24 inch (DN50-600mm) 3-50mm TIG/MAG/SAW CO2: 250-450; SAW: 400-600
PPCW-32 4-32 inch (DN100-800mm) 3-60mm TIG/MAG/SAW CO2: 250-450; SAW: 400-600
PPCW-40 8-40 inch (DN200-800mm) 3-80mm TIG/MAG/SAW CO2: 250-450; SAW: 400-600
PPCW-44 8-44 inch (DN200-1200mm) 3-80mm TIG/MAG/SAW CO2: 250-450; SAW: 400-600
Product Gallery

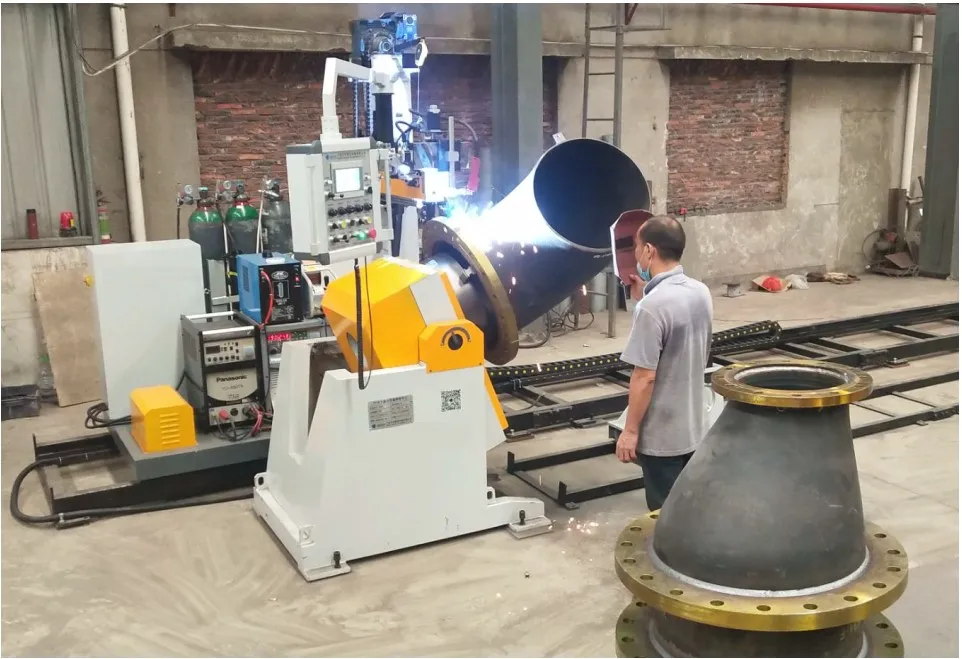

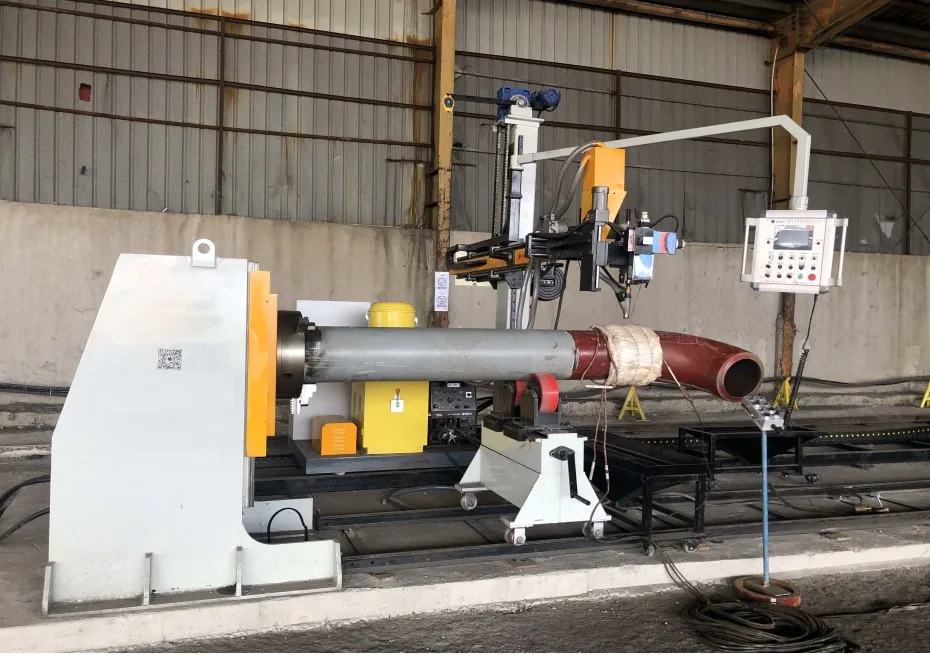

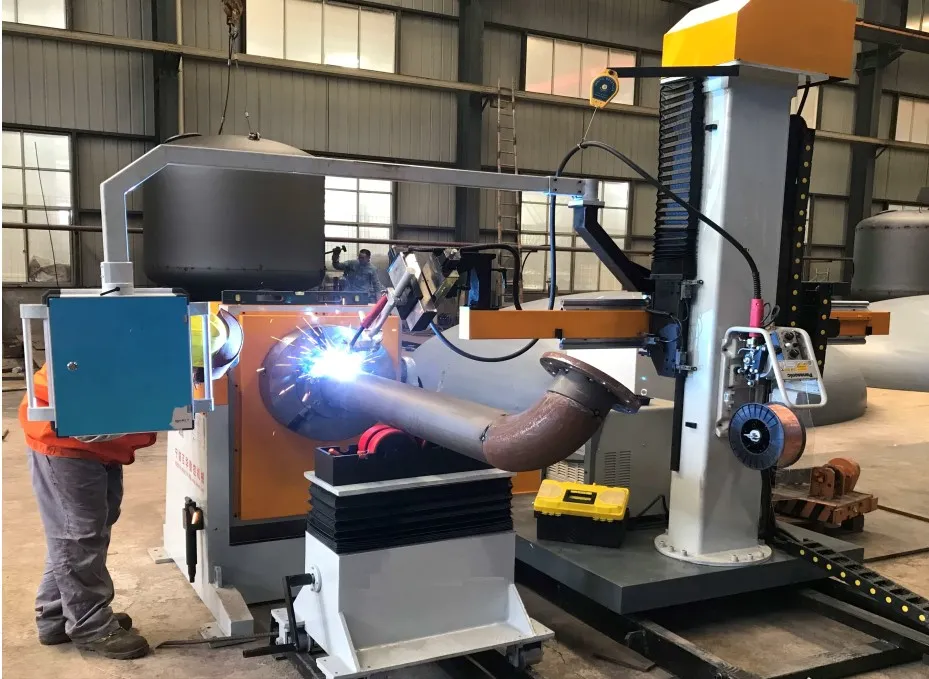

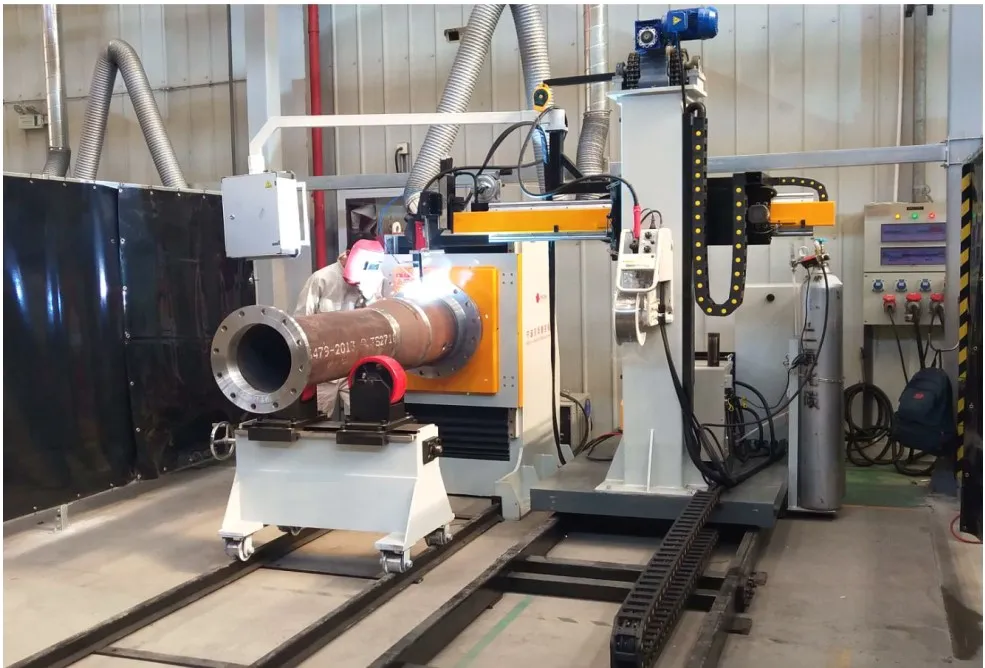

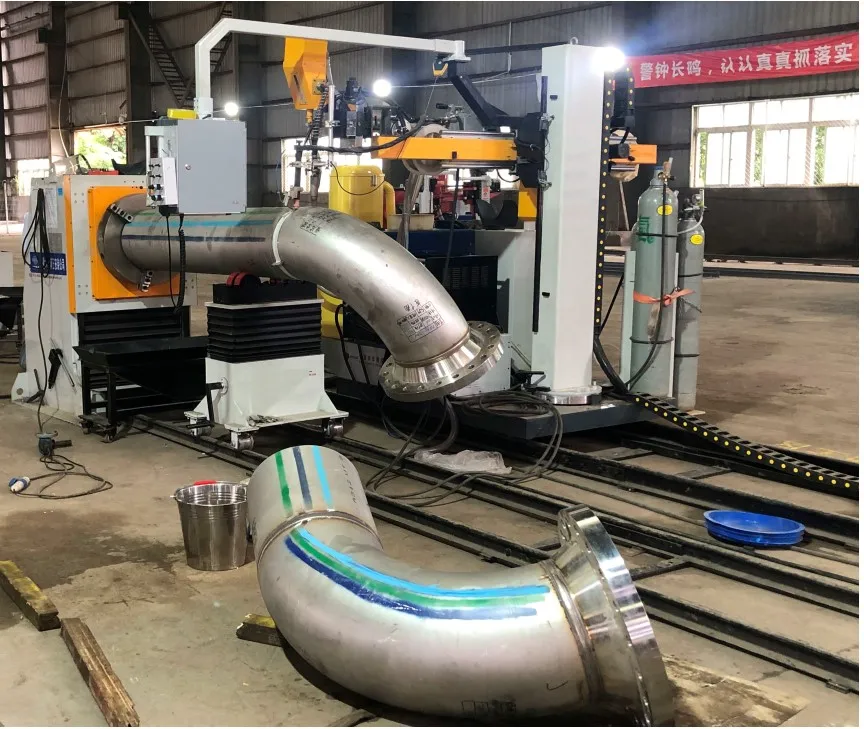

Welding Site 1 Welding Site 2 Welding Site 3 Welding Site 4 Welding Site 5 Welding Site 6
PRESS ROLLER TYPE PIPE WELDING MACHINE

The PPBW series press roller type pipeline automatic welding machine is designed for efficient root pass, filling, and capping using TIG/MAG/SAW processes.

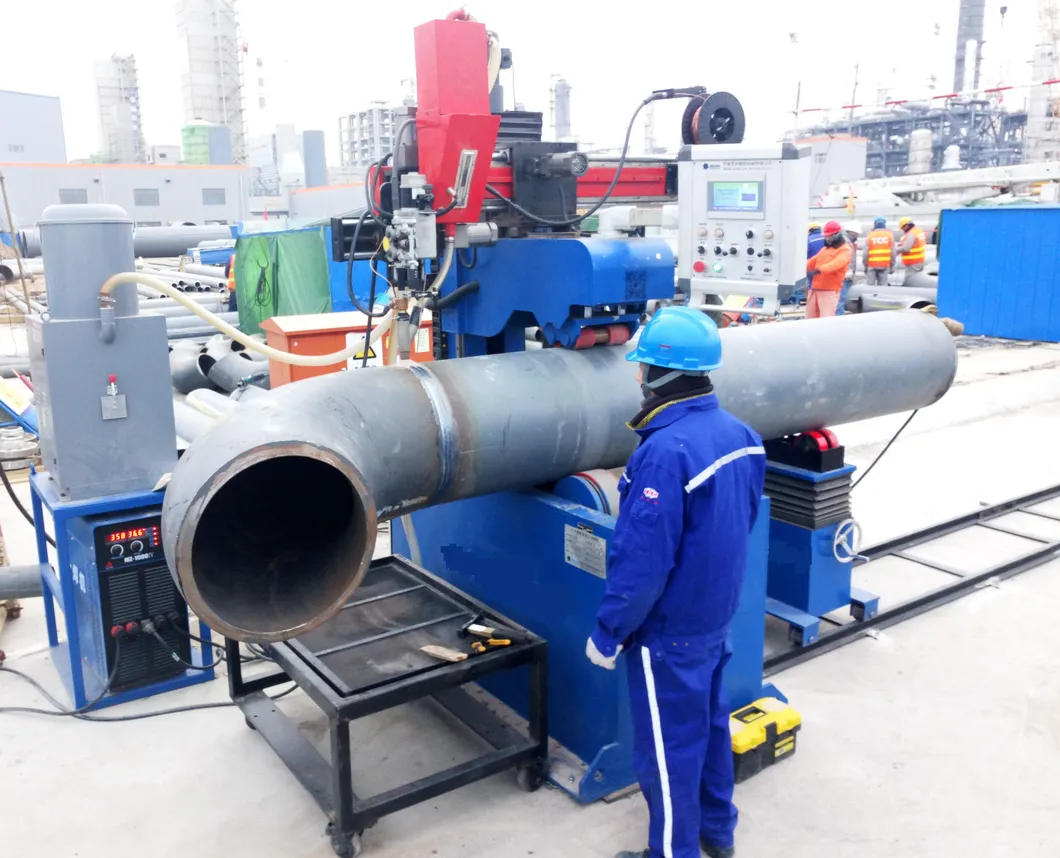

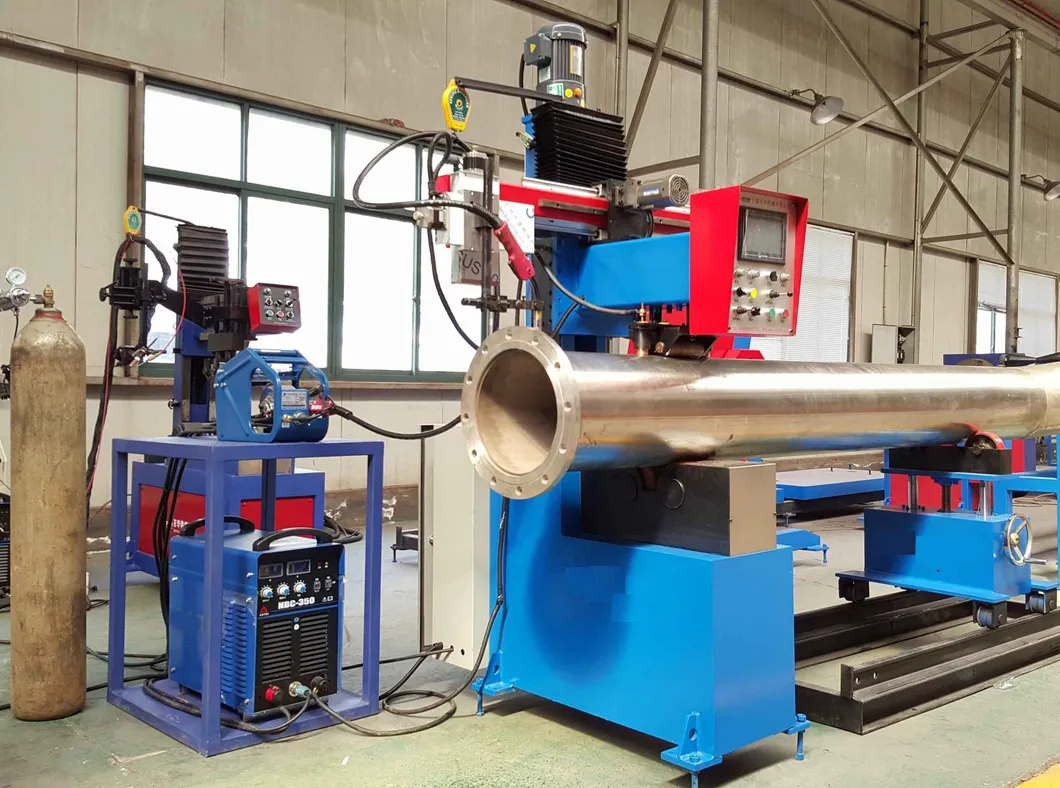

Press Roller Type 1 Press Roller Type 2
Solutions and Benefits
🚀Support for shorter project execution time and fewer man-hour costs.
📋Full technical documentation and advice for construction procedures.
⚙️Calculation of suitable hydraulic jack requirements based on tank weight.
🎓On-site training, operation services, and manpower support.
Professional Industrial Service
Frequently Asked Questions
Q1: Which welding processes are compatible with these machines?
The systems support TIG, MAG, and SAW (Submerged Arc Welding) processes to handle root pass, filling, and capping automatically.
Q2: What materials can the automatic welding workstation handle?
It is suitable for carbon steel, alloy steel, stainless steel, low temperature steel, duplex stainless steel, and copper nickel alloys.
Q3: What is the maximum wall thickness the PPCW series can weld?
Depending on the specific model, the PPCW series can handle wall thicknesses ranging from 3mm up to 80mm.
Q4: Does the system include a control interface for operators?
Yes, it features the WSP Expert control system with a PLC and human-machine interface (HMI) for integrated management of welding parameters.
Q5: What types of pipe segments can be welded?
The machine supports various butt welds including pipe to pipe, pipe to flange, pipe to reducer, pipe to tee, and pipe to elbow.
Q6: Is there a system for flux recovery in SAW welding?
Yes, it includes an automatic welding special flux transport and recovery all-in-one machine with a mobile flux recovery car.
