MIG TIG Welder Automatic Robotic Welding Workstation

Customization:	Available
Accuracy:	�0.1 mm
Application:	Construction Industry, Metal Fabrication Industry, Shipbuilding Industry, Welding

Basic Information

Model NO.

Cantilever Robot Welding Workstation

Control Mode

Continuous Path Control

Drive Mode

Electric

Type

TIG Welding Robot

Welding Speed

10 m/min

Robot Model

Mr12-2010

Control System

Teaching-Free Welding System

Vision System

Large Viewing Distance Seam Finder

Rail Length

12m (Customizable)

Application

Steel Structure Secondary Processing

Certification

ISO, CE

Production Capacity

50 sets/Month

Product Description

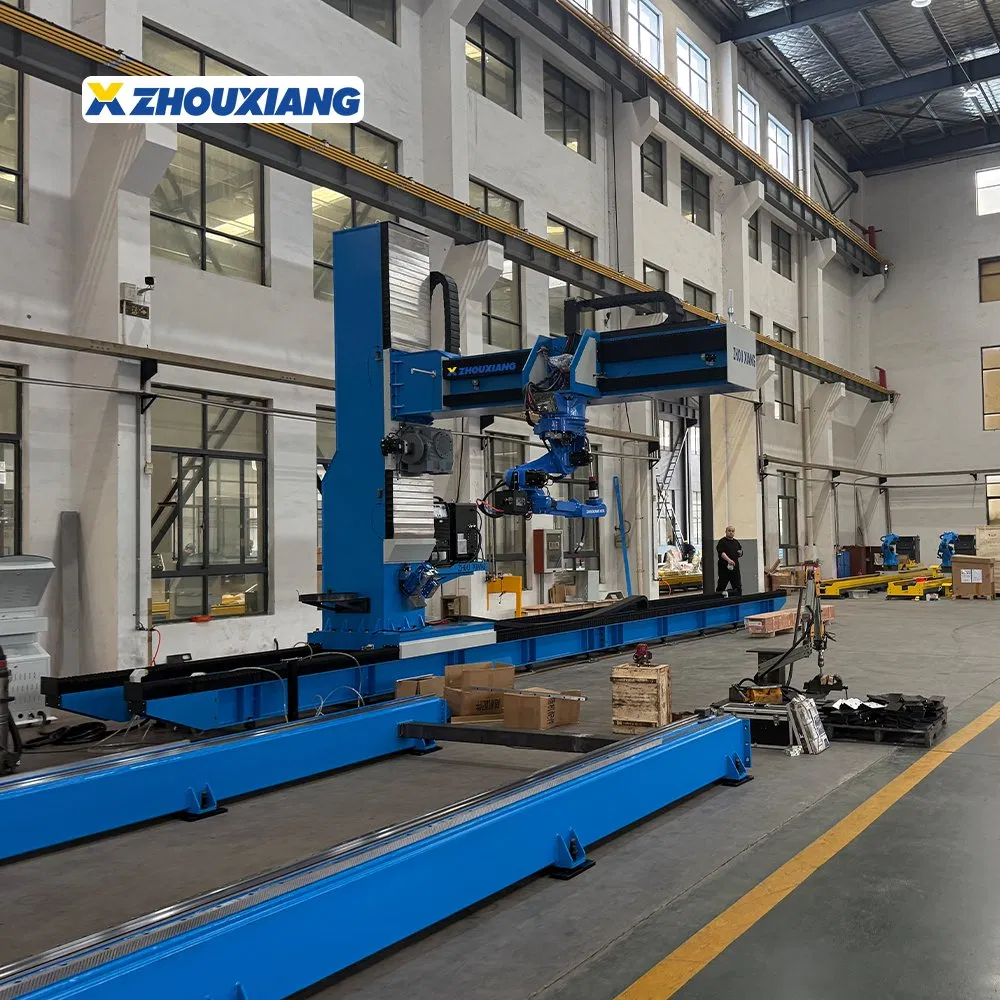

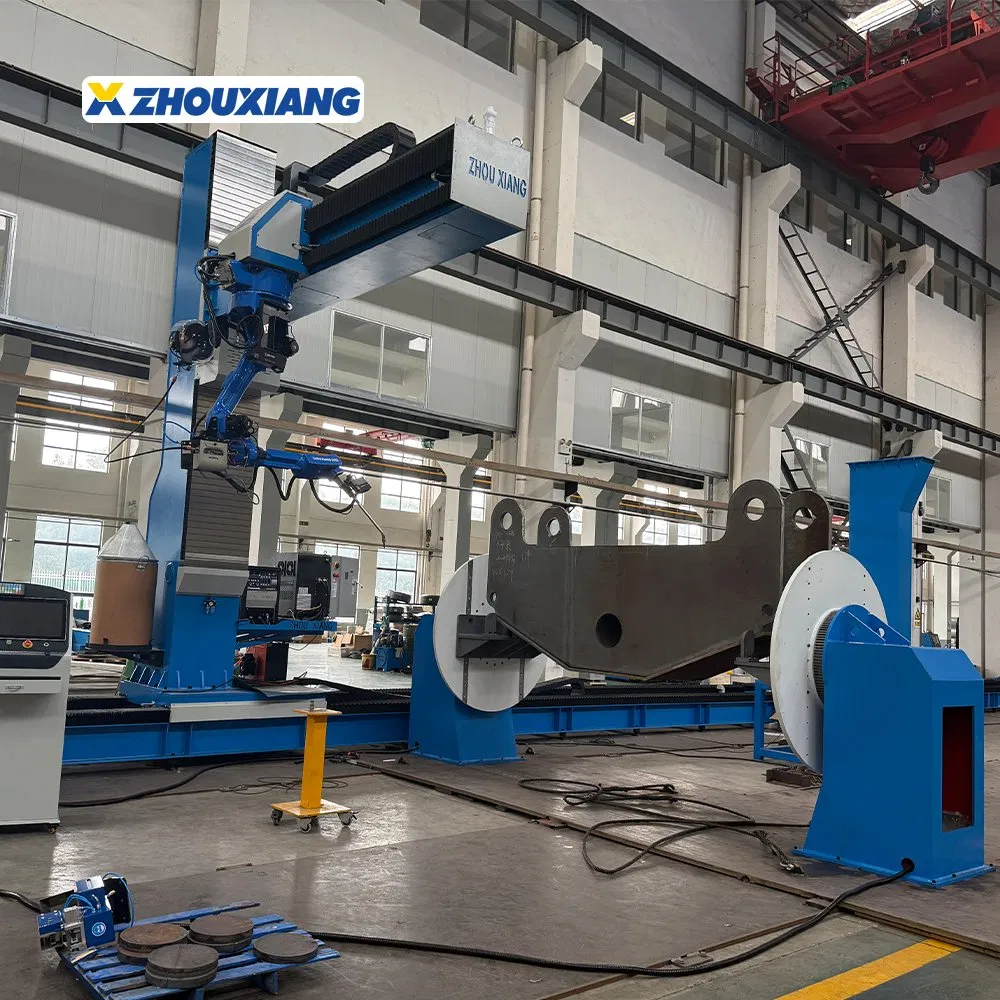

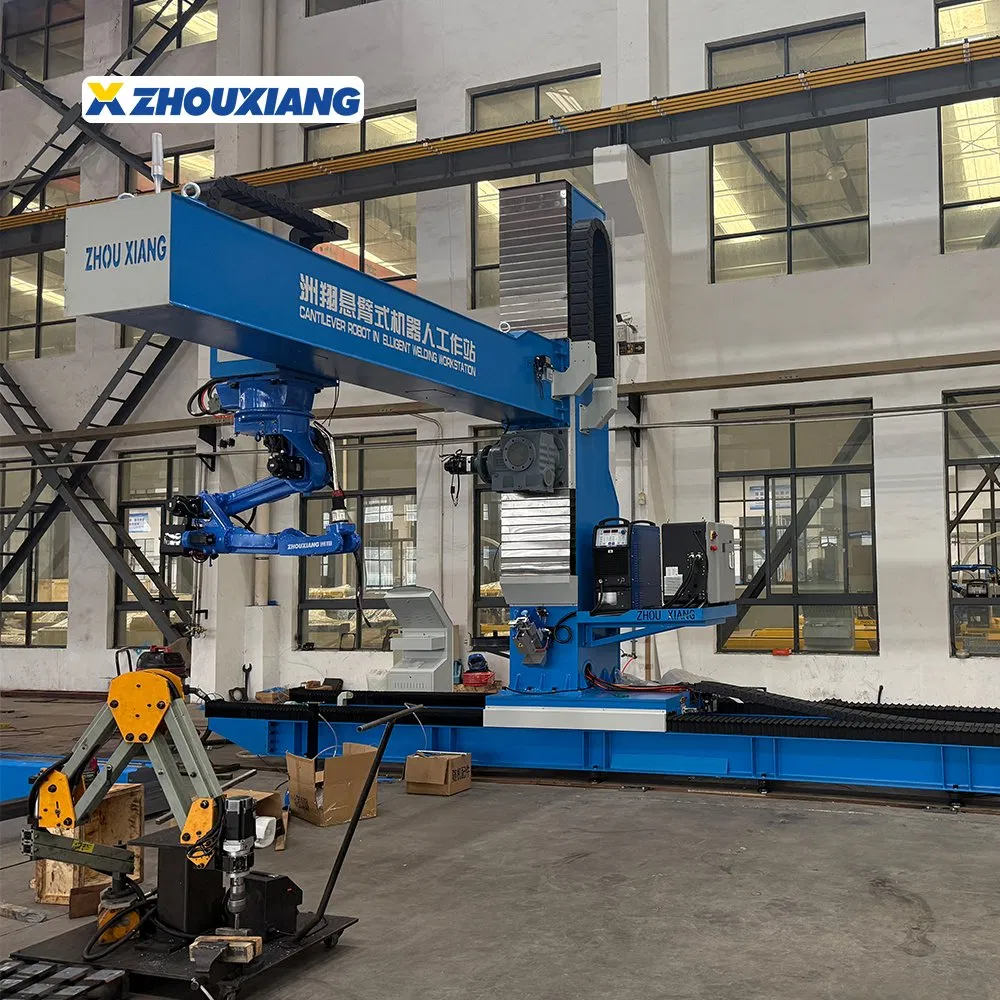

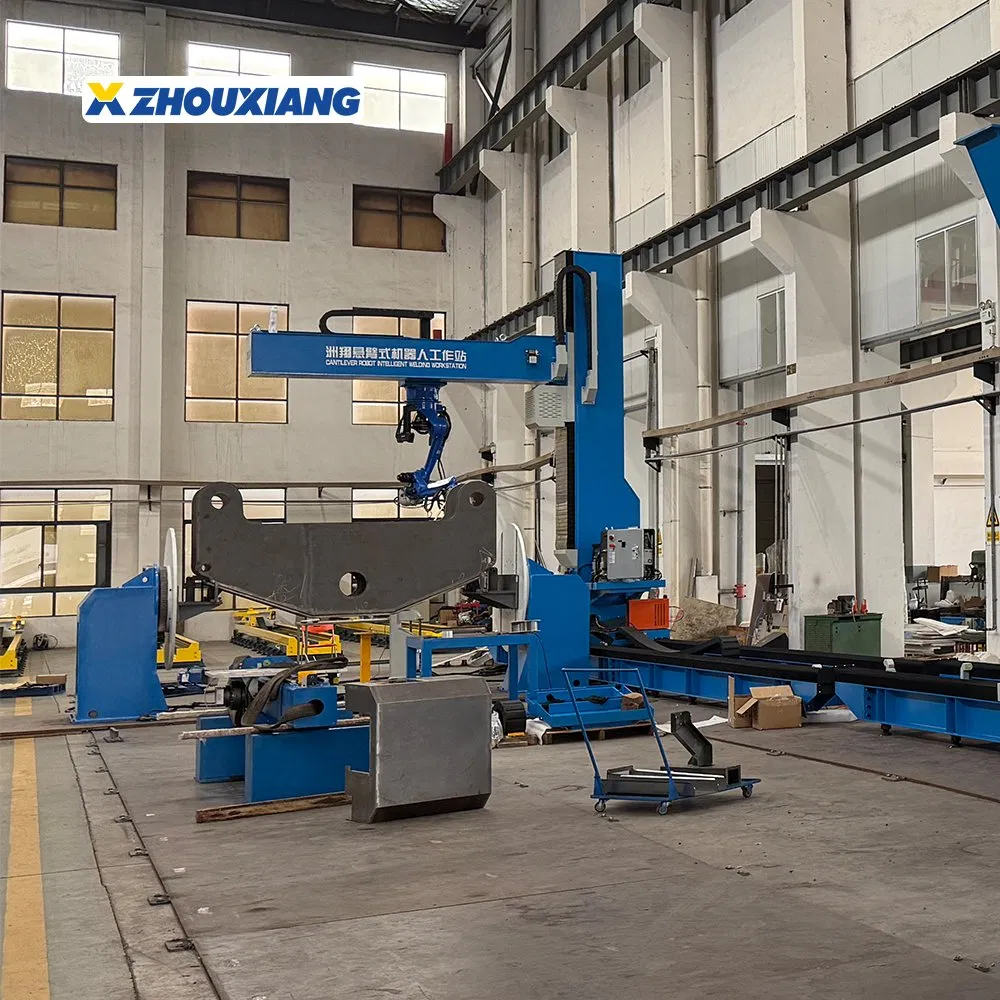

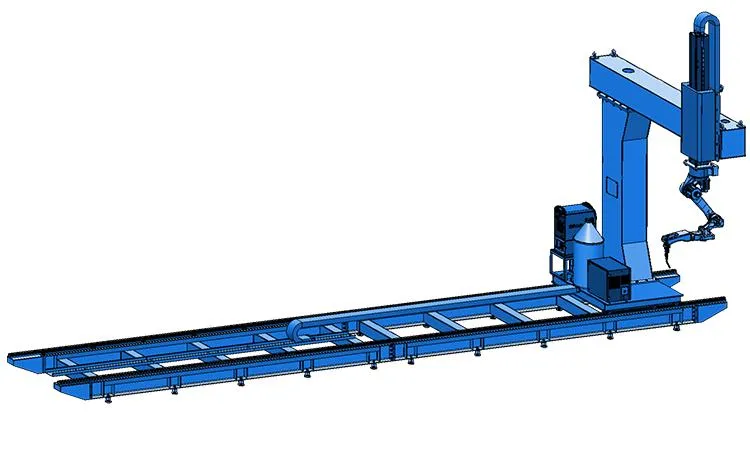

The cantilever robot intelligent welding workstation is equipped with a teaching-free welding system and a wide-angle weld tracker. It can directly import 3D model files from Tekla, SOLIDWORKS, or UG, automatically match welding process parameters, identify the accurate position of the weld, and generate the optimal welding process.

⚙️

Core Advantages:

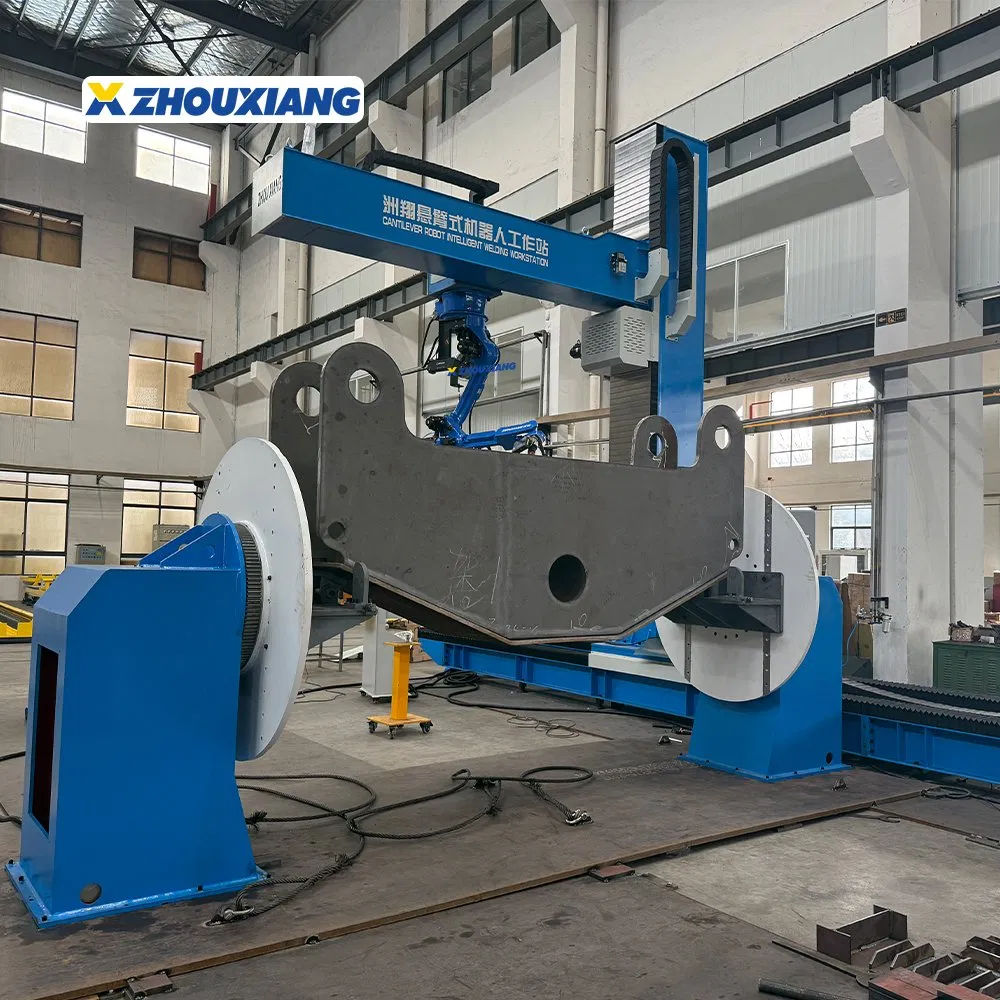

Mainly used for welding H-shaped steel reinforced plates, column base plates, and corbels. The cantilever design allows for batch loading of workpieces, significantly saving lifting and preparation time.

Product Parameters

Specification	Details
Model	MR12-2010
Welder Brand	Aotai/Megmeet
Welding Gun	Water-cooled extended welding gun
Vision System	Large viewing distance seam finder
Operating Range (7 axis)	10m × 1.3m × 0.4m
Operating Range (8 axis)	10m × 1.3m × 1.2m
Efficiency	0.3-0.5 m/min
Total Power	Robot 10-13KVA + Welder 31KVA

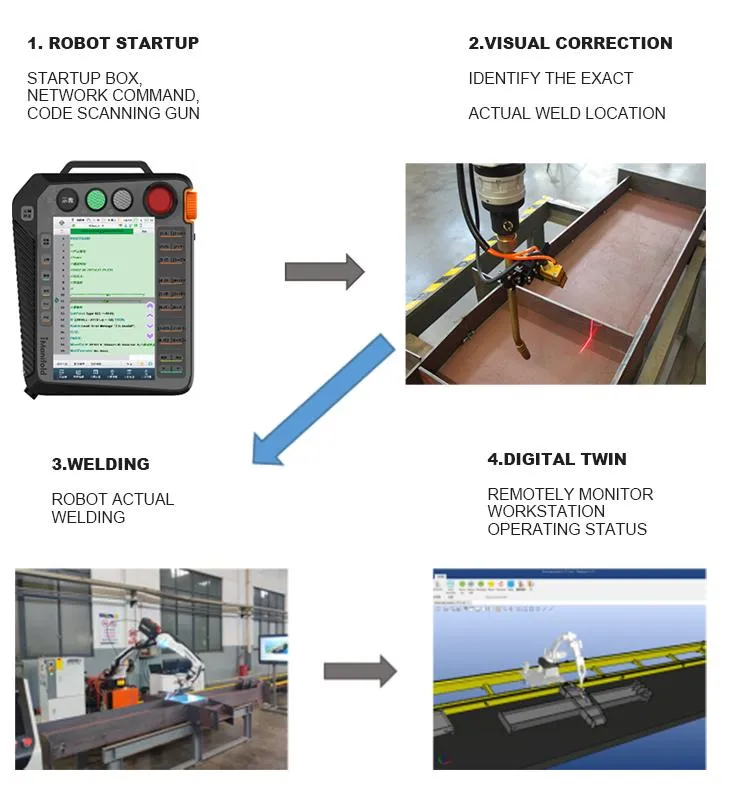

Operation & Workflow

Intelligent Hardware

🔍

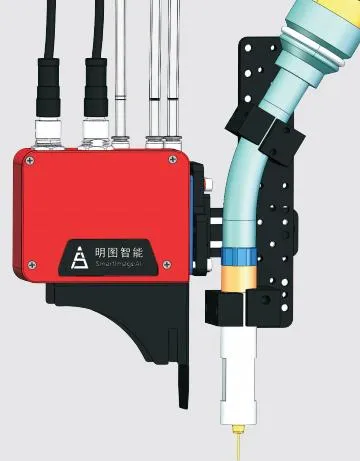

Laser Tracker

An intelligent line scanning welding seam sensor that obtains contour information via laser. It guides the robot automatically without the need for an external computer, reducing system costs and identifying welds accurately despite arc light or spatter.

🧼

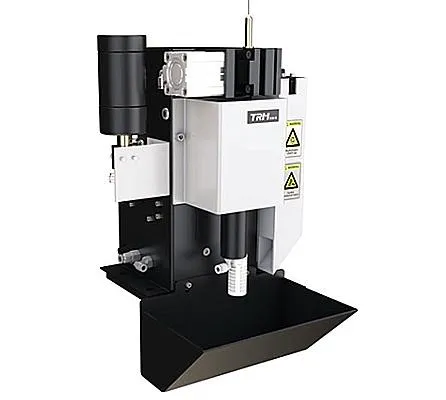

Gun Clearing System

Automatically cleans welding slag, cuts wires, and protects the nozzle. This extends the service life of the welding gun, reduces consumable costs, and maintains high welding quality without manual intervention.

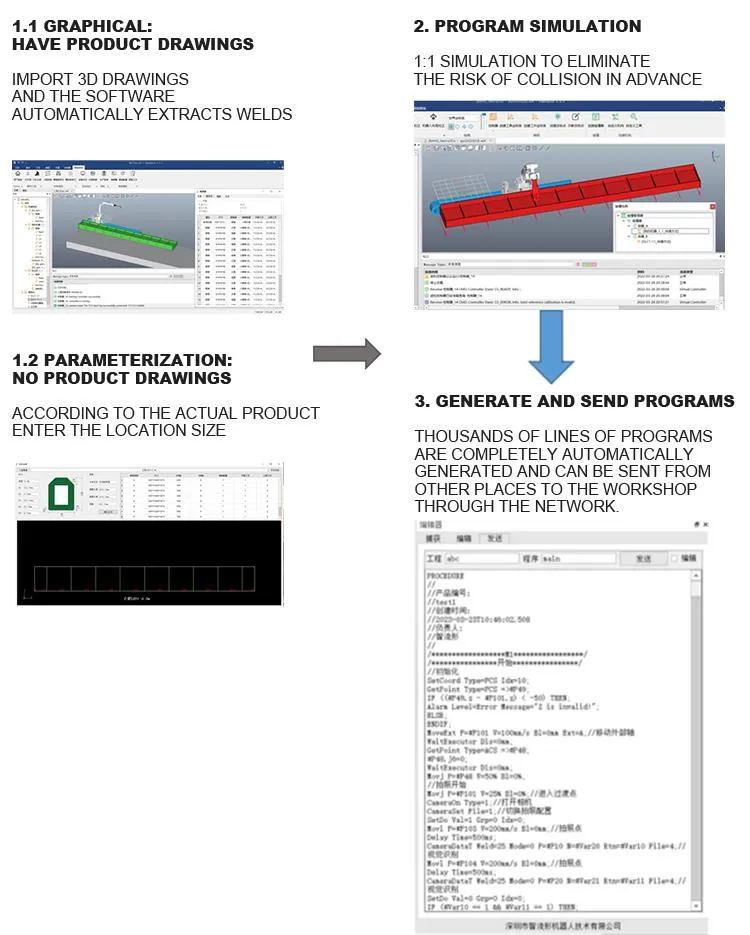

Welding Software Features

Our software automatically extracts welds from drawings, significantly reducing manual workload. Features include:

Supports teaching-free operation for sandwich panels, truss beams, and bracket stands.
No weld marking required; target positions are extracted from 3D drawings.
Fully autonomous: zero return, transition, position finding, and counting.

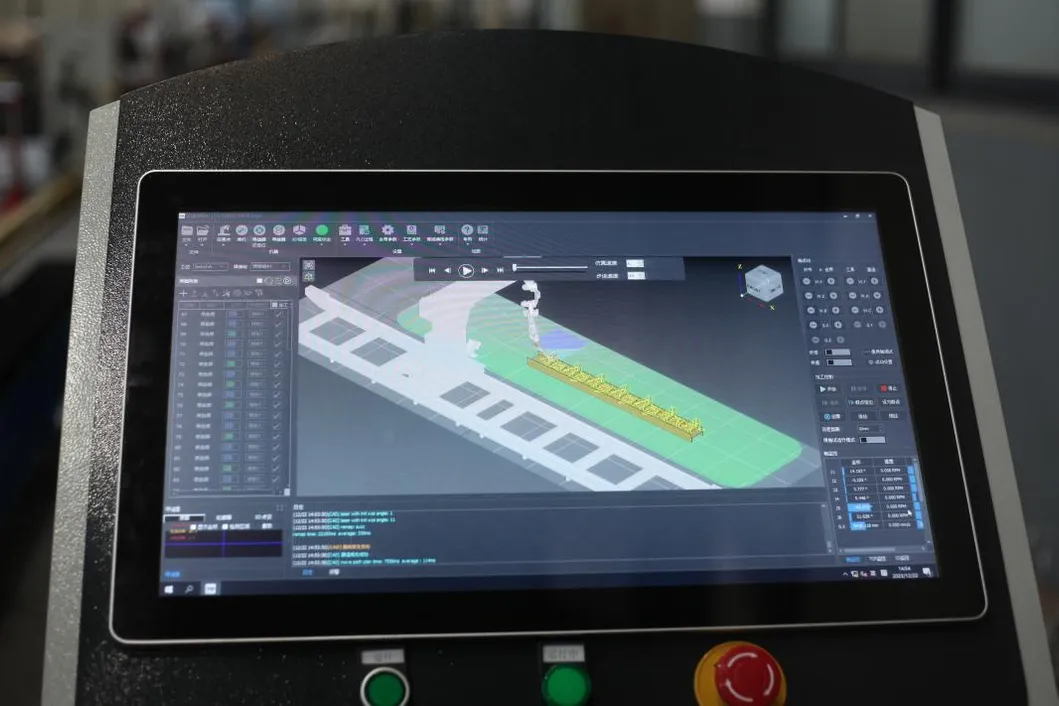

Offline programming with 1:1 simulation to avoid collisions.
Digital twin technology for real-time monitoring of voltage, current, and speed.

Product Gallery & Global Reach

Frequently Asked Questions

Q1: Does the system require professional programming knowledge?

No, the workstation features a "teaching-free" system. It can import 3D models directly (Tekla, Solidworks, etc.) and automatically generate welding paths.

Q2: What are the main applications for the cantilever welding robot?

It is primarily used for the secondary processing of steel structures, specifically for welding H-shaped steel, reinforced plates, column bases, and purlin supports.

Q3: How does the vision system improve welding quality?

The system uses a large viewing distance seam finder to automatically identify the precise location of the weld, ensuring accuracy even if there are slight deviations in workpiece placement.

Q4: Can the rail length be modified for large workpieces?

Yes, the ground rail length is standard at 12m but can be fully customized according to the specific length requirements of your products.

Q5: What is the benefit of the automatic gun cleaning station?

It automatically removes welding slag and cuts wire during the process. This maintains consistent weld quality, prevents contamination, and extends the lifespan of the welding nozzle.

Q6: Is there a way to prevent collisions during automated welding?

Yes, our software includes 1:1 offline simulation and digital twin technology to verify all robot movements and trajectories before the actual production begins.
