CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/Mag
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/Mag
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/Mag
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/Mag
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/Mag
1 / 5
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/Mag
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/Mag
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/Mag
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/Mag
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/Mag

CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/Mag

Customization: Available
Accuracy: �0.1 mm
Application: Aerospace Industry, Automotive Industry, Construction Industry, Metal Fabrication Industry, Shipbuilding Industry
Send Inquiry

Product Description

1

Basic Information

Model NO.
SGWL-CNC-2R
Control Mode
Continuous Path Control
Drive Mode
Mechanical
Type
MIG Welding Robot
Welding Speed
0.5 m/min
Metal Compatibility
Stainless Steel, Carbon Steel, Copper, Aluminum
Welding Type
MIG/MAG Welding
Productivity
300 Pieces/Year
Accuracy
±0.05mm
Protection
IP65
Voltage
220/380V 1/3 Phase
Operation Mode
Teaching, Online, Remote
2

Product Description

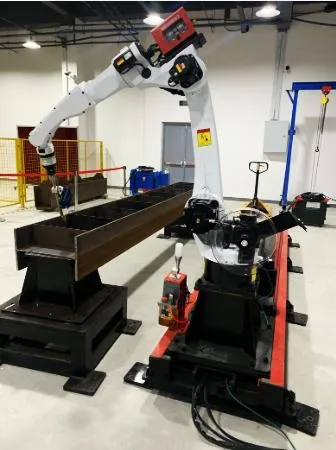

Welding Robot Production Line

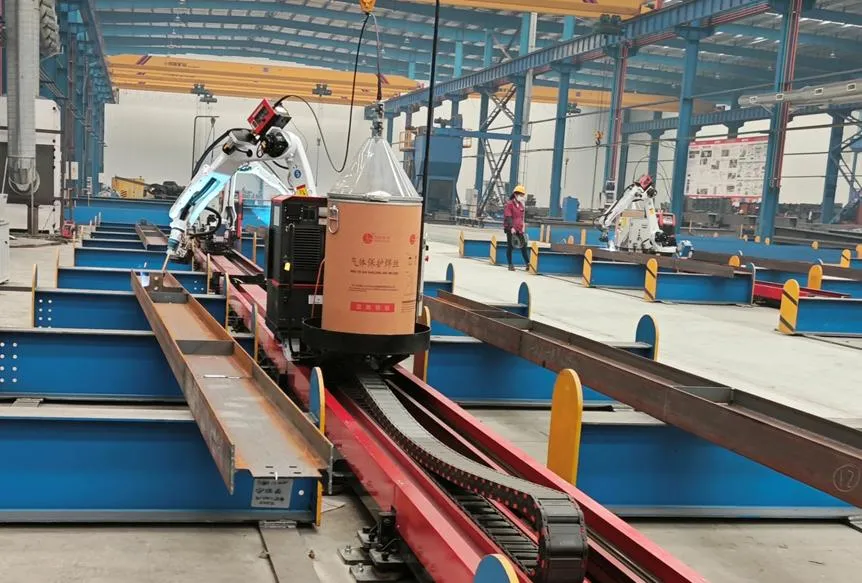

Automatic Workstation
The ground rail welding robot provides a data link from design to automated welding production, enabling fully automatic welding of small batches and multiple varieties of steel structures. It supports seamless welding connections with mainstream 3D design software such as Tekla and Solidworks, and uses workpiece models to automatically calculate welds. Advanced three-dimensional vision technology automatically identifies and locates the starting and ending positions of the weld, completing the robot's trajectory planning without excessive manual intervention.
3

Technical Parameters

Feature Specifications (Model GR-WL500)
7 Axis Welding RobotArm span: 2000mm (customizable)
Vision System3D Camera with high/low viewing distance functions
Walking RailStandard 9M & 12M (customizable)
Positioning Accuracy±0.05mm
Control SystemEtherCAT bus servo; Supports TCP & camera calibration
Wire Diameter0.8mm, 1.0mm, 1.2mm, 1.6mm
Gas Flow15-20L/min
4

Detailed Photos

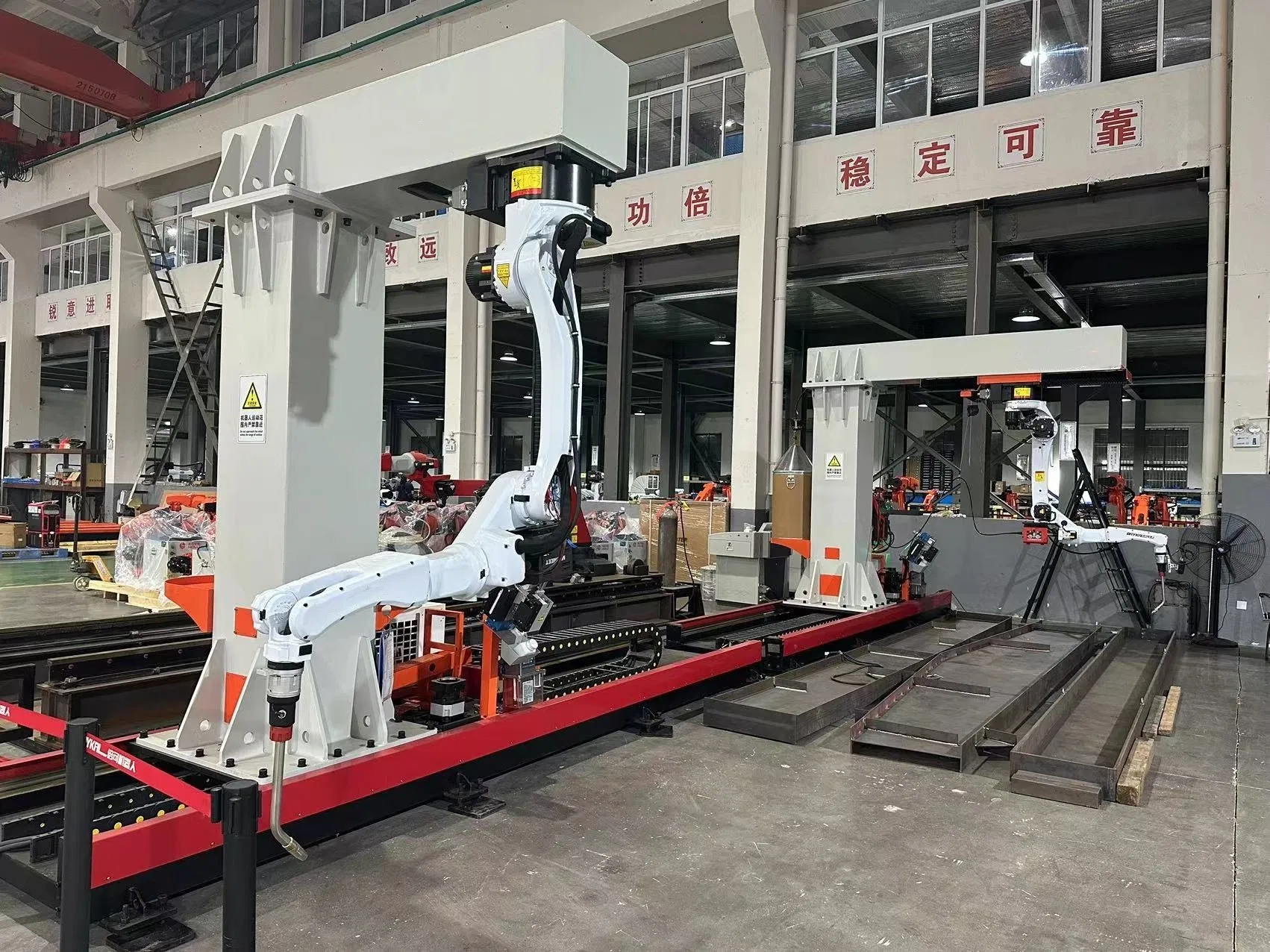

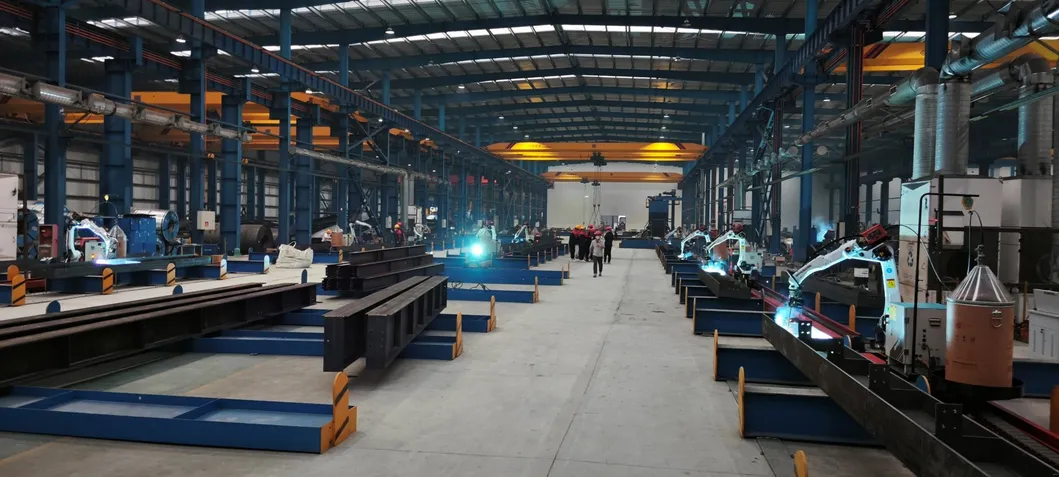

Detailed Welding Robot View
5

Professional Capabilities

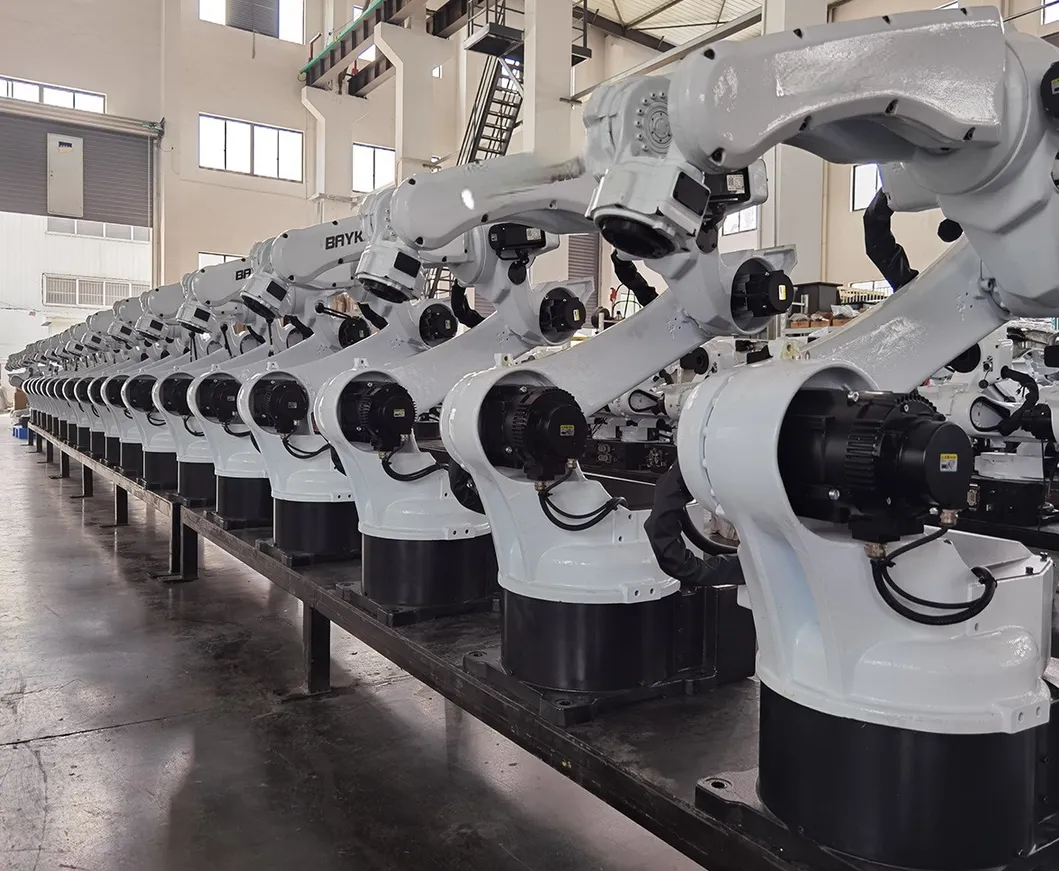

Facility 1

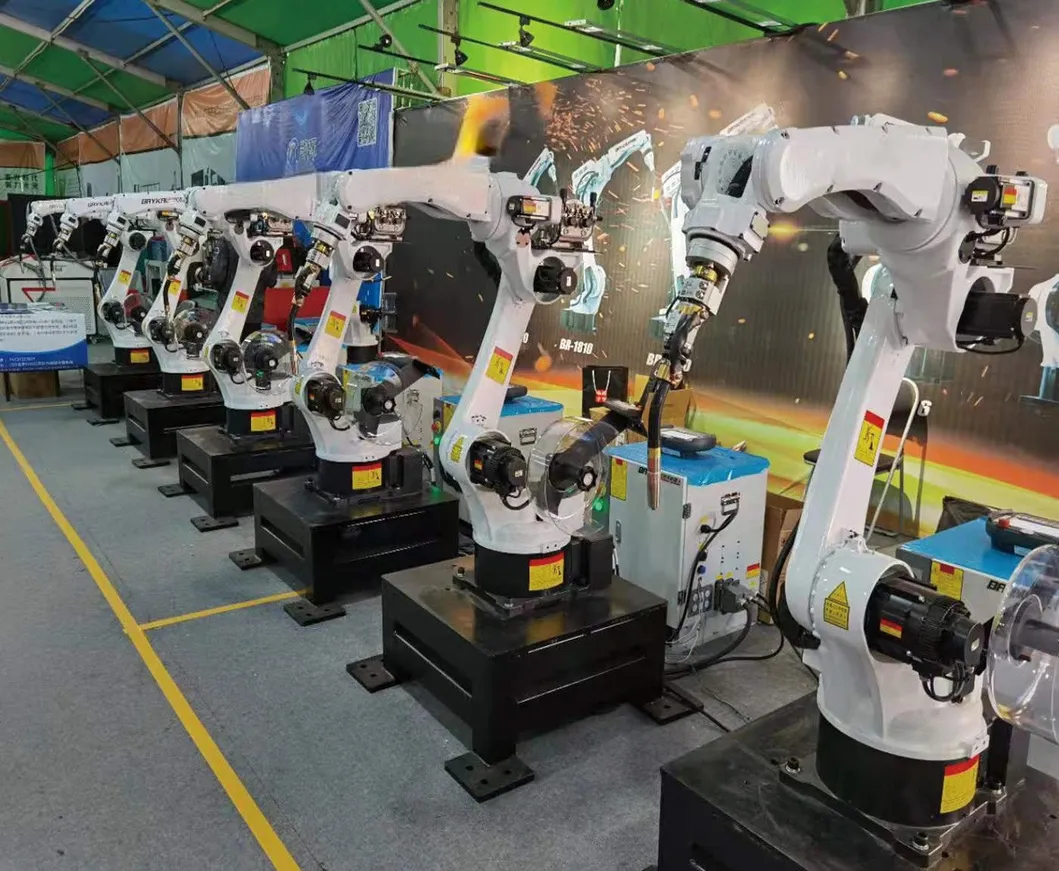

Facility 2

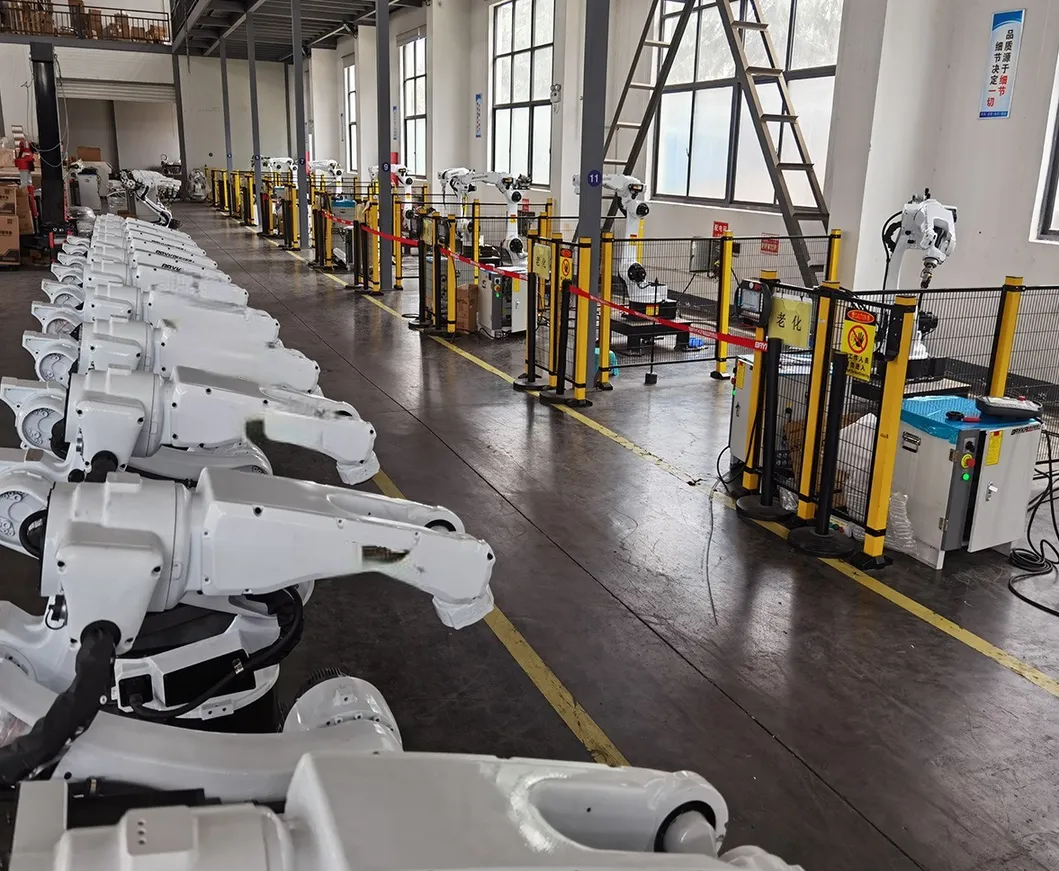

Facility 3

Specializing in the research, development, and manufacturing of metal processing equipment including CNC metal drilling, milling, fiber laser cutting, and robotic welding systems. Solutions are widely utilized in power towers, steel structures, automobiles, and the construction industry. With exports to over 100 countries, the equipment is recognized for stability and advanced technological positioning.

6

Packaging & Shipping

Wooden Case Packing
Shipping Logistics

Machines are packed in heavy-duty wooden boxes or vacuum-sealed. Packaging is designed to be moisture-proof, rust-proof, and shock-proof, ensuring safety for sea and multi-modal transportation.

7

Service & Support

  • Warranty: 1-year free warranty with timely solutions for all customers.
  • Regular Follow-up: Routine equipment maintenance checks and archiving.
  • Online Support: Rapid response to technical inquiries within 1 hour during working hours.
  • Overseas Service: Global installation, training, and maintenance services available.
  • Free Training: Comprehensive English manuals and video guides for easy maintenance.
?

Frequently Asked Questions

What materials can this welding robot process?
The system is designed to weld various metals including Stainless Steel, Carbon Steel, Copper, and Aluminum.
Does the robot require manual programming?
No, it uses advanced 3D vision technology to automatically identify weld positions and plan trajectories, minimizing the need for manual teaching.
Is the robot compatible with 3D design software?
Yes, it supports seamless integration with mainstream software like Tekla and Solidworks for automated weld calculation.
What is the repeatable positioning accuracy?
The robot achieves a high repeatable positioning accuracy of ±0.05mm, ensuring consistent weld quality.
How is the equipment supported after purchase?
We provide a 1-year warranty, lifetime maintenance services, and online technical support with response times within 1 hour.
Can the rail length be customized?
Yes, while 9M and 12M are standard, the walking rail length can be fully customized based on your workshop requirements.
