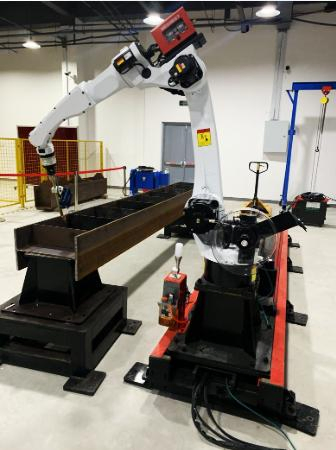

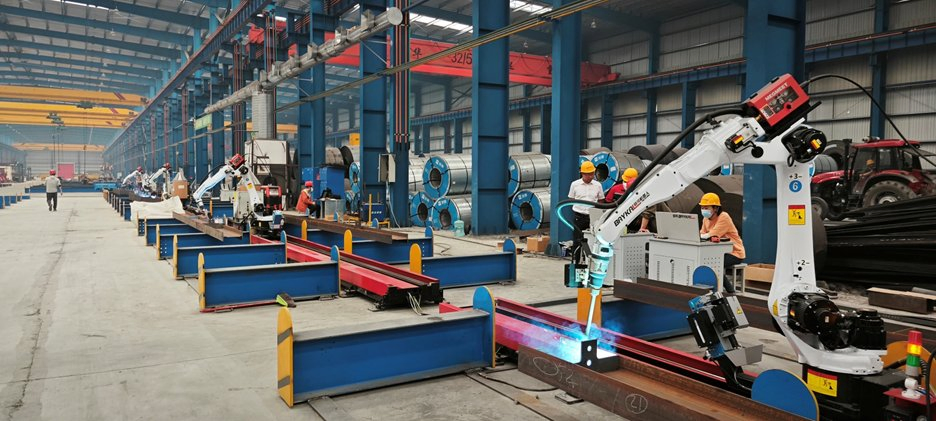

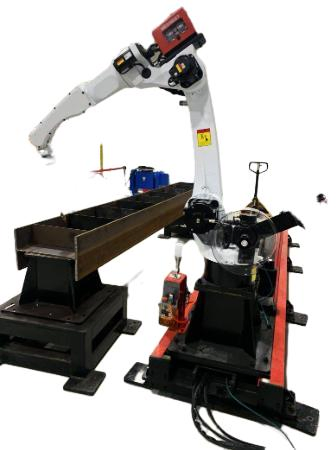

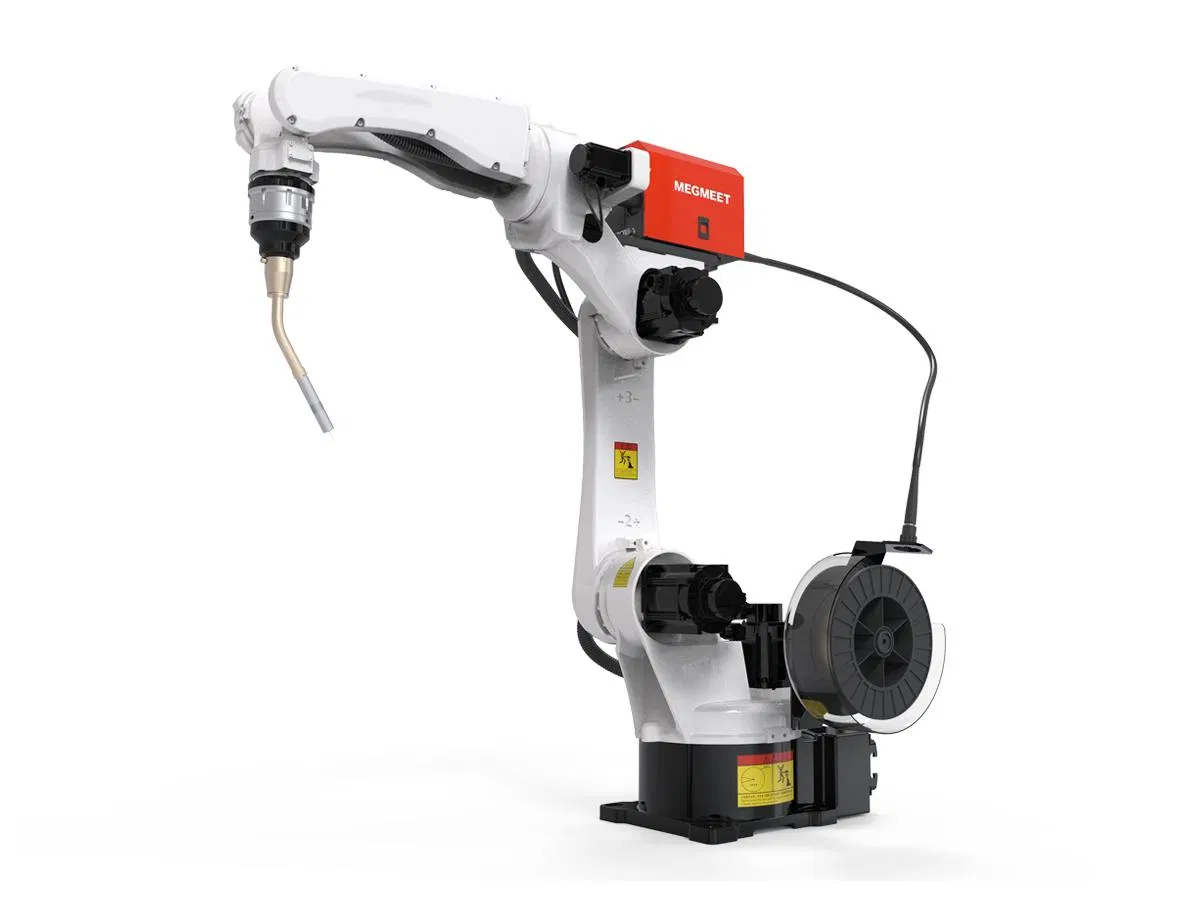

CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/MIG
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/MIG
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/MIG
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/MIG
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/MIG
1 / 5
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/MIG
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/MIG
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/MIG
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/MIG
CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/MIG

CNC Intelligent Fully Automatic Welding Robot Production Line Ground Rail Welding Machine Workstation with Robotic Arm MIG/TIG/MIG

Customization: Available
Accuracy: �0.1 mm
Application: Aerospace Industry, Automotive Industry, Construction Industry, Metal Fabrication Industry, Shipbuilding Industry
Send Inquiry

Product Description

Overview & Basic Info
Model NO. SGWL-CNC-2R Control Mode Continuous Path Control
Drive Mode Mechanical Type MIG Welding Robot
Welding Speed 0.5 m/min Metal Support Stainless Steel, Carbon Steel, Copper, Aluminum
Repeatable Accuracy ±0.05mm Protection Level IP65
Voltage 220/380V 1/3 Phase Productivity 300 Units Per Year
Installation Ground, Suspended, Side Mounted Control Type CNC Fully Automatic
Product Description
Welding Robot Production Line

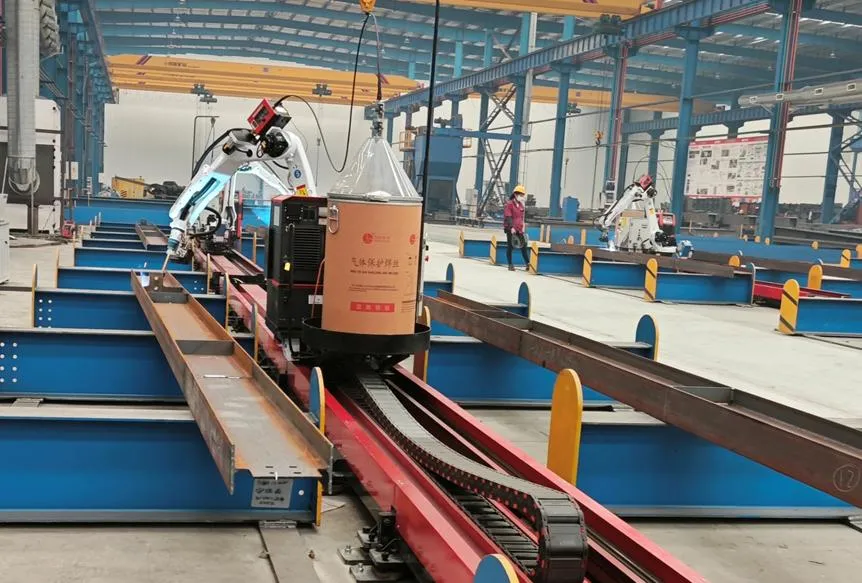

Intelligent Welding Machine

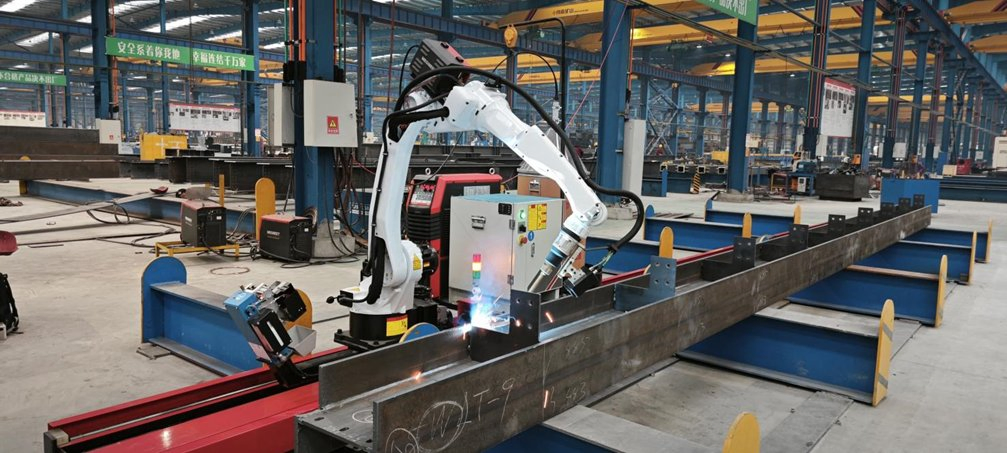

The ground rail welding robot provides a data link from design to automated welding production, enabling fully automatic welding of small batches and multiple varieties of steel structures. It supports seamless welding connections with mainstream 3D design software and uses workpiece models to automatically calculate welds. Utilizing advanced three-dimensional vision technology, it identifies and locates starting/ending positions and wrapping angles, completing trajectory planning without excessive manual intervention.
Technical Parameters
7 Axis Welding Robot Arm span: 2000mm (customizable)
Camera: 3D, With high and low viewing distance functions
Walking rail: Standard length 9M & 12M (customizable)
Welding function: Support dual-machine collaborative welding
Repeatable positioning accuracy: ±0.05mm
Voltage: 3 phase 380V
Control System Support TCP and camera hand-eye automatic calibration
Control servo: EtherCAT bus servo
Operating mode: Teaching, online, remote
Programming: Online teaching, process programming
Welding wire diameter: 0.8mm, 1.0mm, 1.2mm, 1.6mm
Detailed Photos

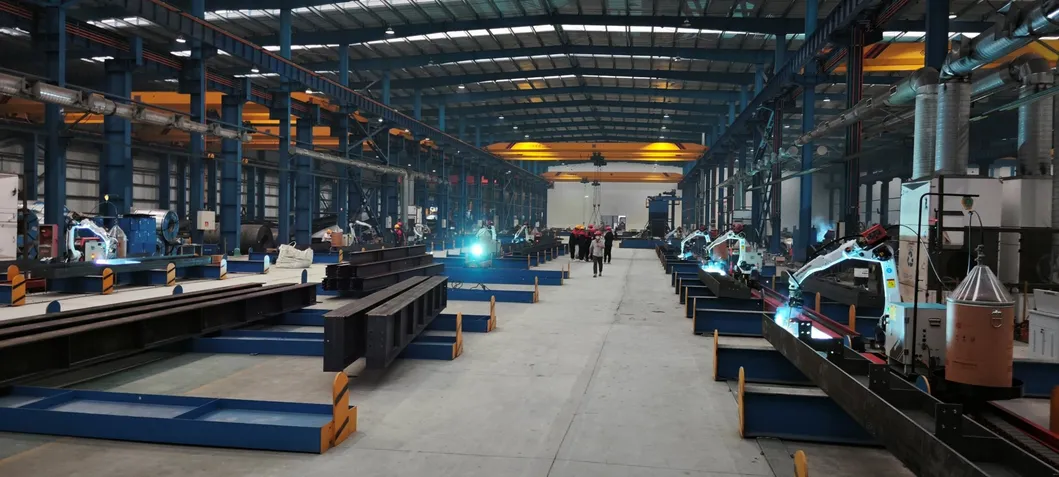

Detailed View

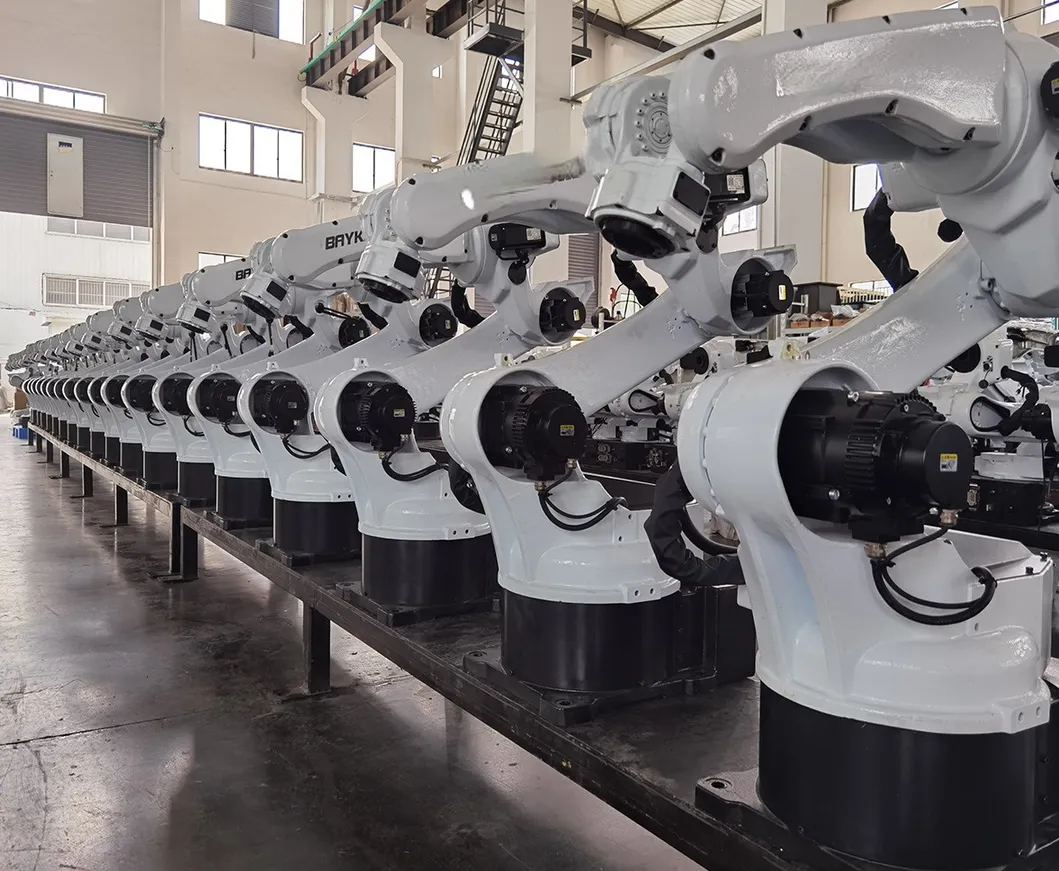

Workstation Component 1

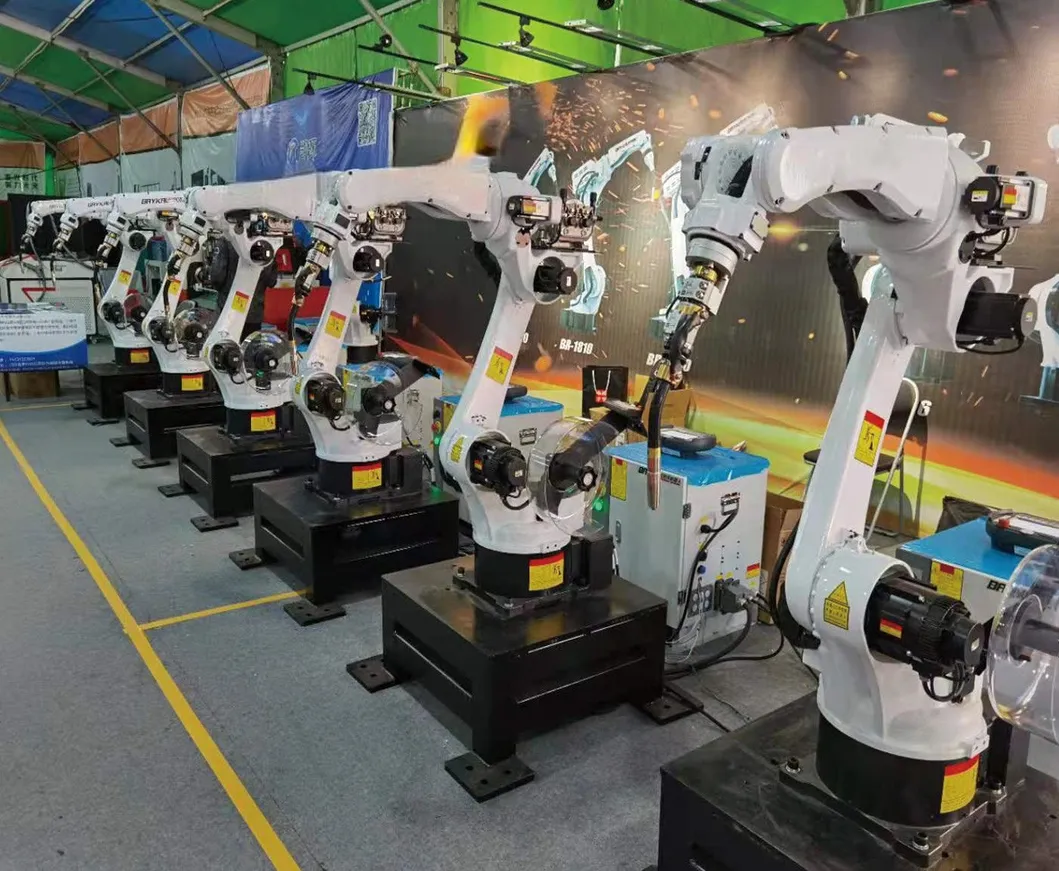

Workstation Component 2

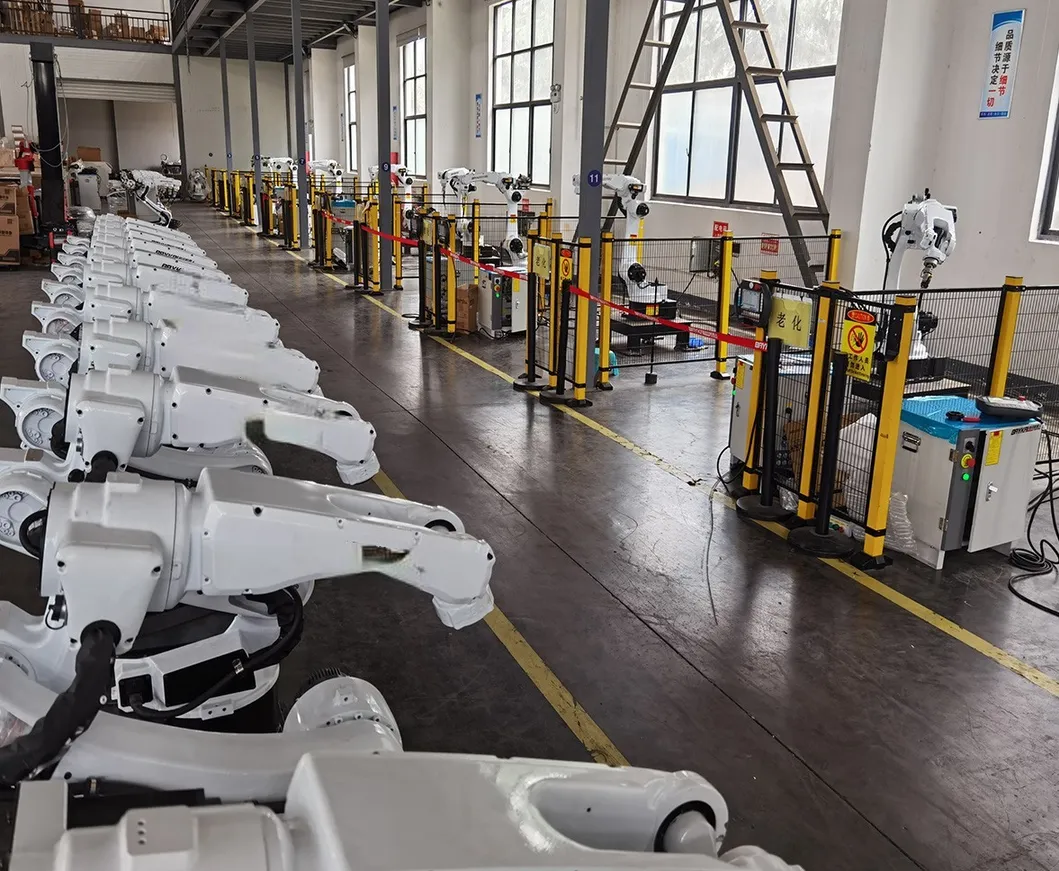

Workstation Component 3
Industry Applications

Our solutions include CNC metal drilling and milling, fiber laser cutting, and laser robots. These systems are primarily used for processing angle steel, metal plates, H-beams, channel steel, and box steel. Key industries served include power towers, transmission towers, telecommunications, steel structures, central air-conditioners, automobiles, and construction.

Packaging & Shipping
Wooden Box Packaging
Shipping Preparation
The machine will be packed in wooden boxes or vacuum packed. Packaging is moisture-proof, rust-proof, corrosion-proof, and shock-proof, suitable for sea transportation and multiple transit modes.
After Sales & Service
Service 1
Service 2
Service 3
🛡️ Warranty Support

We provide a 1-year free warranty and timely technical solutions for all customers.

📞 Online Services

Response to inquiries within 1 hour during working hours via 7*24H online support.

🛠️ Global Training

Overseas installation, maintenance, and comprehensive training are available.

Frequently Asked Questions
What materials can this welding robot process?
The system is designed to weld various metals including Stainless Steel, Carbon Steel, Copper, and Aluminum.
Is the robot difficult to program for new workpieces?
No, it features 3D vision technology that automatically identifies weld positions. It supports seamless connection with 3D design software to calculate trajectories automatically.
What is the accuracy level of the welding arm?
The robot offers a repeatable positioning accuracy of ±0.05mm, ensuring high-quality results for industrial applications.
Can the ground rail length be adjusted for different factory sizes?
Yes, while standard lengths are 9M and 12M, the walking rail is fully customizable to suit your production line requirements.
What type of maintenance support do you offer?
We provide lifetime maintenance services, regular equipment archiving, and a 1-year comprehensive warranty on the system.
Does the system support dual-machine collaboration?
Yes, the 7-axis control system supports dual-machine collaborative welding functions for complex production tasks.
