| Model NO. | Cantilever Robot Welding Workstation |
| Control Mode | Continuous Path Control |
| Drive Mode | Electric |
| Type | Arc Welding Robot |
| Welding Speed | 5 m/min |
| Robot | Mr12-2010 |
| Welder | Aotai/Megmeet |
| Welding Gun | Trm Water-Cooled Extended Welding Gun |
| Control System | Friendess Teaching-Free Welding System |
| Vision System | Friendess Large Viewing Distance Sea M Finder |
| Rail | 12m (Length Can Be Customized) |
| Application Scenario | Secondary Processing for Steel Structure |
| Certification | ISO, CE |
| Warranty | 1 Year |
| HS Code | 8468800000 |
| Production Capacity | 50 sets/Month |

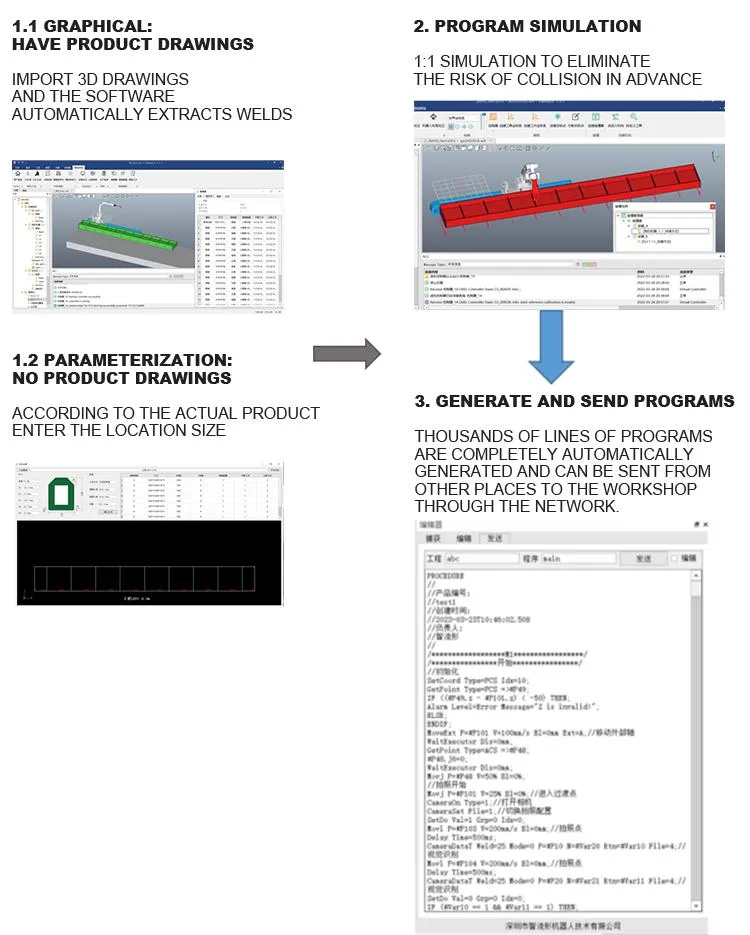

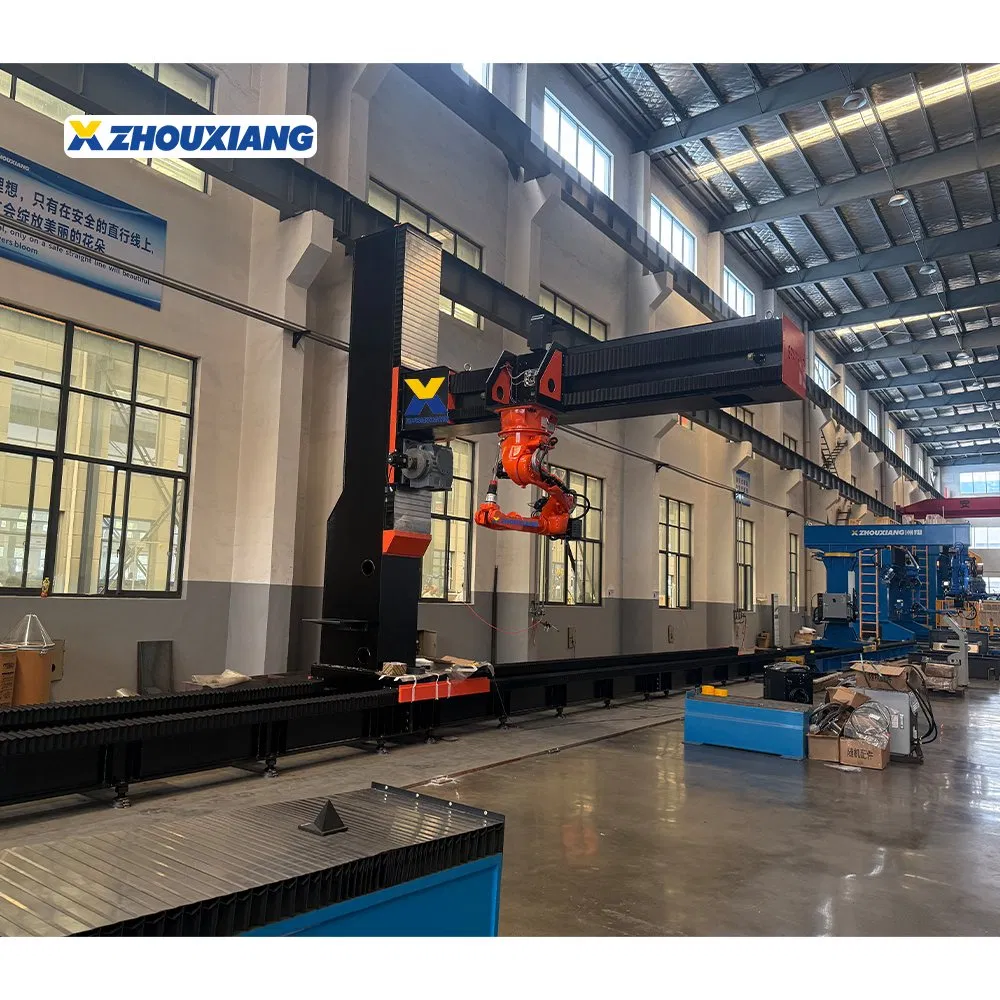

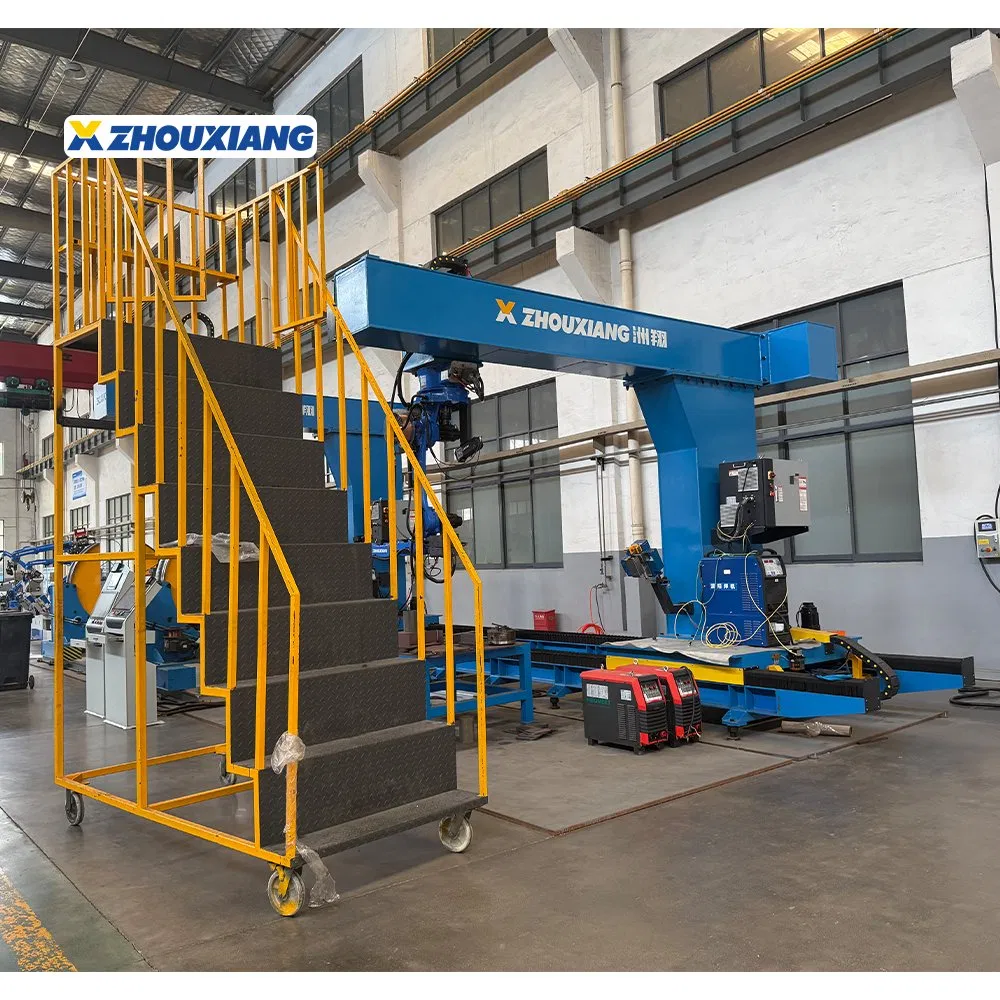

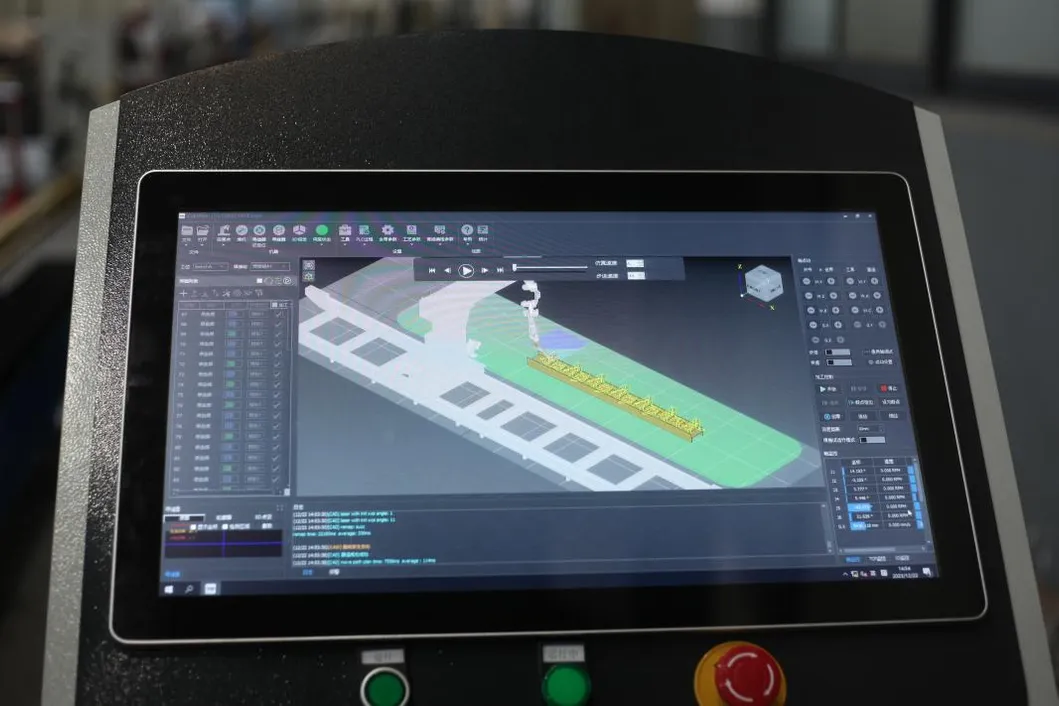

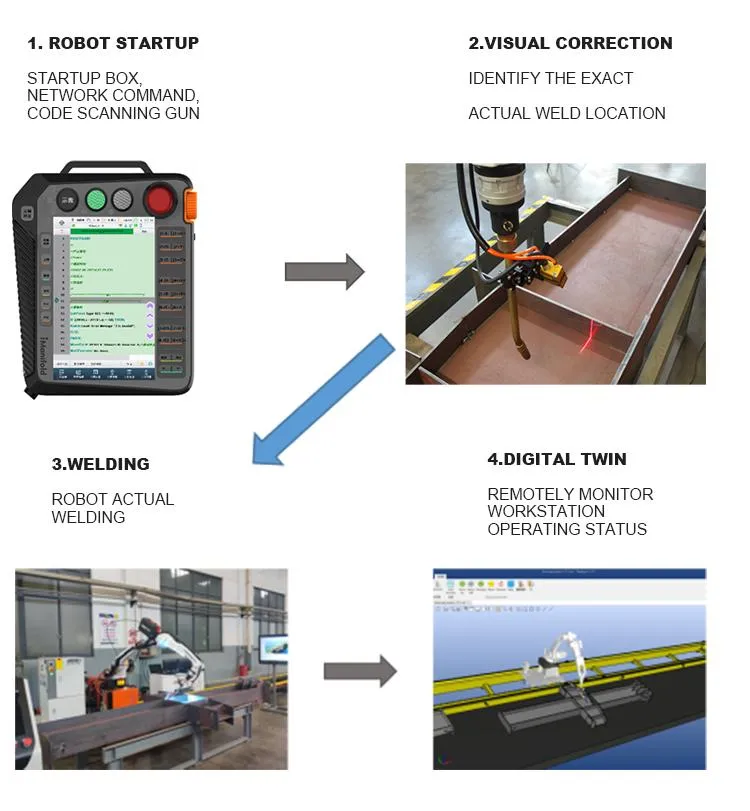

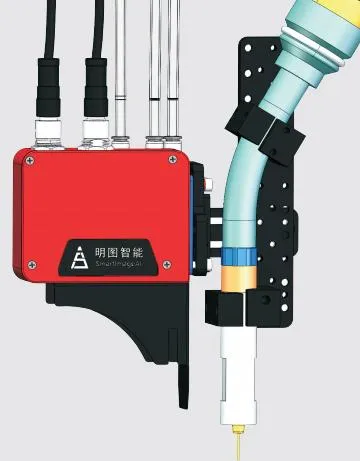

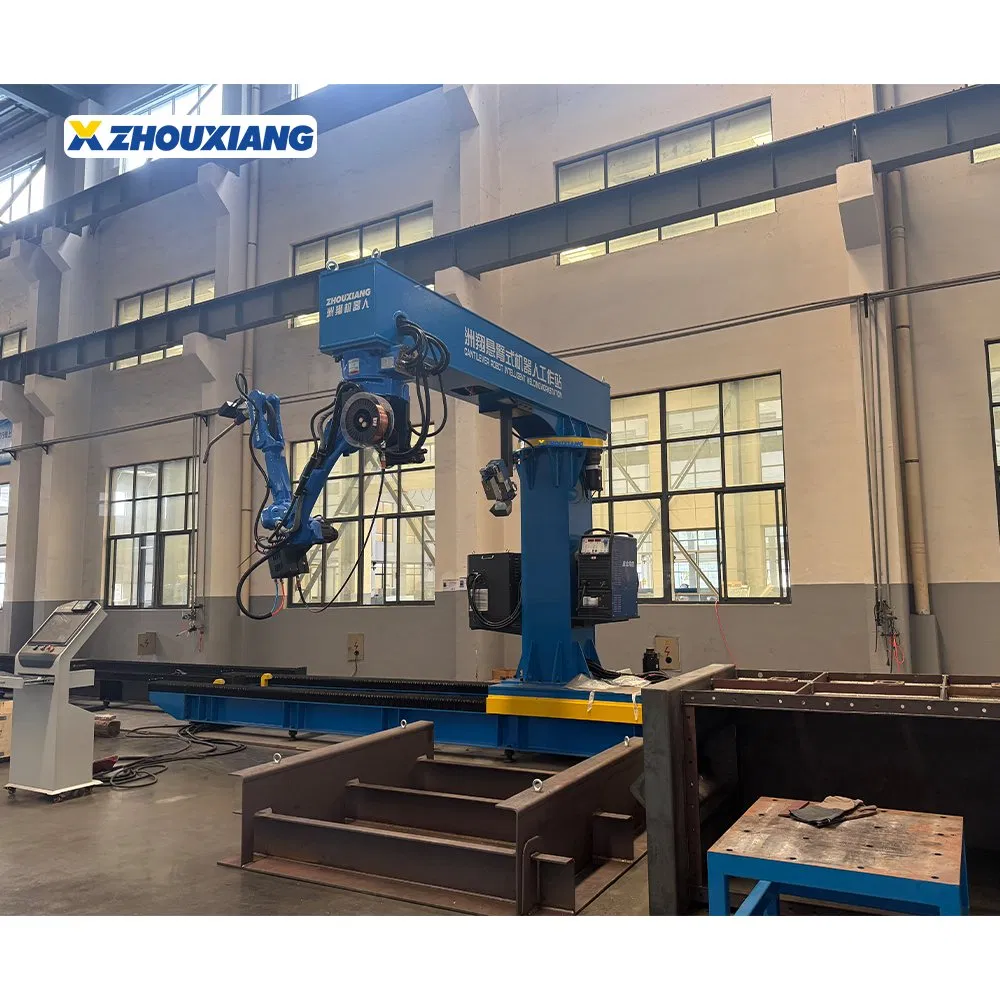

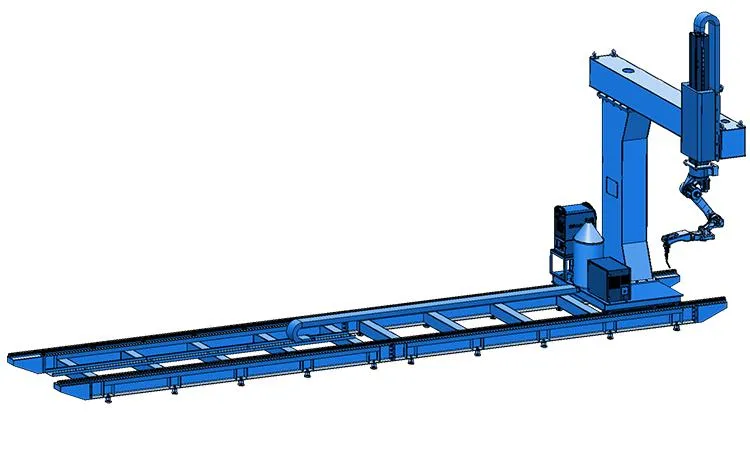

The cantilever robot intelligent welding workstation is equipped with the teaching-free welding system and a wide-angle weld tracker. It can directly import 3D model files from Tekla, SOLIDWORKS, or UG, matching welding process parameters automatically. The system identifies the accurate position of the weld and generates the optimal welding path.

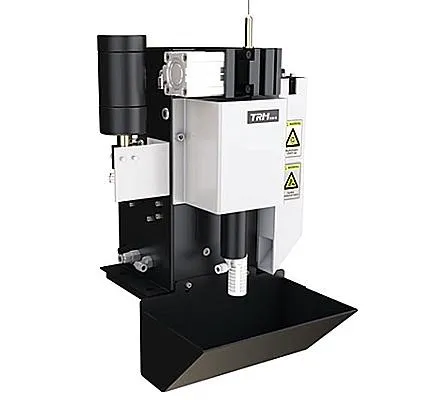

The robot includes an automatic gun washing device, and the track length is customizable to accommodate various workpiece sizes. It is primarily used for welding H-shaped steel reinforced plates, column base plates, purlin support plates, and corbels.
| Robot Model | MR12-2010 |
| Welder Type | Aotai/Megmeet |
| Vision System | Friendess large viewing distance seam finder |
| Machine Spec (7 axis) | ZX-XRYH100 |
| Machine Spec (8 axis) | ZX-XRYHSW100 |
| Total Power (7 axis) | Robot 10KVA + Welder 31KVA |
| Total Power (8 axis) | Robot 13KVA + Welder 31KVA |
| Max Operating Range | 10m × 1.3m × 1.2m (12m ground rail) |
| Efficiency | 0.3-0.5m/min (Process dependent) |

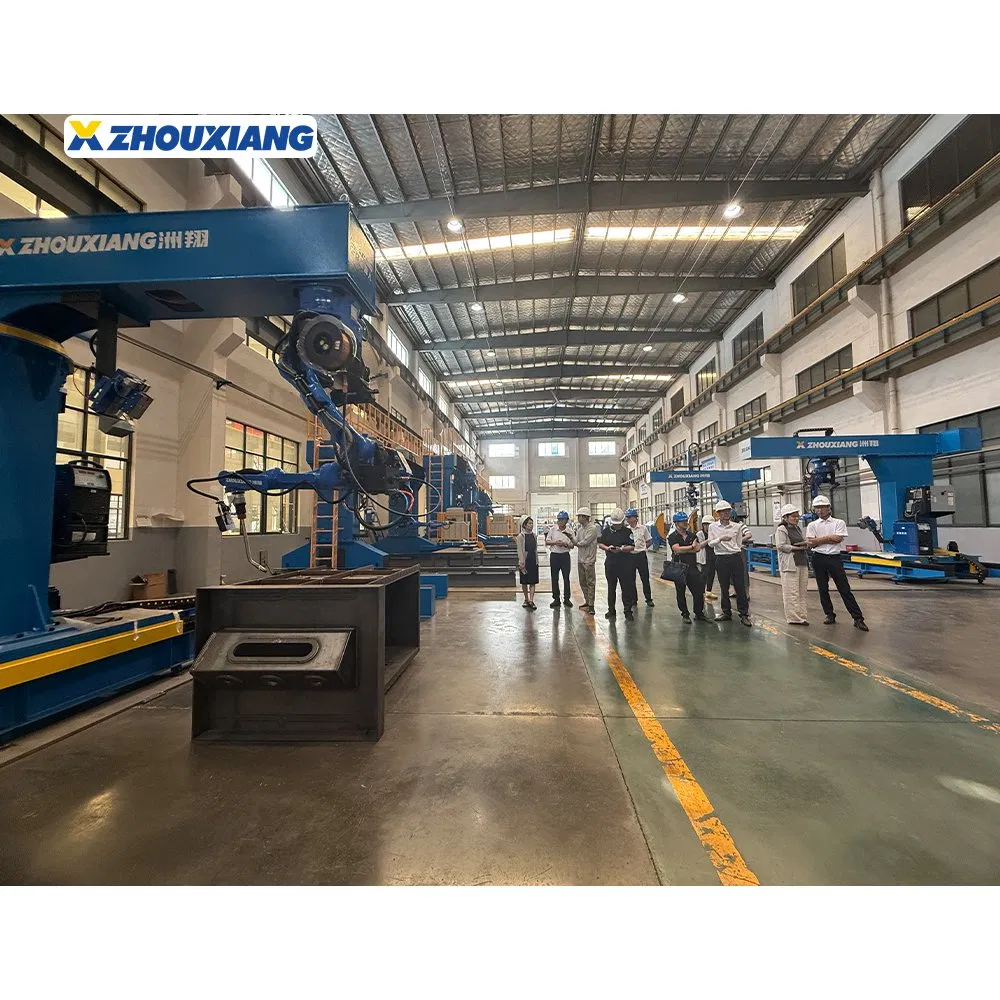

Our manufacturing facility covers an area of 160,000 m2 with advanced engineering and technical personnel. We specialize in CNC cutting machines, H-beam production lines, box beam lines, welding manipulators, rotators, and fiber laser cutting machines.
