| Robot Set | 1 set of industrial welding robot |
| Welding Power Source | Optional high-performance welding machine and accessories |

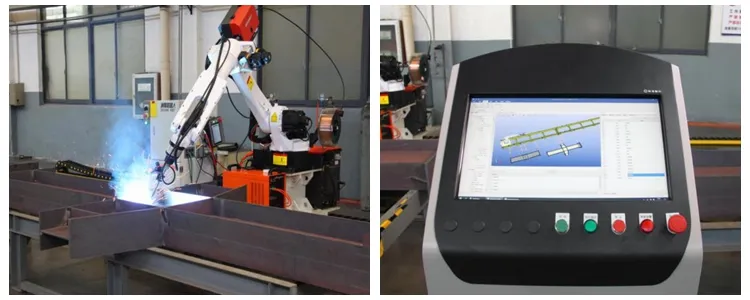

| Welding System | Teaching-free offline programming welding software & line laser tracking |

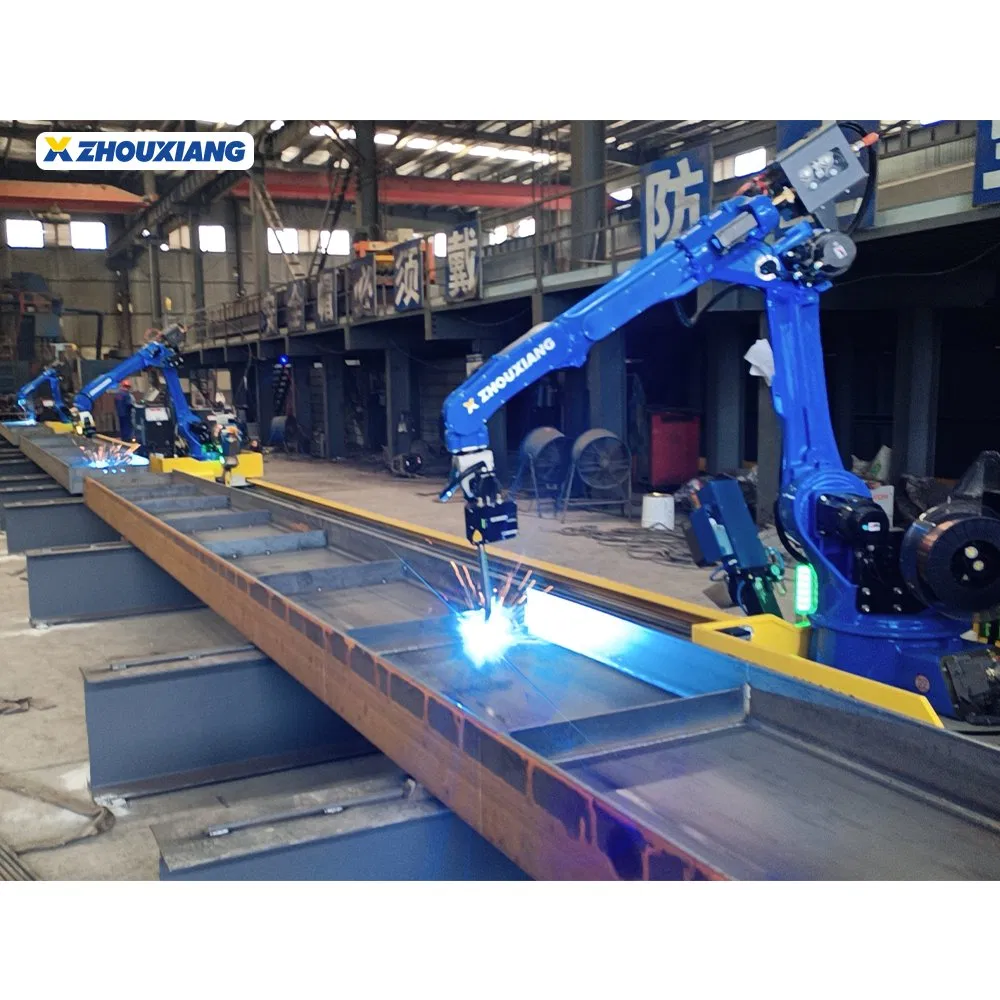

| Applicable Scenarios | Suitable for gusset plates, corbel parts, H-shaped main beams, secondary beams, ship bridge plate units, and steel columns. |
| Gun Cleaning System | SC220A automatic gun cleaning system |

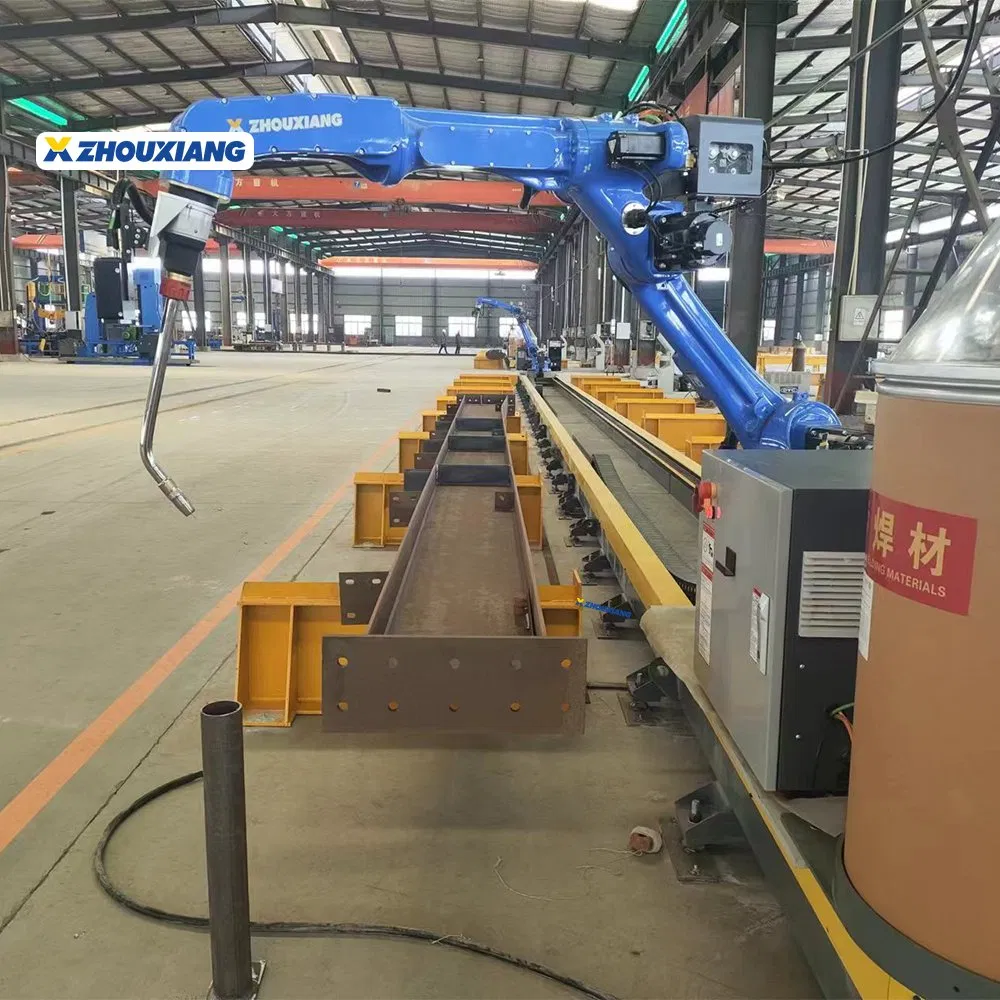

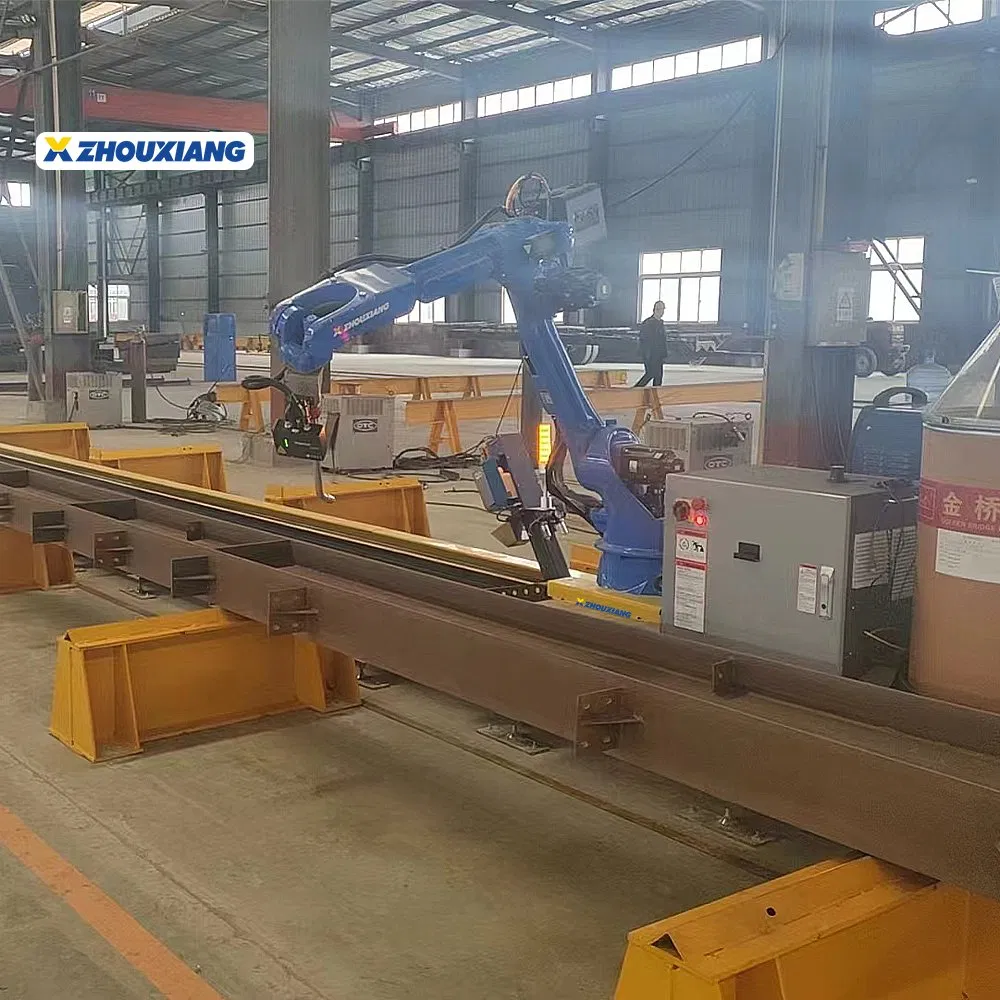

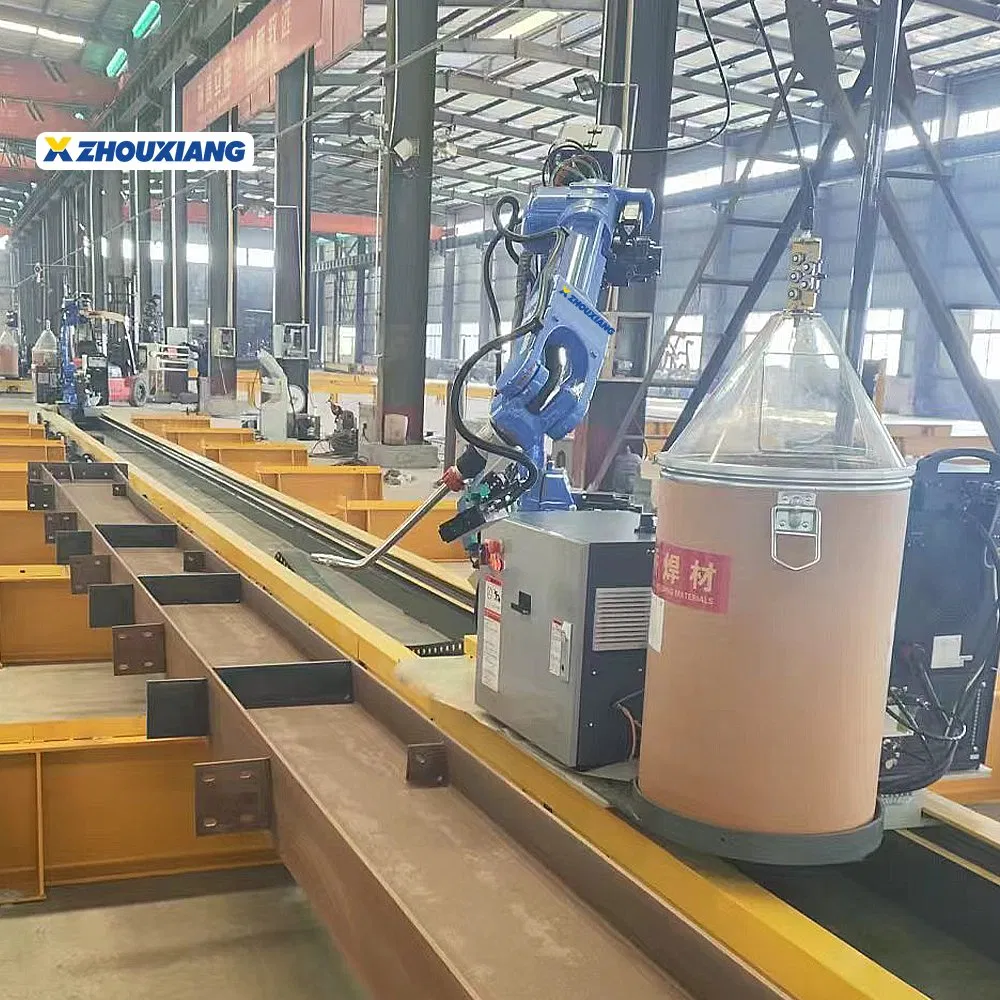

| Ground Rail Length | 6 meters (Optional according to user requirements) |
| Optional Models | ZXR12-2010 | ZXR10W-1440-D |
|---|---|---|
| Number of Axes | 6 axes | 6 axes |
| Movement Radius | 2010mm | 1440mm |
| Payload | 12KG | 10KG |
| Protection Level | IP56/IP67 | IP56/IP67 |
| Robot Weight | 313KG | 210KG |
| Repeat Accuracy | ±0.05mm | ±0.05mm |

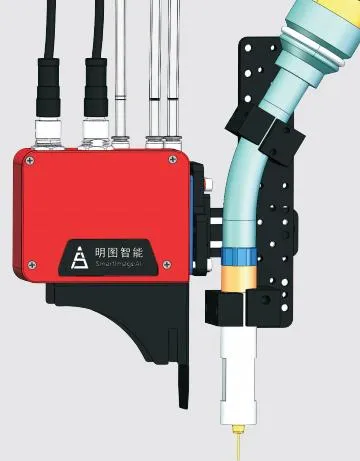

CP350V Laser Tracker: An intelligent line scanning sensor that obtains contour information to guide the robot automatically. It features internal image processing, reducing hardware costs while remaining resistant to arc light and spatter.

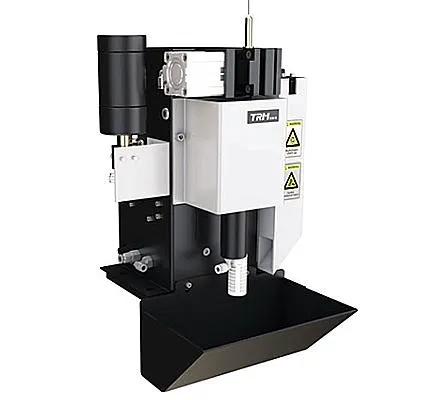

Gun Cleaning System: The SC220A station automatically cleans welding slag, cuts wires, and protects the nozzle. This extends the service life of consumables and maintains consistent welding quality.
Depending on the model chosen, the movement radius ranges from 1440mm (ZXR10W model) to 2010mm (ZXR12 model).

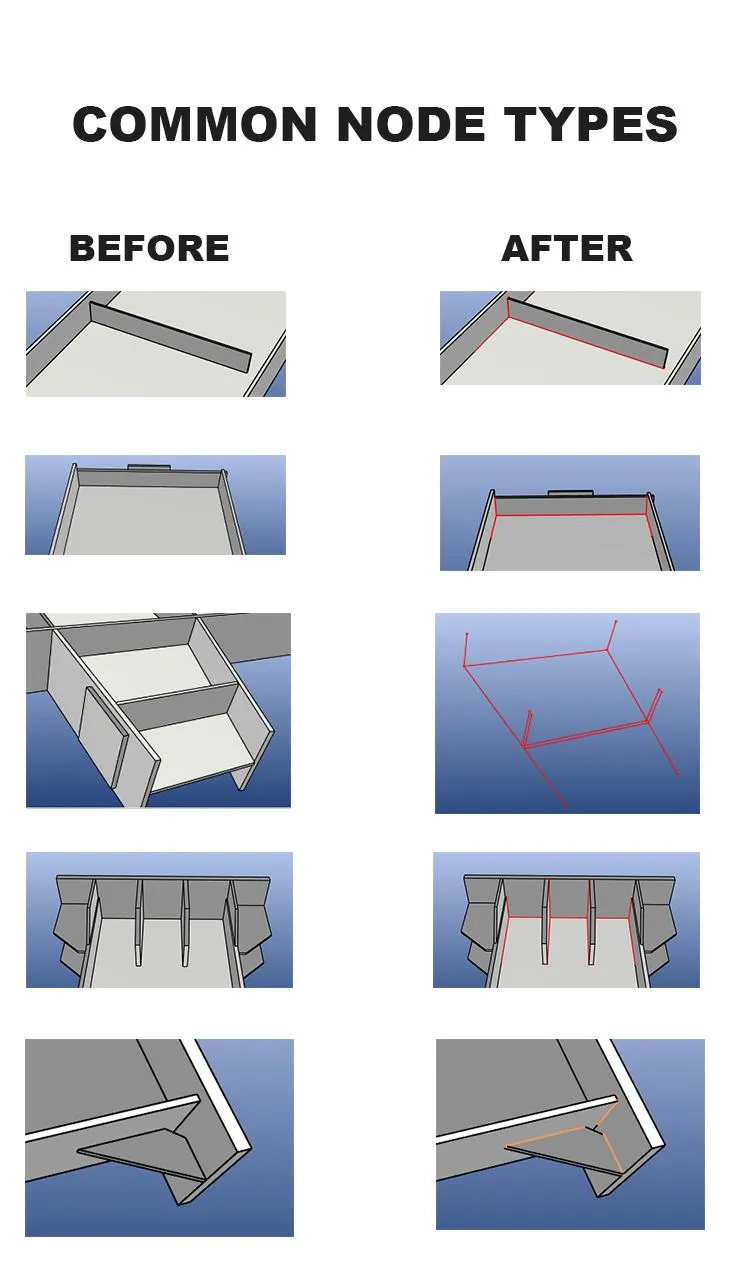

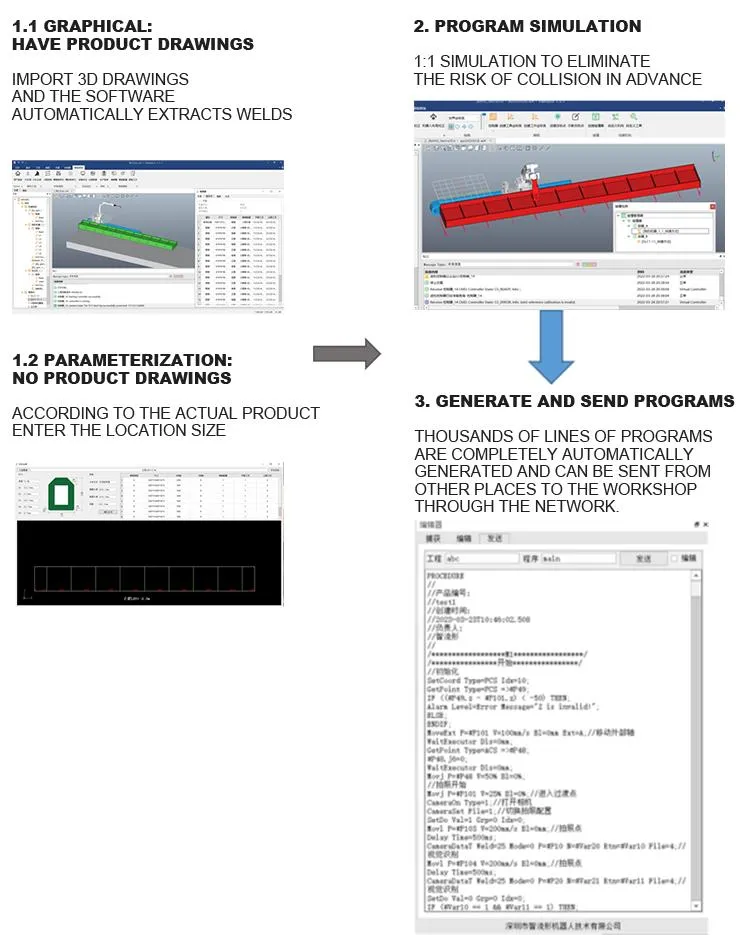

Yes, the system features advanced offline programming software that can automatically extract weld positions from 3D drawings, eliminating the need for manual teaching.
The robot is highly versatile and suitable for welding carbon steel, stainless steel, aluminum, and other alloys using MIG, TIG, or laser welding processes.
The hollow wrist and internal wiring allow the welding gun to rotate 360° without cable tangling, providing greater flexibility in narrow spaces and extending cable life.
Absolutely. With a protection level of IP56/IP67 and a dust-proof, drip-proof design, the robot is built to maintain high safety and performance in various harsh factory conditions.
It automatically removes welding slag, trims the wire, and applies anti-spatter agents, which ensures consistent weld quality and reduces manual maintenance time.
