Mobo Robot
1 / 5

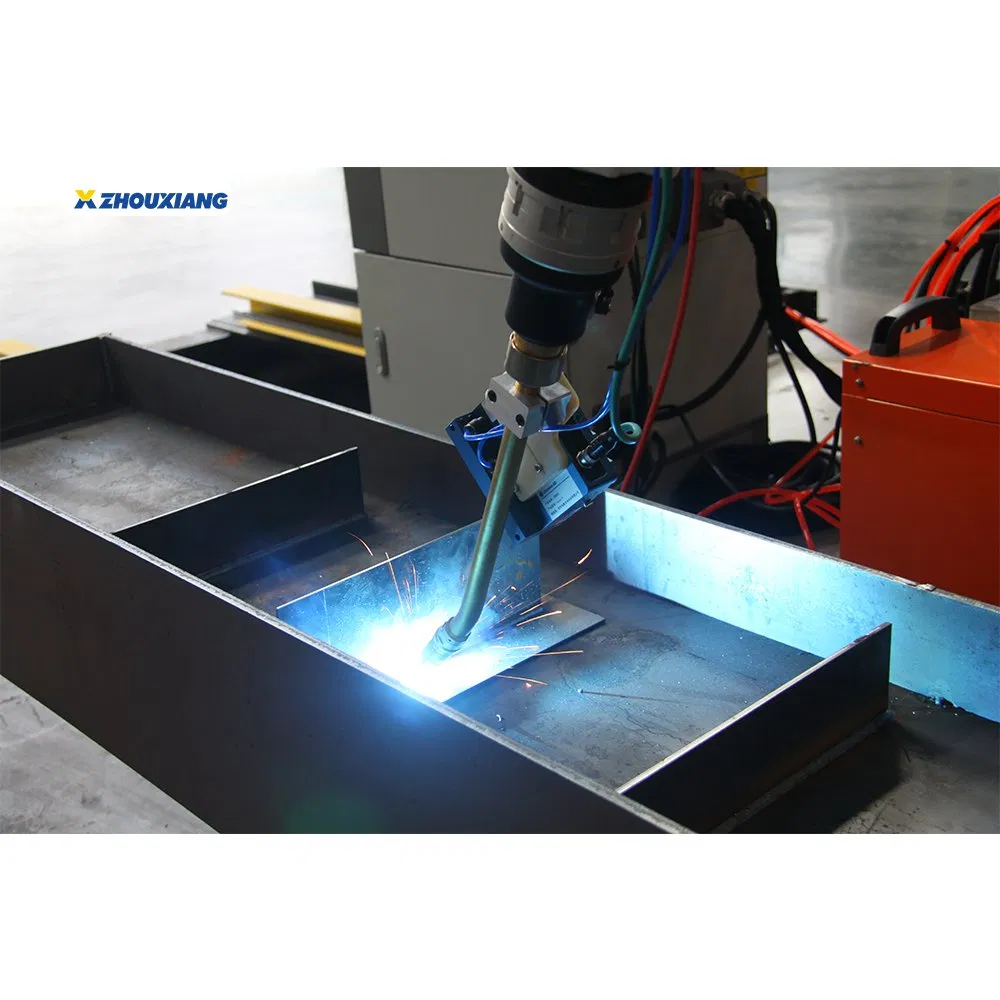

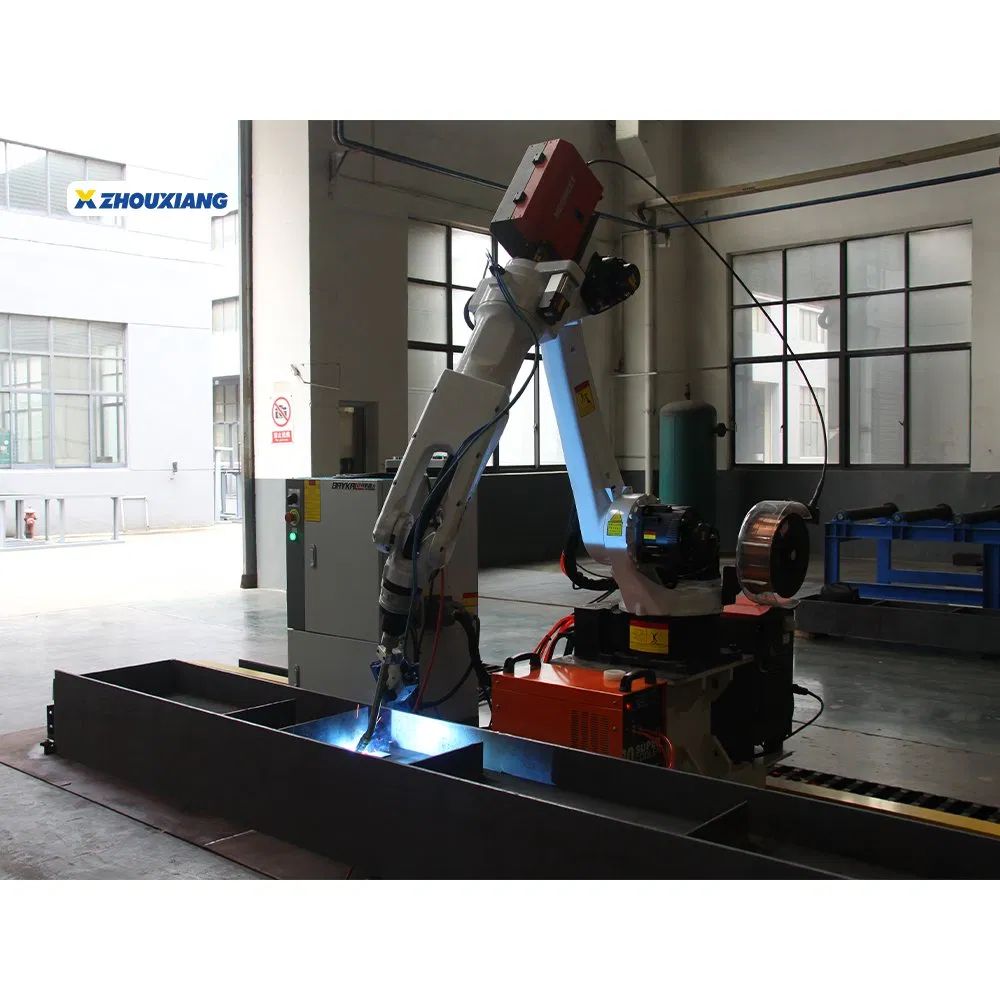

Unique appearance, hollow structure arms and wrists, built-in welding cables, compact structure, can be used for welding operations in narrow spaces. It is lightweight, dust-proof, and drip-proof with high safety features. Equipped with a body cover, it can be used in various harsh conditions with confidence. It features a large environmental working space, fast running speed, and high repeat positioning accuracy, making it suitable for high-quality welding requirements.
| Specification | ZXR12-2010 | ZXR10W-1440-D |
|---|---|---|
| Number of axes | 6 axes | 6 axes |
| Movement radius | 2010mm | 1440mm |
| Payload | 12KG | 10KG |
| Protection level | IP56/IP67 | IP56/IP67 |
| Repeat positioning accuracy | ±0.05 | ±0.05 |
| Robot weight | 313KG | 210KG |

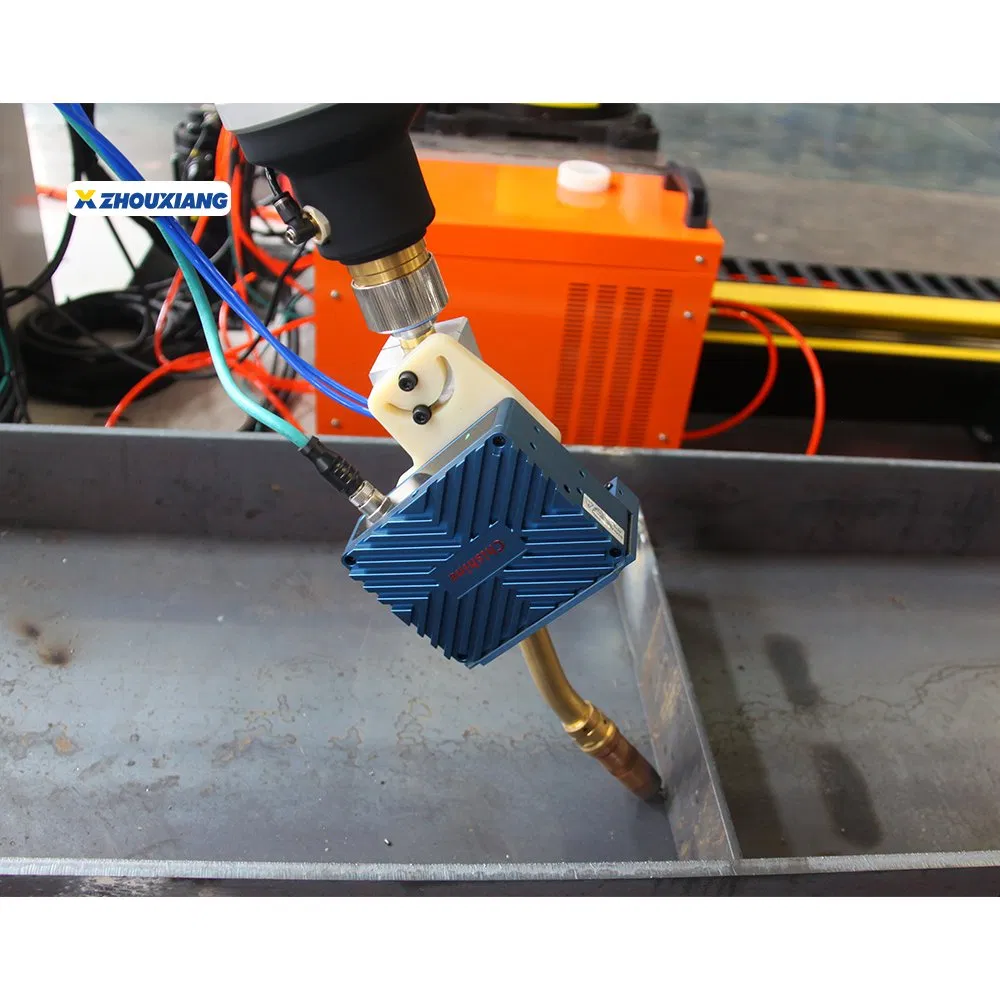

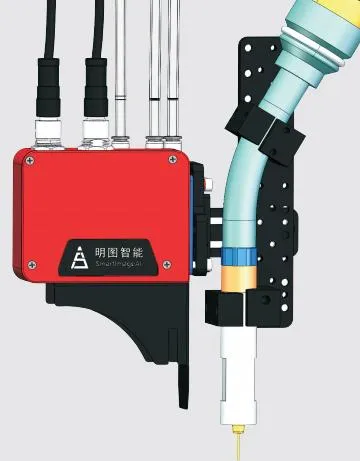

An intelligent line scanning welding seam sensor. It obtains contour information via line laser scanning, guiding the robot to automatically complete the welding without an external computer. Resistant to arc light and spatter.

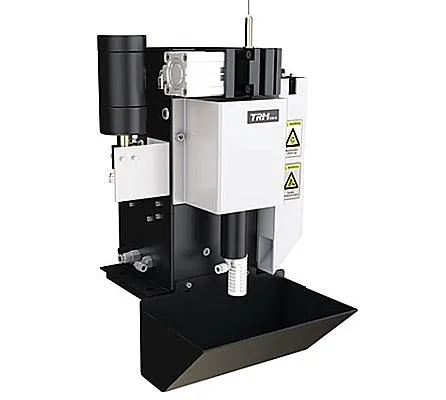

Automatically cleans welding slag, cuts wires, and protects the nozzle. It extends the service life of the welding gun, reduces consumable costs, and maintains superior welding quality.

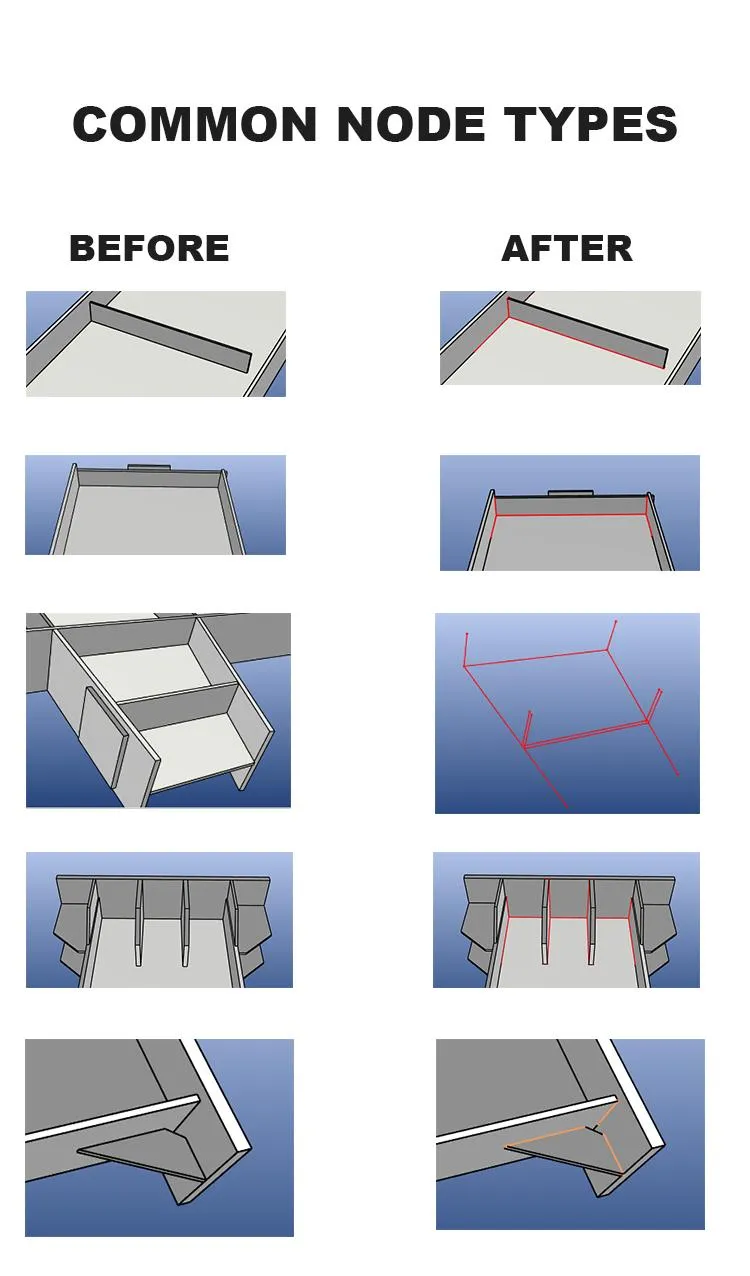

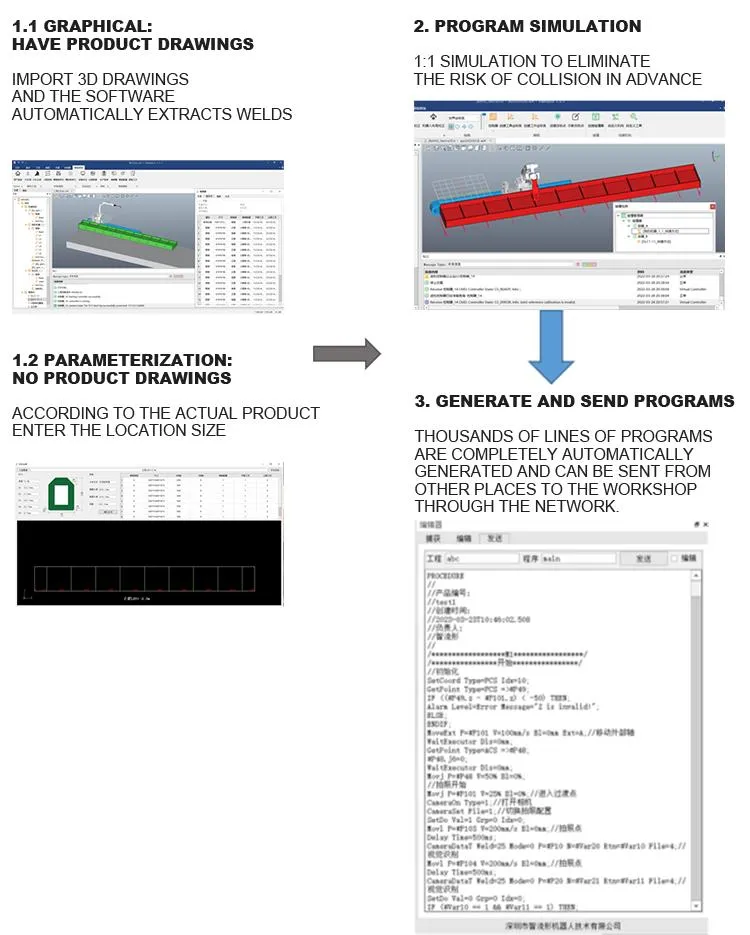

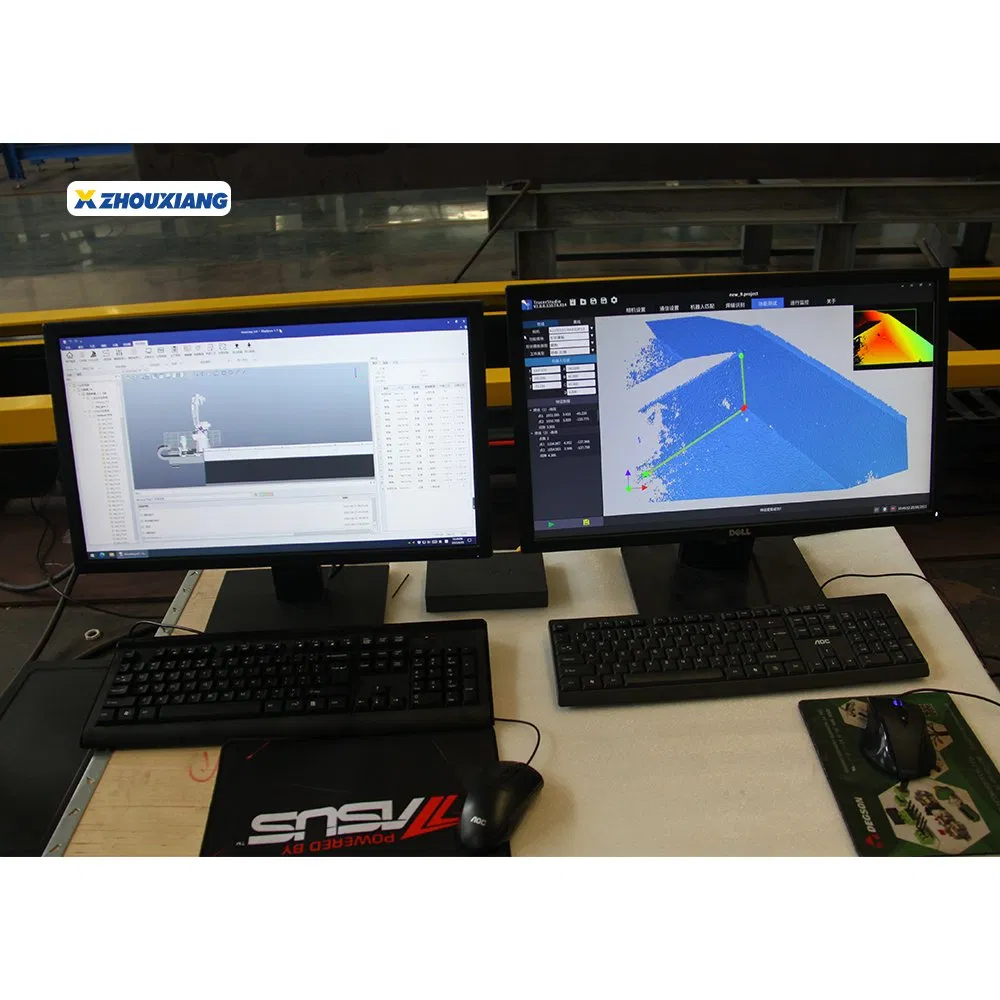

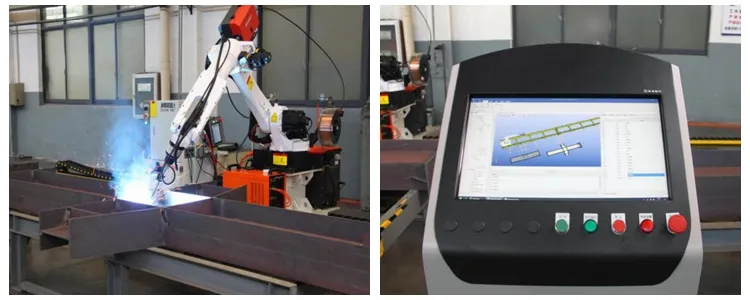

The system features teaching-free offline programming software that can automatically extract welds from 3D drawings. It supports digital twin technology to display trajectory, voltage, current, and speed in real time.
