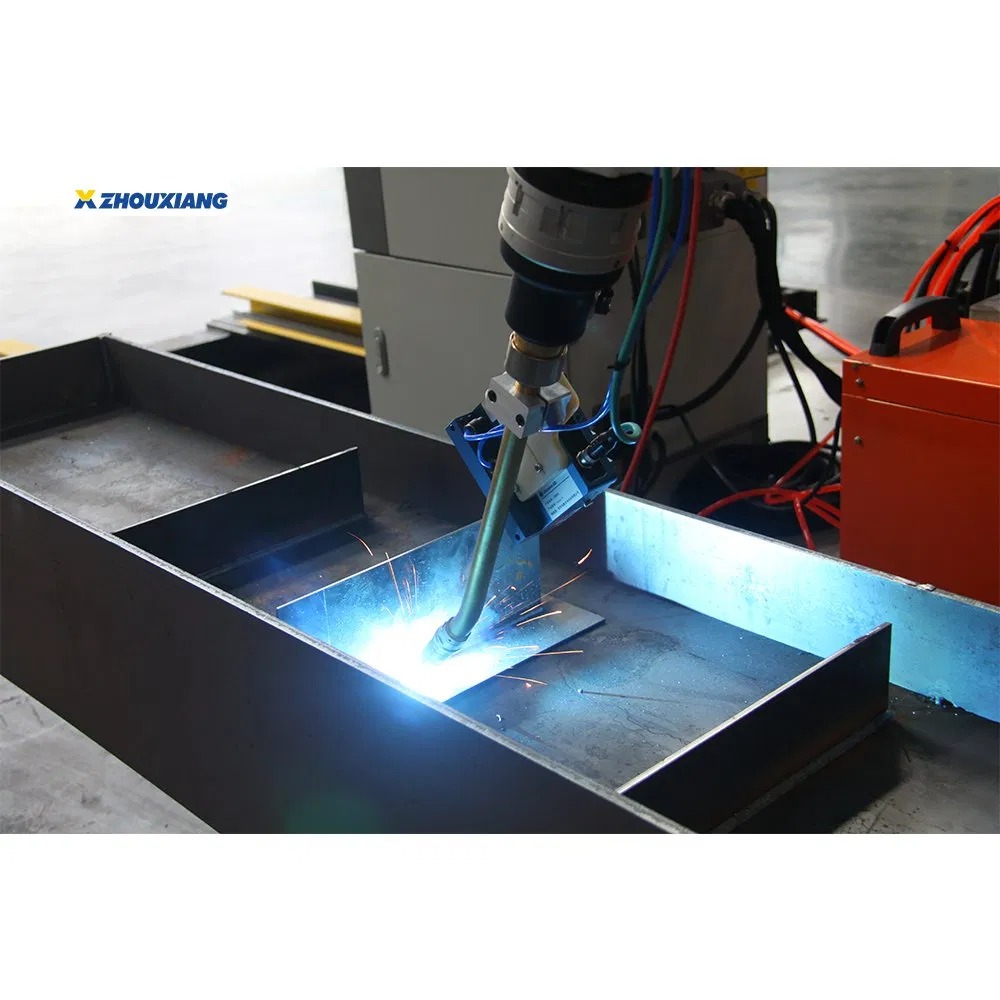

Robotic Arm 6 Axis Industrial Welding Systems TIG Welding Robot Workstation

1 / 5

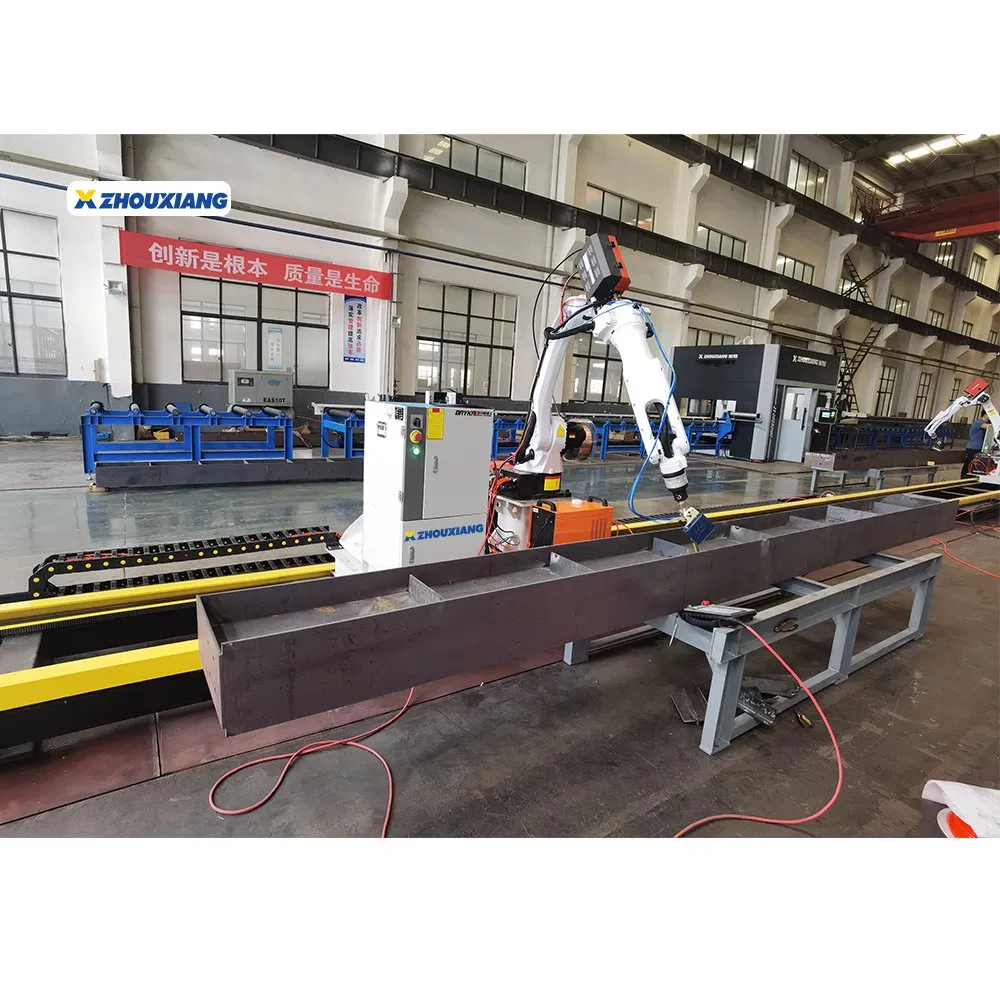

Robotic Arm 6 Axis Industrial Welding Systems TIG Welding Robot Workstation

Customization:	Available
Accuracy:	±0.05
Application:	Construction Industry, Metal Fabrication Industry, Shipbuilding Industry, Welding

Send Inquiry

Product Description

📊 Basic Information

Model NO.

Ground Rail Welding Robot

Control Mode

Continuous Path Control

Drive Mode

Electric

Type

TIG Welding Robot

Welding Speed

0.5 m/min

Robot Set

1 Set of Industrial Robot

Power Source

Optional Welding Machine and Accessories

Applicable Scenarios

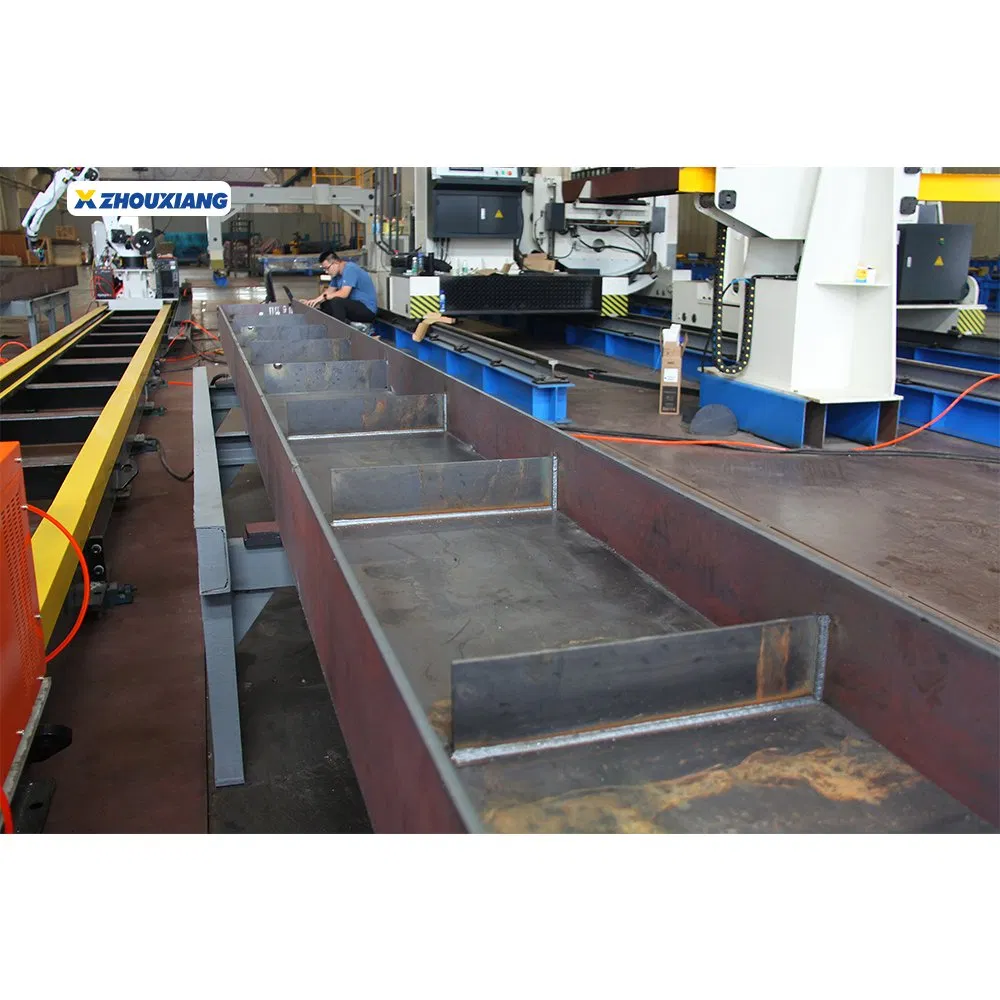

H-Shaped Main Beams and Other Structures

Ground Rail

6 Meters (Optional)

Certification

ISO, CE

📦 Packaging & Delivery

Package Size

664.00cm * 275.00cm * 404.00cm

Gross Weight

3200.000kg

🤖 Product Description

Unique appearance, hollow structure arms and wrists, built-in welding cables, compact structure, can be used for welding operations in narrow spaces. Light weight, dust-proof and drip-proof, high safety, equipped with body cover, can be used in various harsh conditions with confidence. It has a large environmental working space, fast running speed, and high repeat positioning accuracy.

📐 Product Parameters

Parameter	Specification Details
Robot Model	1 Set of Industrial Robot
Power Source	Aotai or Megmeet welding machine and accessories
Welding System	Teaching-free offline programming software, line laser tracking
Applicable Scenarios	Gusset plates, corbel parts, H-shaped main beams, secondary beams, ship bridge plate units, steel columns
Gun Cleaning	SC220A gun cleaning system
Ground Rail	6 meters (customizable)

⚙️ Robot Specifications

Model Details	Model A	Model B
Number of axes	6 axes	6 axes
Movement radius	2010mm	1440mm
Payload	12KG	10KG
Protection level	IP56/IP67	IP56/IP67
Installation	Floor/Bracket/Upside-down	Floor/Bracket/Upside-down
Robot weight	313KG	210KG
Accuracy	±0.05	±0.05

🔍 Specialized Systems

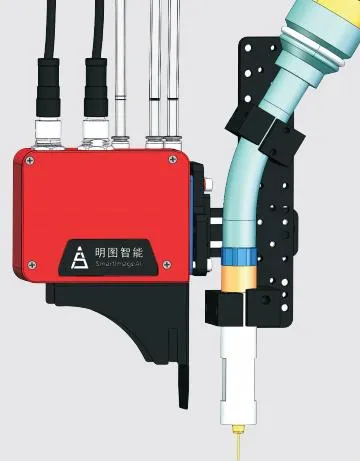

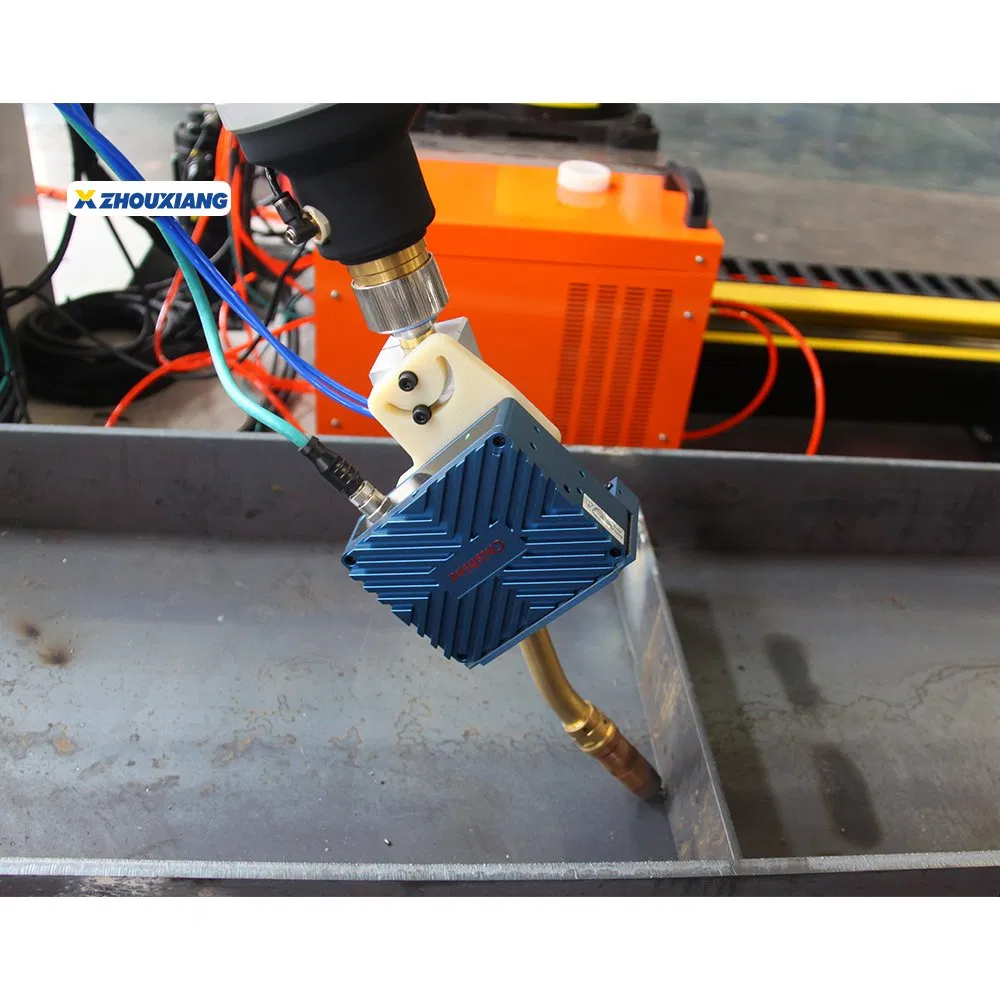

CP350V Laser Tracker

Intelligent line scanning welding seam sensor. It obtains contour information through laser scanning, guiding the robot to complete welding automatically. Image processing and identification are done inside the sensor, reducing hardware costs. Resistant to arc light and spatter.

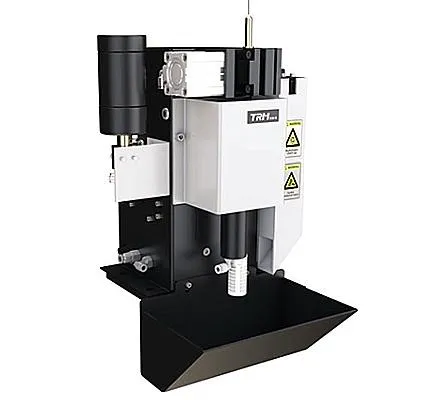

Gun Cleaning System

The SC220A station automatically cleans welding slag, cuts wires, and protects the nozzle. It extends service life and maintains high welding quality while reducing consumable costs.

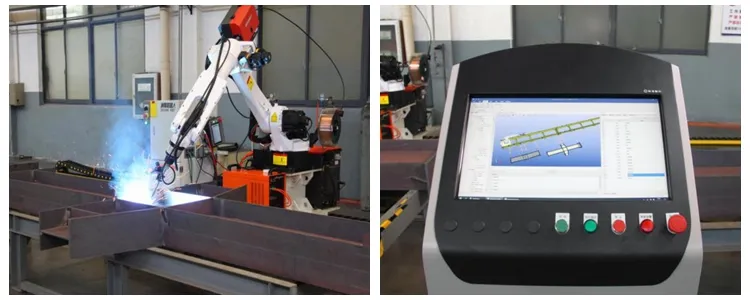

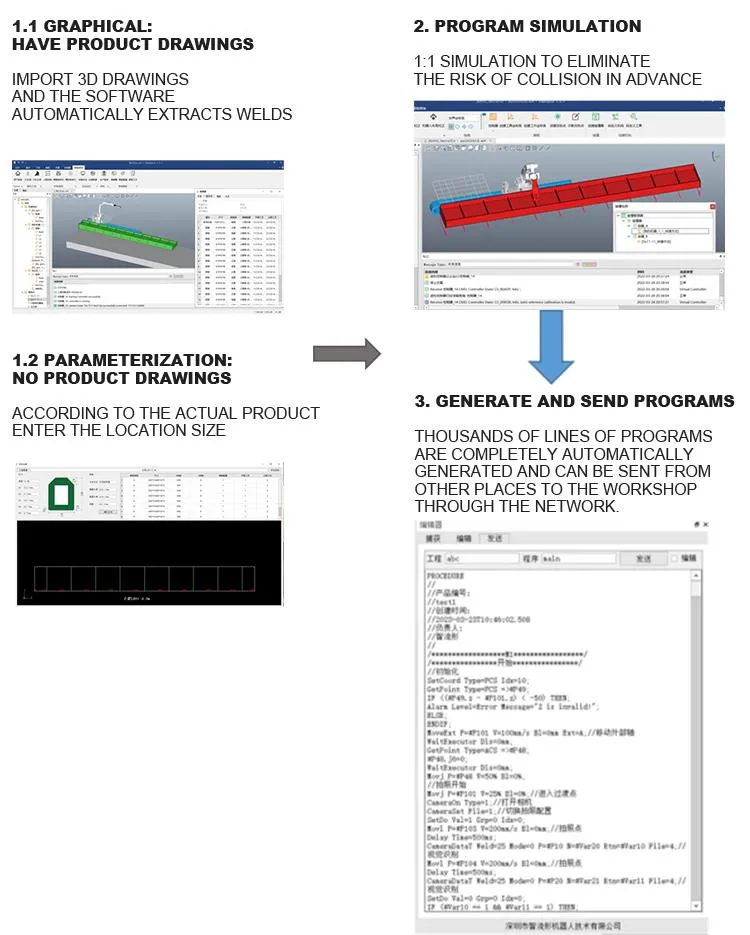

💻 Software Operation & Advantages

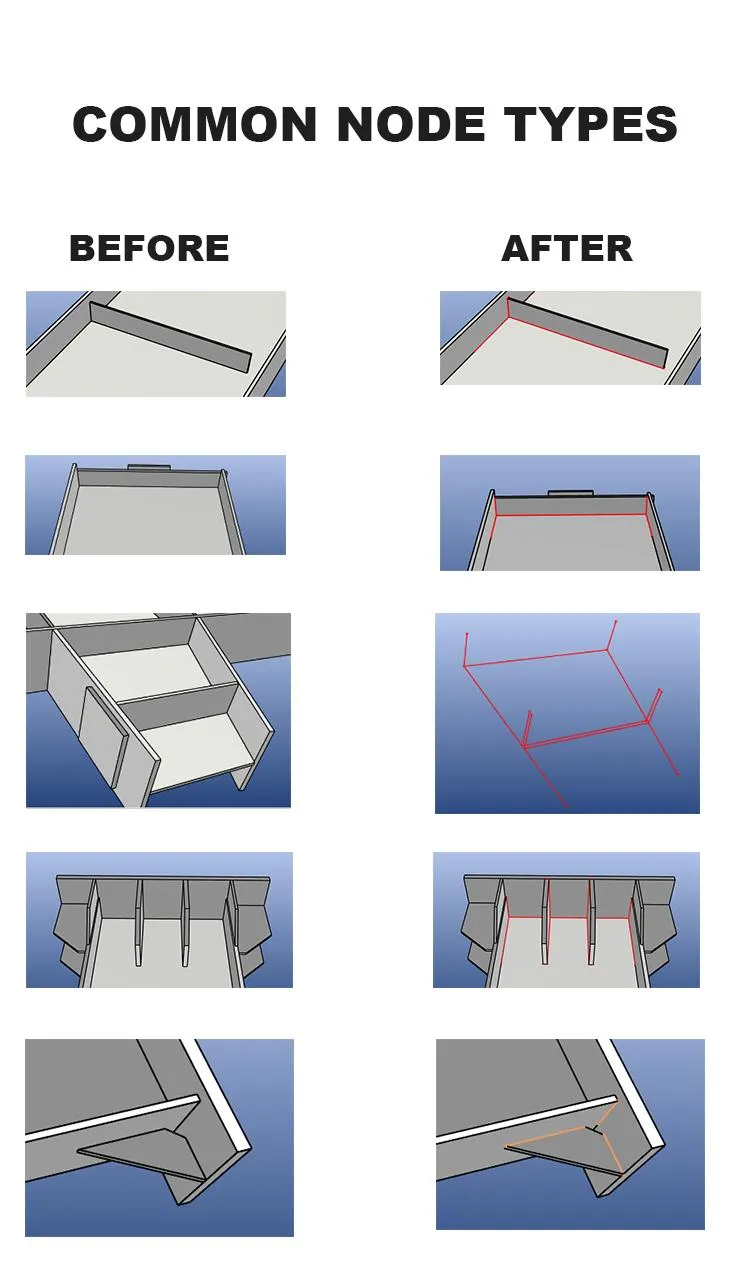

Supports teaching-free operation for sandwich panels, truss beams, and bridge partitions.
No manual weld marking needed; extracts position directly from 3D drawings.
Fully automated: zero return, transition, position finding, welding, and counting.

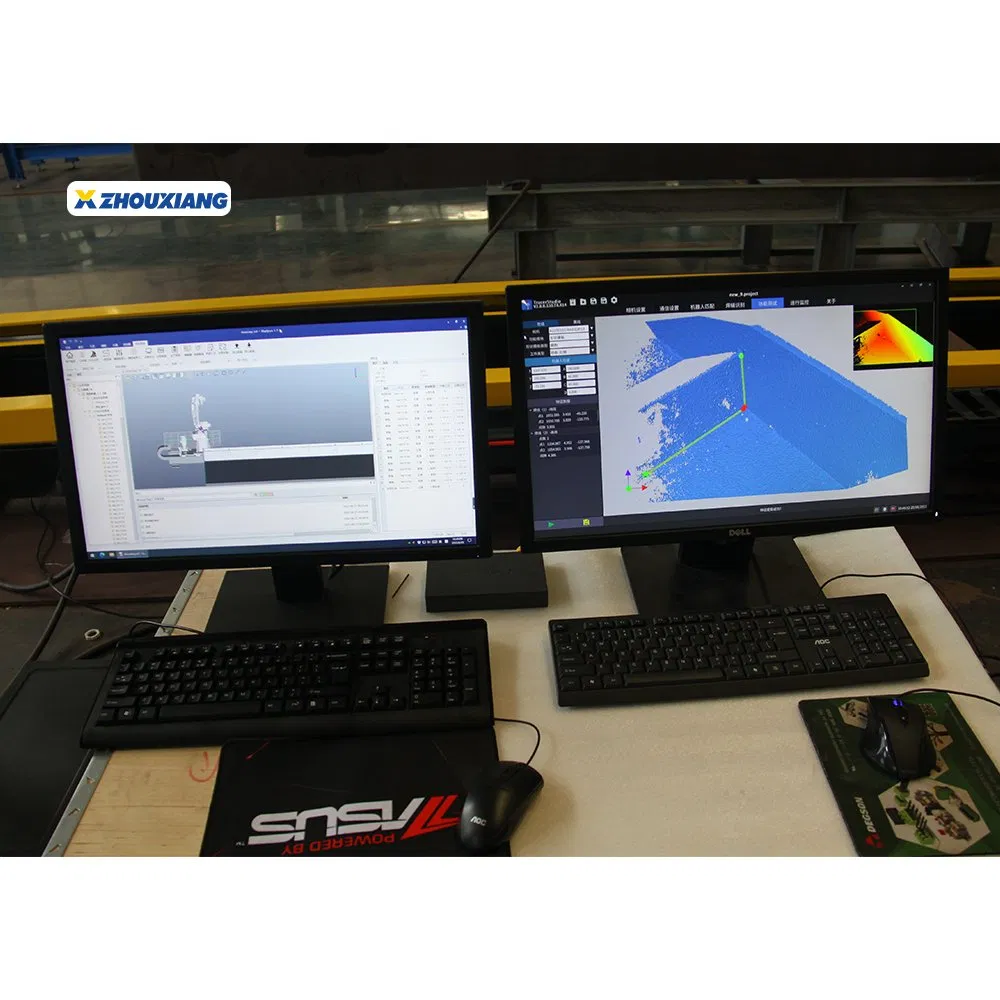

Remote program generation and digital twin technology for real-time monitoring.
1:1 simulation avoids robot interference and collisions in advance.

🖼️ Product Showcase

🏭 Factory & Production

❓ Frequently Asked Questions

1. What are the primary applications for this welding robot?

It is ideal for H-shaped main beams, secondary beams, gusset plates, corbel parts, and structural components in shipbuilding, bridge construction, and steel structure platforms.

2. How does the hollow wrist structure benefit the welding process?

The hollow structure allows welding cables to be built-in, preventing line tangling during 360° rotation. This enables flexible operation in narrow spaces and increases the movement range.

3. Is manual programming required for different workpieces?

No, the system features teaching-free offline programming software. It can automatically extract weld positions from 3D drawings, significantly reducing manual workload.

4. What is the accuracy of the robot's movements?

The robot features a high repeat positioning accuracy of ±0.05mm, ensuring consistent weld quality for complex industrial tasks.

5. How does the gun cleaning station improve production efficiency?

It automatically cleans slag and cuts wires without manual intervention, maintaining the nozzle's condition and ensuring high-quality welds while reducing downtime.

6. Can the robot operate in harsh environmental conditions?

Yes, the robot axes feature IP56/IP67 protection levels and are equipped with body covers, making them resistant to dust and drips in various industrial environments.
