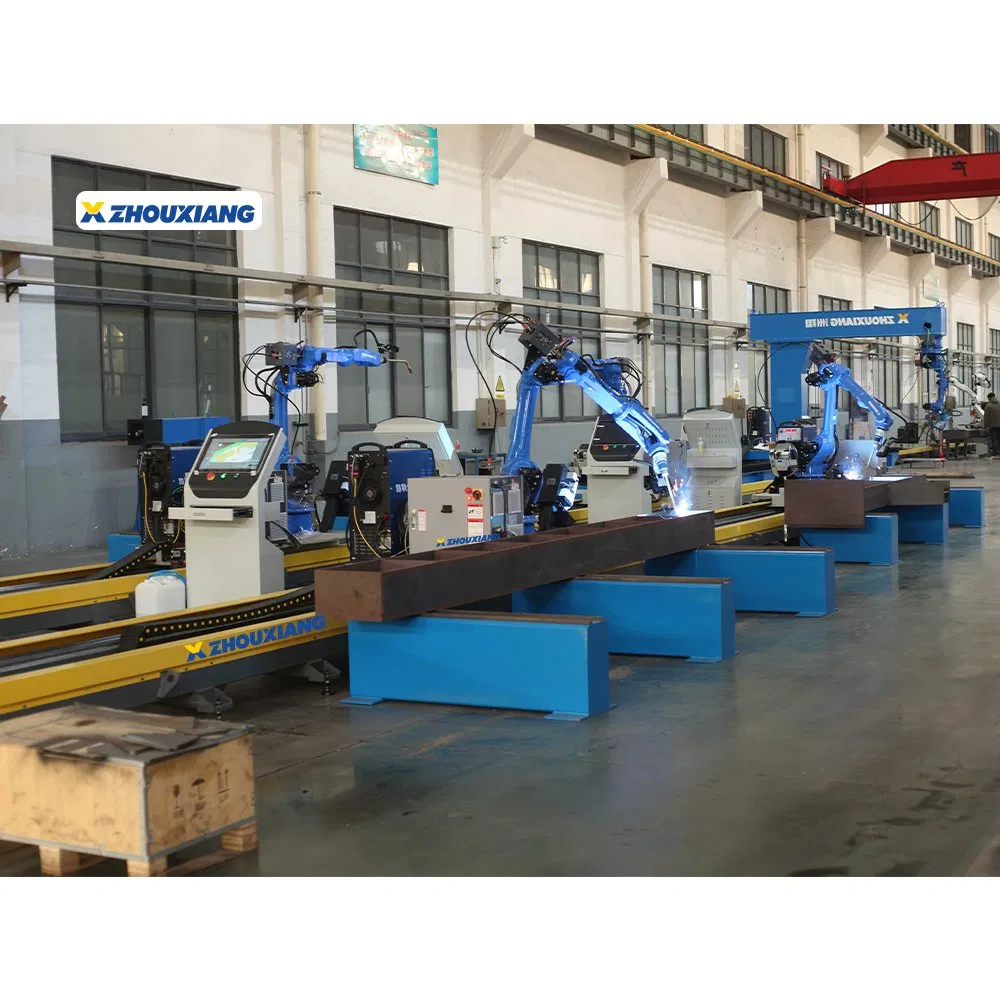

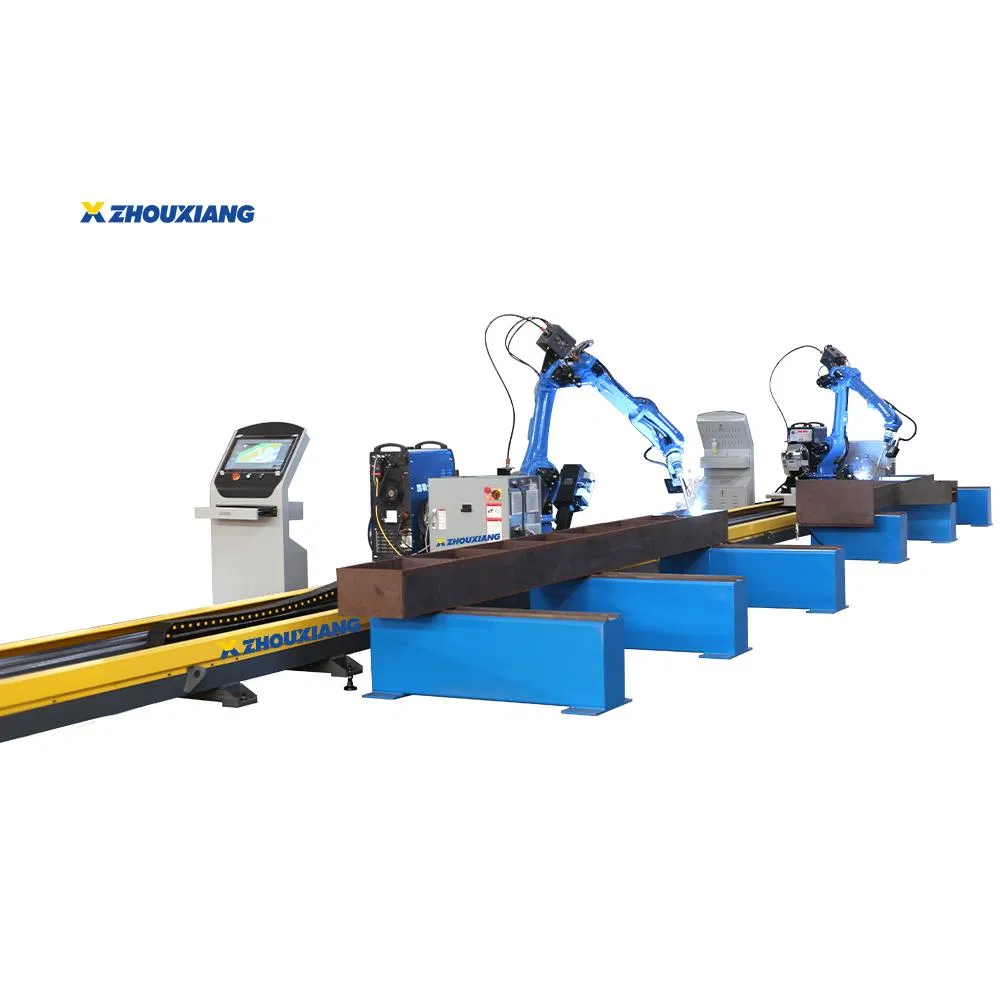

Multi Functional Robotic TIG Welding Workstation Welding Robot Manufacturer

Customization:	Available
Accuracy:	±0.05
Application:	Construction Industry, Metal Fabrication Industry, Shipbuilding Industry, Welding

📋 Basic Information

Model NO.	Ground Rail Welding Robot	Control Mode	Continuous Path Control
Drive Mode	Electric	Type	Arc Welding Robot
Welding Speed	0.5 m/min	HS Code	8468800000
Certification	ISO, CE	Warranty	1 Year

🔍 Product Overview

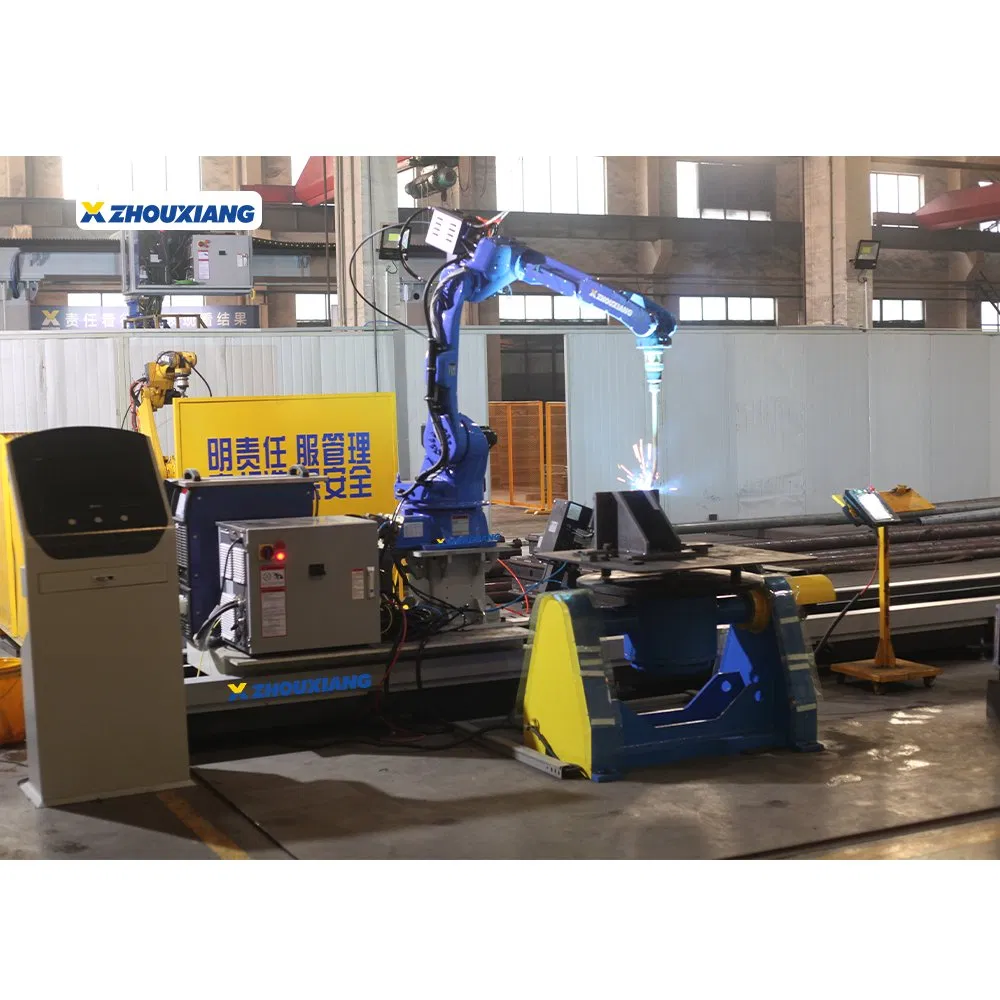

Featuring a unique appearance with hollow structure arms and wrists, this system includes built-in welding cables and a compact design. It is specifically engineered for welding operations in narrow spaces. The equipment is lightweight, dust-proof, and drip-proof, ensuring high safety and reliability even in harsh industrial environments.

⚙ Technical Parameters

Feature	Details
Optional Welding Power	Aotai or Megmeet welding machine and accessories
Welding System	Teaching-free offline programming software, line laser tracking

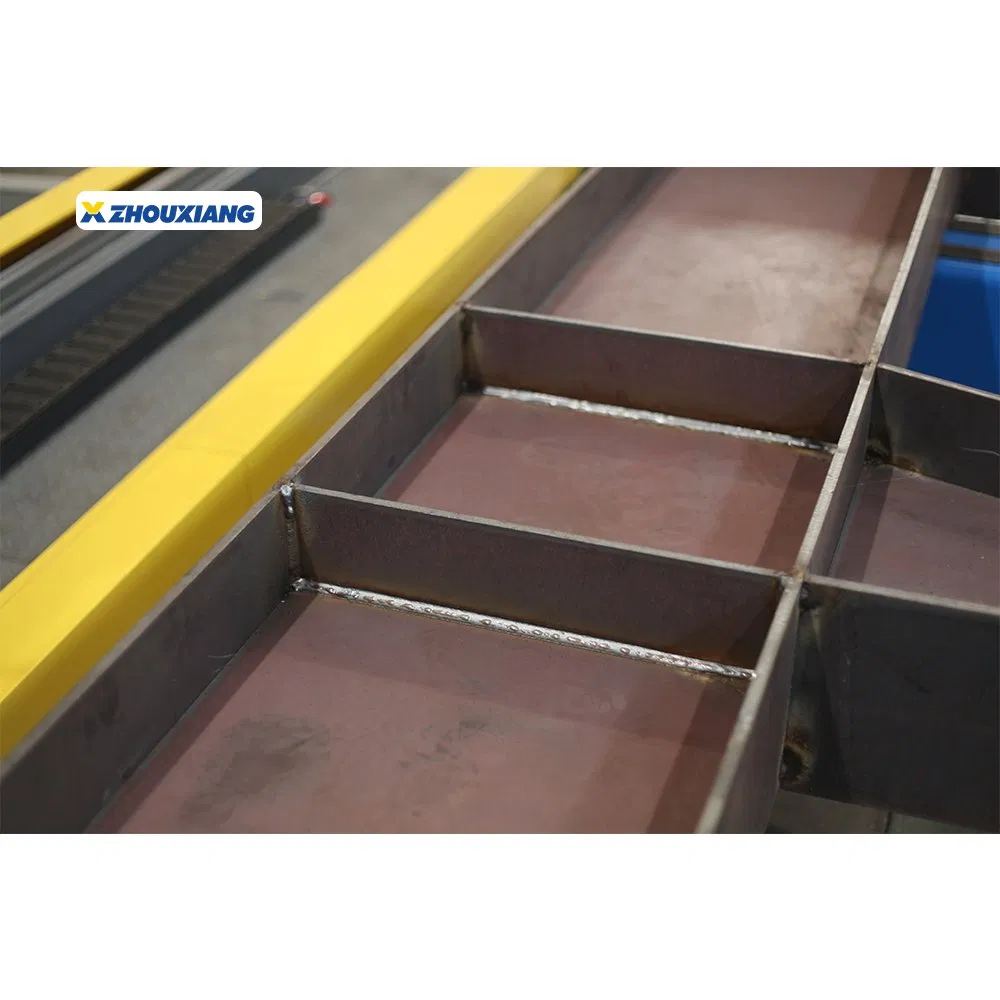

Applicable Scenarios	H-shaped main beams, secondary beams, ship bridge plate units, platform beams
Gun Cleaning System	SC220A automatic system
Ground Rail Length	6 Meters (Customizable based on user requirements)

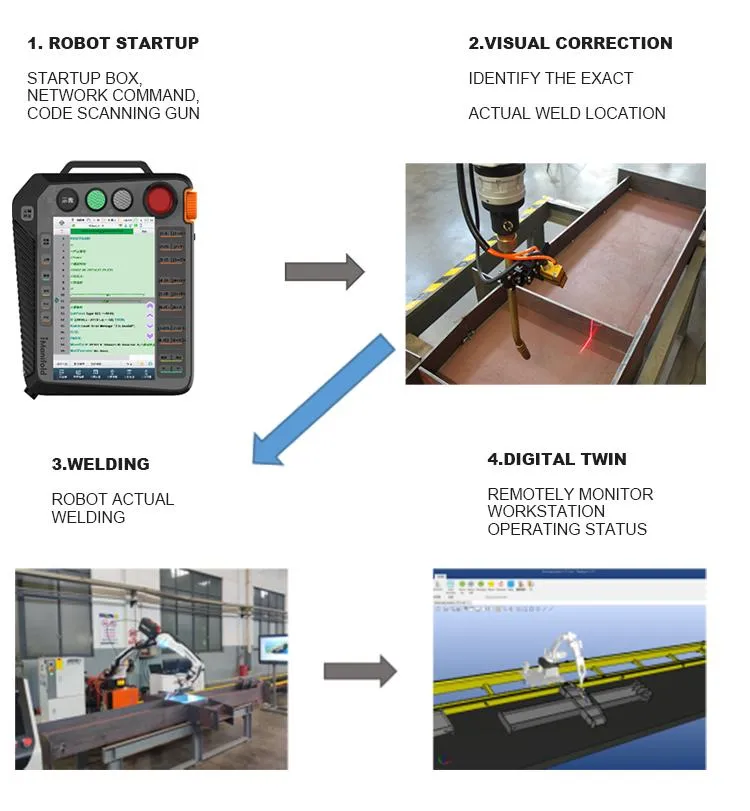

🤖 Robot Operation & Models

Specifications	ZXR12-2010	ZXR10W-1440-D
Number of Axes	6 axes	6 axes
Movement Radius	2010mm	1440mm
Payload	12KG	10KG
Protection Level	IP56/IP67	IP56/IP67
Repeat Accuracy	±0.05mm	±0.05mm

💡 Core Technologies

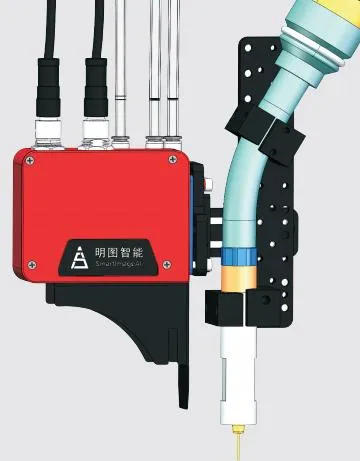

CP350V Laser Tracker

An intelligent line scanning sensor that obtains welding seam contour information. It guides the robot automatically without needing an external computer. Resistant to arc light and spatter.

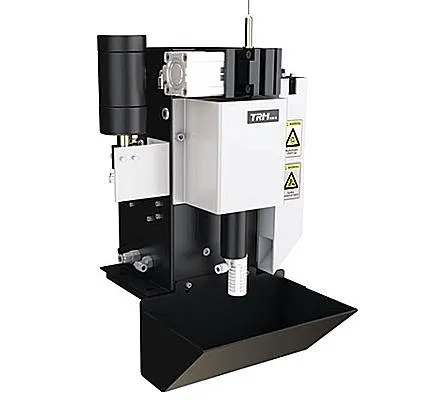

SC220A Gun Clearing System

Automatically removes welding slag, cuts wires, and protects the nozzle. It maintains high welding quality and extends the life of consumables while including TCP calibration.

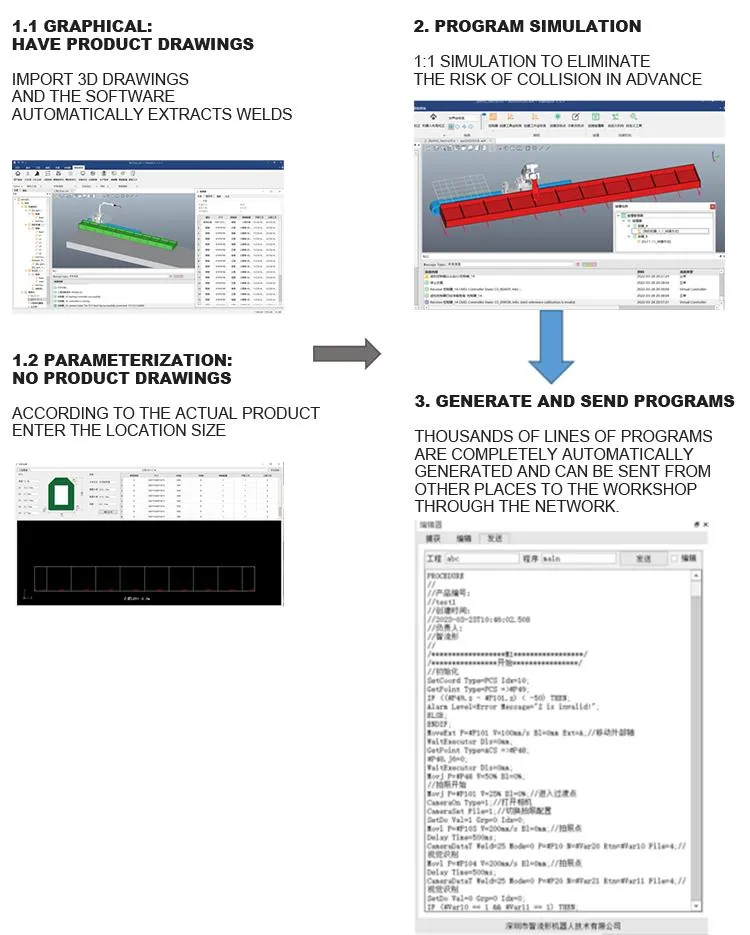

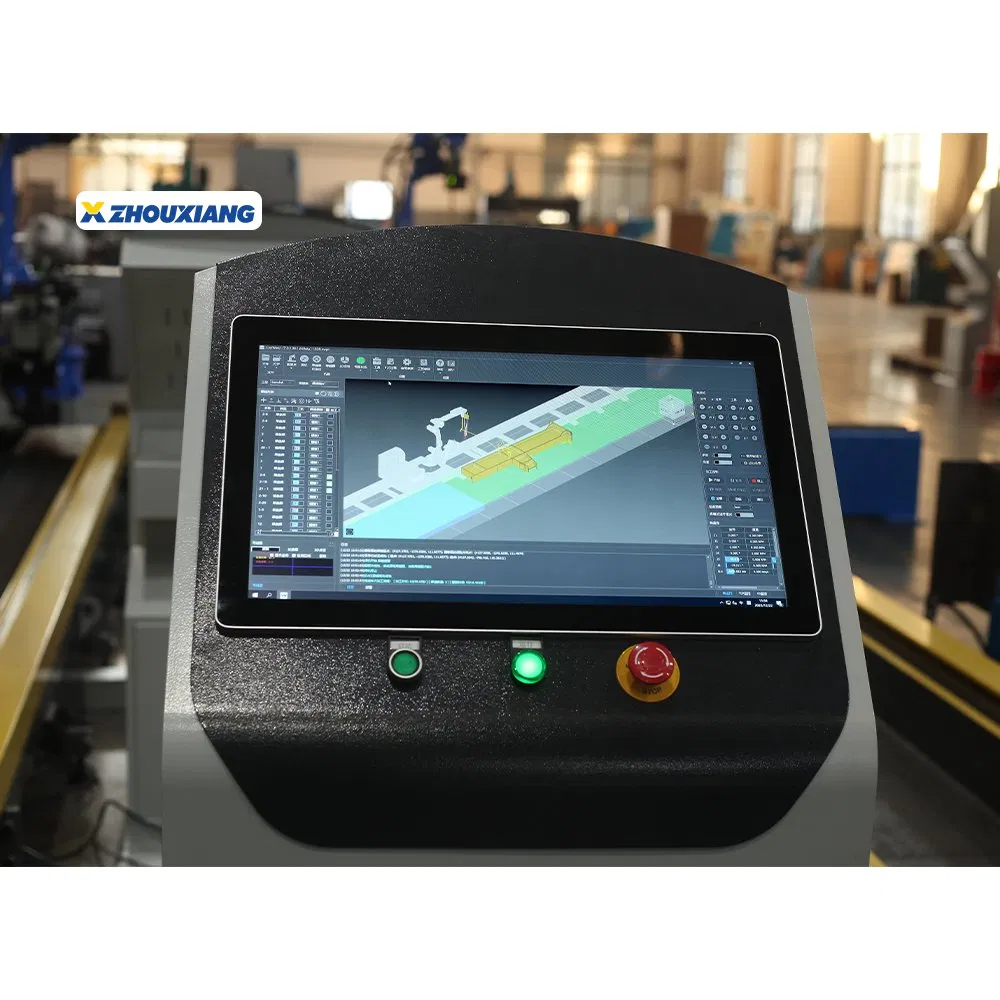

💻 Teaching-Free Welding Software

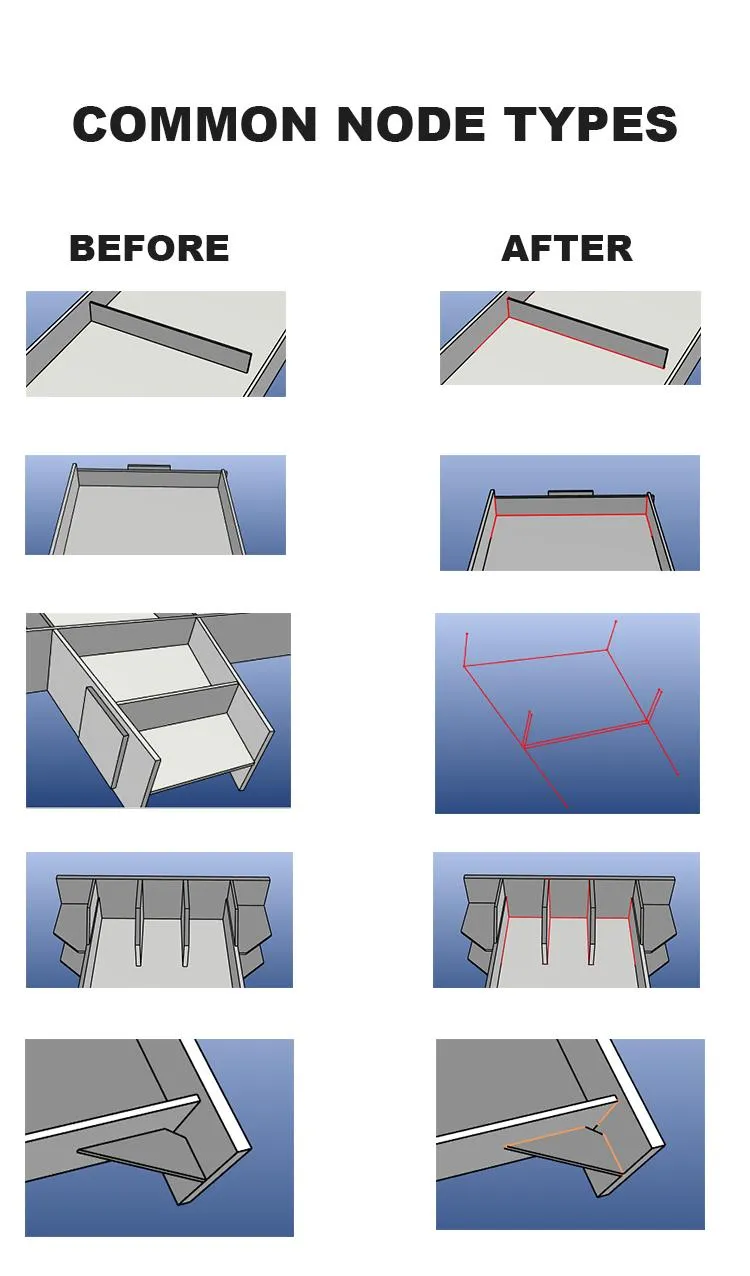

Automatically extract welds from 3D drawings without manual marking.
1:1 simulation to avoid collisions and verify points.
Supports remote production and digital twin technology for real-time monitoring.

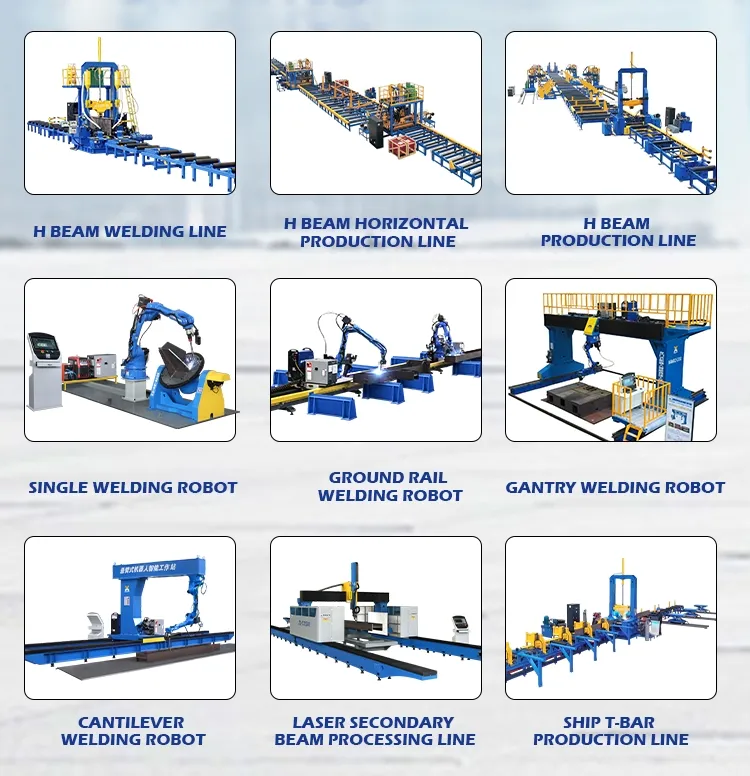

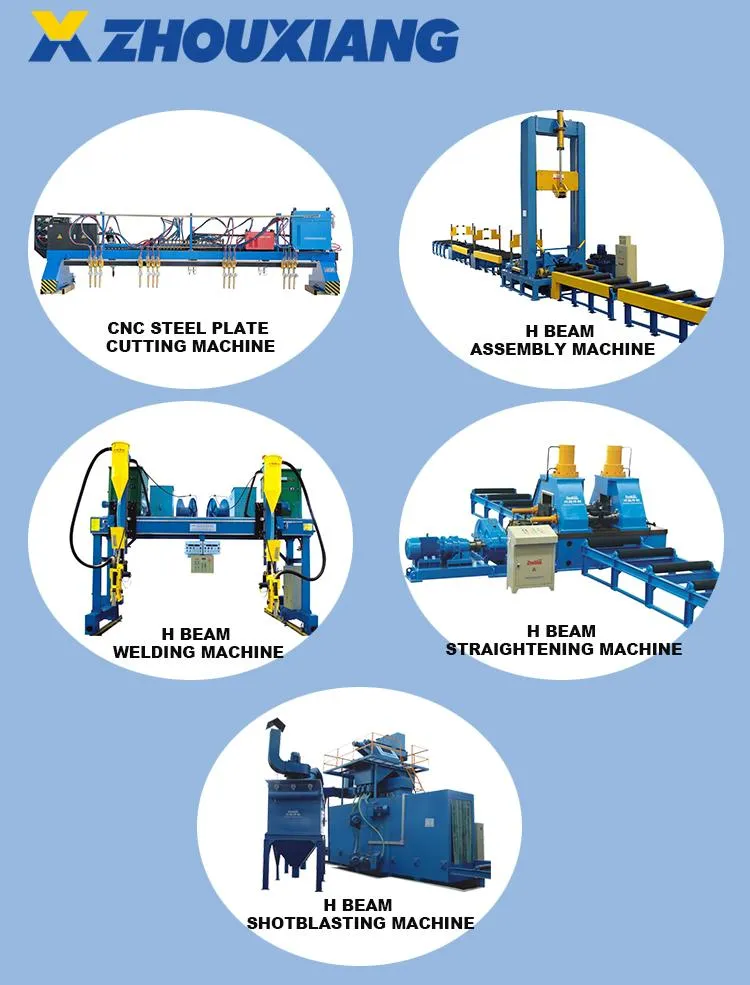

📦 Product Portfolio & Global Presence

🏭 Manufacturing Excellence

❓ Frequently Asked Questions

What types of welding can the robot handle?

The robot is specialized for various welding types including gas shielding, argon arc (TIG), laser welding, for materials like carbon steel, stainless steel, and aluminum.

How does the "teaching-free" software work?

The software automatically extracts weld positions by importing 3D drawings. This eliminates the need for manual on-site teaching and marking.

What are the advantages of the hollow wrist structure?

The hollow structure allows for built-in wiring. This permits the welding gun to rotate 360° without tangling lines, providing a larger movement range and more flexible operation in narrow spaces.

Can the ground rail length be customized?

Yes, while the standard length is 6 meters, it is optional and can be customized according to specific user requirements.

Does the system include collision protection?

Yes, the offline programming software uses a 1:1 simulation engine to verify robot movements and avoid potential collisions before actual production starts.

What is the benefit of the SC220A gun cleaning station?

It automates the removal of welding slag and wire cutting. This reduces consumable costs, maintains consistent welding quality, and improves overall efficiency by reducing manual intervention.
