Type
Inspection, CRT Monitor
Feature
with Remote Control
Certification
CE, FCC, CCC, RoHS, EMI/EMC, ISO9001: 2000
Horizontal Resolution
520tvl
Scanning
Line by Line Scan
Application
Pipeline Inspection
Screen Resolution
1080*1920
Battery Capacity
7.2V 9000mAh Lithium-Ion
K
Keyboard Input Parameters
| Parameter | Specification |
|---|
| Input Language | English |
| Maximum page count | 9 pages |
| Character count per page | 500 |
| Character hiding | One click hide and display all characters |
| Keyboard compatibility | Compatible with specified PC Bluetooth keyboard |
| Length meter | Built-in |
| Meter tolerance | Maximum (± 10cm + 0.5%) |
| Unit Conversion | Meter / Foot / Closed |
C

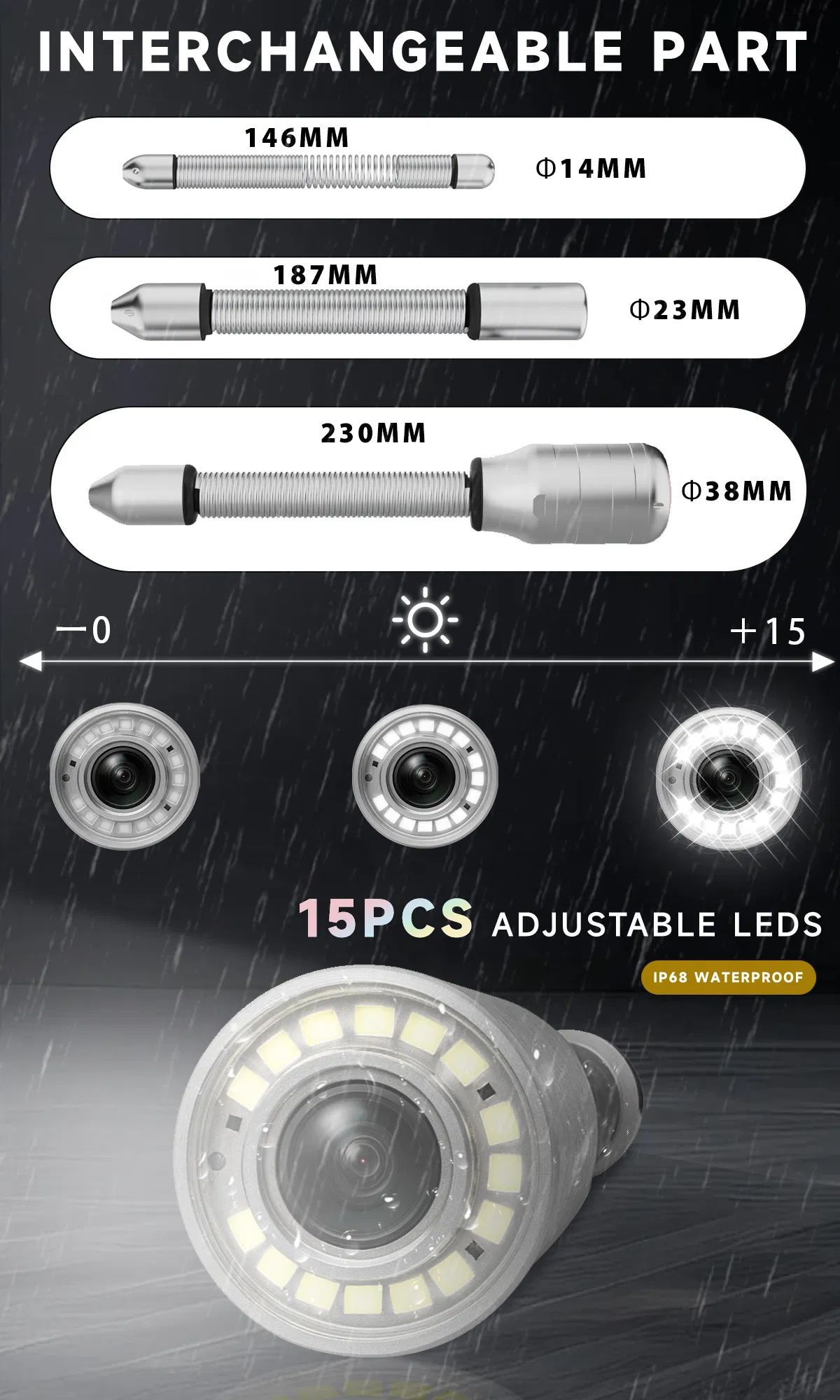

Camera Parameters (23mm)
| Feature | Detail |
|---|
| Sensor | 1/3” CMOS |
| Resolution | AHD 1920x1080 |
| Field of View (FOV) | 130° |
| Focal Length / Depth of Field | Approx. 15cm / 20cm |
| Camera size | 23mm x 51mm (Main Body) |
| Total camera length | 155mm |
| Lens Material | Sapphire glass |
| Housing Material | 304# Stainless steel |
| Light source | Built-in 15 white LEDs |
| Waterproof depth | 20m (camera fixed on cable) |

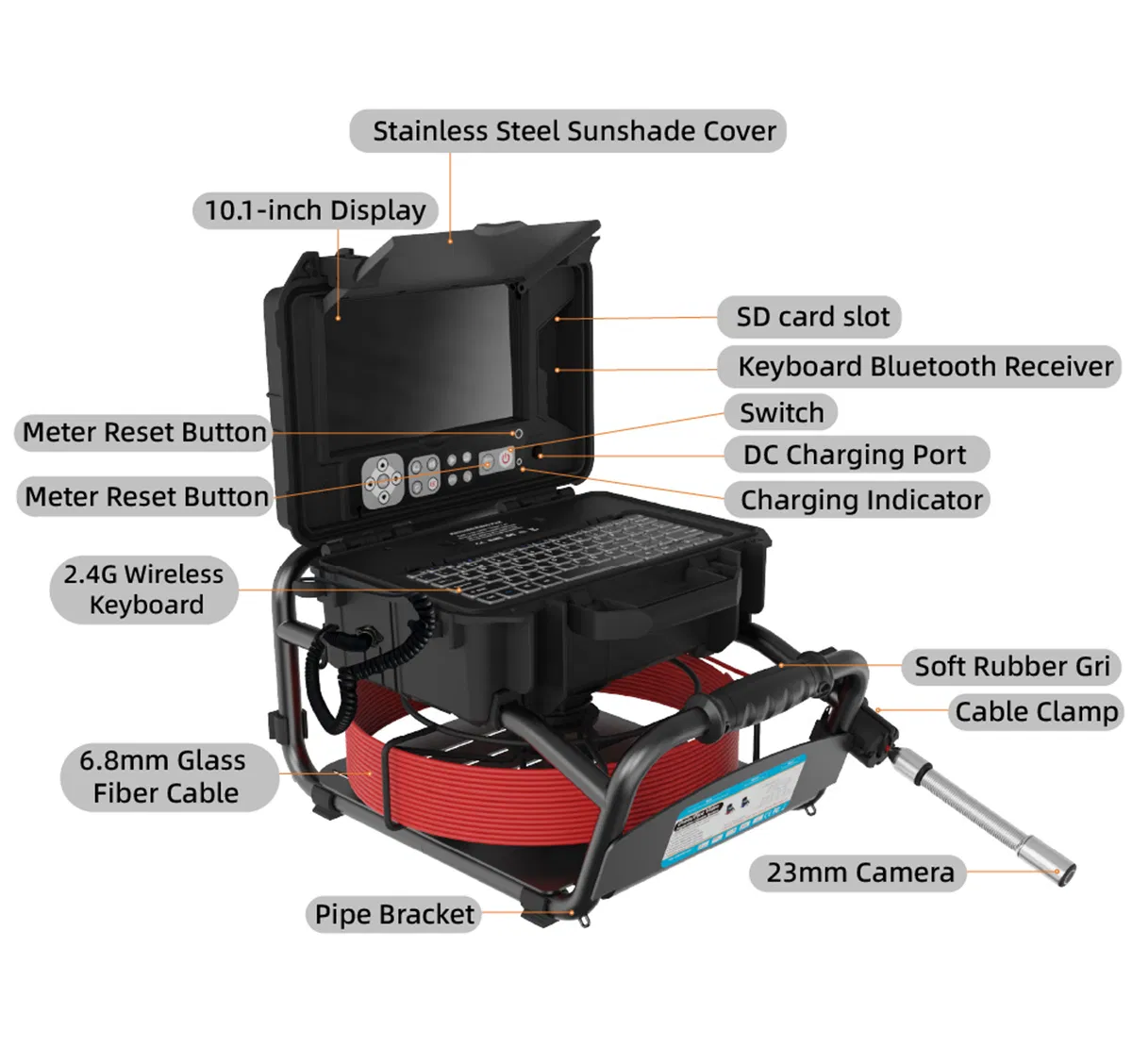

| Feature | Detail |
|---|

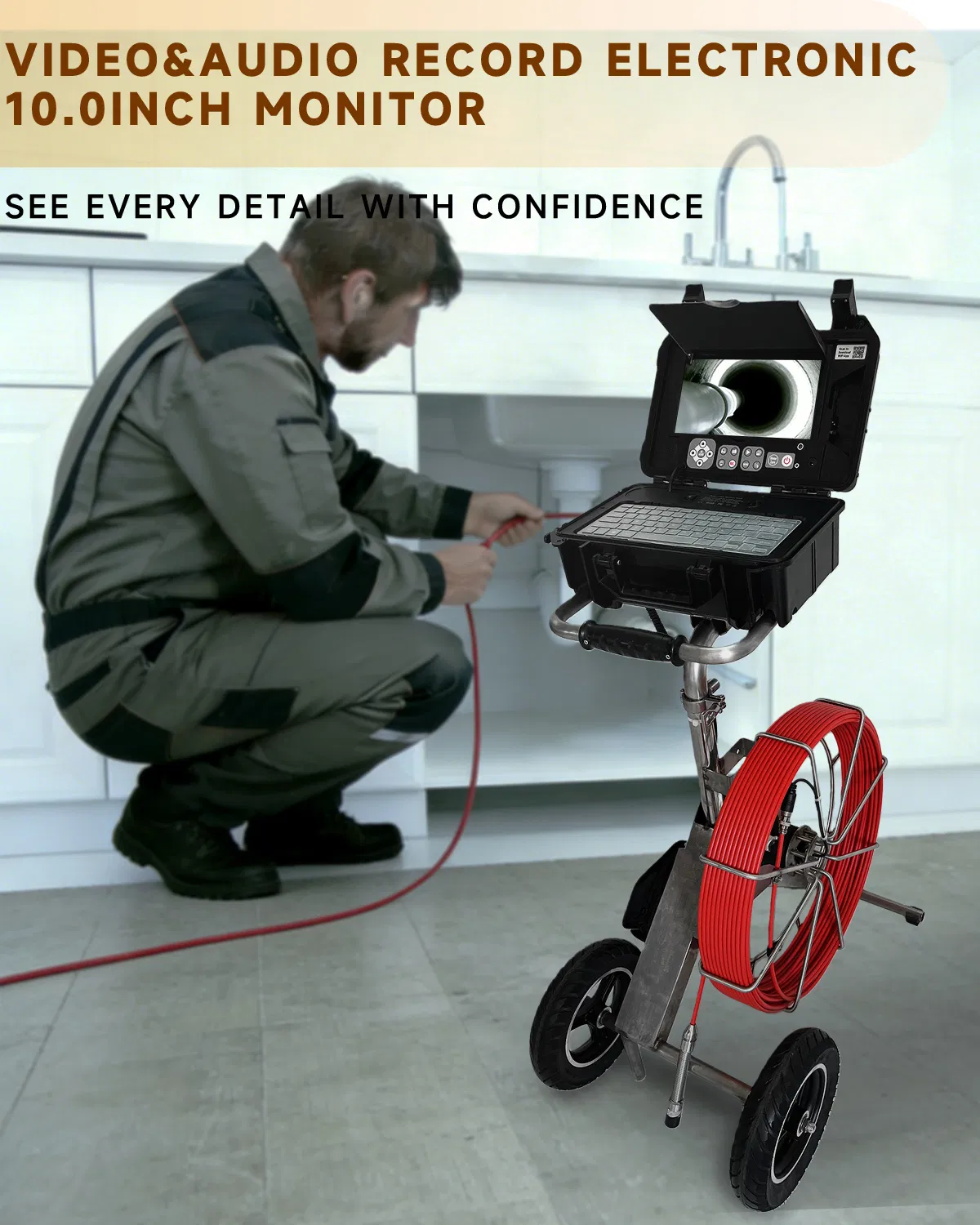

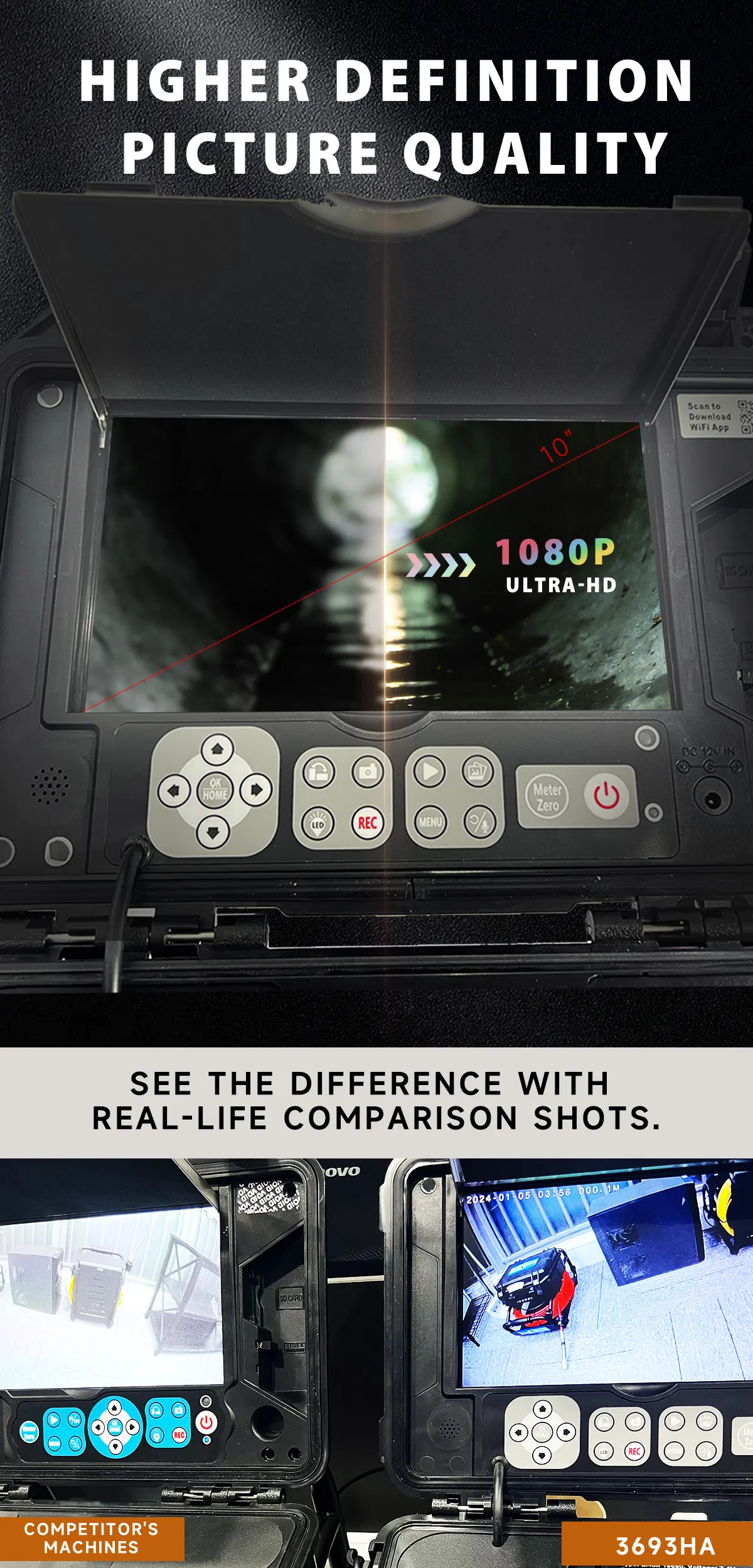

| Screen Type | High-definition color LCD screen |
| Screen Resolution | 1080*1920 |
| Video Compression | High compression H.264 |
| Memory Support | Supports 64G SD card |
| Battery Capacity | 7.2V 9000mAh lithium-ion |
| Operating Time | 11-12 hours (7") / 10-11 hours (10.1") |
| Charging Time | Approximately 10 hours |

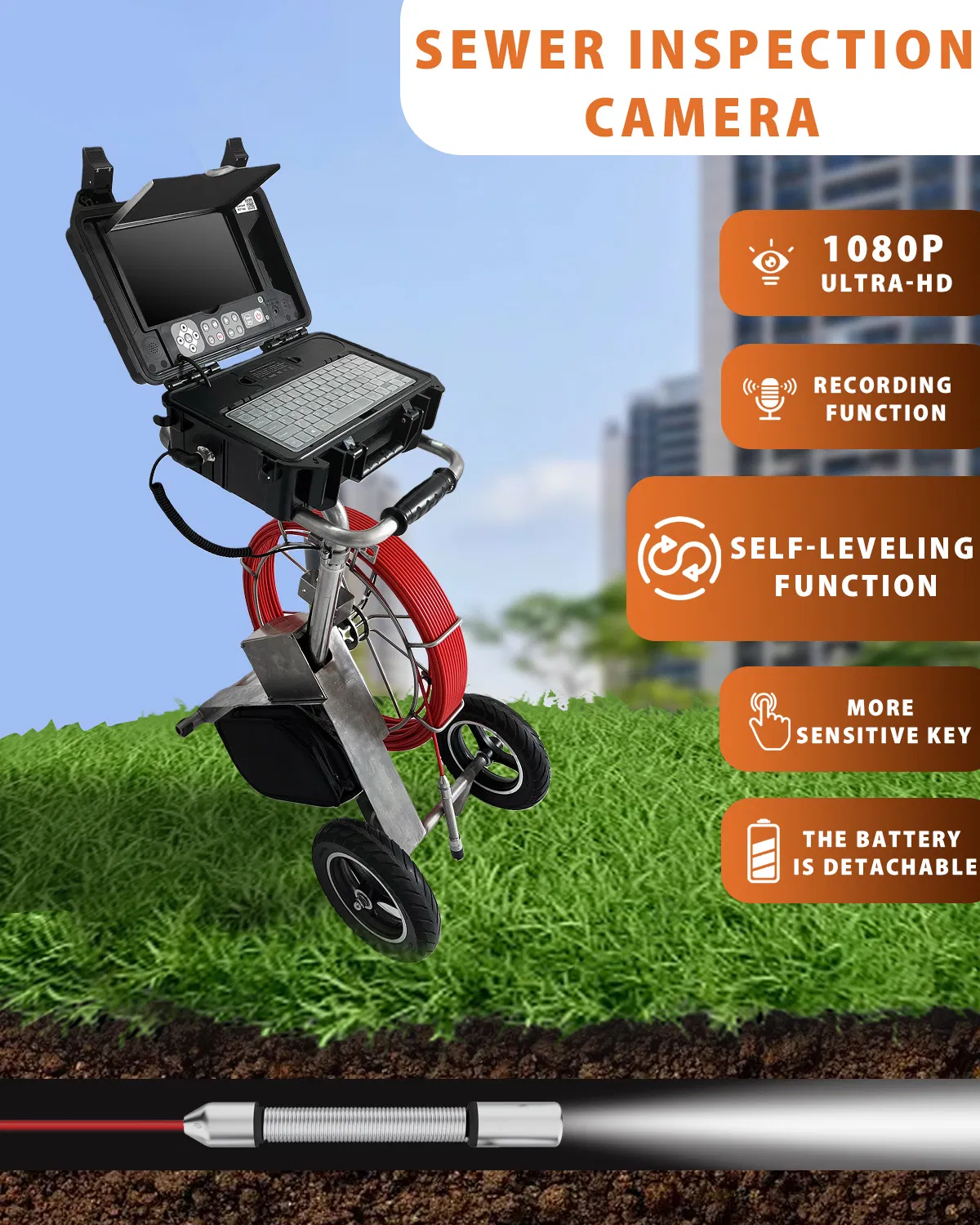

Professional Grade Engineering: Our product represents a superior class of inspection technology. Featuring a replaceable 9000mAh battery, a true 1080P high-definition display, and a self-leveling camera, every component is designed for efficiency and clarity. Experience faster controls, longer runtimes, and smarter features that simplify complex industrial tasks.
?
Frequently Asked Questions
What is the resolution of the camera and display?
Both the camera and the high-definition color LCD screen support true 1080P (1920x1080) resolution for crystal clear inspection visuals.
Is the camera head waterproof?
Yes, the camera system is rated IP68 and is designed to withstand water depths of up to 20 meters when fixed on the cable.
How long does the battery last on a single charge?
The 7.2V 9000mAh lithium-ion battery provides approximately 11-12 hours of operating time for the 7-inch model and 10-11 hours for the 10.1-inch model.
Does the system support distance tracking?
Yes, the system features a built-in length meter that can display measurements in meters or feet with a high degree of accuracy.
What type of storage does the device use for recordings?
The system supports local recording and photo capture onto an SD card, with compatibility for up to 64GB of storage.
Is the camera head equipped with self-leveling?
Yes, the camera head features a self-leveling mechanism to ensure the image remains upright and easy to orient during pipeline inspections.
