Basic Specifications
Pipeline Diameter
300-3000mm
Camera Lens Angle
Pan/Tilt
Lens Material
Anti-Scratch Sapphire Glass
Transport Package
Packed with Wooden Case
Specification
Standard cable length: 150m
Production Capacity
100 Sets Per Month
Product Overview

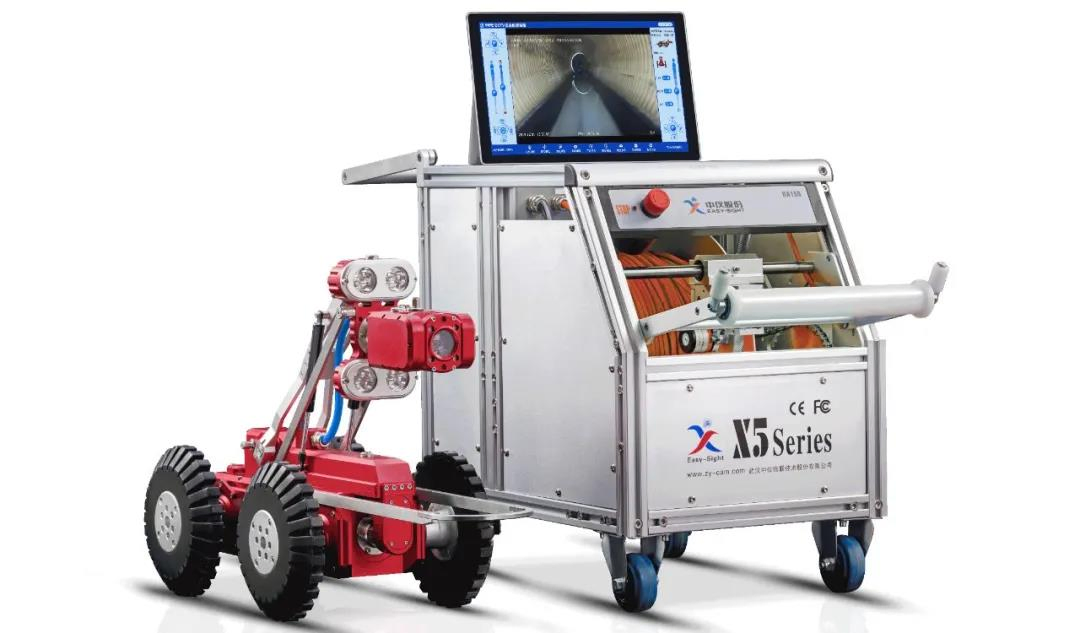

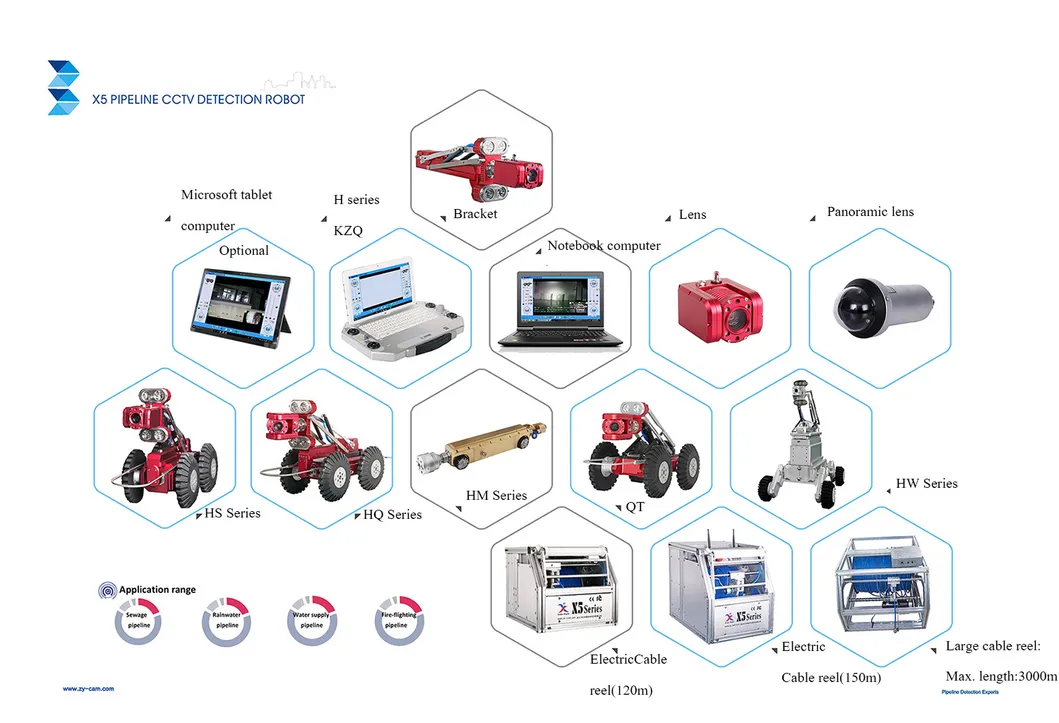

X5-HS pipeline CCTV Inspection robot is a product designed on the basis of industrial personal computer (IPC) system, using a laptop instead of the traditional controller. During the testing, defect pictures are acquired; afterward, a testing report can be obtained immediately. In addition, a pipeline gradient curve can be obtained in time during the testing to determine the sediment condition inside pipeline. Fish-eye lens is used, integrating "PipePano pipeline panorama testing video analysis software", so as to generate the panorama image of inner wall of the pipeline, analyze and determine more finely and quantitatively.
Technical Parameters
| Component |
Features & Specifications |

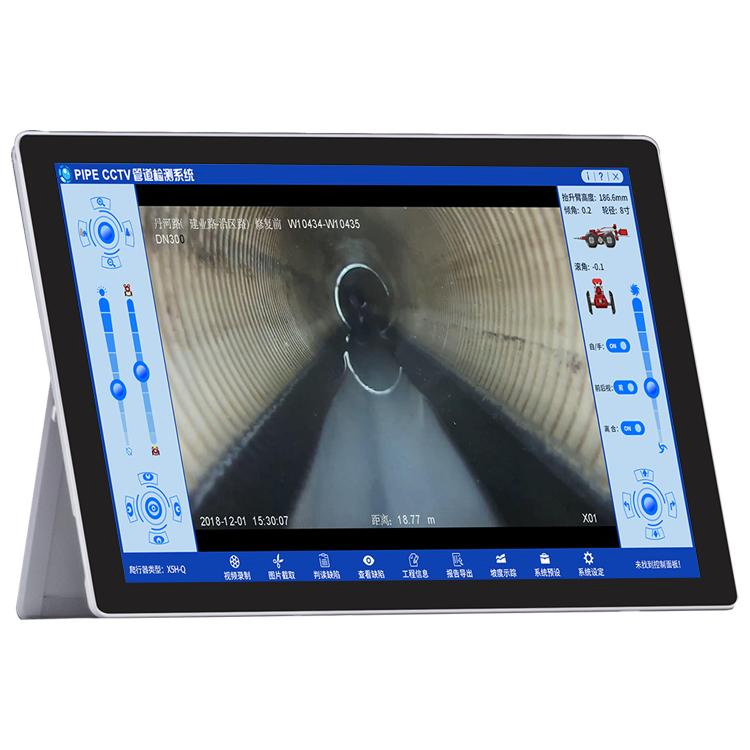

| Main Controller |
- Available in any notebook computer as the control system
- Wireless control
- Real-time display date, time, distance, and attitude info
- Dual sight display (front and rear) |
| Electric Cable Reel |
- Standard length 150M
- Two-core cable for reduced failure rate
- Automatic retractable cord |

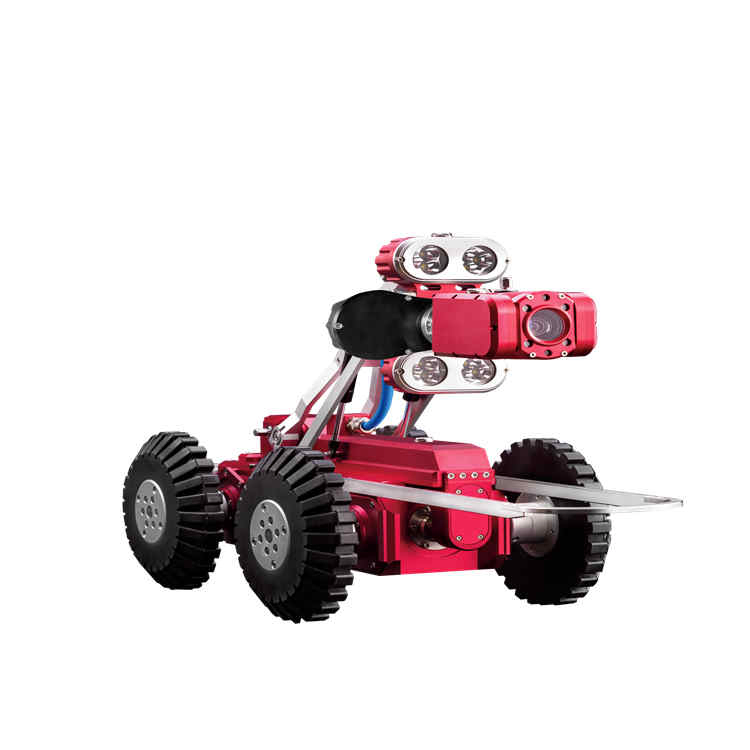

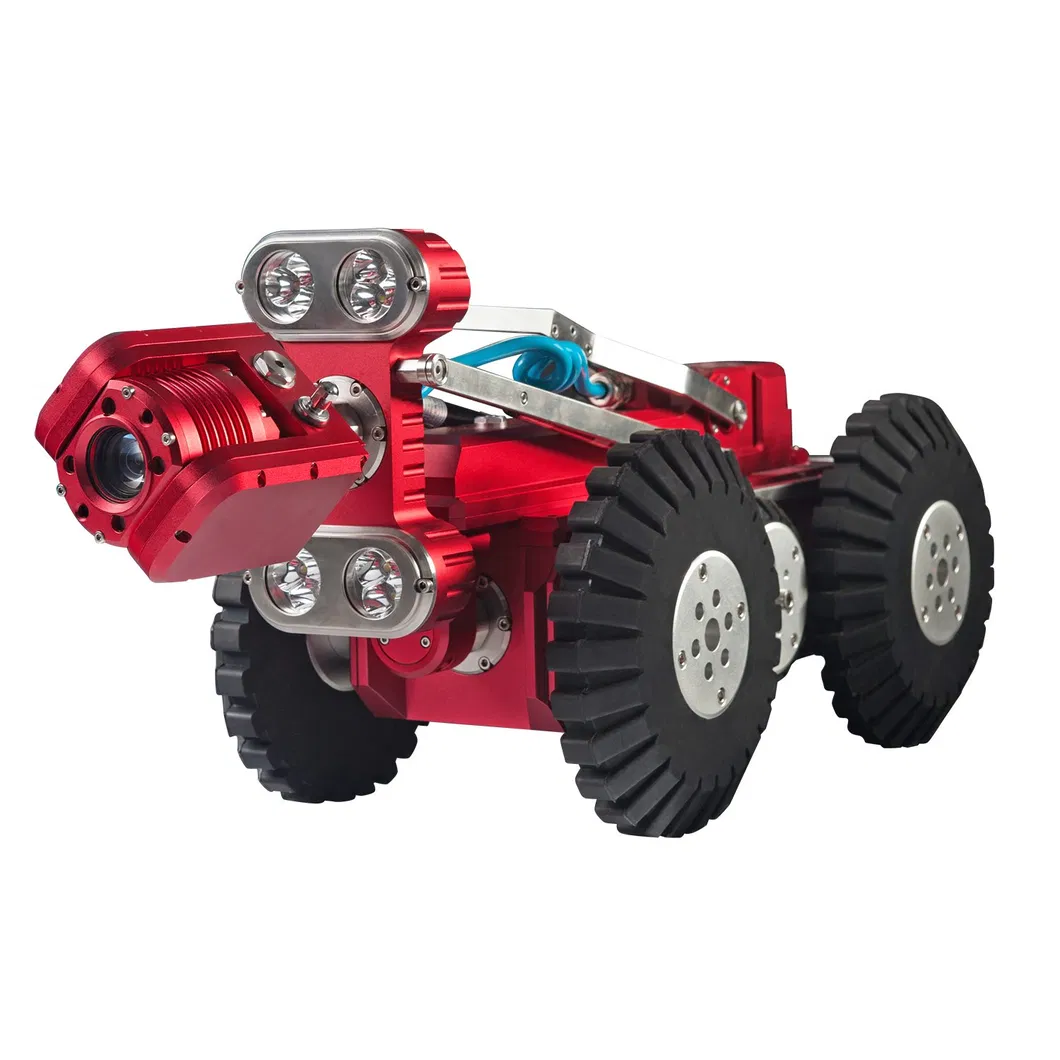

| Crawler |
- IP68 waterproof (10m depth)
- Diameter range: DN300mm--DN2000mm
- Material: Stainless steel, brass, aluminum alloy
- Electric lift frame, adjustable LED brightness |
| Camera |
- High resolution 1920*1080
- 360° radial limitless rotation
- Sensitivity: 0.1Lux
- Four LED lights |
Application & Field Use
Our products are widely applied to infrastructure development including geophysical prospecting, urban development, municipal construction, national defense, water conservancy and hydro power. The system allows for precise movement control (advance, reverse, turning, stopping) and advanced lens operations such as focusing, magnification change, and lighting adjustment.
Key Advantages
- Lightweight Design: The whole machine including master control, cable reel, and crawler is optimized for weight; PC-based control via laptop.
- Efficiency: Quick assembly on site with fast data transmission; time-saving detection process.
- Advanced Visuals: High-definition camera with highlight combination light source; synchronized dual-screen display.
- Stability: Waterproof and explosion-proof design; master control features a zero-failure record.
- Durable Construction: Built with stainless steel and sapphire glass for long-term industrial use.
Packing & Professional Service
Service Guarantee: We provide comprehensive support including technical help, a 12-month warranty, and lifelong maintenance. Our professional team ensures zero communication barriers with fluent English support and detailed operational manuals.
Frequently Asked Questions
Q1: What kind of packaging is used for shipping?
A: We use standard plywood craft cases. The machine is protected by foam to prevent shaking and covered by a thick plastic bag for waterproofing.
Q2: Is the equipment safe from damage during transportation?
A: Yes, our packaging considers all damage factors. Our shipping agents are highly experienced in safe international transportation.
Q3: How do I install and operate the machine?
A: The machine is pre-installed before shipping. We provide detailed training videos and English manuals. Most customers can learn to operate it independently.
Q4: What is the depth rating for the crawler?
A: The crawler and camera are rated IP68 and can operate in water depths up to 10 meters.
Q5: What pipe diameters can the X5-HS inspect?
A: This model is suitable for a wide range of pipeline diameters, specifically from 300mm to 3000mm.
Q6: What happens if the machine encounters a technical issue?
A: Please contact our support team immediately. We respond within 24 hours to provide technical guidance or repair solutions under our warranty policy.
