Laser Profiler Inspection Crawler System Pipe Deformation Laser Scan

Customization:	Available
Accuracy:	<1mm
Horizontal Line:	1

Send Inquiry

Product Description

📋 Basic Information

Model NO.

LP-1

Vertical Lines

Transport Package

Carton

Origin

China

HS Code

9031809090

Production Capacity

100 Pieces One Year

🔍 Product Description

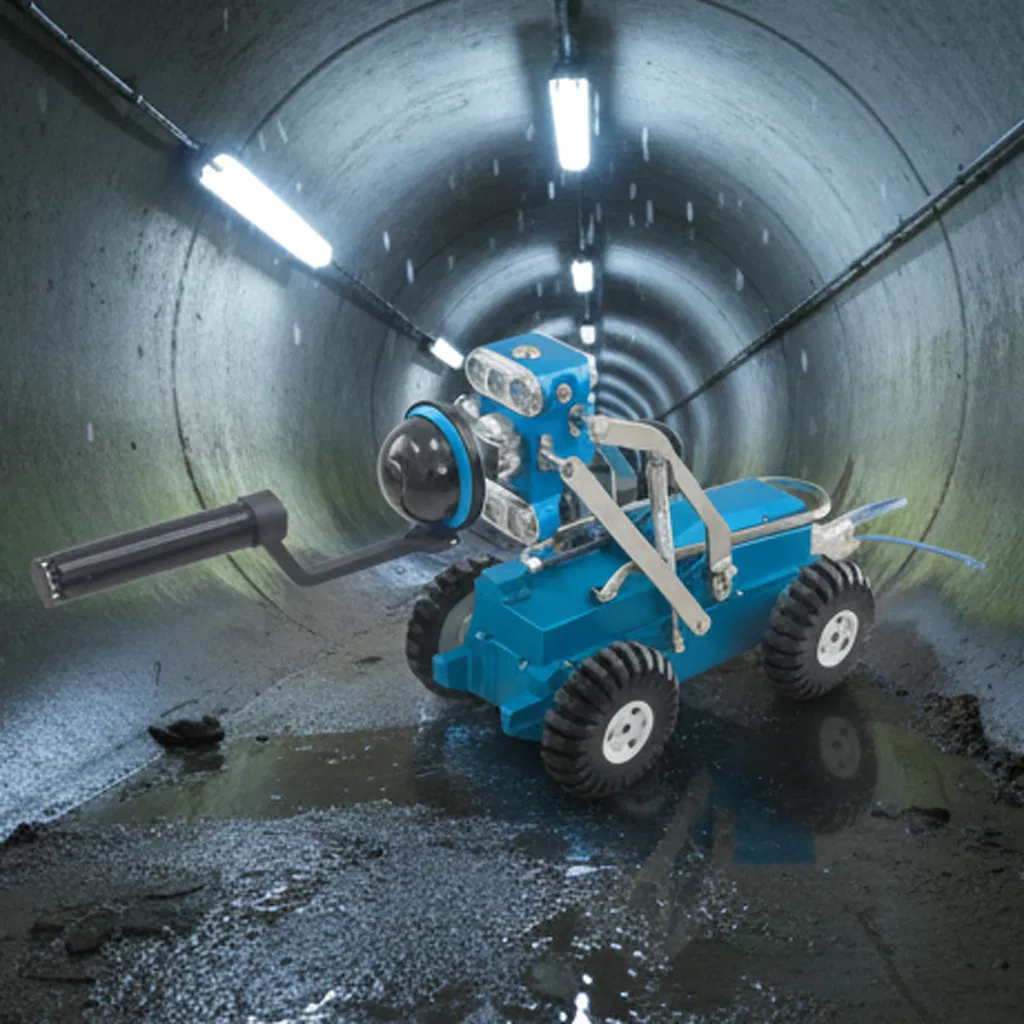

Laser Profiler Inspection Crawler System Pipe Deformation Laser Scan

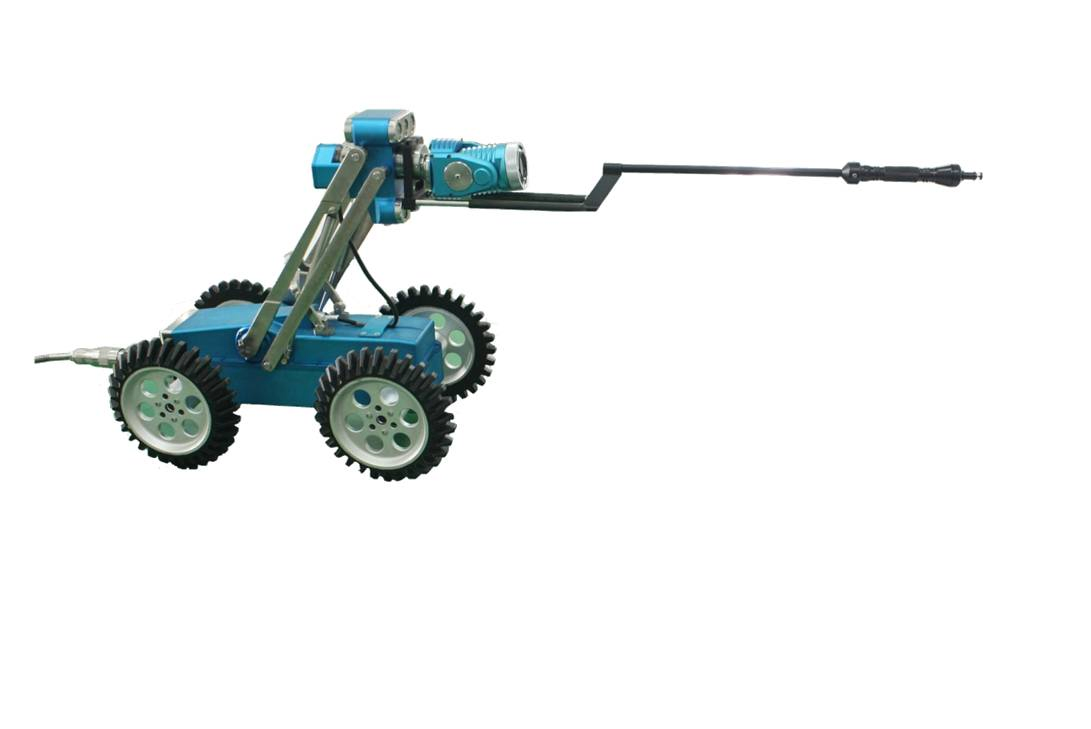

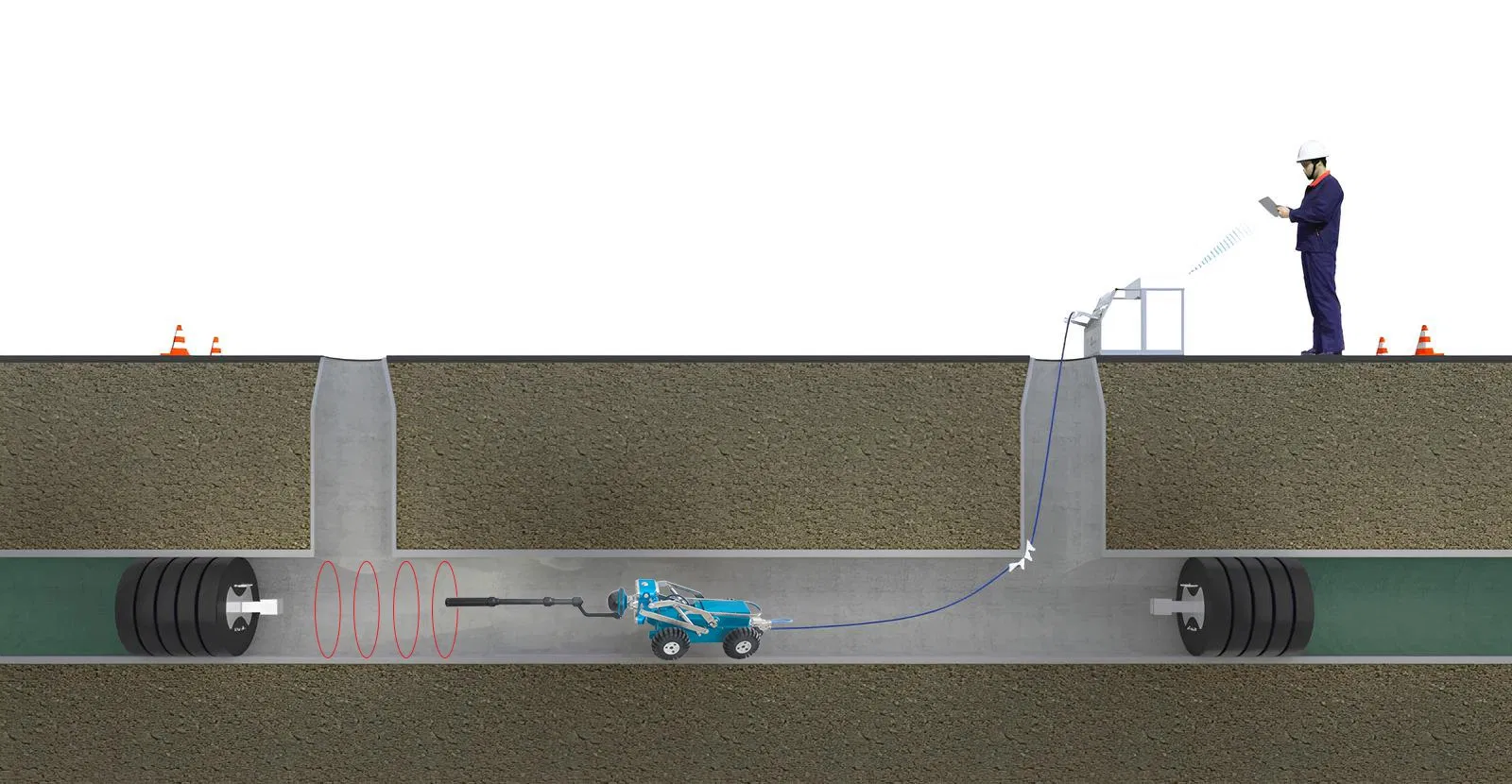

The Profiler has been developed to provide pipeline engineers and contractors very accurate empirical data on the ovality, capacity, and other conditions in new and existing pipelines. The Profiler simply attaches to your existing CCTV Camera and the resulting CCTV images are analysed using innovative 'machine vision' software. For use with compatible cameras and pipe diameters from 100 mm up to 2000 mm.

🛠️ Applications & Specifications

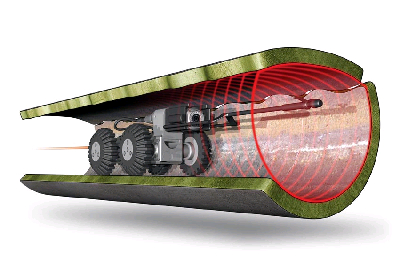

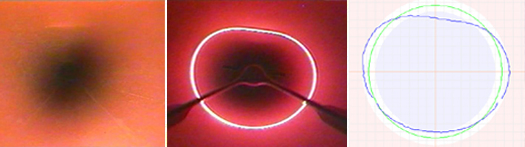

Projects a laser light in a radial plane perpendicular to the camera's line of sight.

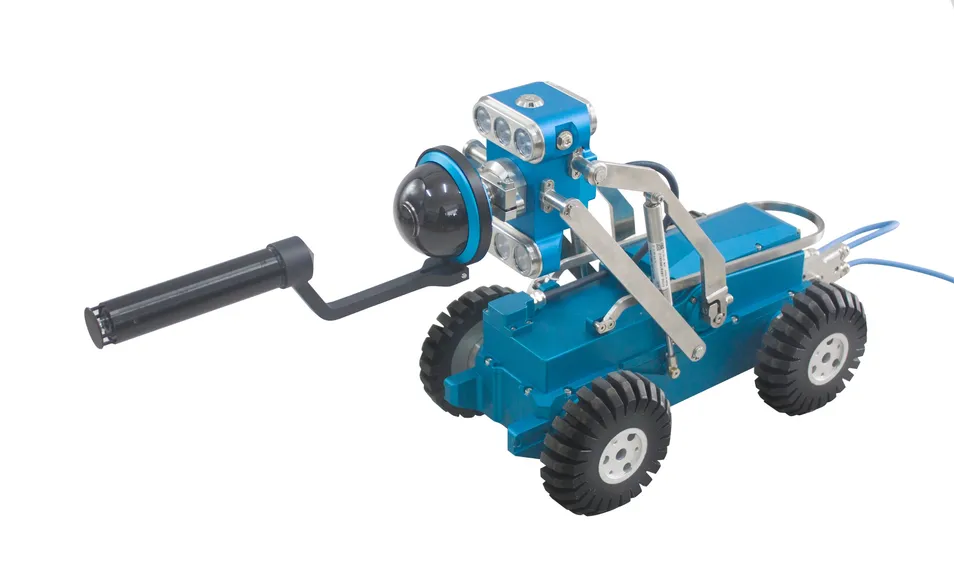

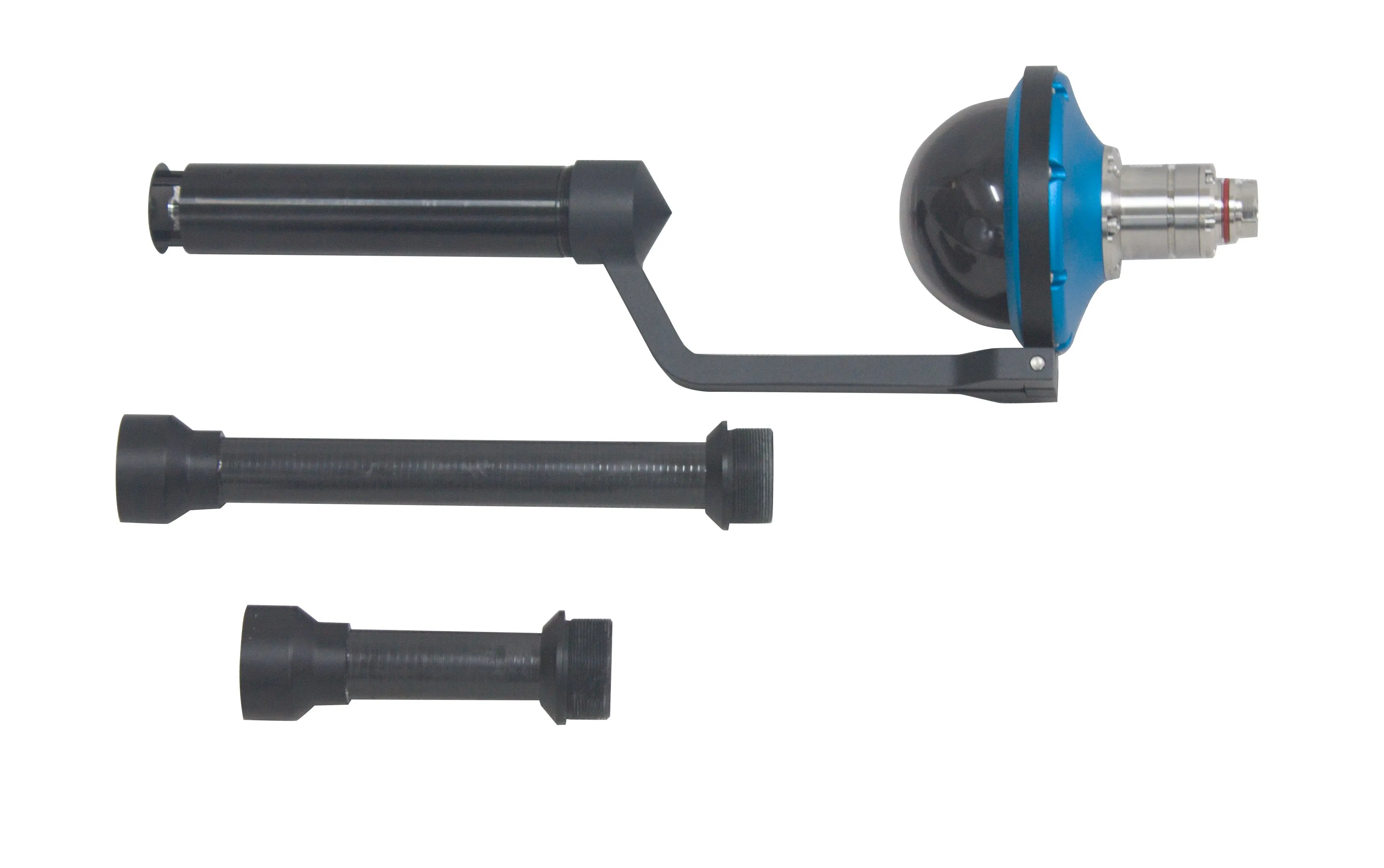

Easily attaches to existing CCTV Camera or Transporter systems.
Captures single frames for analysis in JPEG, BMP, or TIFF formats.
Text can be placed anywhere within the captured video image.
Line graphs display cross-sectional amplitude over the entire pipe length.
Obtains actual degradation of the pipe using laser profiling tools.

Laser head LP-1:

1. Voltage: 3V
2. Laser: 650nm
3. Temp: -20 to 60°C
4. Pipe Diameter: 100-2000mm

⭐ Key Features

Operates in pipe sizes from 100mm through 2000mm.
High-strength carbon fiber and aluminum construction.
Internally battery powered (rechargeable); no electrical connections required.
No moving parts for enhanced durability.
Software compatible with TV inspection vehicles or remote computers.
Can capture video frames from tapes, stored files, CD, or DVD.

🔧 After Sales Service

Standard Warranty: 12 months or 2,000 operating hours.

Extended Warranty: Optional coverage up to 36 months.

Global Support: 24/7 technical assistance and spare parts supply.

Training: On-site or remote operation and maintenance training.

🏢 Profile & Expertise

Committed to providing integrated reliable and innovative pipeline inspection products to serve global customers through an experienced international network. We focus on understanding unique pipeline field application requirements through breakthrough innovations.
