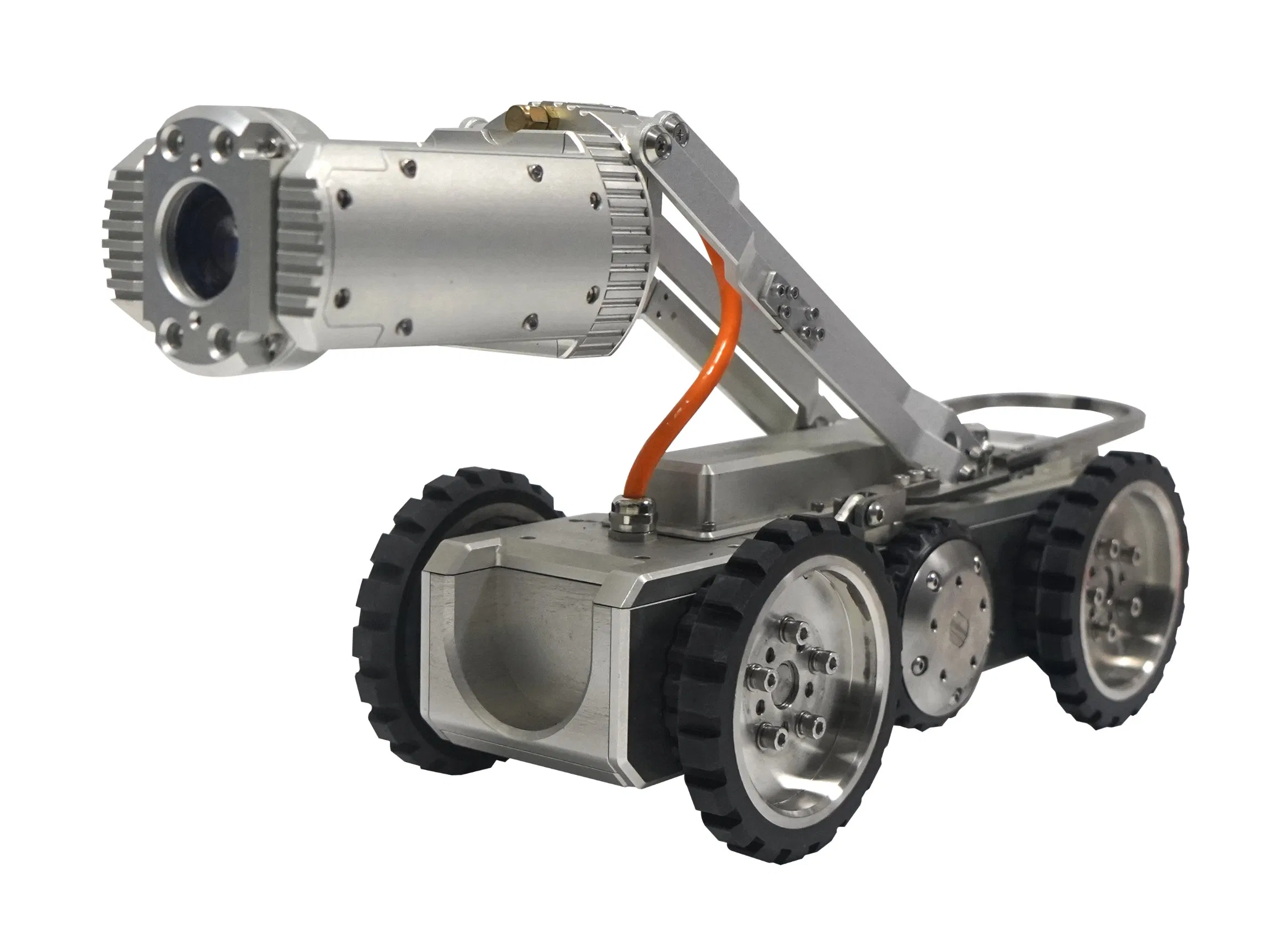

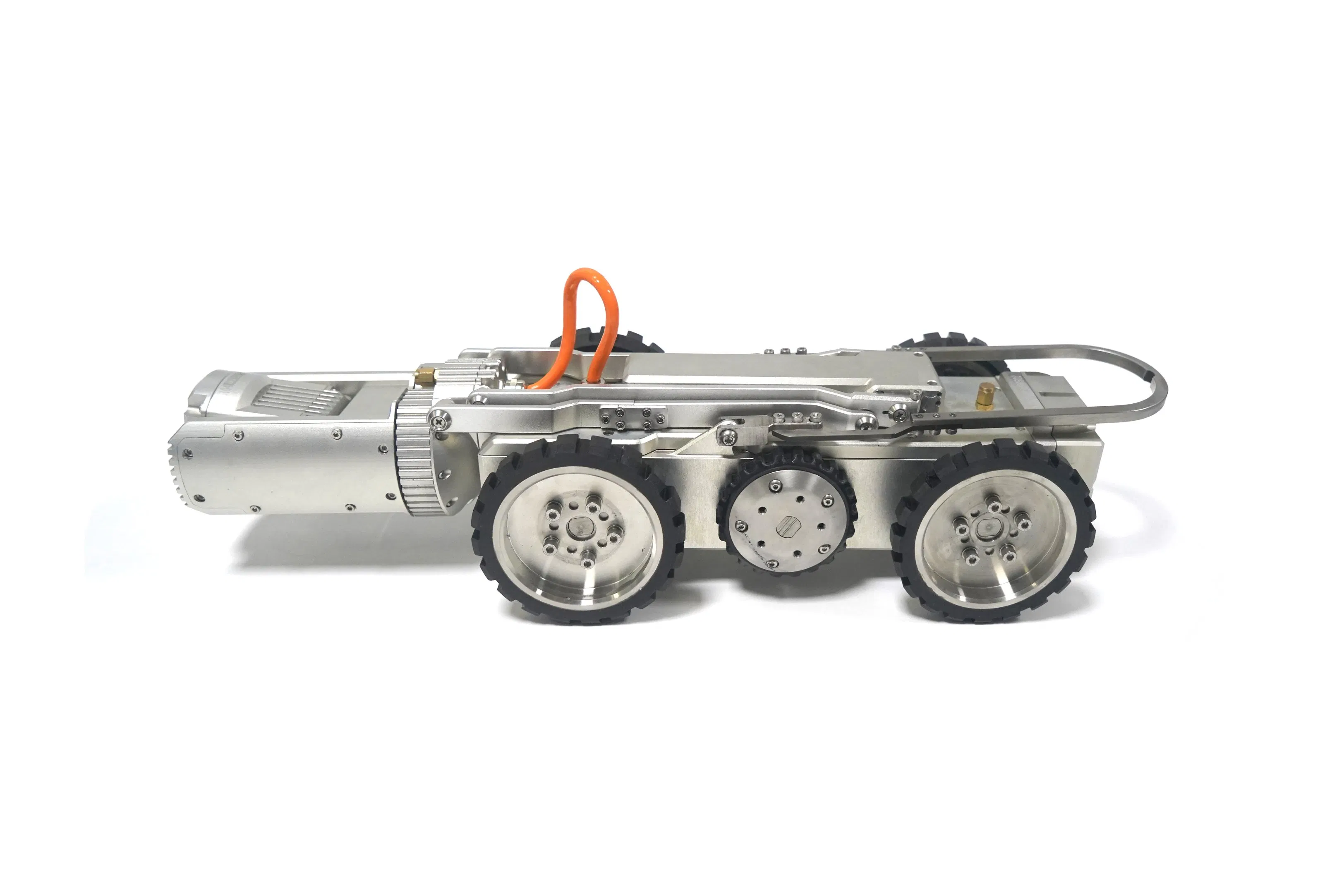

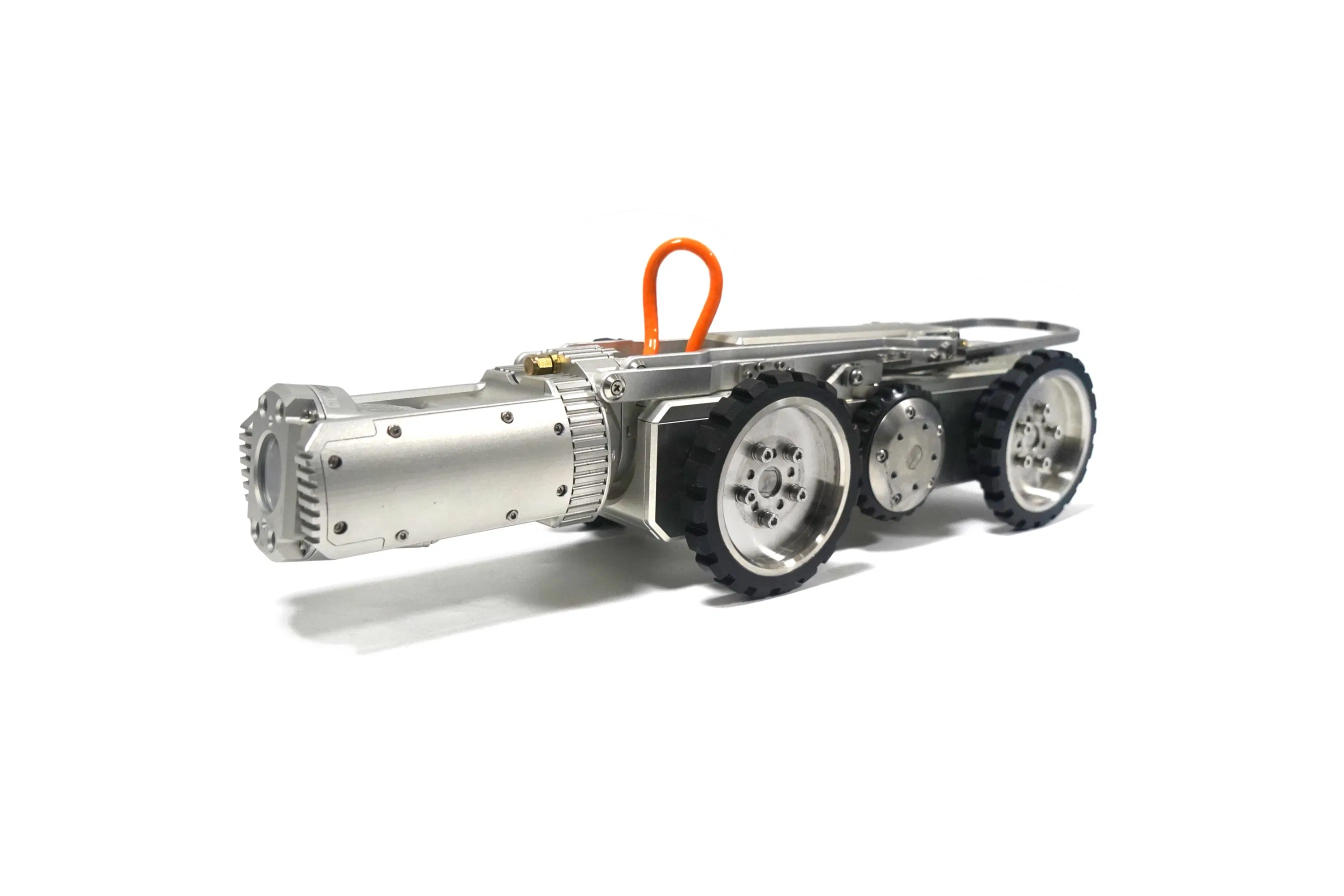

Robotic Pipe Crawler for Industrial and Residential Inspection

1 / 5

Robotic Pipe Crawler for Industrial and Residential Inspection

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info & Overview

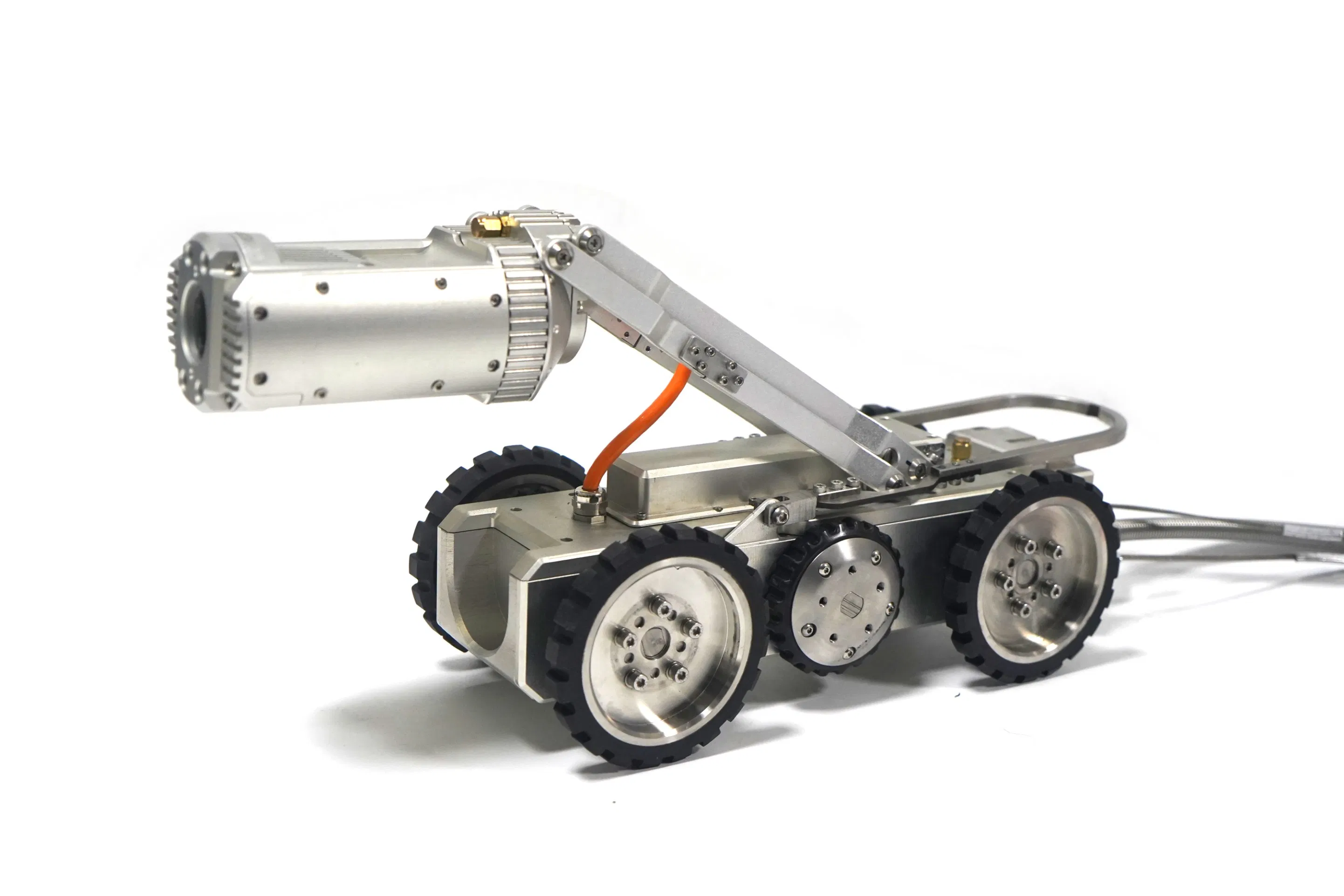

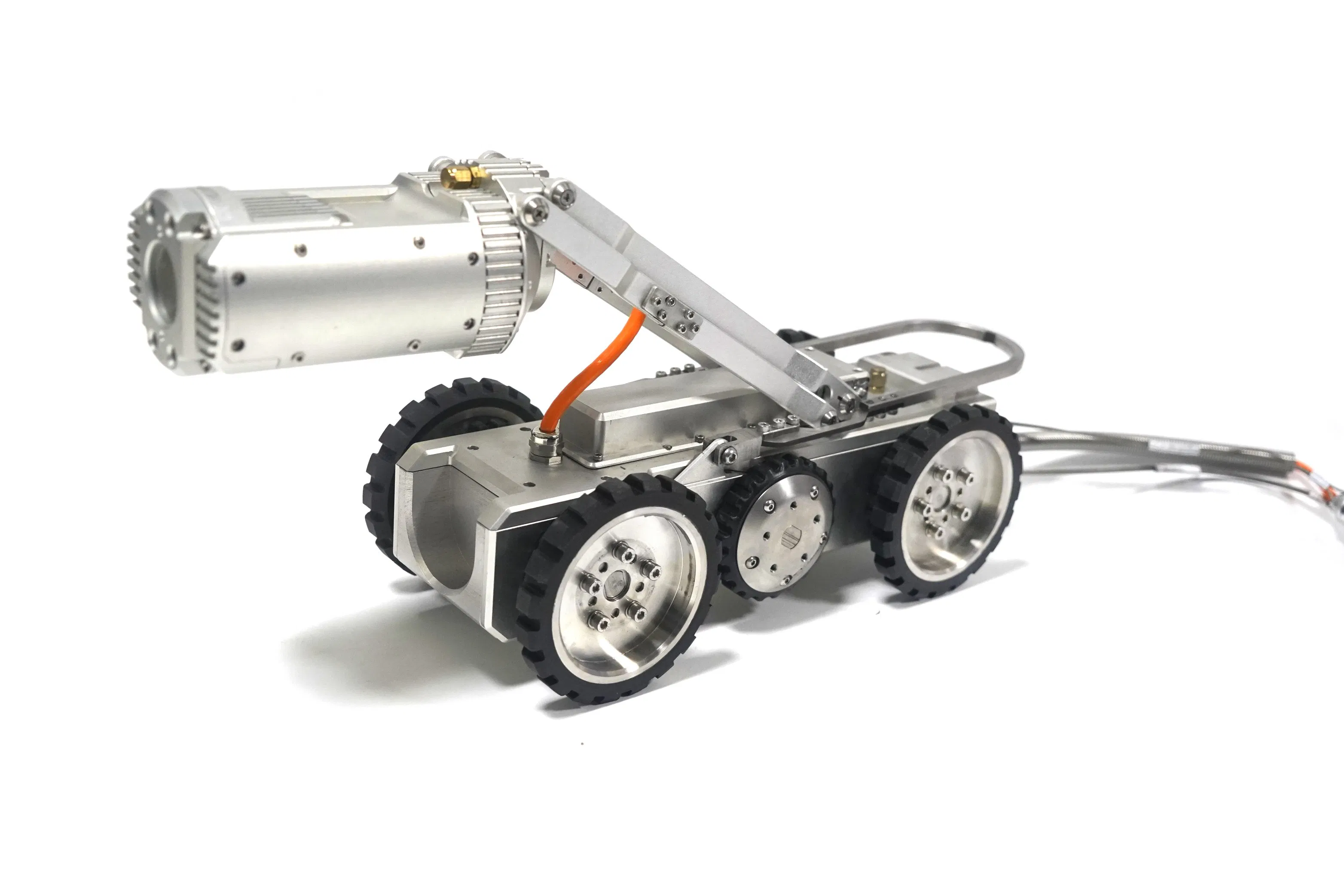

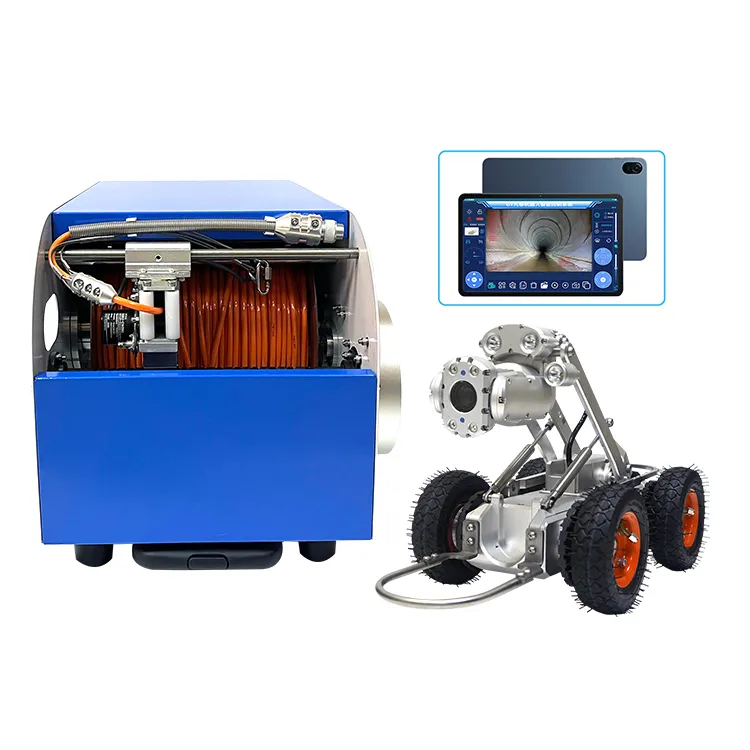

Robotic Pipe Crawler for Industrial and Residential Inspection. Suitable for pipe diameters 200-3500mm with customizable cable lengths from 100m to 500m.

Model NO.	GT104A	Data on Monitor	Meter, Slope, Pressure
Waterproof	IP68	Crawler Wheel	110mm, 150mm, 180mm Optional
Power	220V or 110V Customized	Camera Qty	Front and Rear Double
Front Camera	with Zoom Function	Camera Rotate	360° Rotate, 220° Flip

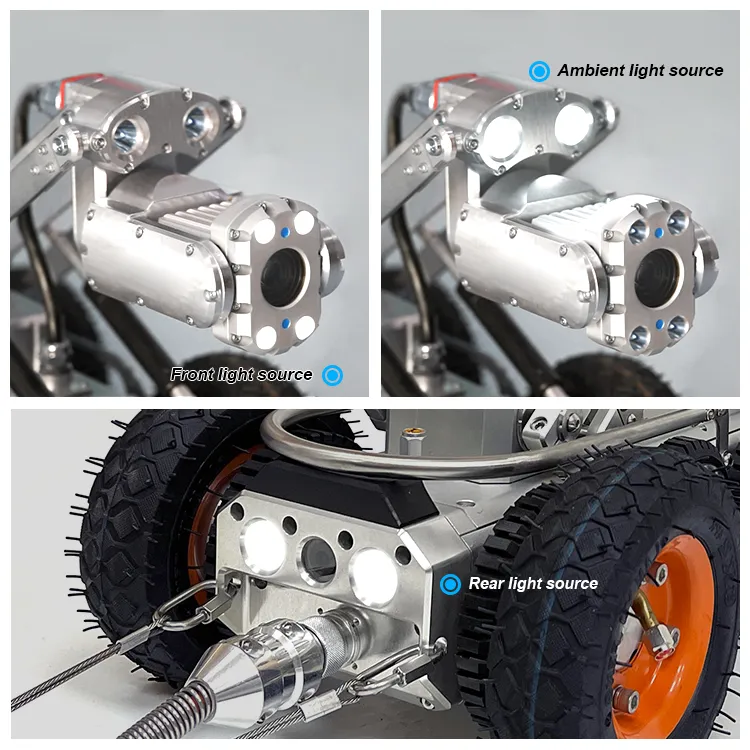

Light	Adjustable Light	Pay off Cable	Electrical Barrow
Language	8 Languages	Storage	Support 1 TB
Camera Head	Electrical Lifting	Production Capacity	1000 sets/Month

Product Description

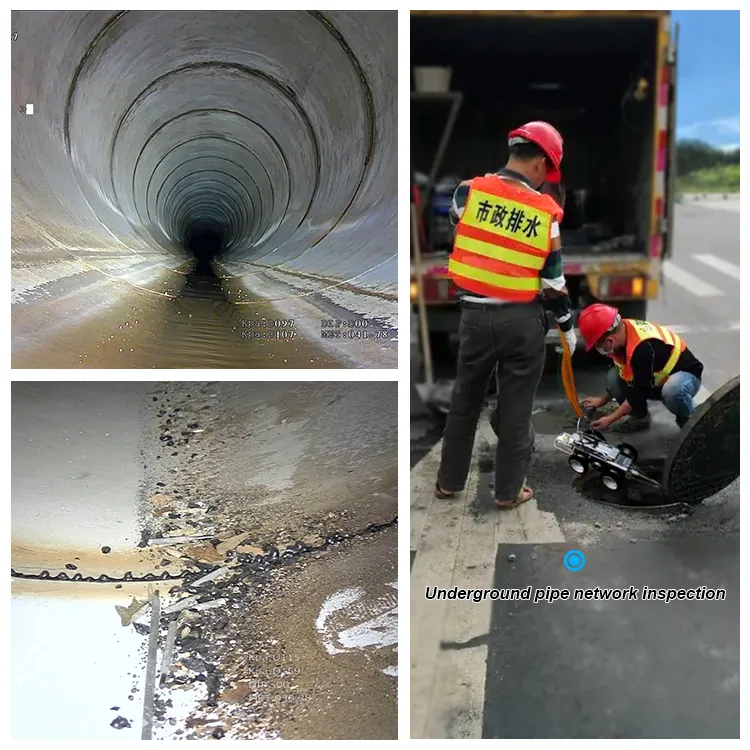

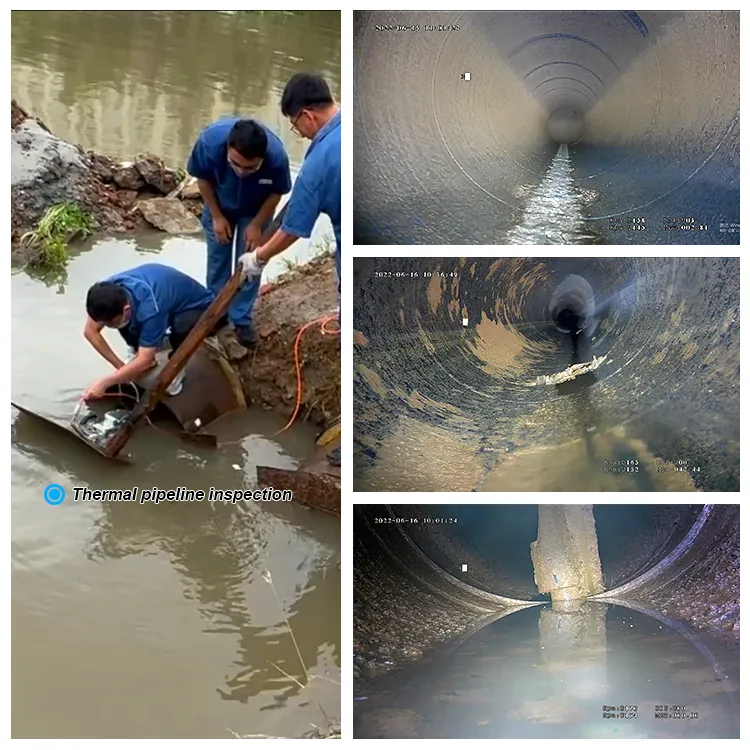

The Pipe inspection camera is widely utilized across multiple sectors including technical supervision, energy, electric power, petrochemical, shipbuilding, rail transit, aerospace, and municipal management. It provides high-definition visual feedback for pipeline integrity assessments.

Technical Parameters

Parameter	Specification
Suitable Diameter	Pipe inner diameter: 200-3500mm
Cable Length	Standard 100m (Customized up to 500m)
Screen Size	10 inch
Resolution	1920*1080P
Pixel	2MP / 4MP Optional
Camera Lifting Height	120mm
Wheel Sizes	110mm / 150mm
Barrow Type	Electrical Barrow

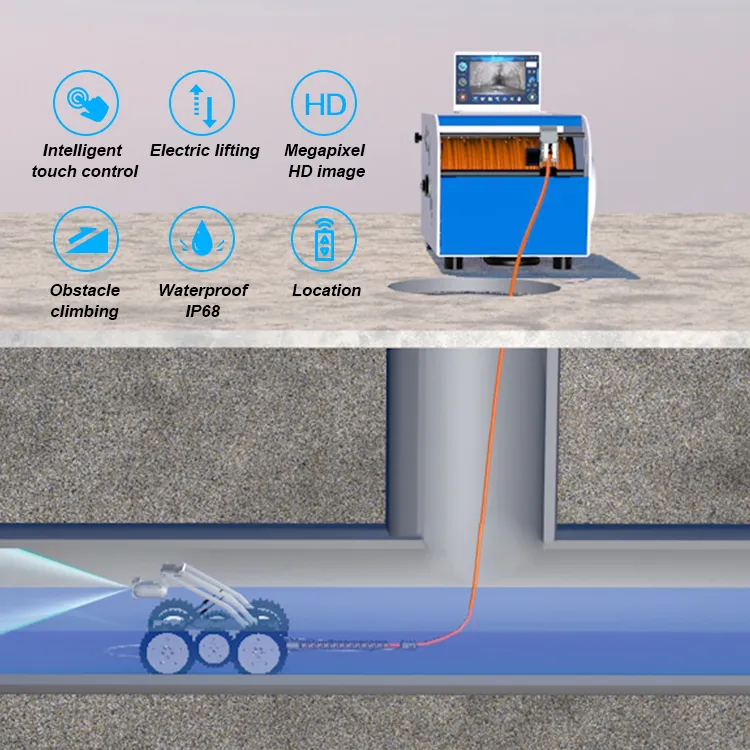

Key Features

IP68 Waterproof and anti-corrosion materials.

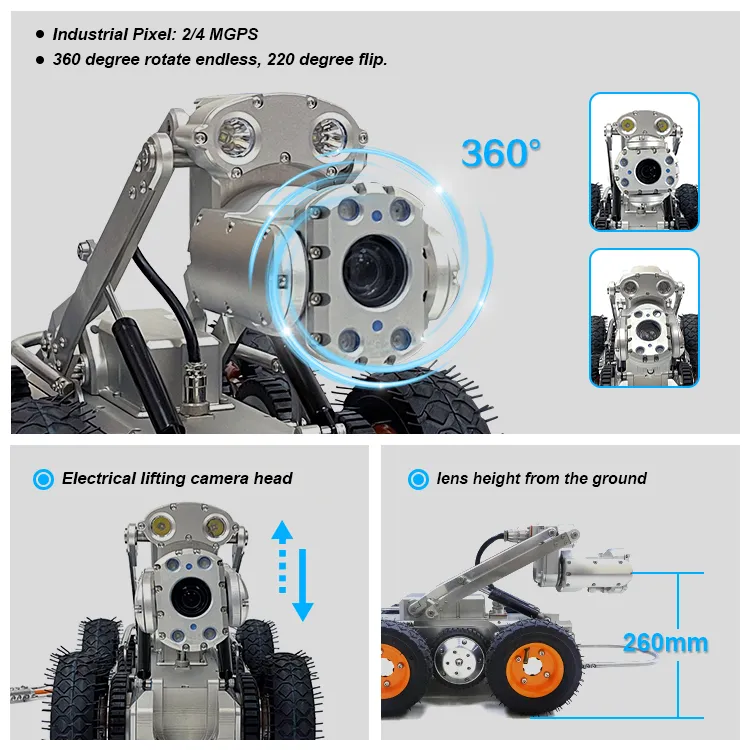

360° rotation and 220° flip lens with no dead angles.

10x zoom function for detailed inspection.

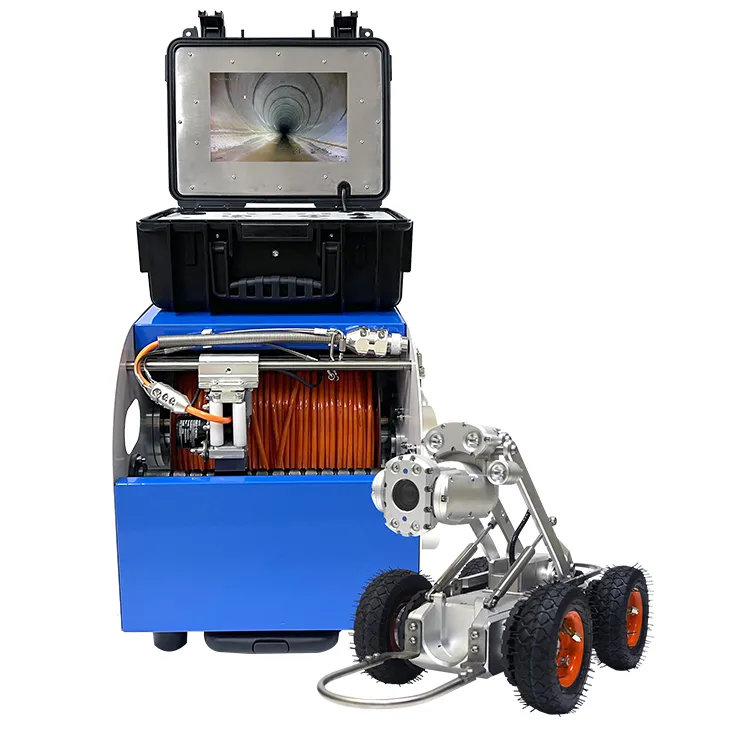

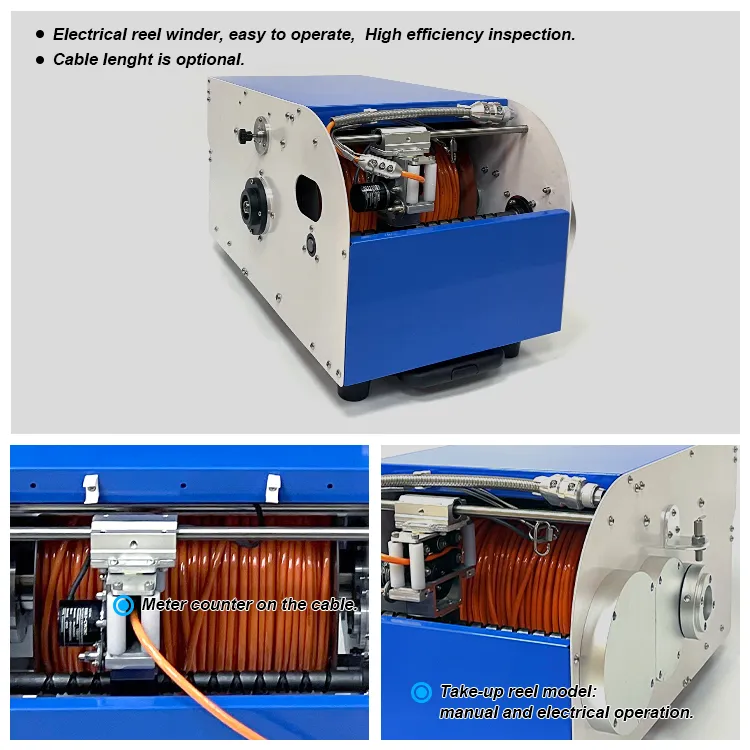

Electrical lifting camera head and automatic cable reel.

Supports 512Hz customized frequency and HDMI output.

4 Megapixel (2560X1440) high-resolution imaging optional.

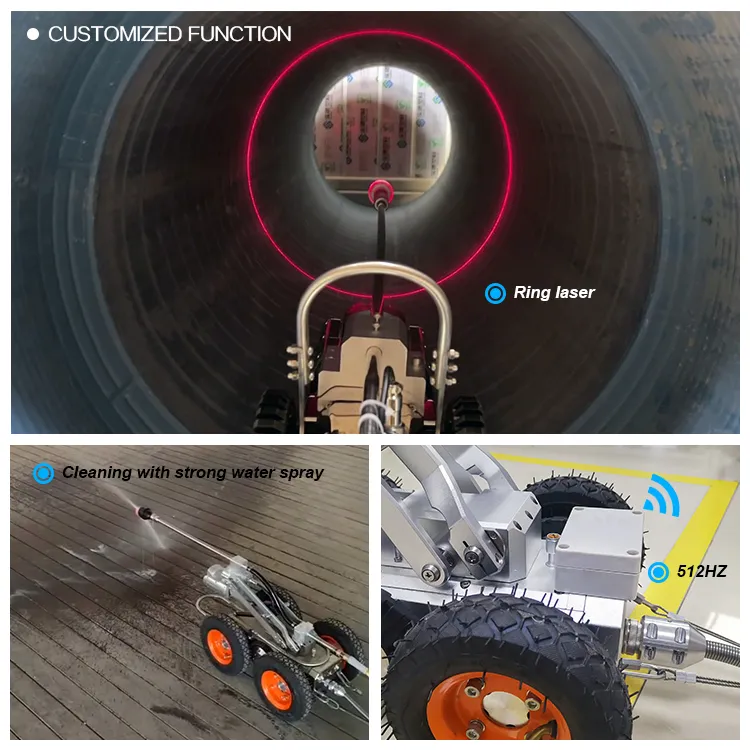

Advanced modules: Laser, Sonar, Cleaning, and Obstacle Climbing.

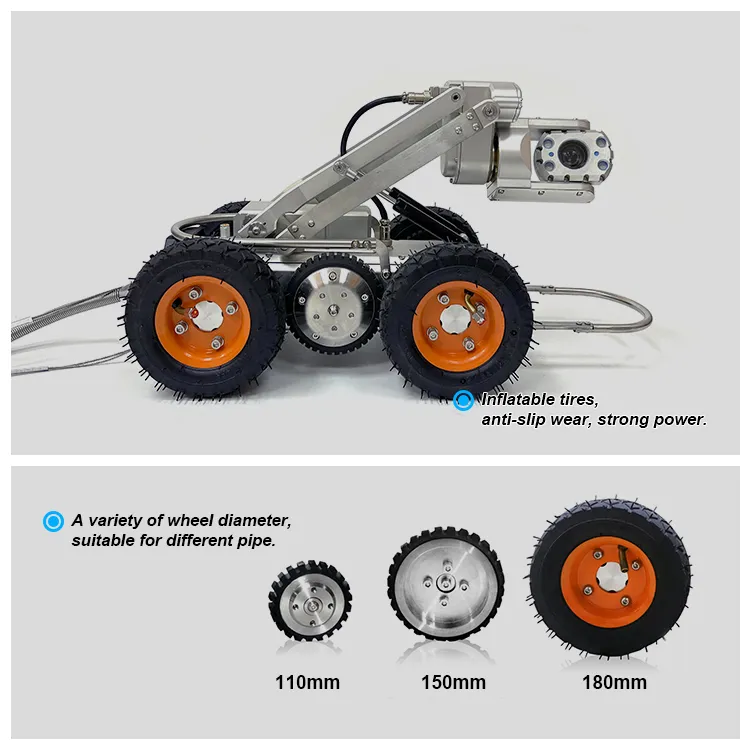

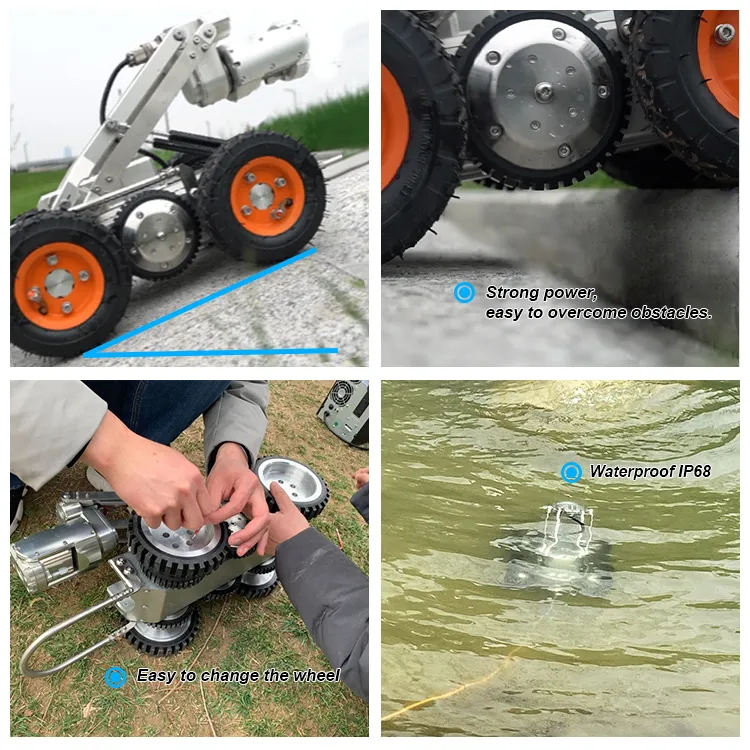

Six-wheel drive with interchangeable tire sizes for various conditions.

Advantages & Quality Assurance

Certifications & Profile

Frequently Asked Questions

What range of pipe diameters can this crawler inspect?

The system is designed to inspect pipes with inner diameters ranging from 200mm up to 3500mm using various interchangeable wheel sizes.

Is the camera head fully waterproof?

Yes, the camera system is rated IP68, making it completely waterproof and suitable for municipal pipeline inspections where water or moisture is present.

What is the maximum cable length available?

The standard cable length is 100 meters, but it can be customized to reach up to 500 meters depending on your specific project requirements.

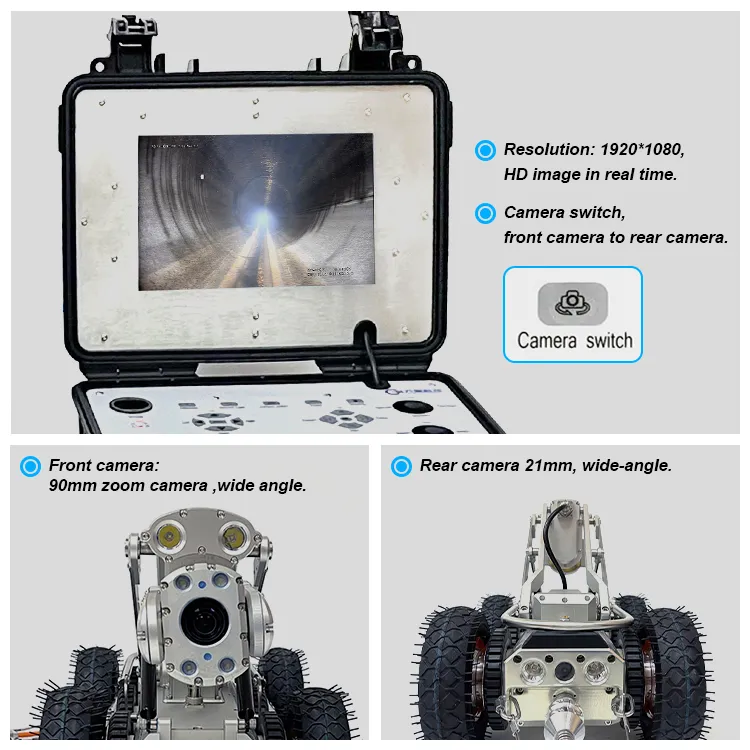

Does the camera support zoom and rotation?

Yes, the front camera features a 10x zoom function, 360-degree continuous rotation, and a 220-degree flip to ensure no blind spots during inspection.

What kind of data does the monitor display in real-time?

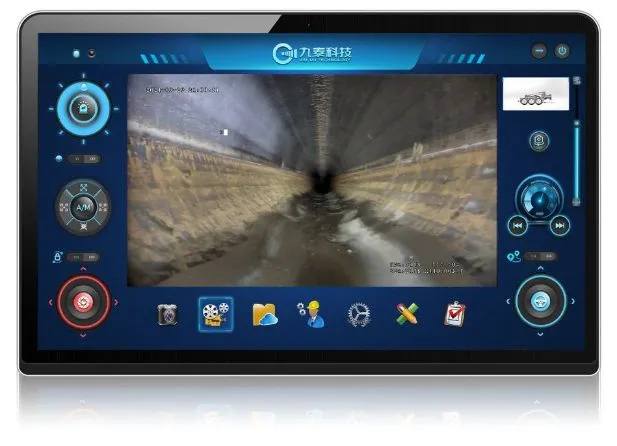

The 10-inch high-definition screen displays real-time data including distance (meters), slope angle, and internal pressure levels.

Can the crawler handle obstacles inside the pipes?

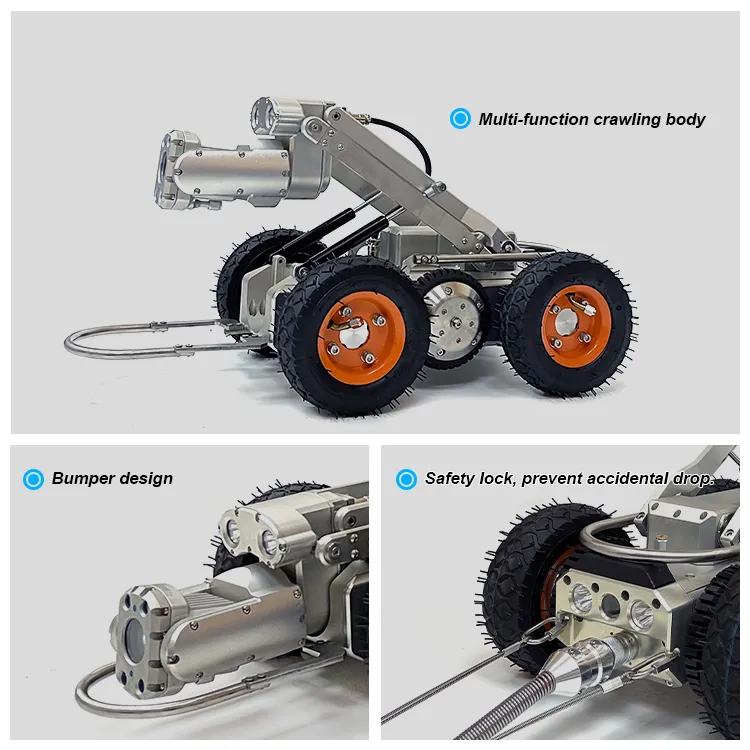

Absolutely. With six-wheel drive and a super driving force system, the robot is capable of climbing over obstacles and navigating sloped surfaces effectively.
