X Ray Pipeline Crawler NDT Welding Inspection Machine for Oil and Gas Tube

1 / 5

X Ray Pipeline Crawler NDT Welding Inspection Machine for Oil and Gas Tube

Customization:	Available
After-sales Service:	Online Solutions
Warranty:	1 Year Parts Warranty

Send Inquiry

Product Description

📋 Basic Information

Model NO.

SF08-D300-4WD

Type

Portable X-ray Detector

Application

Industrial

Certification

ISO

Pipe Diameter

290mm ~ 1400mm

Form

Portable

Alarm Form

Display Alarm

Capacity

1000 PCS/Year

🚀 Product Description

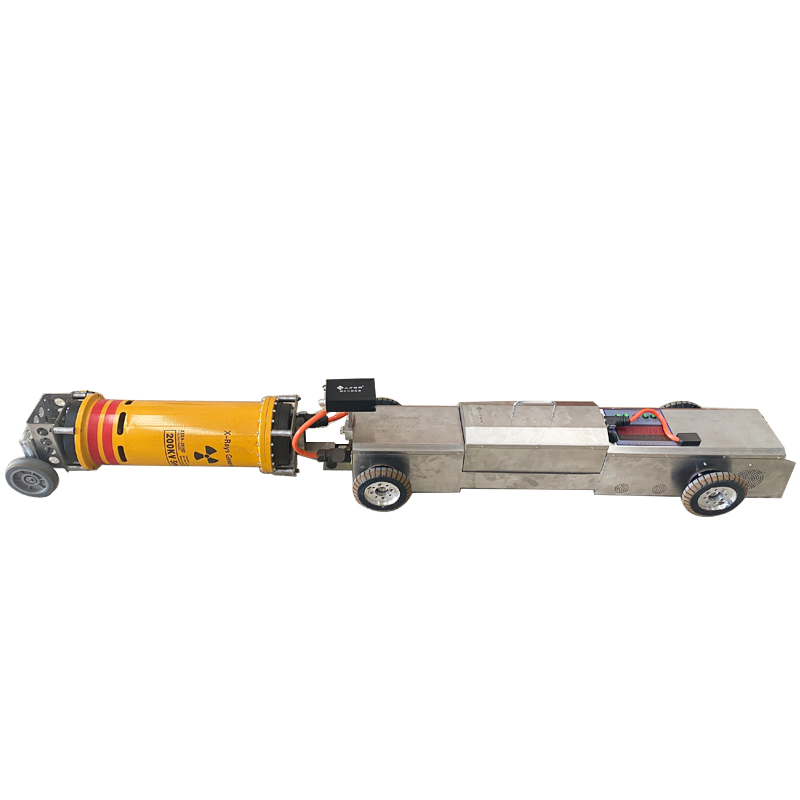

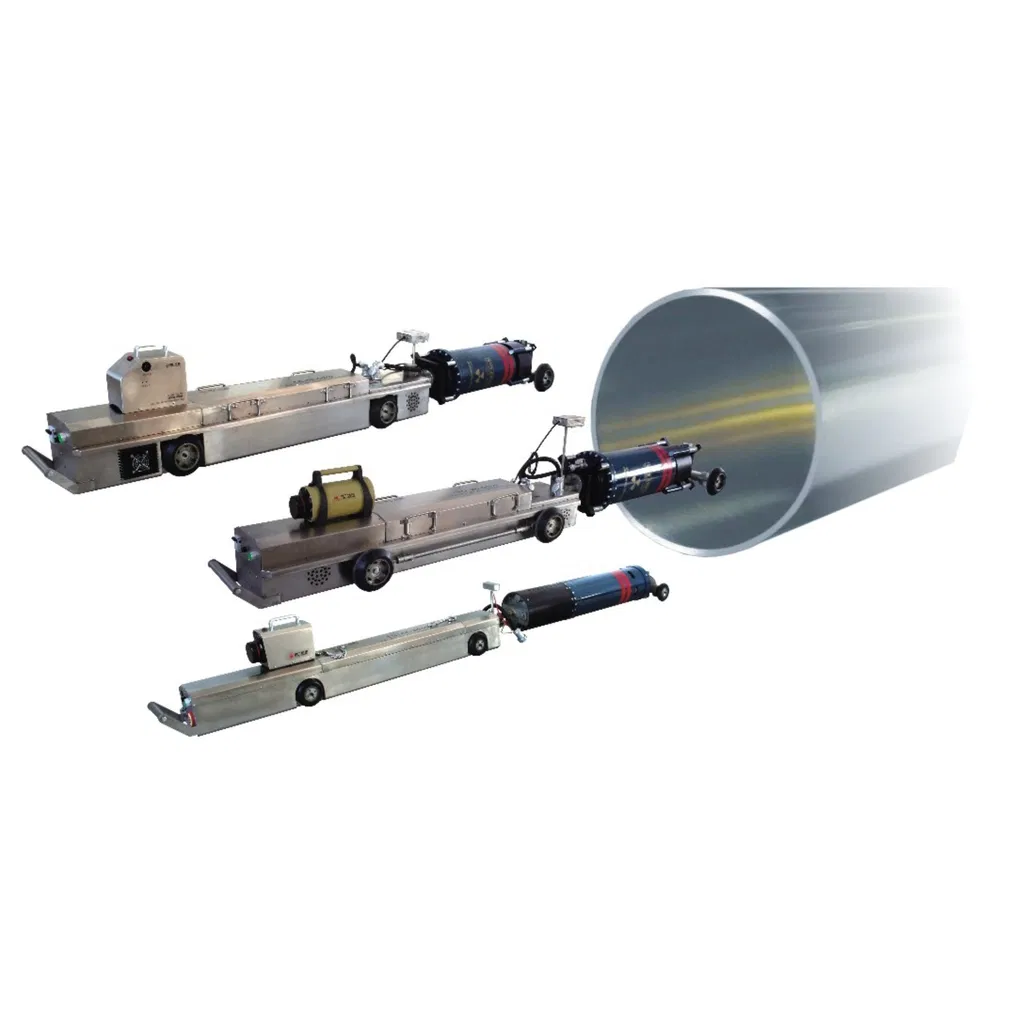

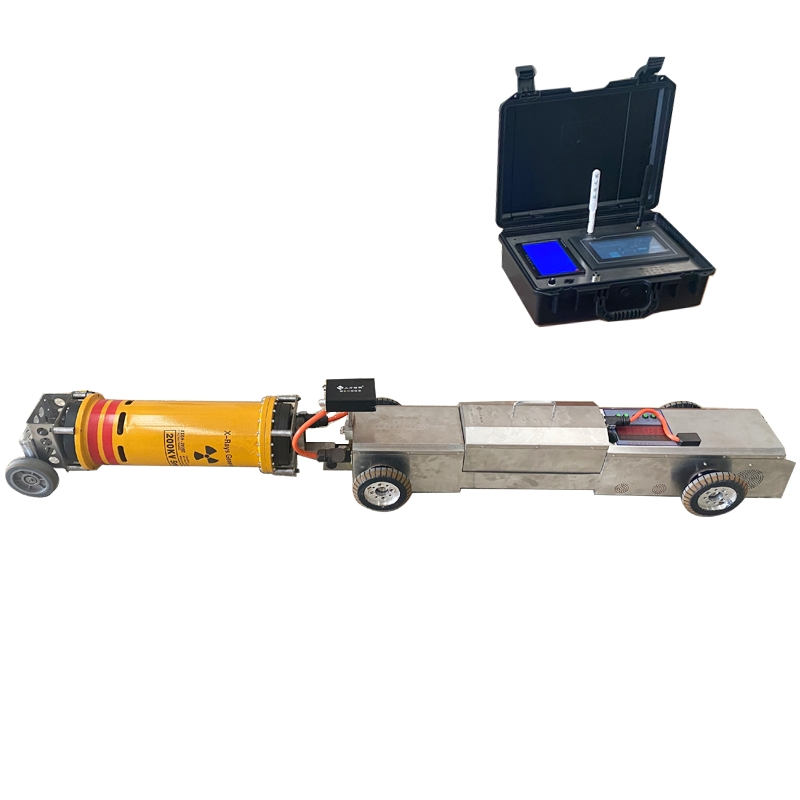

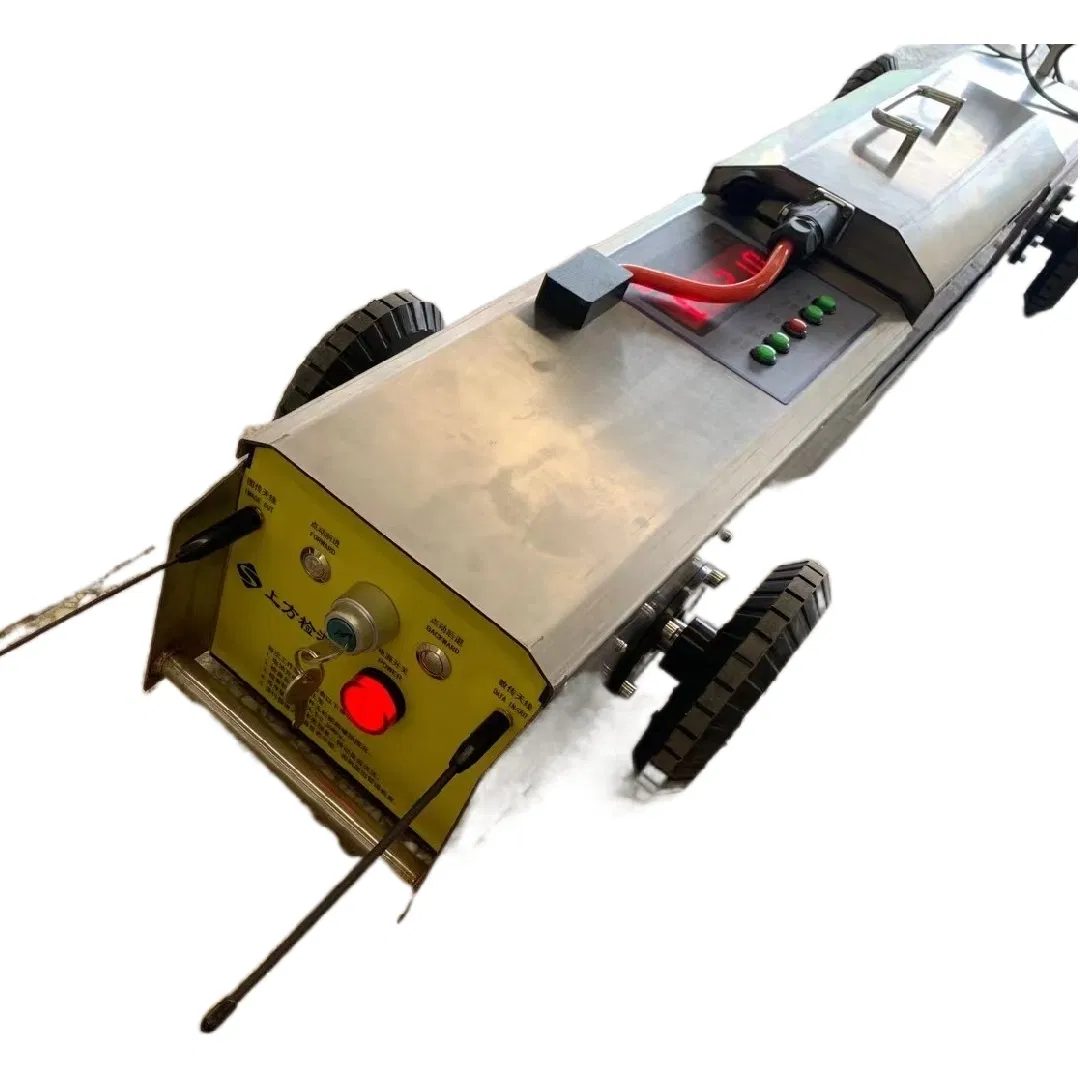

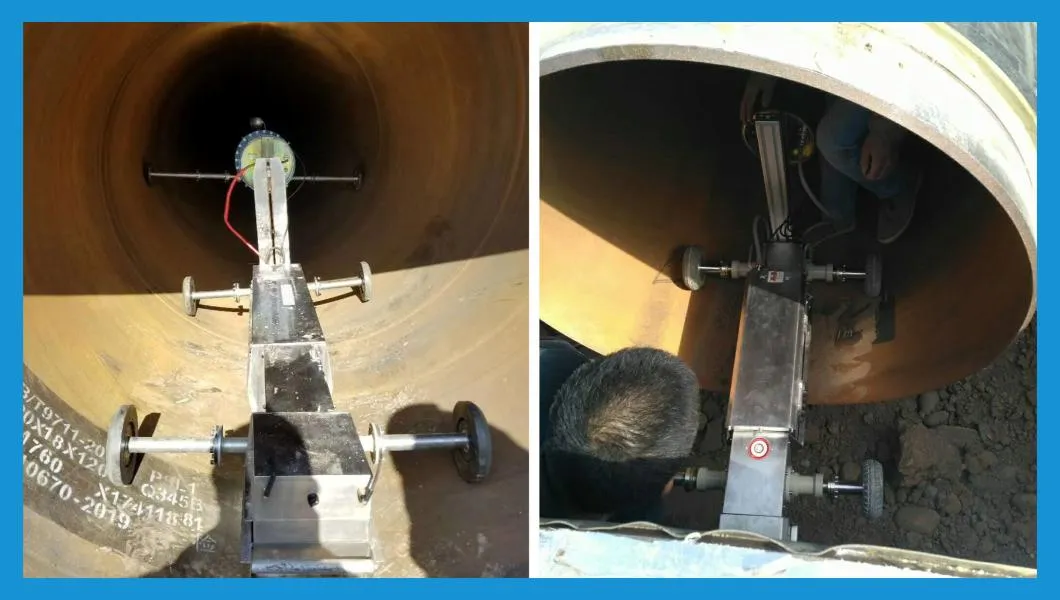

The X-ray pipeline crawler is an advanced nondestructive testing (NDT) instrument specifically designed for weld quality inspection in oil, natural gas, and other fluid conveyance pipelines.

Two positioning methods are utilized to ensure operational excellence: Magnetic Medium Positioning or Microwave Positioning.

High Precision: Accurate positioning, reliable operation, and quick braking systems.
Efficiency: High work efficiency with a 100% one-time imaging passing rate.
Robust Design: Strong shockproof structure with large driving force and flexible rotation.
Smart Control: Microcomputer automatic control with superior anti-interference capabilities.
Maintenance-Free: Independent power supply, pollution-free, and safe for long-term practical use.

Key Features:
1. Advanced control technologies: Industrial-grade microcomputer control for reliable operation.

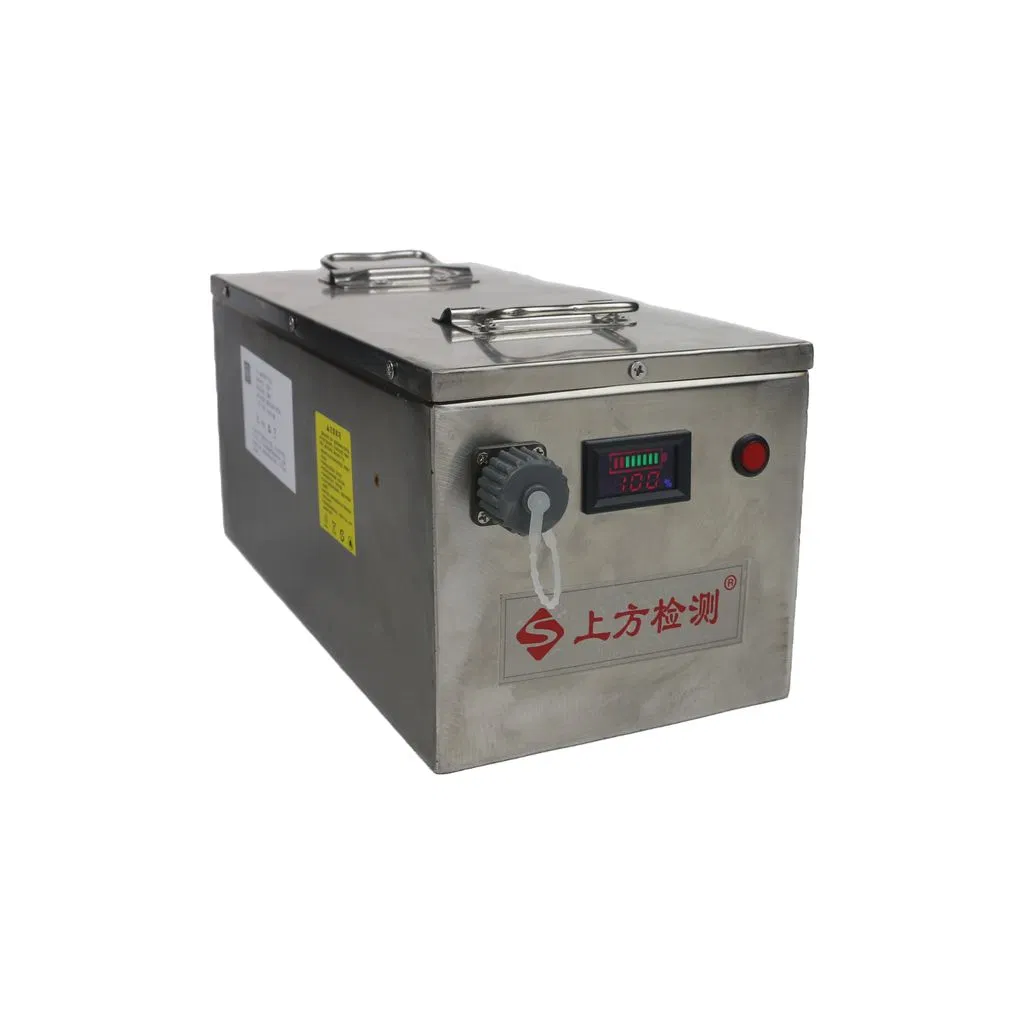

2. High-efficiency battery: International brand lithium batteries for a lighter, smaller, and more powerful crawler.
3. Dual positioning: Combines magnetic control and video to meet high-accuracy requirements.

📊 Technical Specifications

Parameter	SF-08-D219	SF-08-D300
Applicable pipe diameter	Φ200~400mm	Φ290~1400mm
Turning radius	≥5D	≥5D
Positioning accuracy	±5mm	±5mm
Maximum gradeability	20°	20°
Crawling speed (High/Low)	23m/min / 11m/min	23m/min / 11m/min
Crawling distance	≥6km	≥6km
Radiographic wall thickness	8~20mm	20~40mm
Total exposure time	≥100min	≥100min
Total weight	33kg	43kg
Battery capacity	15AH	20AH
