18mm Pipe Inspection Crawler with 20m Testing Cable

18mm Pipe Inspection Crawler with 20m Testing Cable

18mm Pipe Inspection Crawler with 20m Testing Cable

18mm Pipe Inspection Crawler with 20m Testing Cable

18mm Pipe Inspection Crawler with 20m Testing Cable

1 / 5

18mm Pipe Inspection Crawler with 20m Testing Cable

18mm Pipe Inspection Crawler with 20m Testing Cable

18mm Pipe Inspection Crawler with 20m Testing Cable

18mm Pipe Inspection Crawler with 20m Testing Cable

18mm Pipe Inspection Crawler with 20m Testing Cable

18mm Pipe Inspection Crawler with 20m Testing Cable

Customization:	Available
Dynamic Range:	70dB
Frame Rate:	60 fps

Send Inquiry

Product Description

Overview & Basic Information

Model NO.

TSYK006

Lens Type

Zoom Lens

Protection Rating

IP67 / IP68 (Waterproof)

Resolution

1024*600

LCD Display

10 Inches

Diameter Options

18mm / 23mm / 28mm

Cable Length

20/30/50-100 Meters Optional

Light Source

12 PCS High-Brightness White LEDs

Connection

Wi-Fi Connection

Storage

32GB SD Card Supported

18mm Pipe Inspection Crawler System

18mm Pipe Inspection Crawler

Connection	Wi-Fi connection	Lens Material	Sapphire lens
Shell Material	304 stainless steel	Pixel	1024*600
Working Time	Recording: ~7 hours / Playback: ~9 hours	Charging Time	5 hours
Viewing Angle	IPS full viewing angle 270° (Screen) / 120° (Lens)	Waterproof	IP68
Battery Capacity	3300mAh Lithium battery	Brightness	250LUX (Adjustable)
Cable Diameter	5.2MM	Operating Temp	-10°C to +50°C

Product Component Display

Inspection Equipment View 1

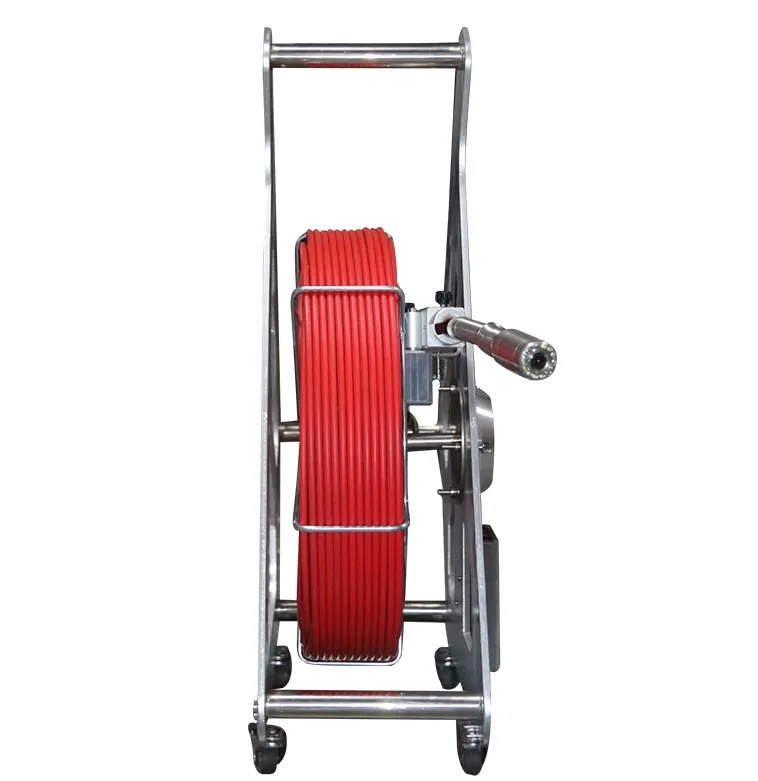

Inspection Equipment View 2

Frequently Asked Questions

What is the waterproof rating of the camera lens?

The camera lens features an IP68 waterproof rating, making it suitable for deep underwater pipe inspections.

How long does the battery last on a single charge?

The built-in 3300mAh lithium battery provides approximately 7 hours of recording time and up to 9 hours of playback time.

What is the maximum cable length available?

The standard cable is 20 meters, but we offer optional lengths ranging from 30 meters up to 100 meters depending on your requirements.

Can I view the inspection footage on my mobile device?

Yes, the system supports Wi-Fi connection, allowing you to view live feeds and recordings on mobile phones or tablets.

What pipe diameters is this crawler suitable for?

With available camera heads in 18mm, 23mm, and 28mm, this system is versatile for various narrow pipe and pipeline inspections.

Is the camera light adjustable?

Yes, the camera head contains 12 built-in high-brightness white LEDs with adjustable brightness to ensure clear visibility in dark environments.
