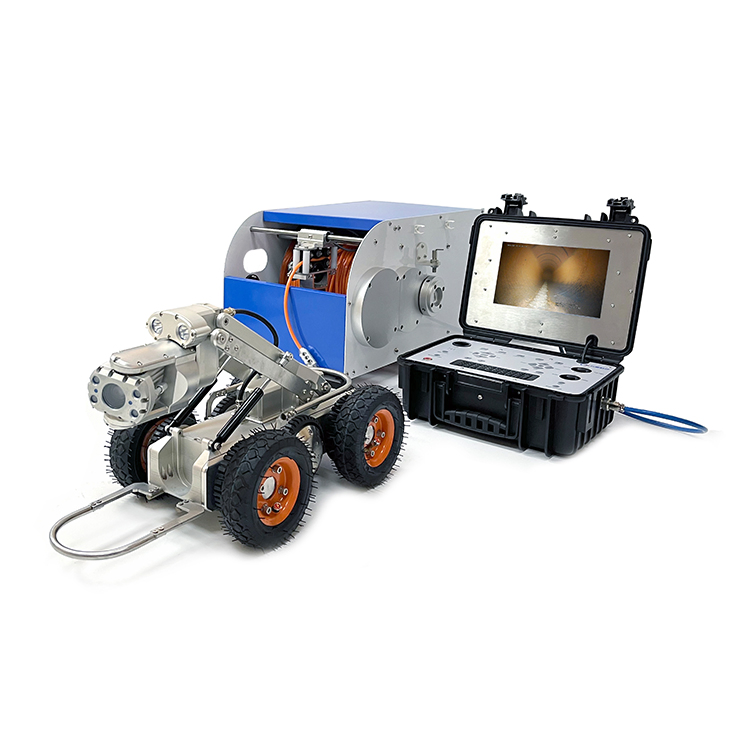

Sewer Drain Inspection and Repair Expert Mini Pipe CCTV Inspection Crawler

1 / 5

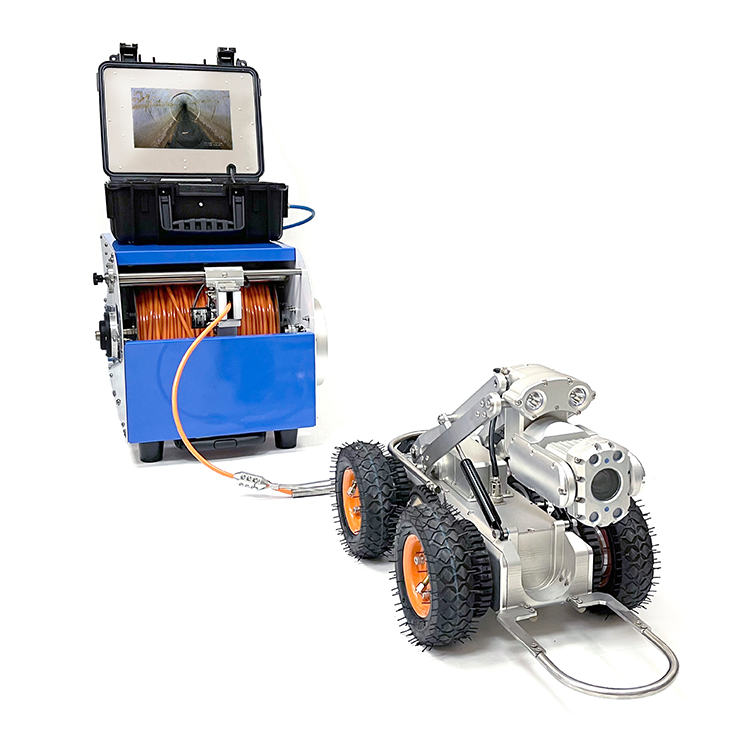

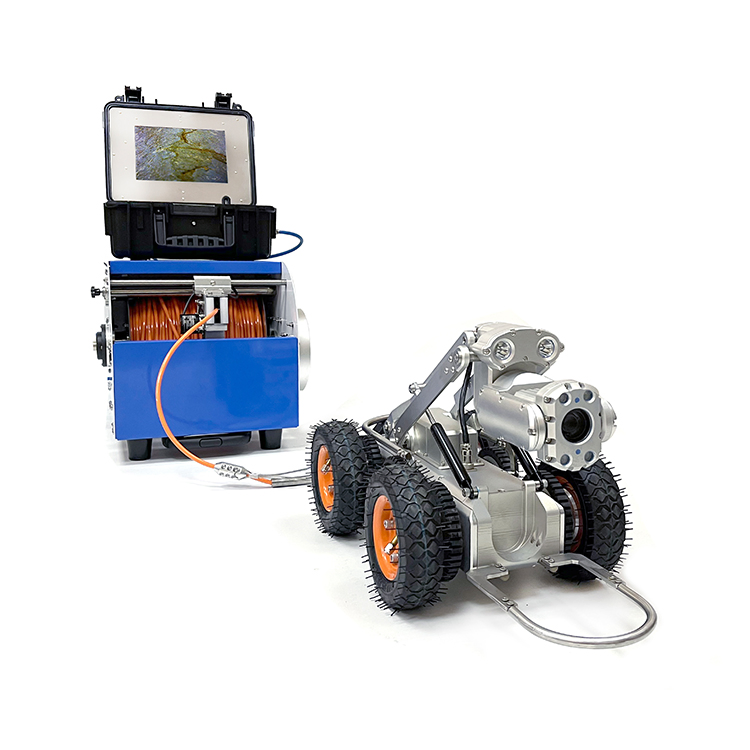

Sewer Drain Inspection and Repair Expert Mini Pipe CCTV Inspection Crawler

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊 Basic Information

Data on Monitor:Meter, Slope, Pressure

Waterproof:IP68

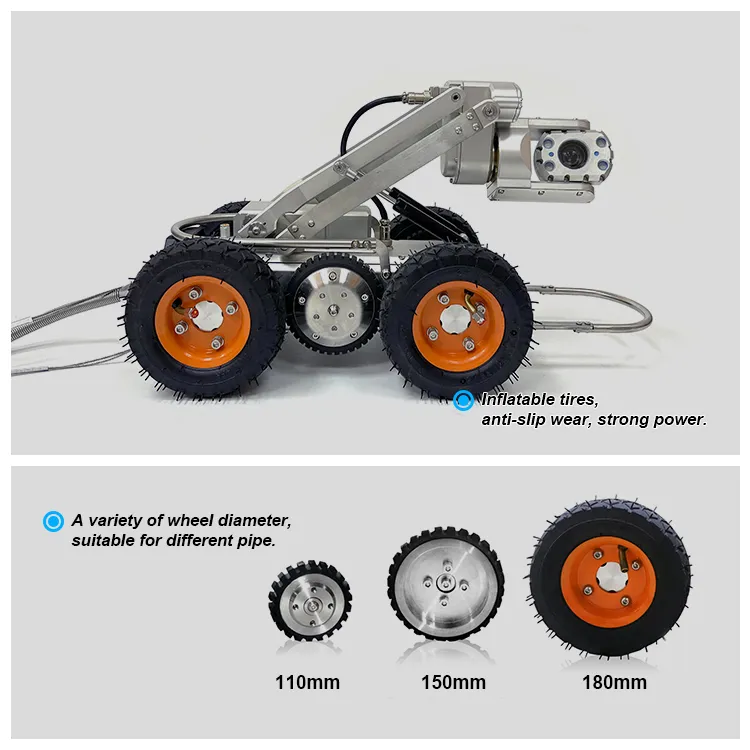

Crawler Wheel:110/150/180mm Optional

Power:220V or 110V Customized

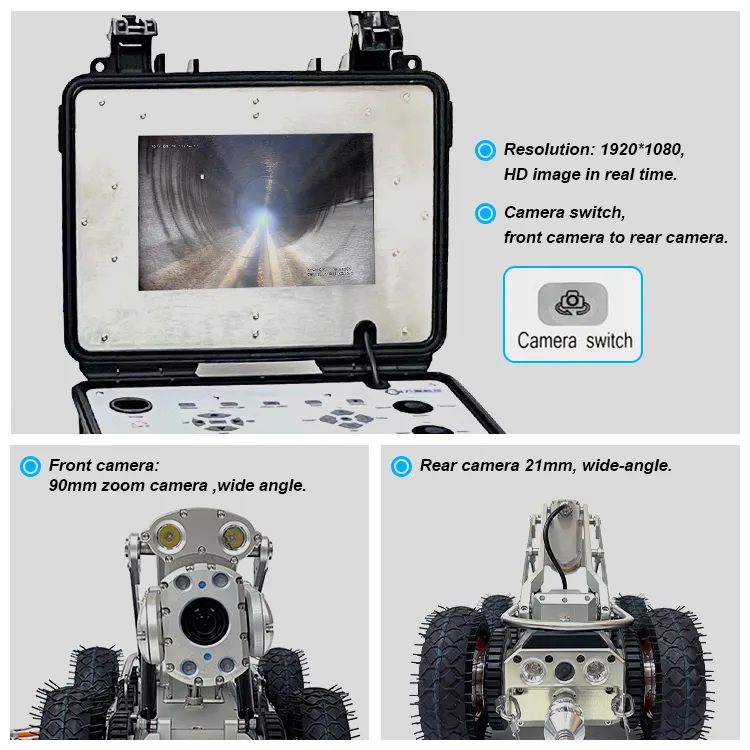

Camera Qty:Front and Rear Double

Camera Function:Zoom Function (Front)

Camera Rotation:360° Rotate / 220° Flip

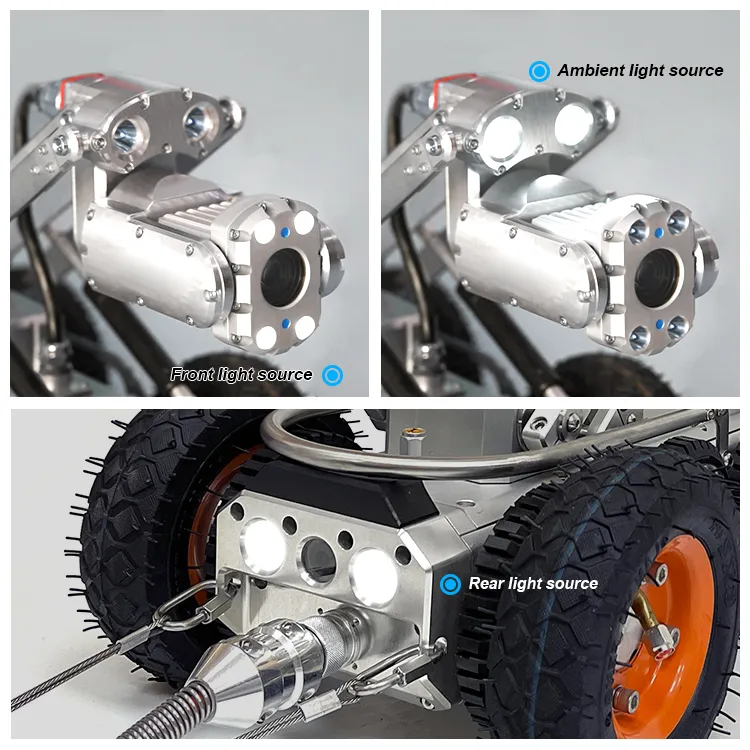

Light:Adjustable High-Brightness

Pay off Cable:Electrical Barrow

Language:8 Languages Supported

Storage:Support up to 1 TB

Camera Head:Electrical Lifting

Technology:Pan / Tilt / Zoom

HS Code:8525801390

🔍 Product Description

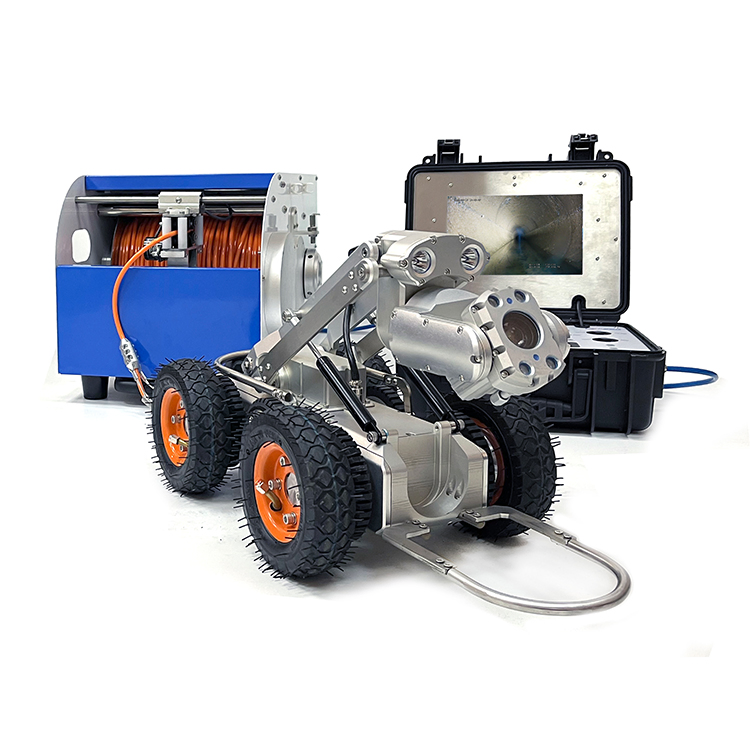

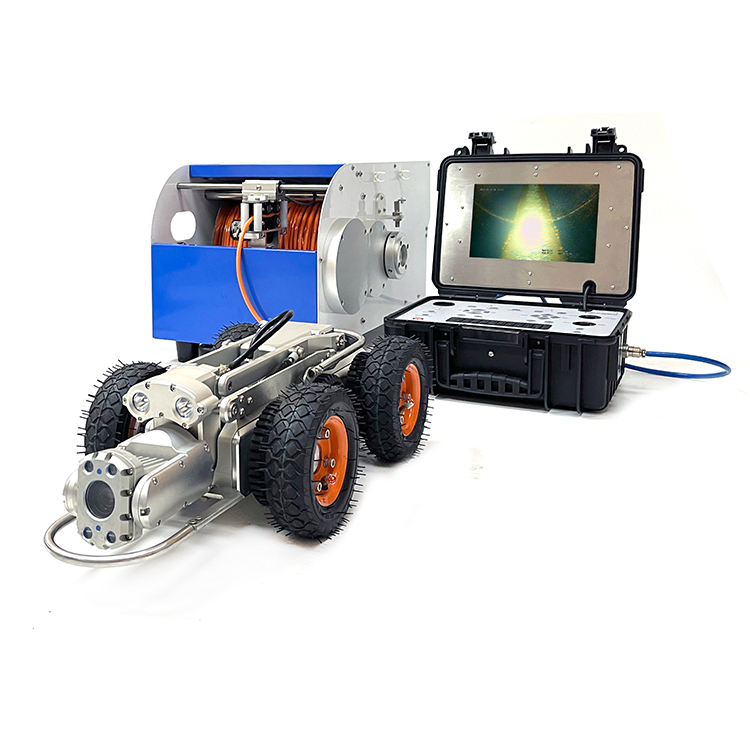

1080P IP68 Waterproof CCTV Sewer Drainage Pipe Inspection Crawler Robotic PTZ Camera

This advanced Pipe Inspection Camera is widely utilized across multiple sectors including technical supervision, energy, electric power, petrochemical, shipbuilding, rail transit, municipal management, and aerospace research.

Operating Range: Suitable for pipe diameters from 200mm to 3500mm. Cable lengths are standard at 100m and customizable up to 500m.

⚙️ Product Parameters

Suitable Diameter	Pipe inner diameter: 200-3500mm
Cable Length	Standard 100m (Customizable)
Screen Size	10-inch High-Definition
Resolution	1920*1080P
Pixel Options	2MP / 4MP or Customized
Lifting Height	120mm Electrical Lifting
Wheel Size	110mm / 150mm
Cable System	Electrical Barrow

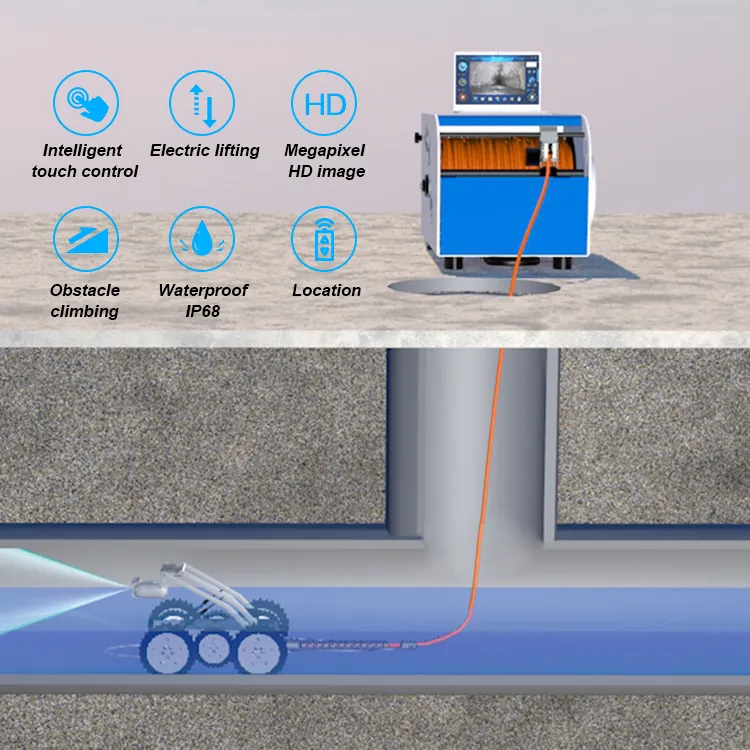

🌟 Key Features & Advantages

IP68 Waterproof: Anti-corrosion design specialized for municipal pipeline inspection.
Dynamic Movement: Forward, backward, and free turning with adjustable speeds.

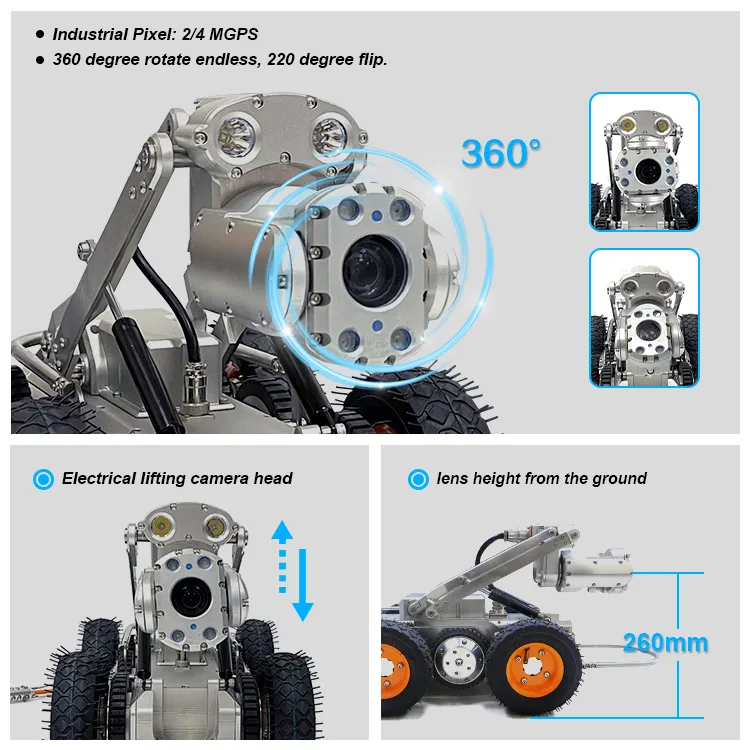

PTZ Lens: 360-degree rotation and 220-degree flip to eliminate blind spots.
Optical Power: 10x zoom function with 2/4 Megapixels options (up to 2560X1440).
Electrical Lifting: Adjustable camera head height for various pipe conditions.

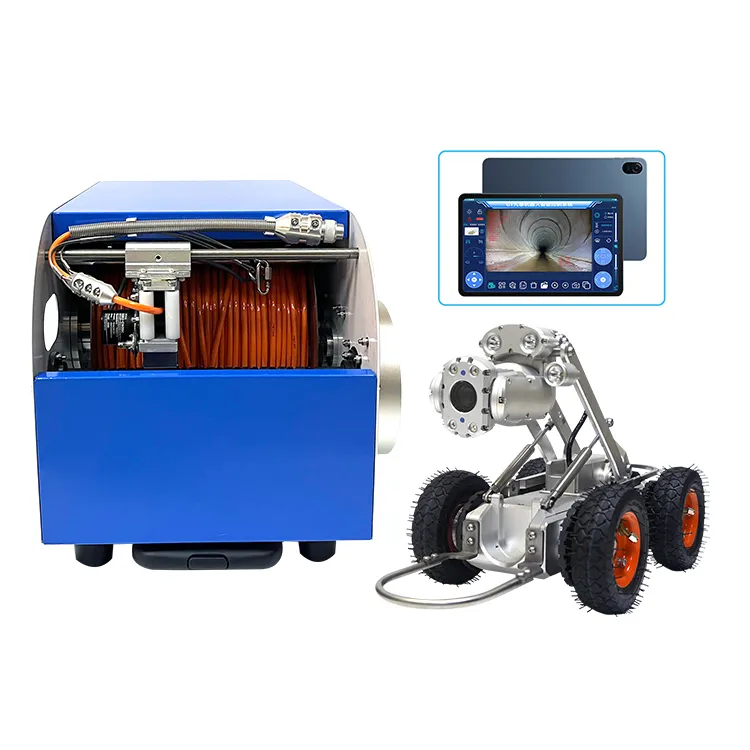

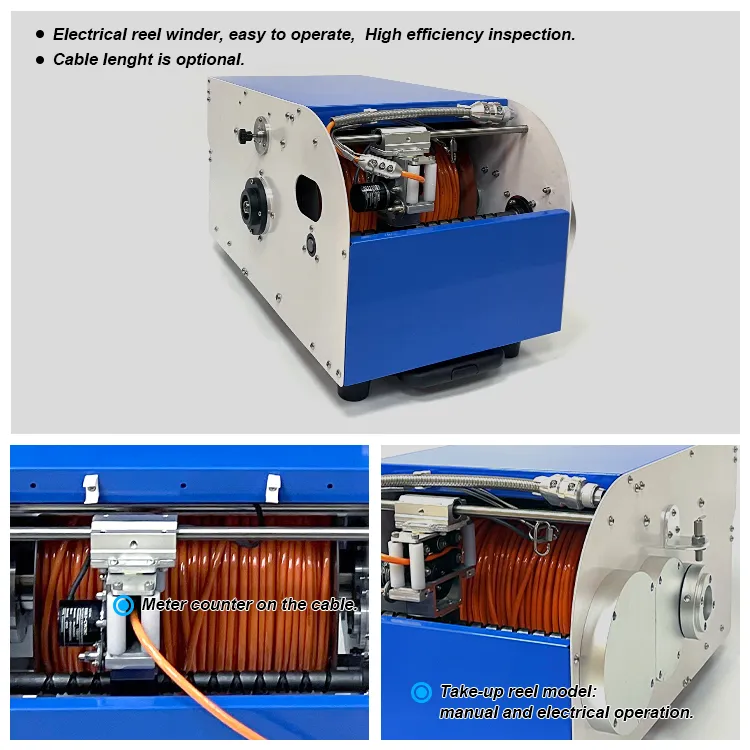

Smart Cable Reel: Electrical barrow with automatic take-up and pay-off functions.

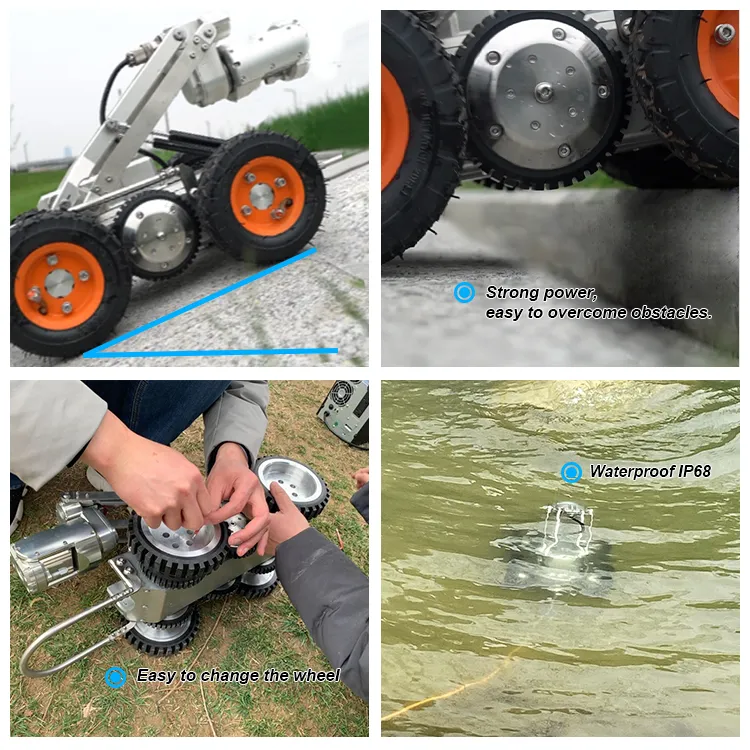

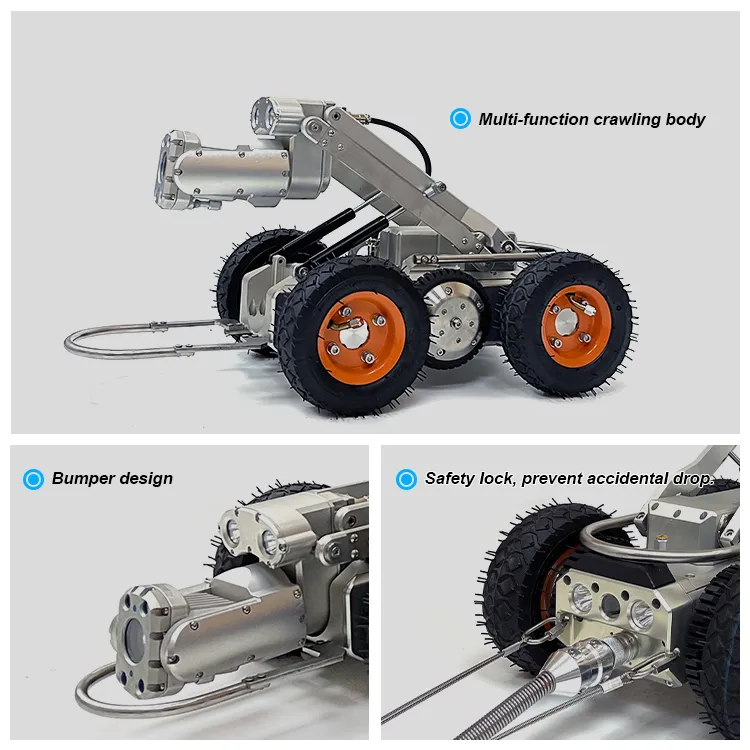

Superior Driving: Six-wheel drive with interchangeable tires for obstacle climbing.

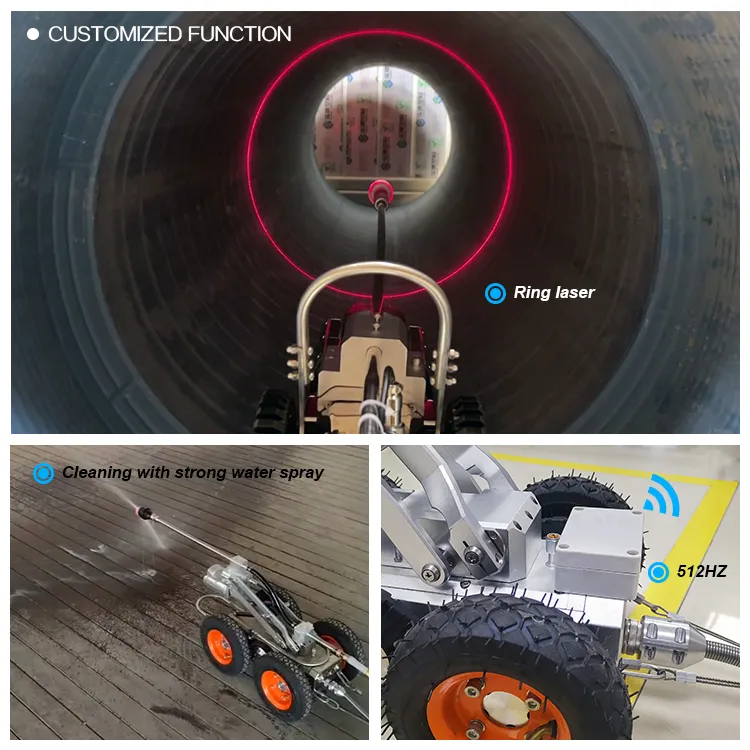

Advanced Integration: Supports Laser, Sonar, Cleaning, and Repairing modules.

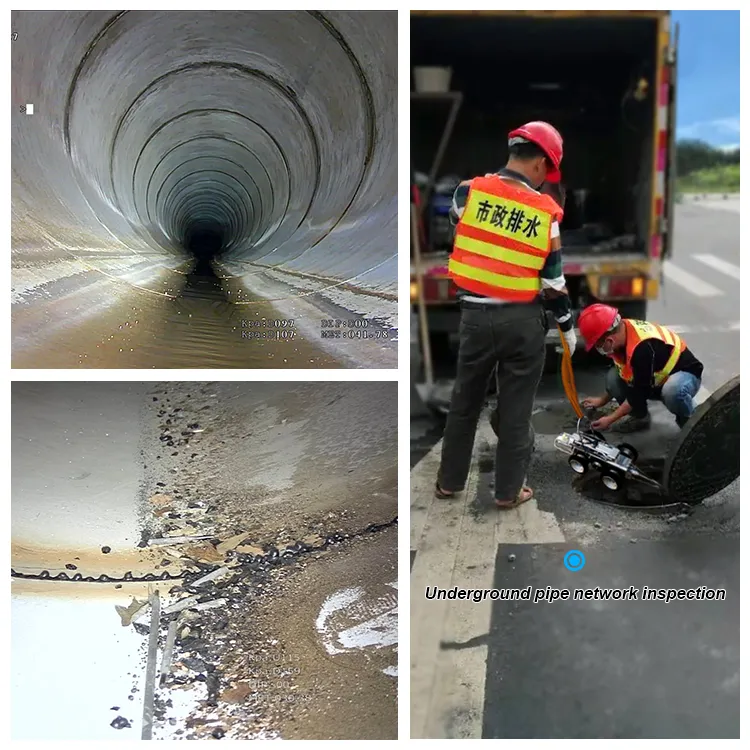

🛠️ Manufacturing & Quality Control

📜 Certifications & Profile

❓ Frequently Asked Questions

Q1: What pipe diameters is the crawler robot suitable for? A: The system is designed for pipe inner diameters ranging from 200mm to 3500mm, with various wheel sizes available to match specific needs.

Q2: How waterproof is the inspection system? A: The entire camera head and crawler system are IP68 rated, ensuring complete protection during underwater municipal pipe inspections.

Q3: Does the camera support zoom and rotation? A: Yes, it features a 10x zoom and a PTZ head capable of 360-degree infinite rotation and 220-degree flipping to capture every detail.

Q4: What is the standard cable length provided? A: The standard cable length is 100 meters, but it can be customized up to 500 meters depending on your project requirements.

Q5: Can the robot climb over obstacles within the pipes? A: Yes, equipped with a six-wheel drive system and high-torque motors, the crawler is designed for superior obstacle climbing and slopping.

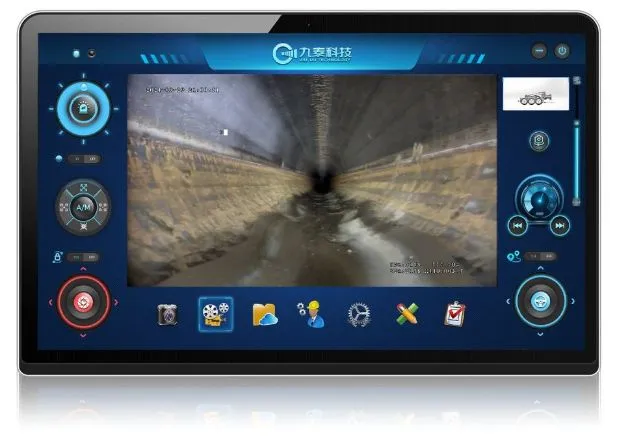

Q6: What kind of storage and resolution does the monitor offer? A: The system features a 10-inch HD monitor with 1920*1080P resolution and supports up to 1TB of storage for photos and video recordings.
