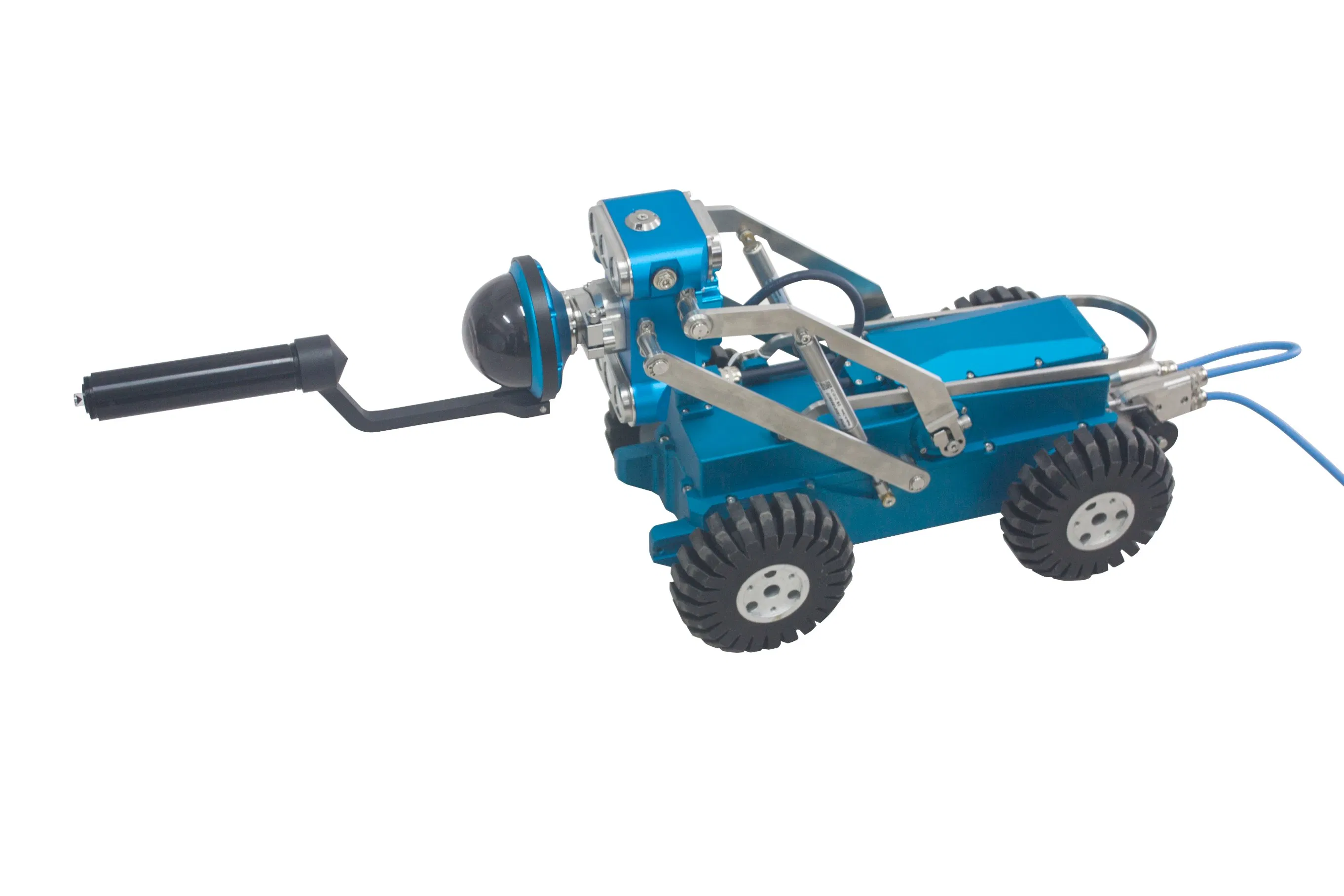

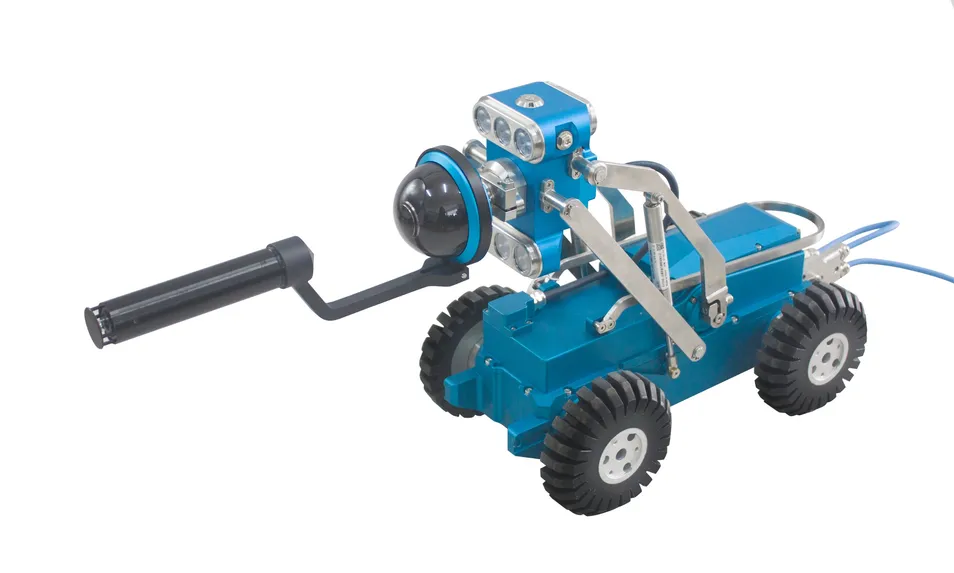

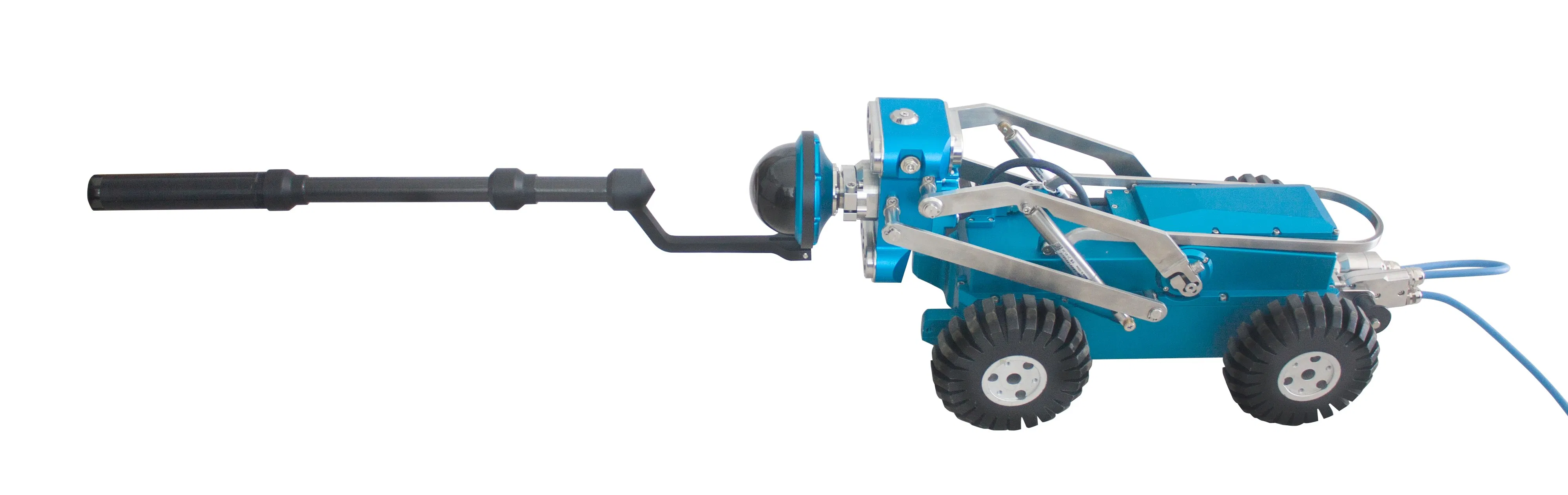

Laser Profiler Pipe Deformation Inspection with CCTV Crawler Camera

Customization:	Available
Accuracy:	<1mm
Horizontal Line:	1

Send Inquiry

Product Description

Basic Information

Model NO.

LP-1

Vertical Lines

Transport Package

Carton

Origin

China

HS Code

9031809090

Capacity

100 Pieces Per Year

Product Description

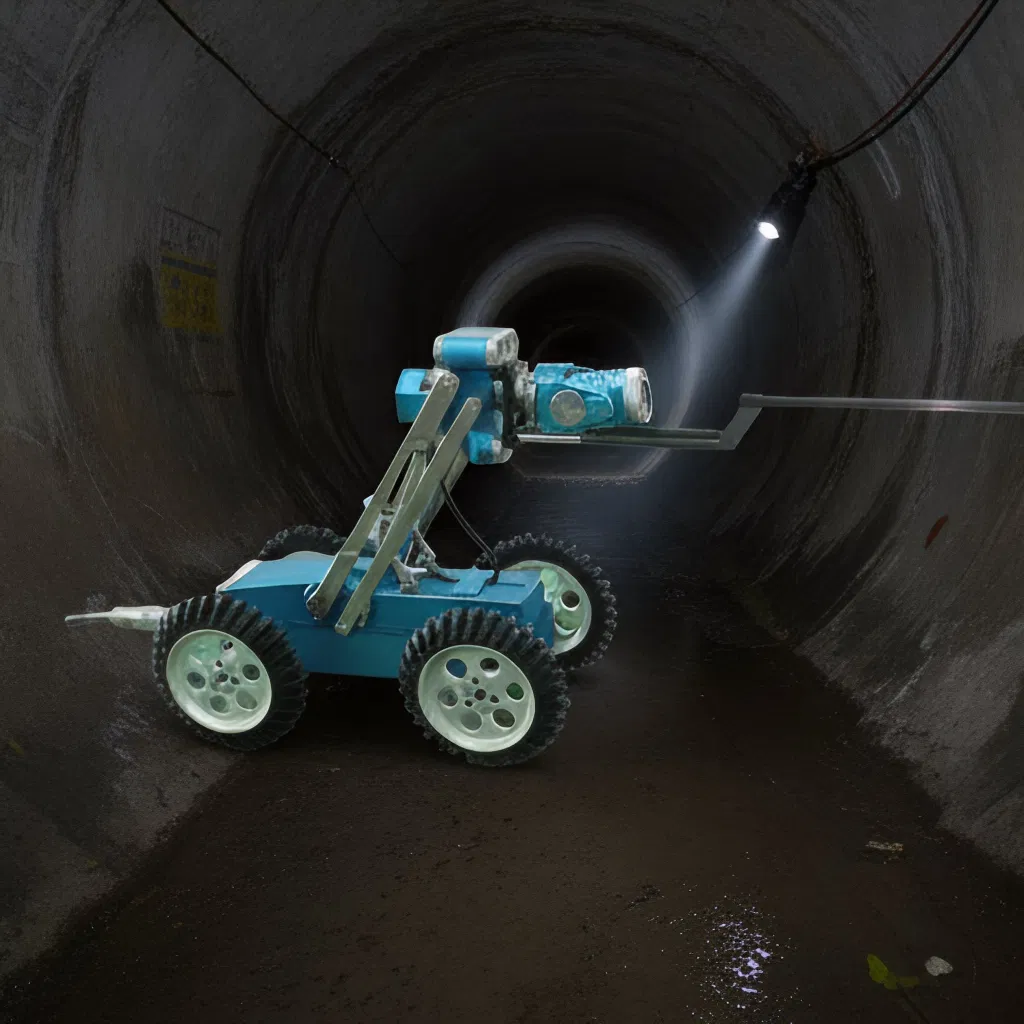

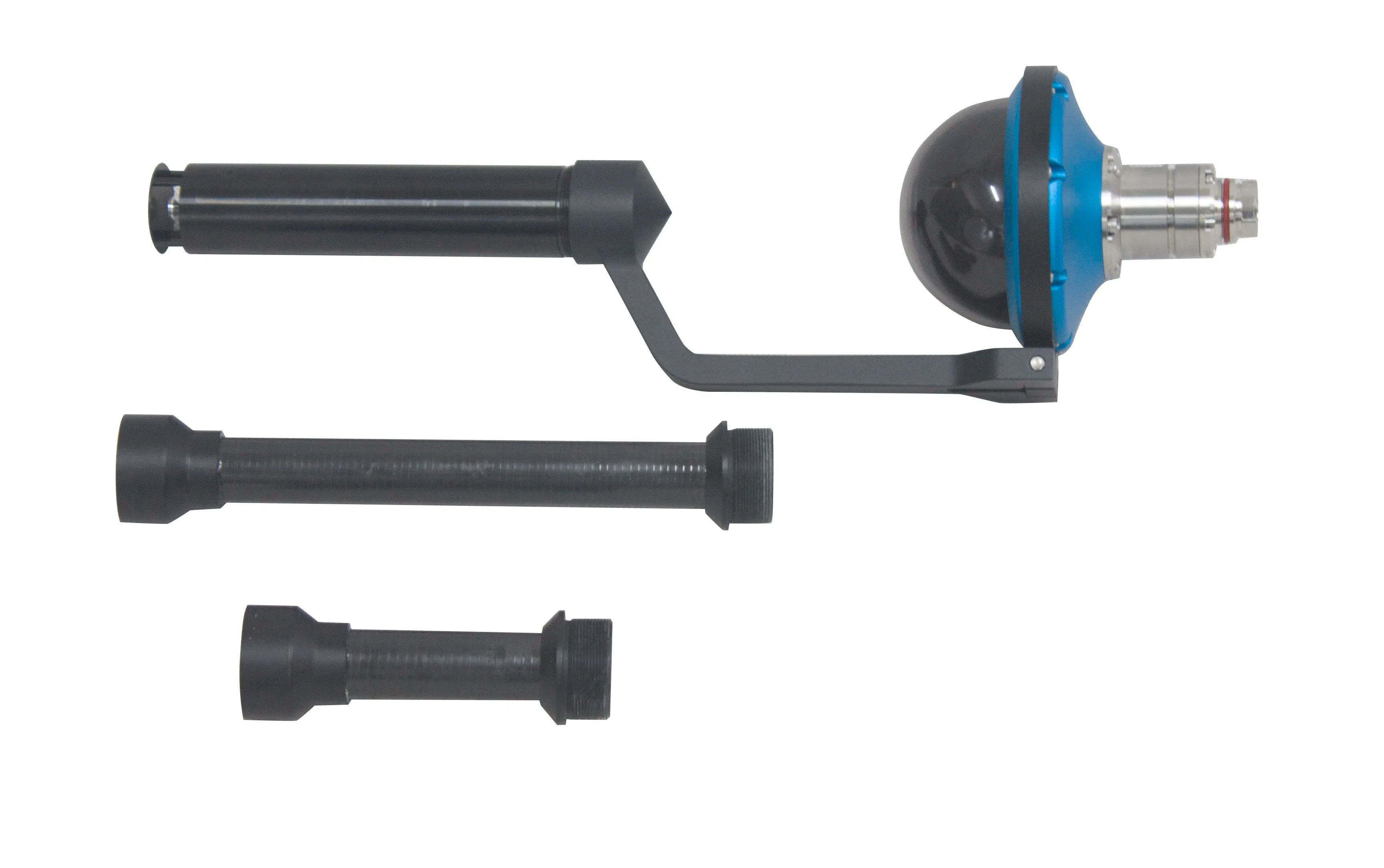

Laser Profiler Inspection Crawler System Pipe Deformation Laser Scan

The Profiler has been developed to provide pipeline engineers and contractors very accurate empirical data on the ovality, capacity, and other conditions in new and existing pipelines. The Profiler simply attaches to your existing CCTV Camera and the resulting CCTV images are analysed using innovative 'machine vision' software. Designed for pipe diameters ranging from 100 mm up to 2000 mm.

Laser Profiler Pipe Deformation Inspection

🎯Applications

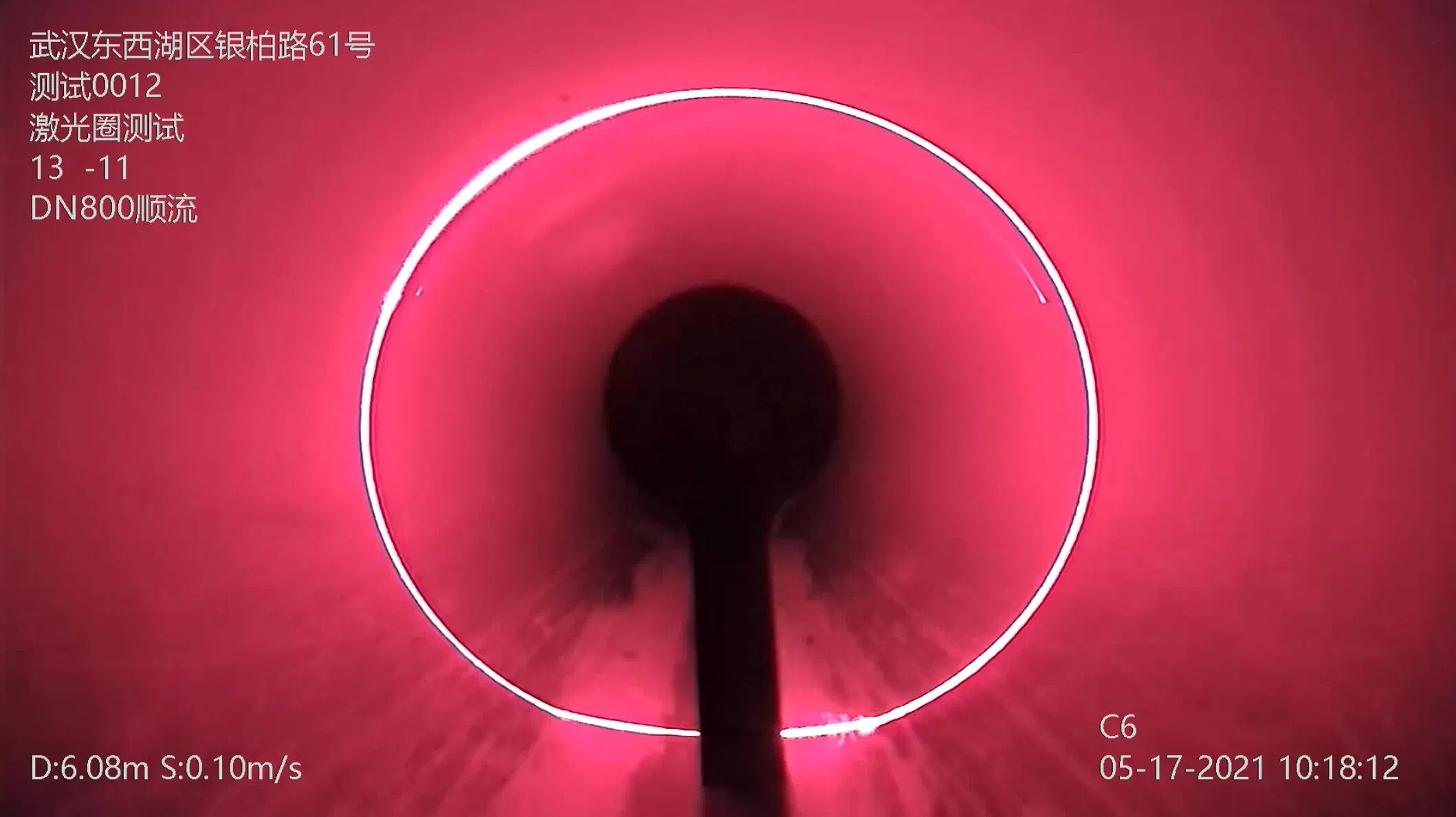

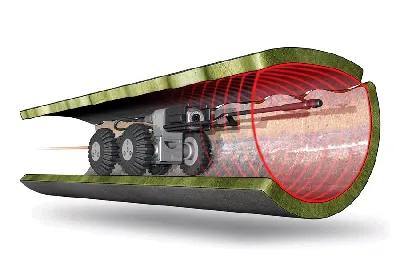

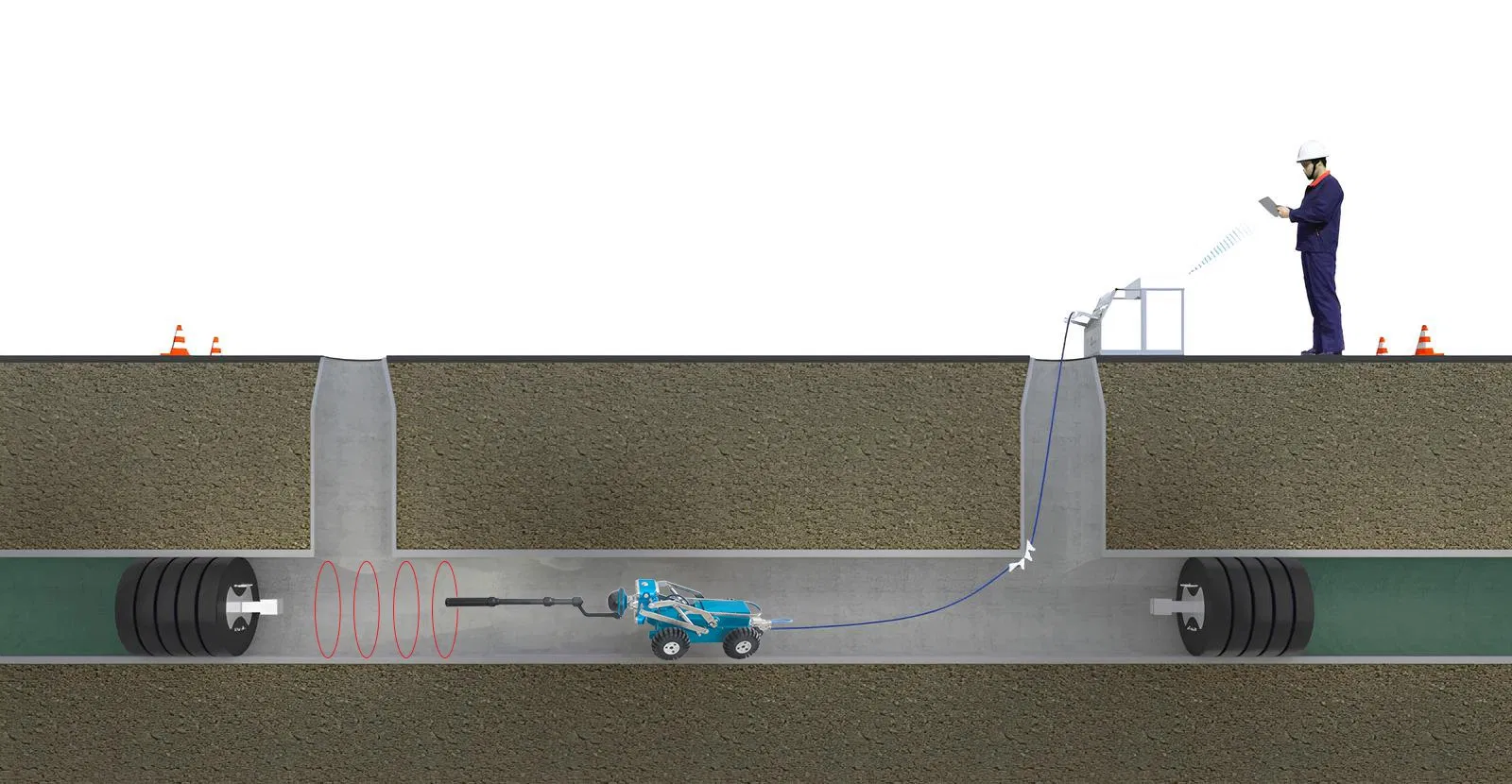

Projects radial laser light perpendicular to CCTV camera's line of sight.
Creates a red line on the inside wall for high-intensity visualization.

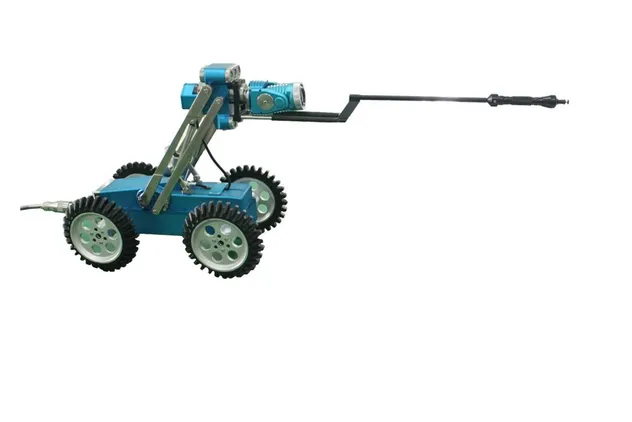

Easily attaches to existing CCTV cameras or transporters.
Captures frames in JPEG, BMP, or TIFF formats for analysis.
Displays cross-sectional amplitude graphs over the entire pipe length.

✅Features

Operates in pipe sizes from 100mm to 2000mm.
High-strength carbon fiber and aluminum construction.
Internally battery powered (rechargeable); no electrical connections required.
No moving parts for enhanced durability.
Software compatible with TV inspection vehicles or remote computers.

Laser Head LP-1 Specifications:
1. Voltage: 3V | 2. Laser: 650nm | 3. Working Temp: -20 to 60°C | 4. Inspection Diameter: 100-2000mm

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).

Extended Warranty: Optional coverage up to 36 months.

Global Support: 24/7 technical assistance and spare parts supply.

Training: On-site or remote operation and maintenance training.

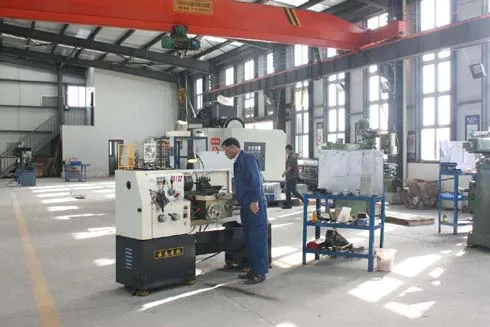

Company Profile

Our technology team has been committed to providing integrated reliable and innovative pipeline inspection products to serve global customers through our experienced international network. We focus on unparalleled commitment to understanding unique pipeline field application requirements through breakthrough innovations.
