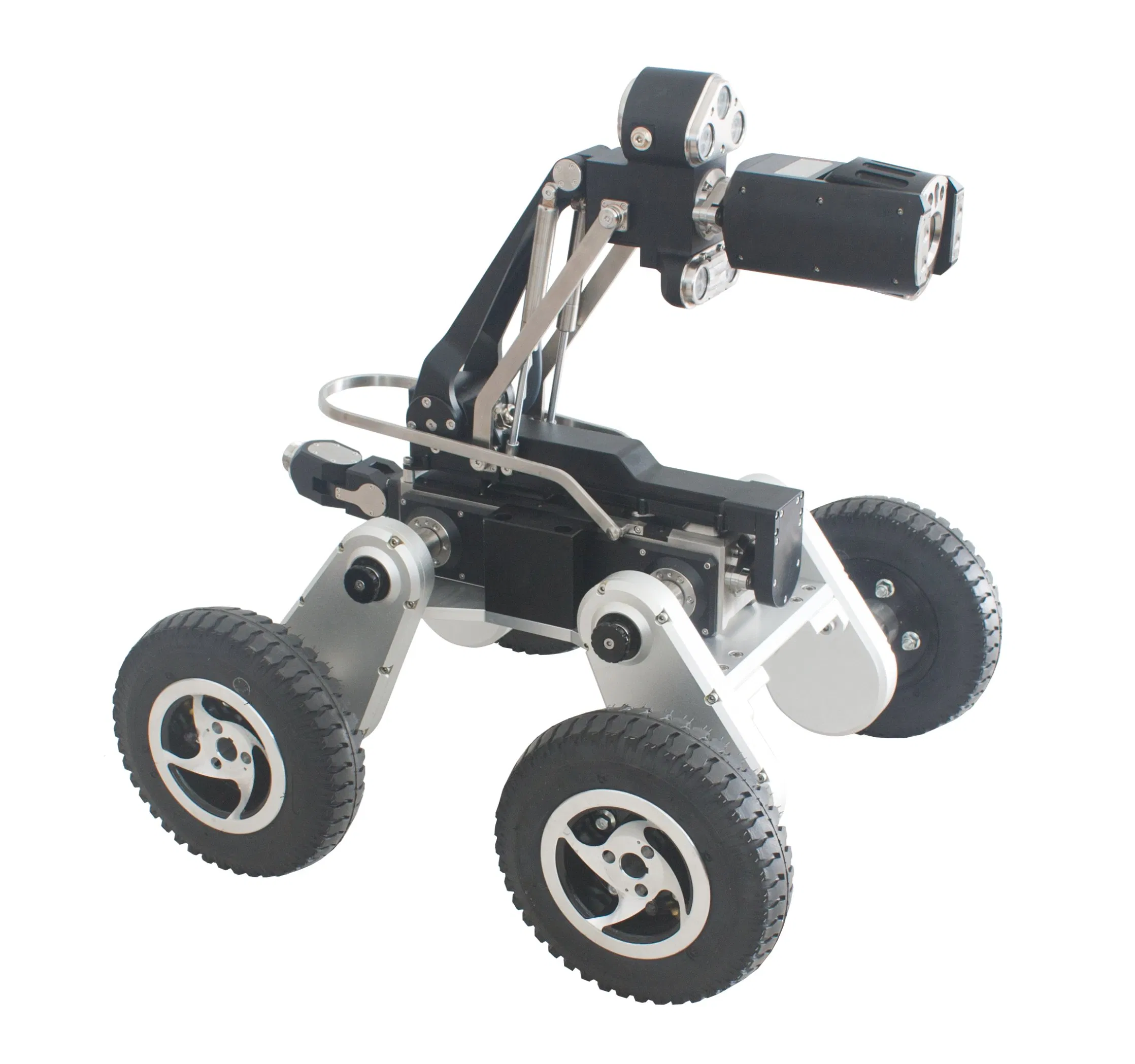

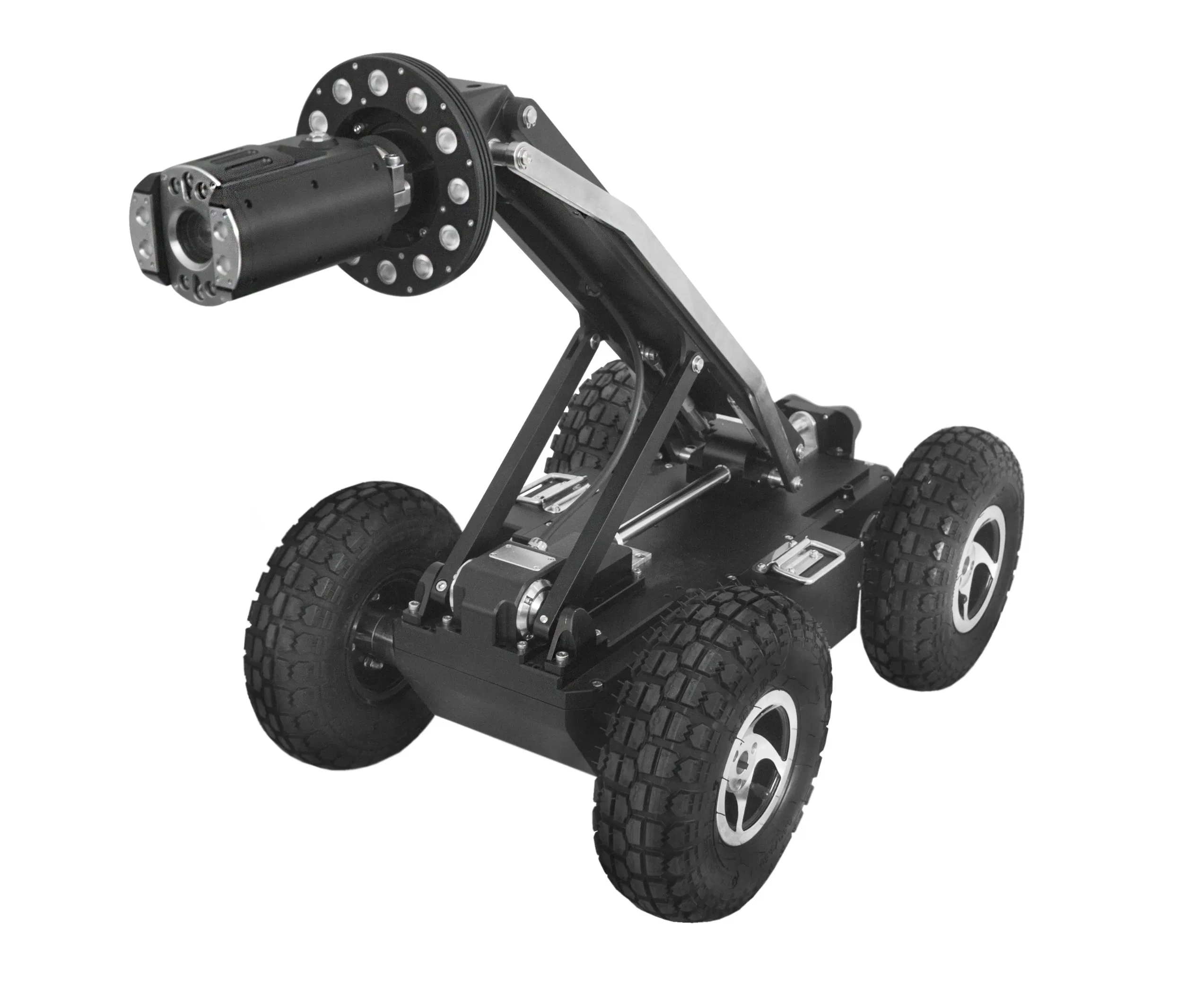

The HD high definition pipe inspection crawler is designed for sewer, drain, and mainline video inspection. It is suitable for pipe diameters ranging from 150mm to 1500mm. The system consists of a controller (Android or Windows), crawler, camera, and cable drum. Utilizing WiFi transmission, it can be controlled by a tablet or laptop for maximum portability.
| Component | Detailed Specifications |
|---|---|

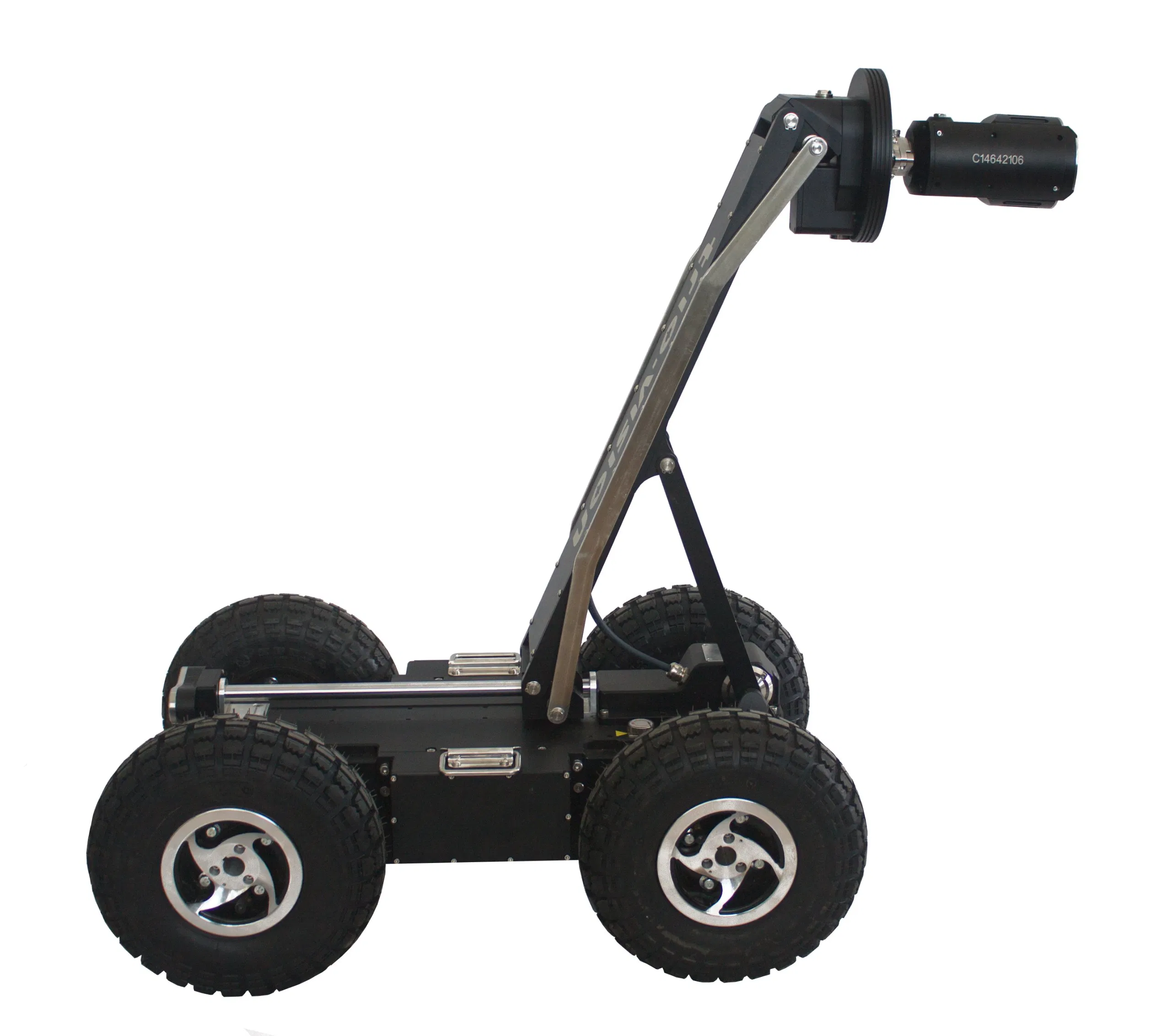

| Super Large Crawler | 1. Diameter 600-2000mm 2. Electric clutch with safety mode 3. Electrically adjustable lift 4. HD rear view lens and lighting 5. Highlight LED for large diameters 6. Sonde for pipe defect location 7. IP68, 10m waterproof 8. Pitch and roll sensor 9. Steerable design (Forward/Backward/Left/Right) 10. Double DC brushless motor drive |
| Camera Unit | 1. Light intensity control: 0-max 2. High resolution CCD camera 3. Zooming: 10:1 optical, 12:1 digital 4. Focus: auto/manual 5. Resolution: 1920*1080P (2 megapixels) 6. Rotation: axial 360°, tilting 270°, one-key center 7. Speed: variable controllable speed 8. Light source: 6 adjustable LED lamps |
| Cable Drum | 1. Automatic drum with three operation modes 2. Cable length: 200m (Max 500m) 3. 8mm multi-core cable with Kevlar reinforcement 4. Payout accuracy: ±0.1m 5. Weight: 45kg | Dimension: 580*390*520mm |
| Controller | 1. 10" HD LCD touch screen, daylight readable 2. Windows 64bit system (CPU: I7, RAM: 4G, SSD: 256G) 3. Interfaces: VGA, USB, HDMI, Network, Data port 4. PipeVideo software displays status, rotation angle, elevation 5. Full control over crawler speed, direction, and camera settings |

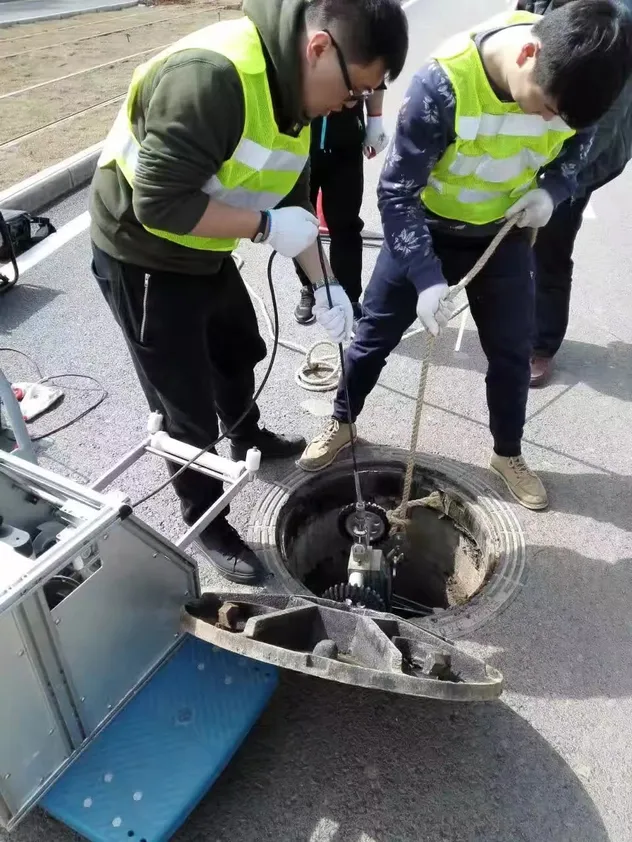

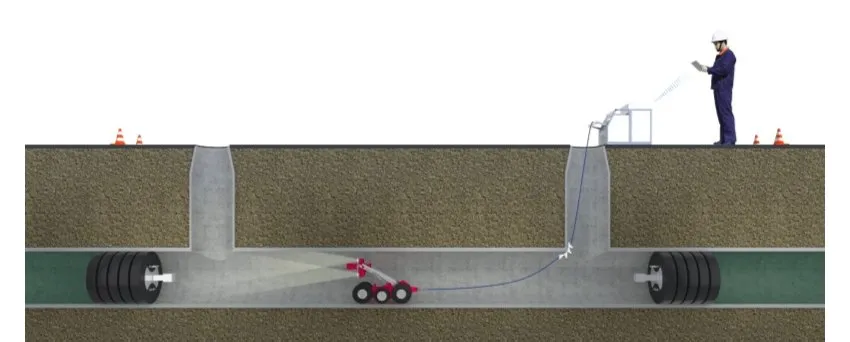

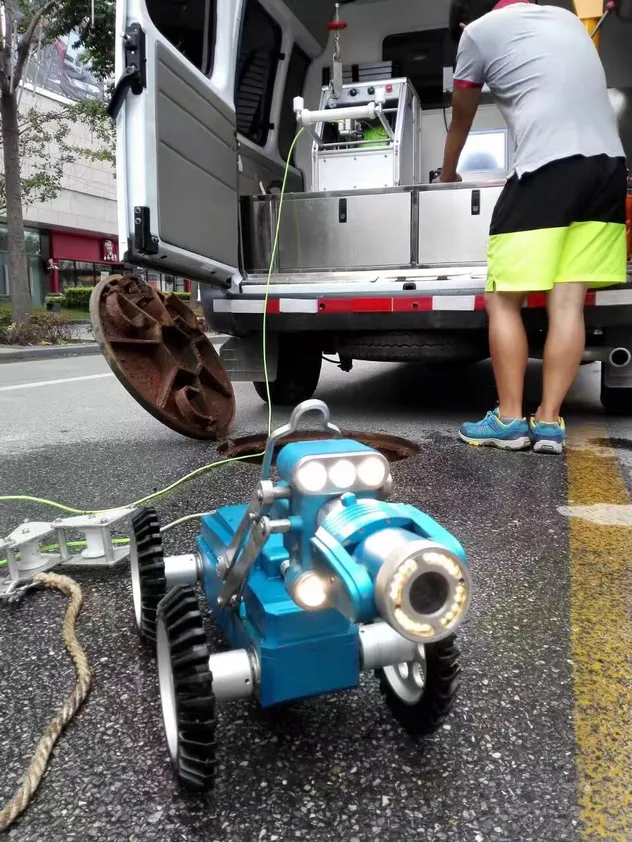

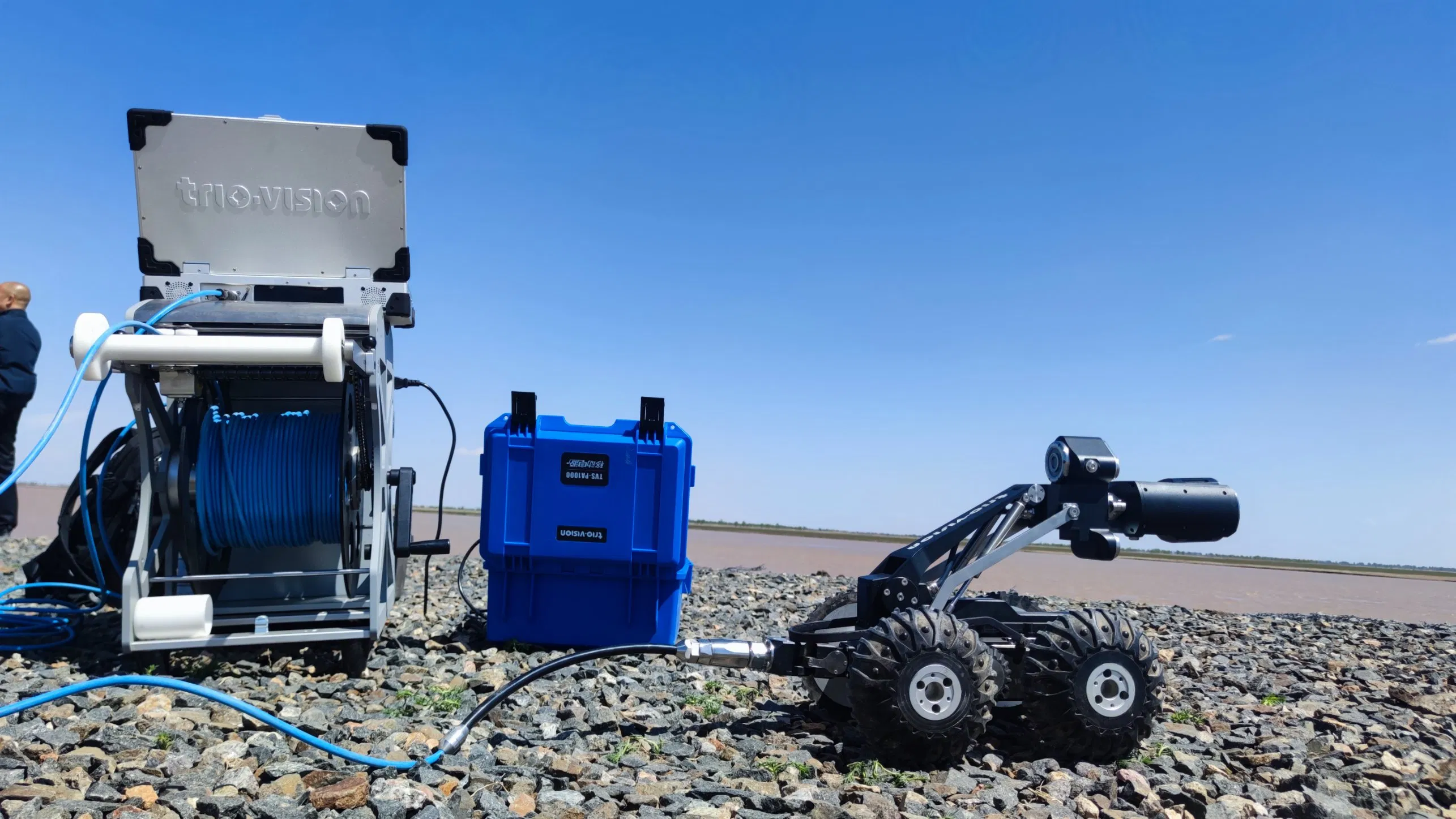

Onsite sewer pipe inspection by one person: the crawler enters the pipe, captures defects, and transfers high-quality video to the controller or tablet in real-time.
We are committed to providing integrated, reliable, and innovative pipeline inspection products to serve global customers through an experienced international network. Through an unparalleled commitment to understanding unique pipeline field application requirements, we offer unmatched exploration and breakthrough innovations to meet those needs.
