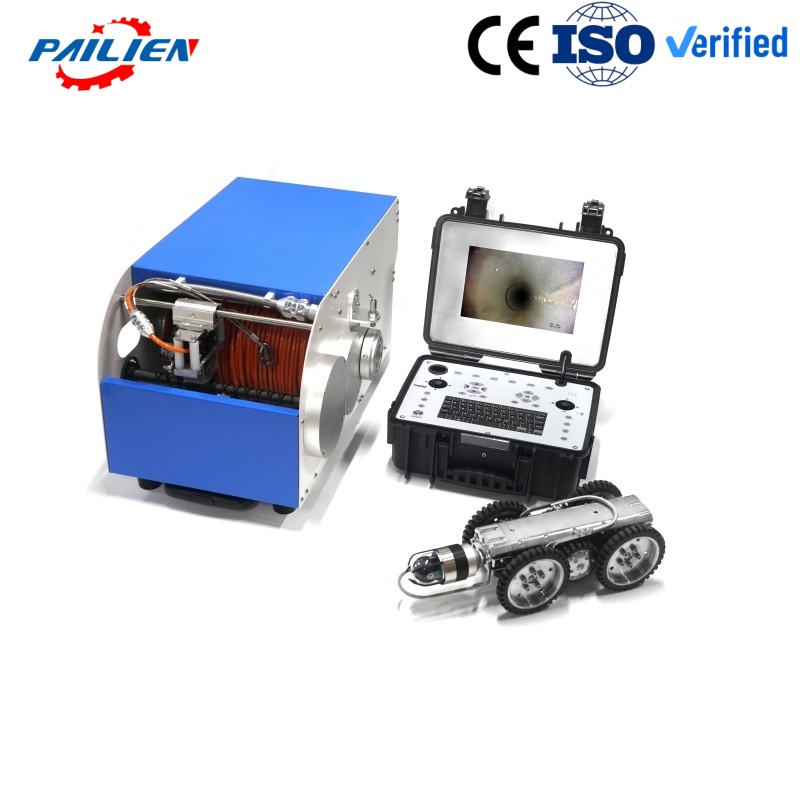

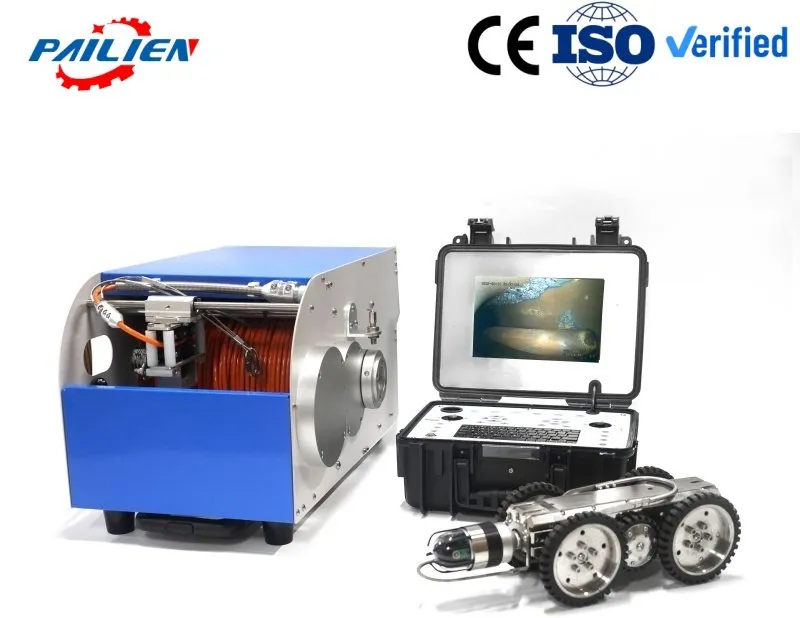

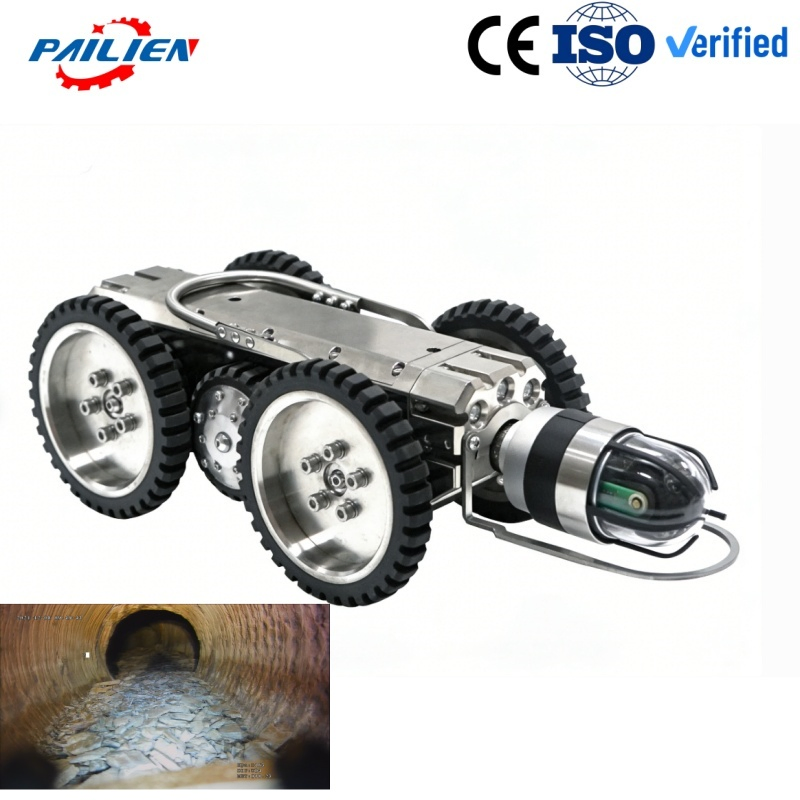

6-Wheel Pipe Crawler Robot for Sewer with Reel and 100m Cable Portable CCTV Drain Inspection Camera System

Customization:	Available
After-sales Service:	Online Support
Warranty:	1year

📋

Basic Specifications

Model:PLE-006

Type:Pipeline Inspection Robot

Resolution:1920*1080 (HD)

Protection:IP68 Waterproof

Pipe Diameter:≥120mm

Cable Length:120m

Mobility:Wheeled Mobility

Power:220V DC/AC

🔍

Product Description

Important Information: The municipal pipeline inspection robot is a compact and lightweight ultra-high-definition pipeline video crawling detection equipment. It conducts 360° all-round observation for industrial and agricultural applications.

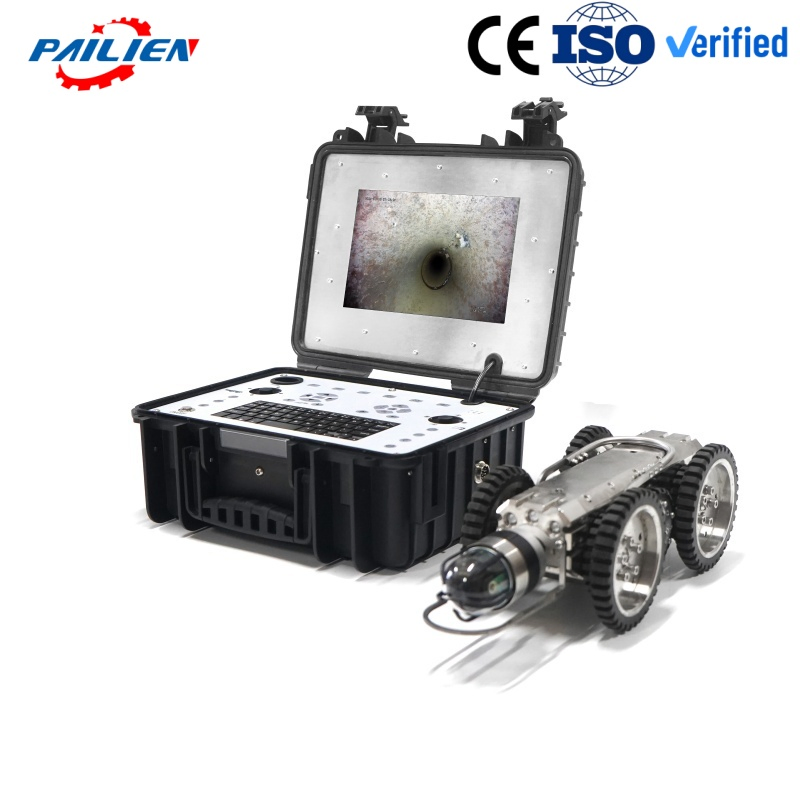

The CCTV Pipe Inspection Robot replaces humans by entering the inside of the pipeline. Operators use a joystick to control the crawler's advance, retreat, turning, and lens rotation. Light-touch buttons facilitate focusing, recording, and playback, providing detailed image evidence for maintenance judgment.

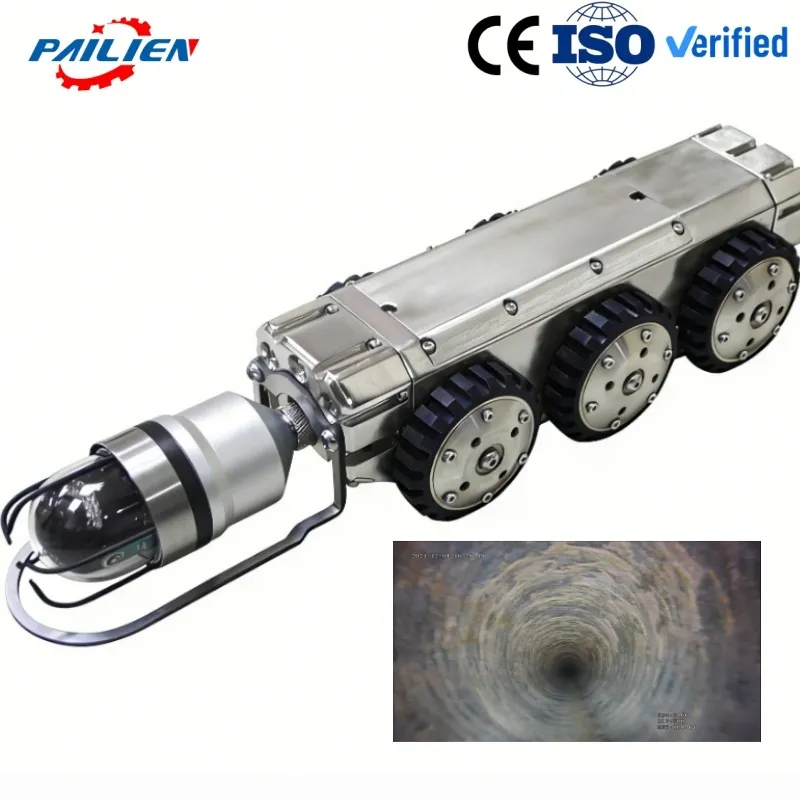

Equipped with a high-definition, large-viewing-angle zoom lens, the robot can rotate 360° infinitely in the axial direction and flip 220° radially. It features macro focusing technology to inspect deposition, blockage, damage, corrosion, and deformation inside pipes. It can work underwater at a depth of 10 meters and climb angles of more than 30° with anti-rollover alarms.

⚙️

Technical Specification

Module	Item	Description
Tablet Controller	Screen & Resolution	12-inch Tablet, 2560×1600
	Memory	128G
	Battery Life	8 Hours
Software	Control Functions	Forward/Backward, automatic cruise, pan/tilt rotation, zoom, defogging
Software	Reporting	One-click generation of inspection reports (EN/CN)
Crawler Robot	Dimensions	440×142×120mm (110mm wheels)
	Protection	IP68, Alloy Steel body
	Camera	Dual 2 Megapixels (Front/Rear), 1920×1080
	Lighting	32 LEDs (adjustable brightness)

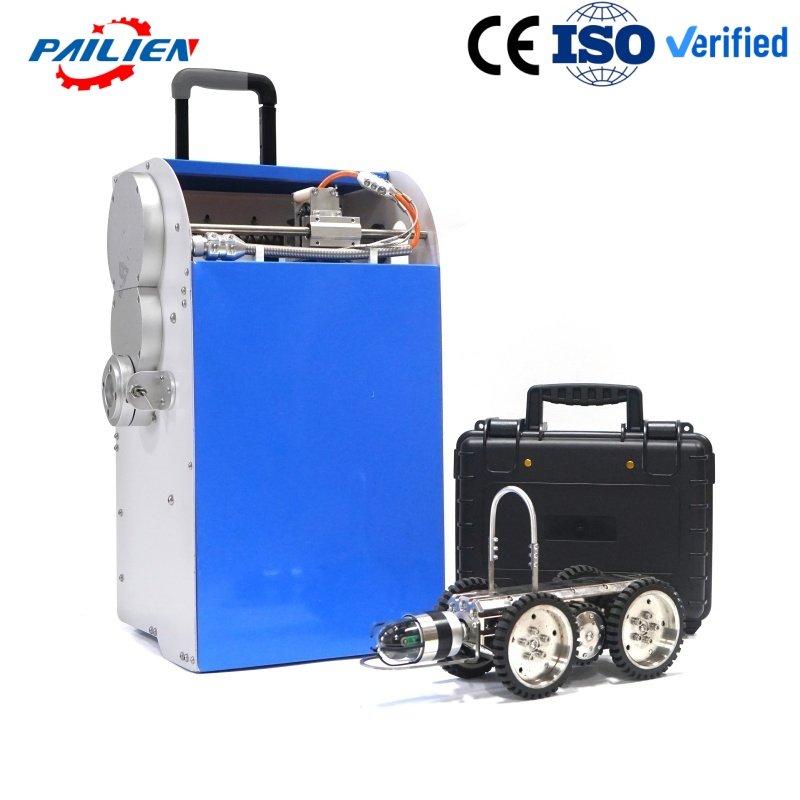

Cable Reel	Cable Length	120 Meters
Cable Reel	Material	Flexible Kevlar, tensile strength 150Kg

📦

Packing & Delivery

Standard Packaging: Standard wooden boxes ensure 100% safety for international shipping.

Lead Time: 5-7 days for small quantities; 20-30 days for container orders.

🏭

Quality & Manufacturing

Our intelligent industrial park integrates R&D, manufacturing, and services. We follow a full-process quality control system with international certifications including CE and ISO.
