Product Description

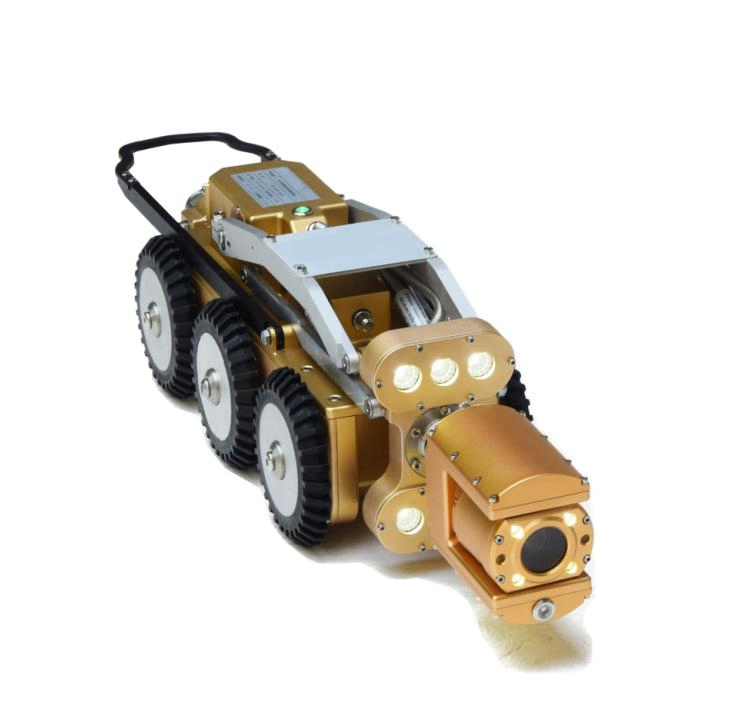

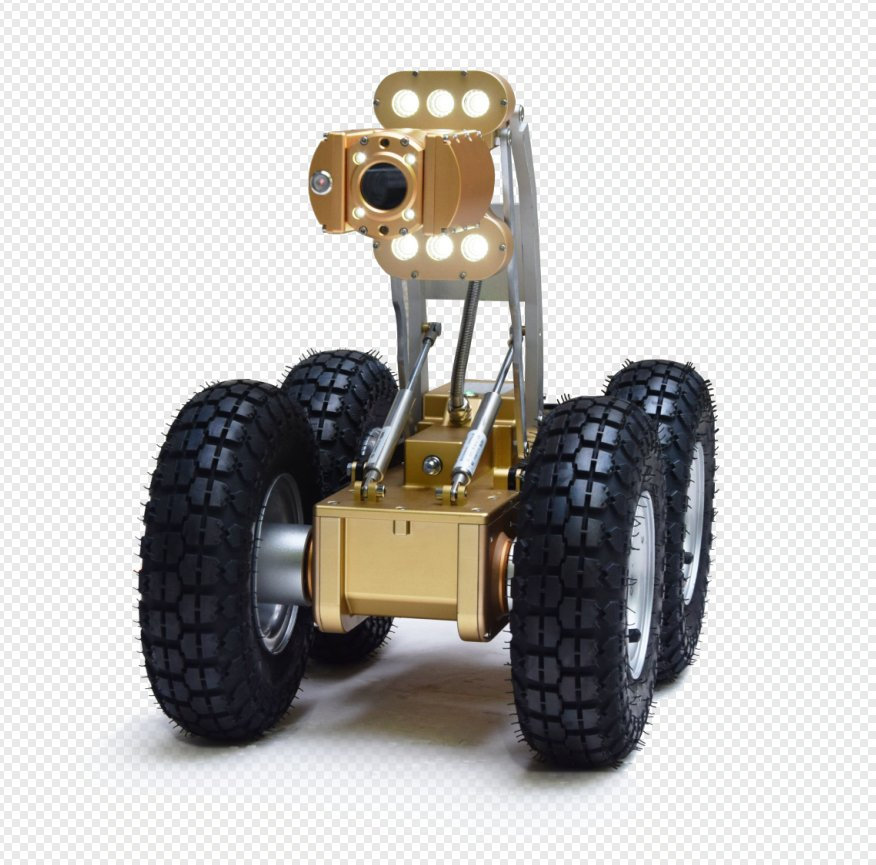

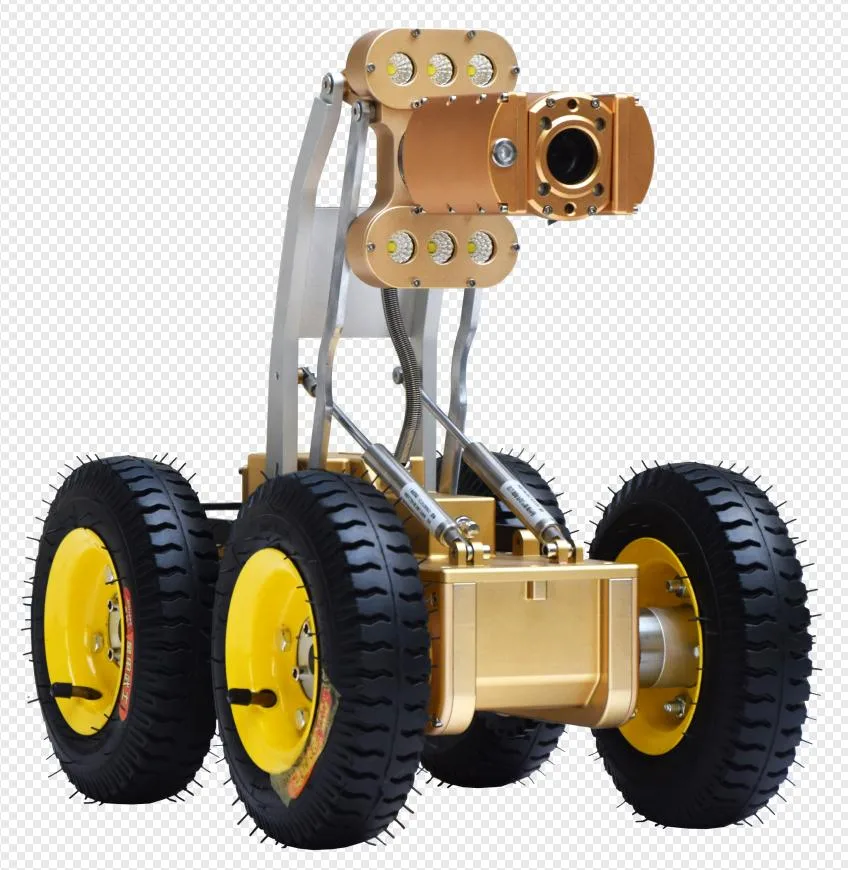

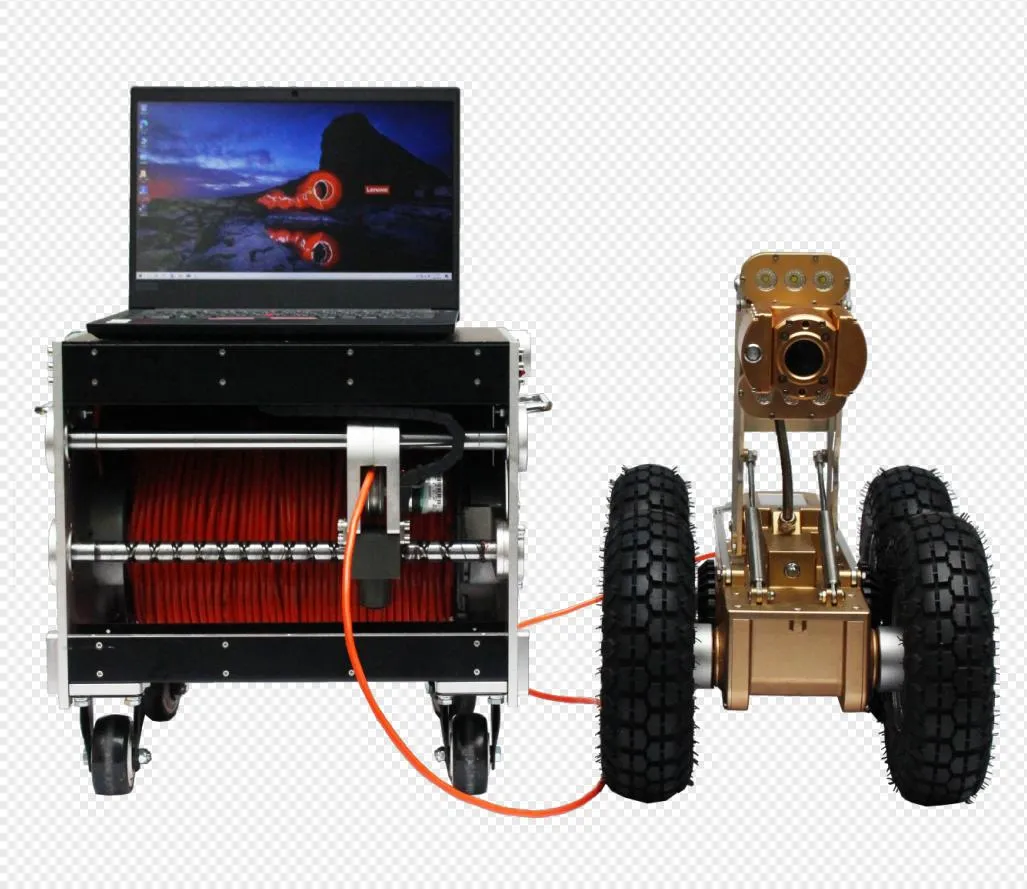

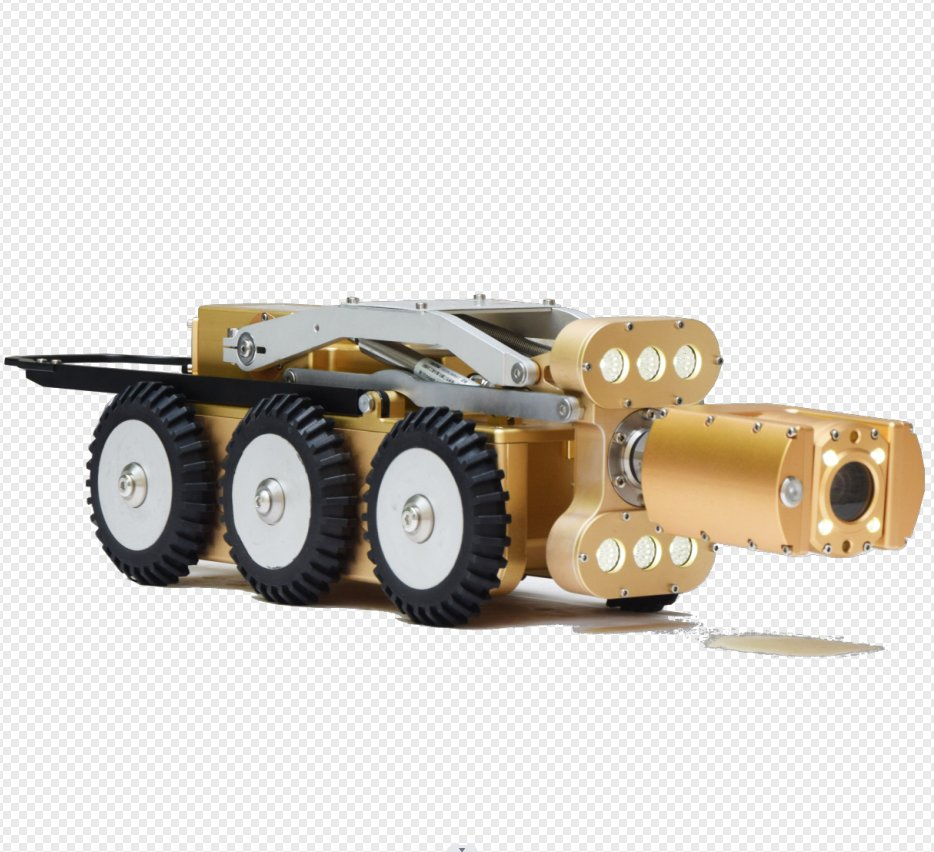

Waterproof IP68 Pipe Inspection Sewer Video Crawler Robot Camera
This advanced robotic system is designed for professional inspection of pipelines ranging from 200mm to 3000mm in diameter. Equipped with high-definition imaging and robust mobility.
Technical Specifications:
◈
Applicable Pipe: Φ230mm~Φ3000mm
◈
Wading Depth: Up to 10 meters
◈
Protection Grade: IP68 Waterproof
◈
Zoom: 36x optical, 12x electronic
◈
Rotation: Radial 360°, 2x110° pitch
◈
Drive: High power DC motor, 6-wheel drive
◈
Cable: 120m standard (up to 1000m)
◈
Climb Ability: Slope > 55°, Obstacle > 90°
◈
Speed: Adjustable 0-32m/min
Frequently Asked Questions
Q1: What pipeline diameters is this crawler suitable for?
The robot is designed for pipes ranging from DN200mm to DN3000mm, with adjustable wheel configurations (5", 8", 10") to adapt to different sizes.
Q2: How deep can the camera operate underwater?
It has an IP68 protection grade and is capable of wading to a depth of up to 10 meters.
Q3: What is the battery life for a single operation?
The system supports continuous working hours of approximately 8 to 10 hours on a full charge.
Q4: Can the camera zoom in on specific pipe defects?
Yes, it features a powerful zoom system with 36x optical zoom and 12x electronic zoom for high-definition close-up inspections.
Q5: What is the maximum distance the robot can travel?
The standard configuration comes with a 120-meter cable, but it is optional and can be extended up to 1000 meters.
Q6: How does the system monitor its internal safety?
It includes an internal pressure monitor; a green light indicates normal pressure (1.2 to 2.0 atmospheres), while a red light warns of overvoltage.
