IP68 Waterproof Auto Focusing Municipal Sewer Pipe Survey Inspection Crawler Robot Pan and Tilt Zoom Camera

1 / 5

IP68 Waterproof Auto Focusing Municipal Sewer Pipe Survey Inspection Crawler Robot Pan and Tilt Zoom Camera

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

GT102

Type

CCTV Camera

Sensor

CMOS

HDMI Format

1080P

Kind

Autofocus Lens

Certification

CE, ISO9001: 2000

Feature

Waterproof, Weatherproof, High Definition

Resolution

1920*1080P

Camera Pixel

2MP or Customized

Waterproof Rate

IP68

Cable Length

50-150m

Production Capacity

5000 sets/Month

Product Description

IP68 Waterproof Auto Focusing Municipal Sewer Pipe Survey Inspection Crawler Robot Pan And Tilt Zoom Camera

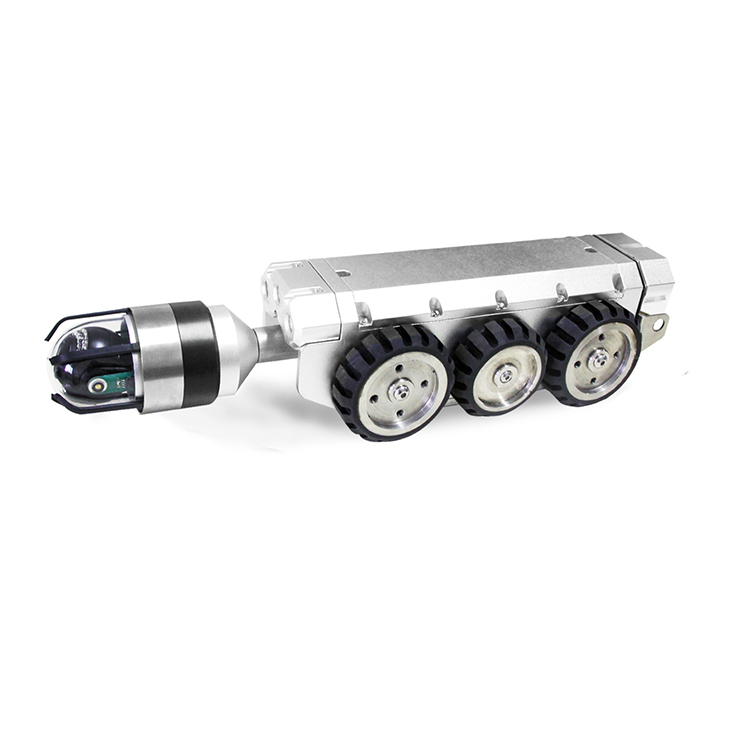

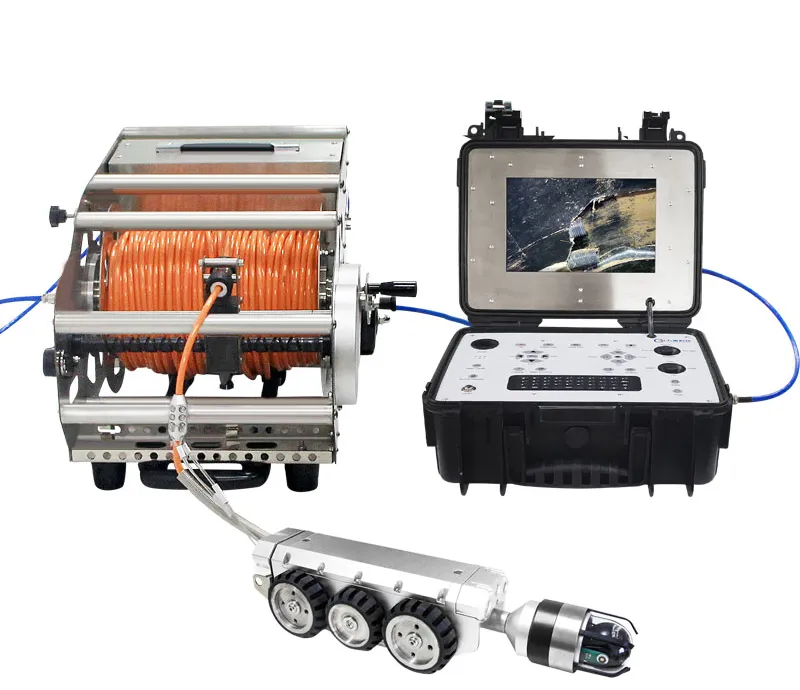

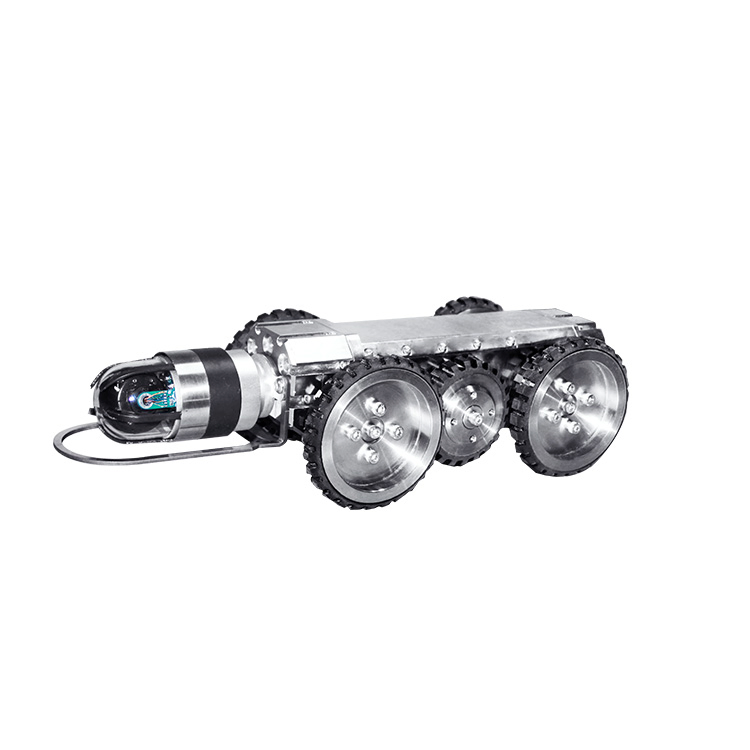

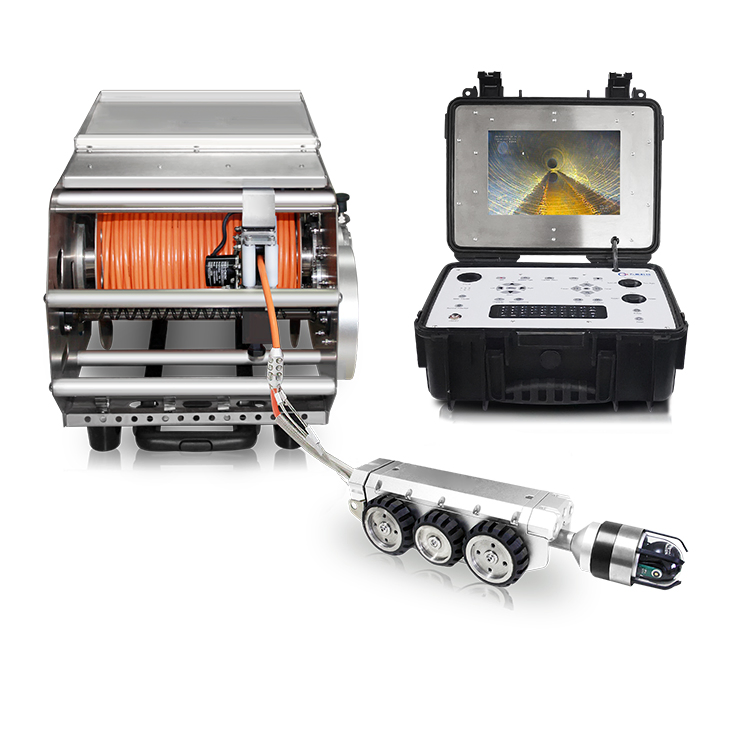

The GT102 pipe inspection system is an advanced video camera for sewer lines. This pipe crawler camera is designed to inspect a wide range of pipes, duct work, and industrial sites. The crawler features an interchangeable HD pan-tilt camera head and a 150-meter (400 ft.) cable reel, with other lengths available upon request.

Ideal for Pipe Diameters: 120-2000mm (5'' - 80'')

This system is widely utilized in multiple fields, including technical supervision, energy, electric power, petrochemical, shipbuilding, rail transit, municipal management, aerospace, and research institutes. It is suitable for pipe diameters from 120mm to 600mm, with customizable cable lengths to meet specific project needs.

Technical Parameters

Suitable Diameter	Pipe diameter: 120-600mm
Cable Length	Standard 100m or customized

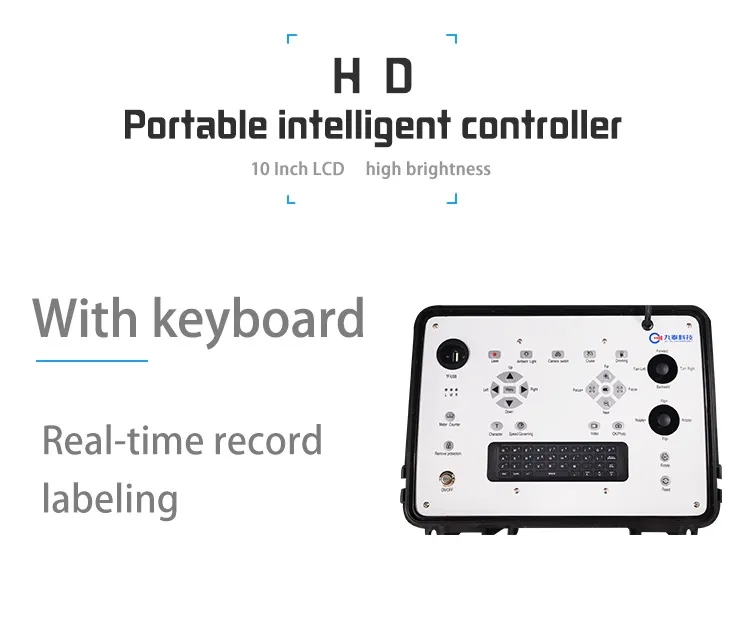

Screen Size	10 inch
Resolution	1920*1080P
Pixel	2,000,000 or 1,000,000 or customized
Brightness	Adjustable LED system

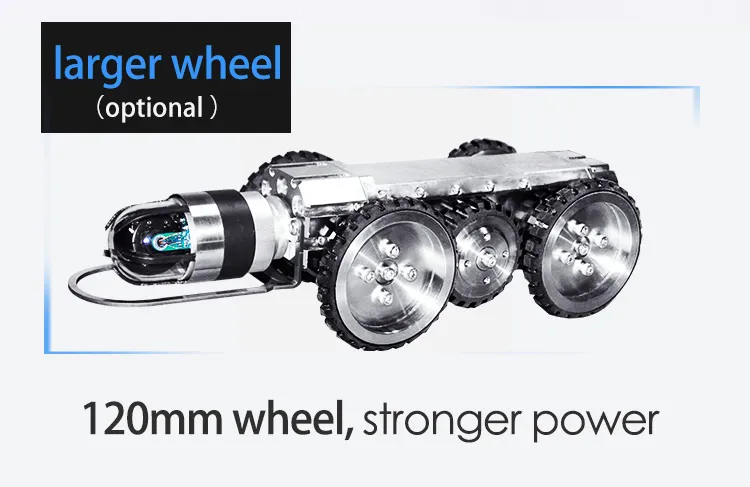

Wheel Size	73/120mm options
Reel Type	Electrical barrow

Certifications

Production Environment

Frequently Asked Questions

What range of pipe diameters can this crawler inspect?

The GT102 system is highly versatile, suitable for pipe diameters ranging from 120mm to 600mm for standard operations, and can be used in larger ducts up to 2000mm with specific configurations.

Is the camera system completely waterproof?

Yes, the camera head and crawler unit carry an IP68 waterproof rating, ensuring reliable performance in submerged municipal sewer environments.

What is the standard length of the cable?

The standard cable length is 100 meters (328 ft), but we offer customization options ranging from 50 meters to 150 meters to suit your specific project requirements.

Does the system provide high-definition video?

Absolutely. The system features a 2MP camera providing 1920*1080P Full HD resolution, displayed on a high-brightness 10-inch monitor.

Can the camera head rotate?

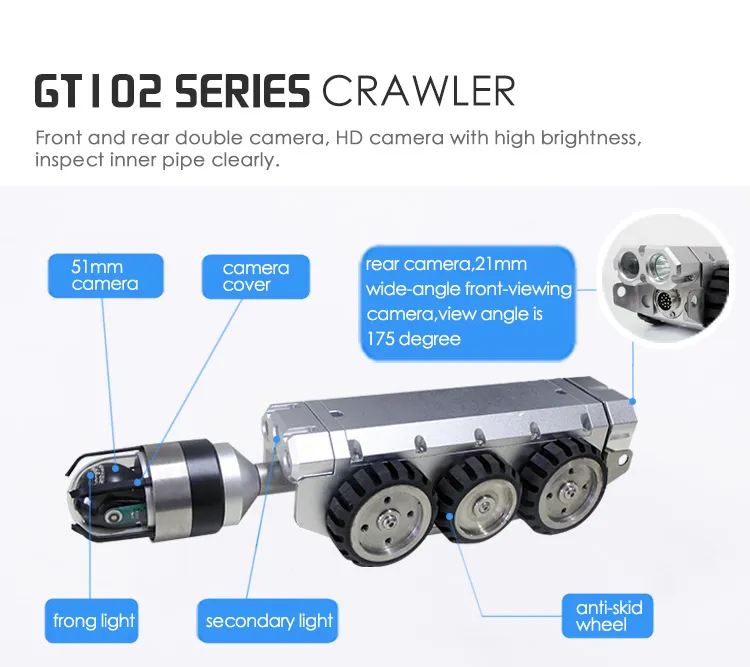

Yes, it features an interchangeable HD pan-tilt-zoom camera head that allows for a comprehensive 360-degree survey of the pipe's internal condition.

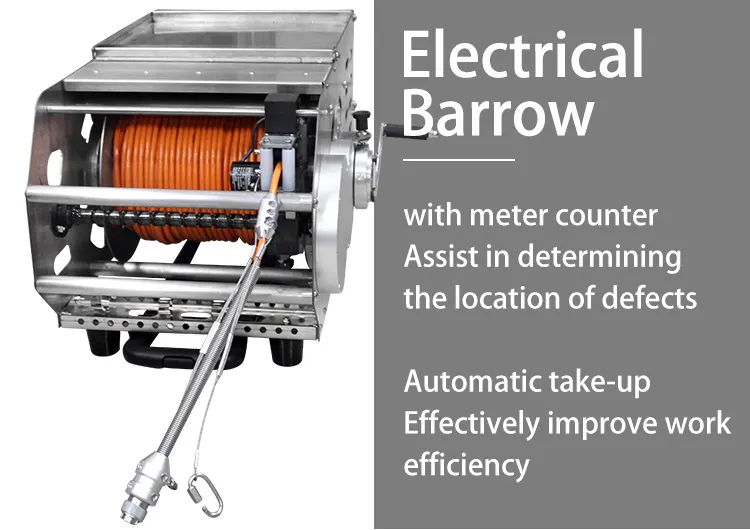

How is the cable managed during inspection?

The system utilizes an electrical barrow (reel) which assists in the smooth deployment and retrieval of the inspection cable.
