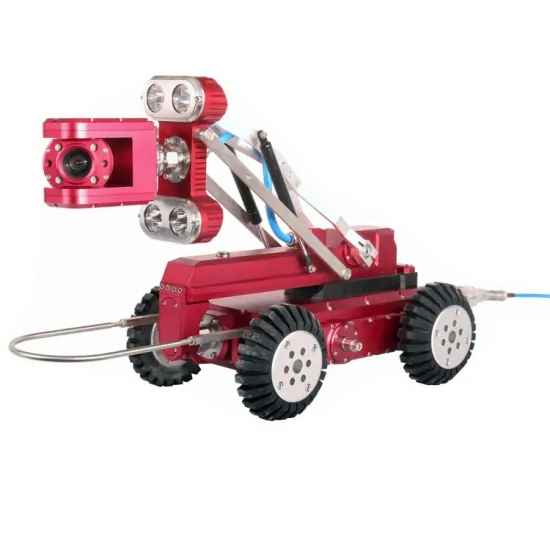

Pipe Inspection Robot Crawler with PTZ Camera and 120m Cable

1 / 5

Pipe Inspection Robot Crawler with PTZ Camera and 120m Cable

Customization:	Available
Model:	X5-Ht
Waterproof Grade:	IP68

Send Inquiry

Product Description

Technical Specifications

Model NO.

X5-HT

Depth of Water

10 Meters

Camera Angle

Pan/Tilt

Lens Material

Sapphire Glass

Suitable Pipe

DN300-800

Technology

Wireless

Sensor

CMOS 1/3 inch

Resolution

1080P (2592*1520)

Certification

CE, ISO9001, FCC, RoHS

Protection

IP68 Waterproof

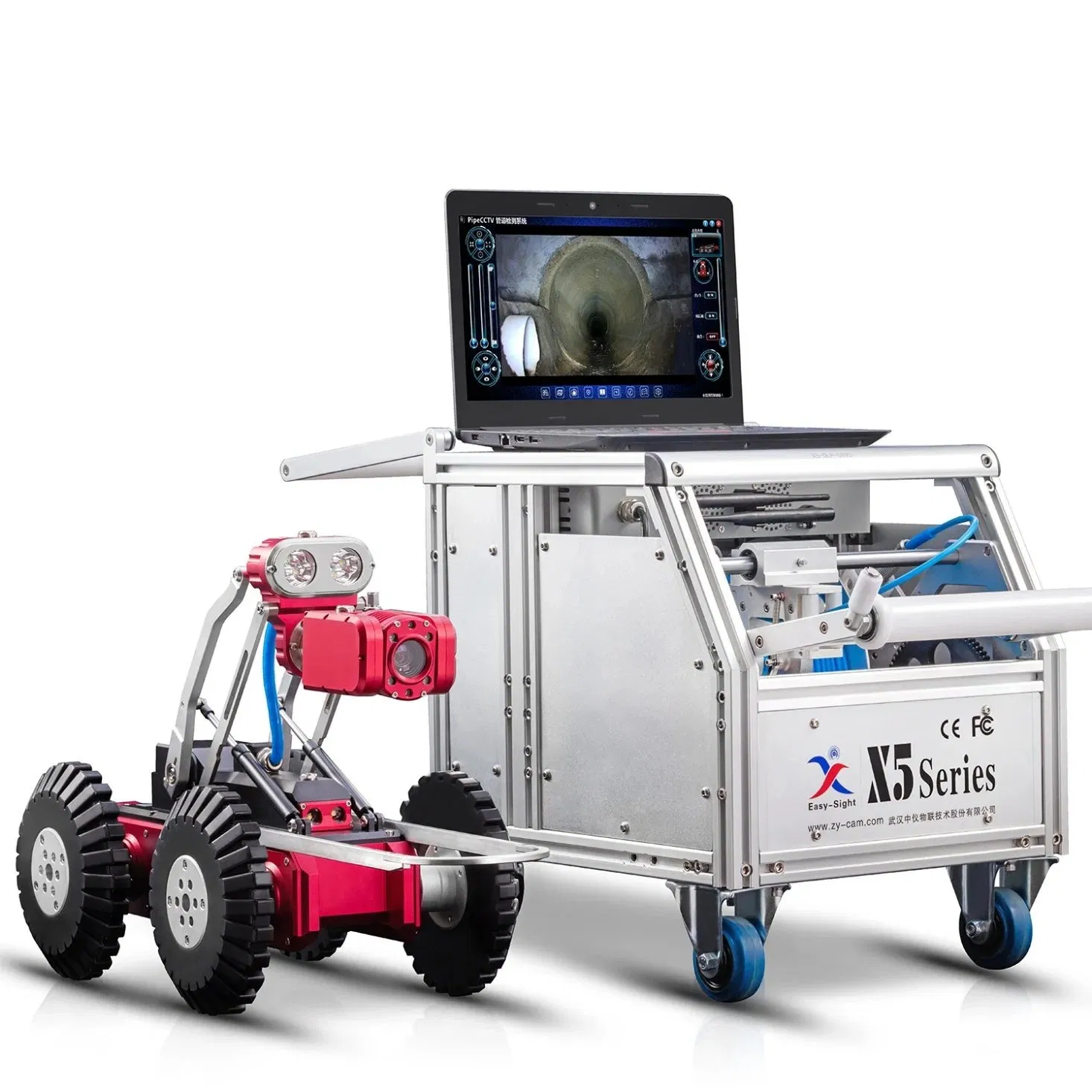

X5-HT Pipeline CCTV Inspection Robot

Product Overview: The X5-HT is a high-definition pipeline CCTV inspection robot designed for professional utility assessment. It can be controlled via a personal laptop or a dedicated controller through wireless or wired connections, enabling real-time display and storage of HD detection videos.

System Parameters

Component	Technical Details
Main Controller	Wireless control; Real-time display of date, time, distance, and crawling attitude; Dual-interface display for front and rear sights.
Electric Cable Reel	Standard length: 120M/150M; Two-core cable for reduced failure; Automatic retractable function.
Crawler	IP68 (10m depth); Range: DN250mm--DN650mm; Brass/Stainless steel/Aluminum alloy; Electric lift frame.
HD Camera	Resolution: 2592*1520; 360° radial limitless rotation; 0.1Lux sensitivity; 4 LED highlight sources.

Key Advantages

💡 High Definition
HD light source and high-resolution camera for crystal clear inspection.

⚡ Efficient Detection
Quick assembly on site and fast digital transmission.

🛡️ Stable Performance
IP68 waterproof and explosion-proof design for harsh environments.

📡 Sonar Integration
Compatible with sonar probes for underwater synchronous detection.

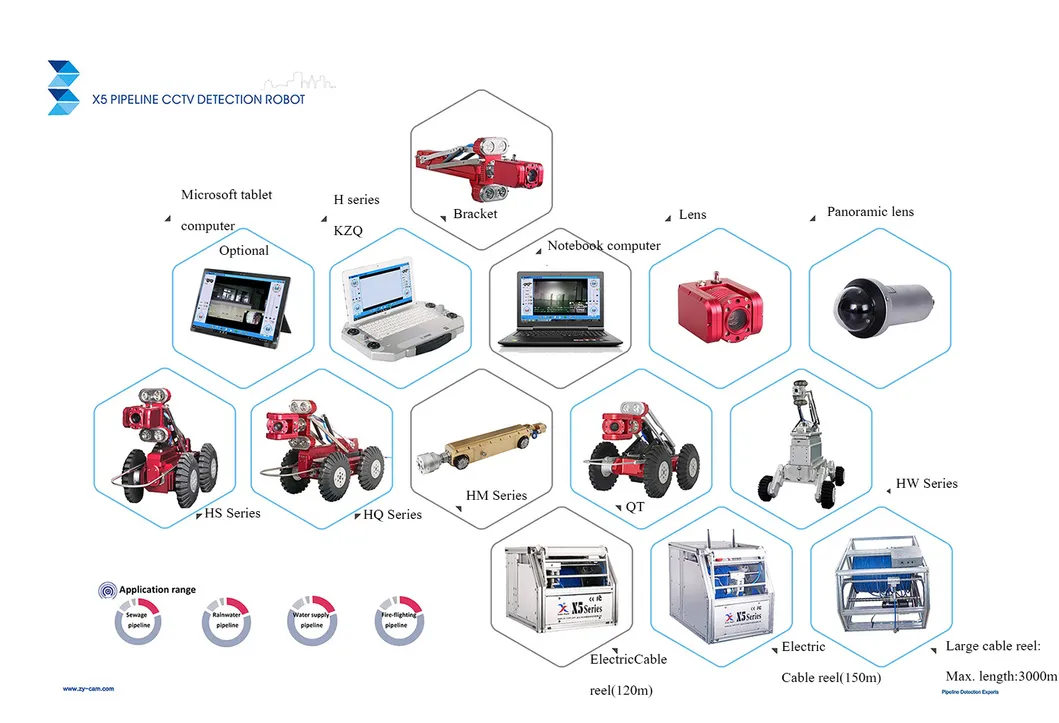

System Components

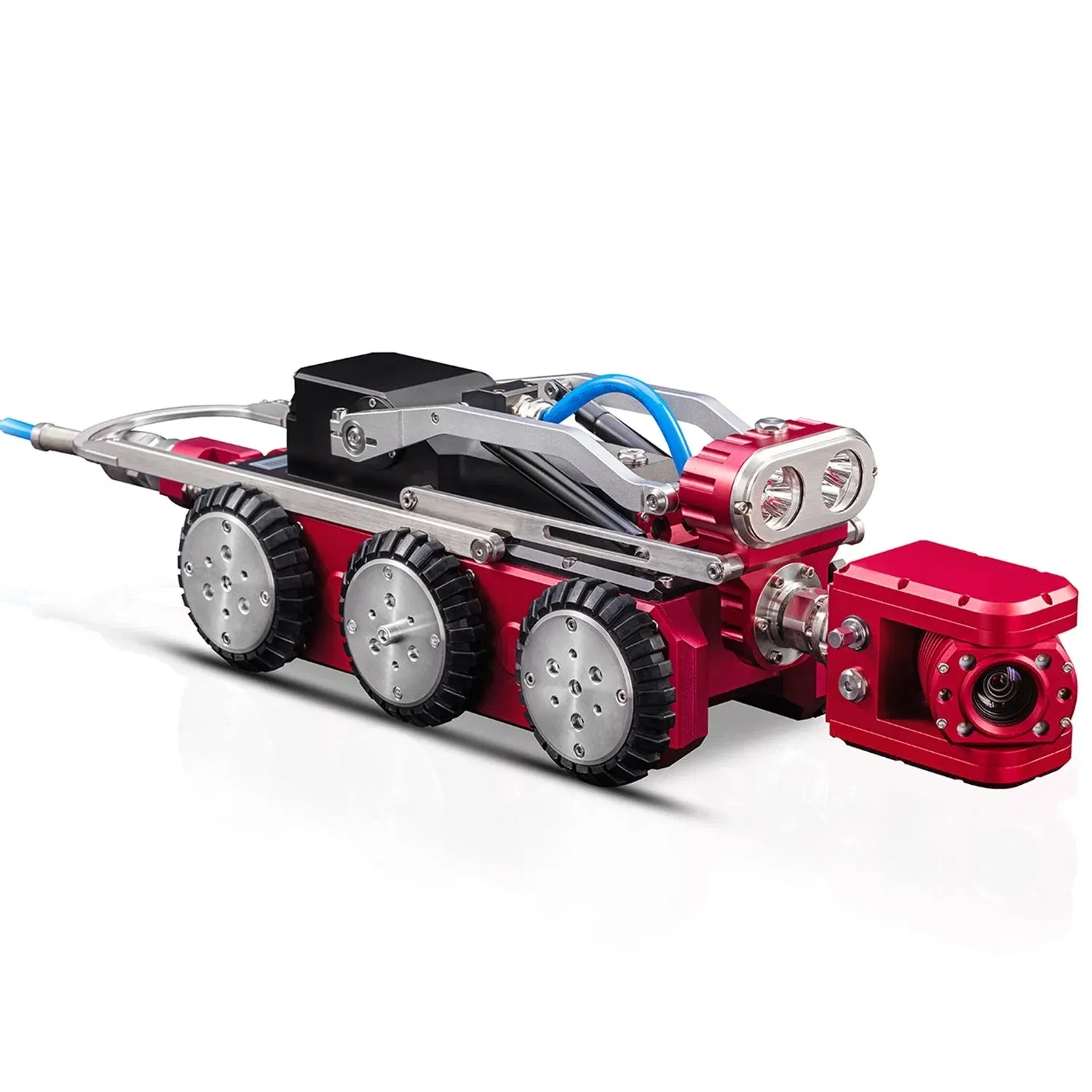

X5 Crawler Unit
6-wheel-drive, Max speed 32m/min

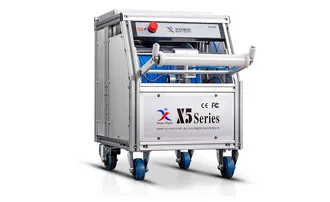

Motorized Cable Reel
150m reinforced Kevlar cable

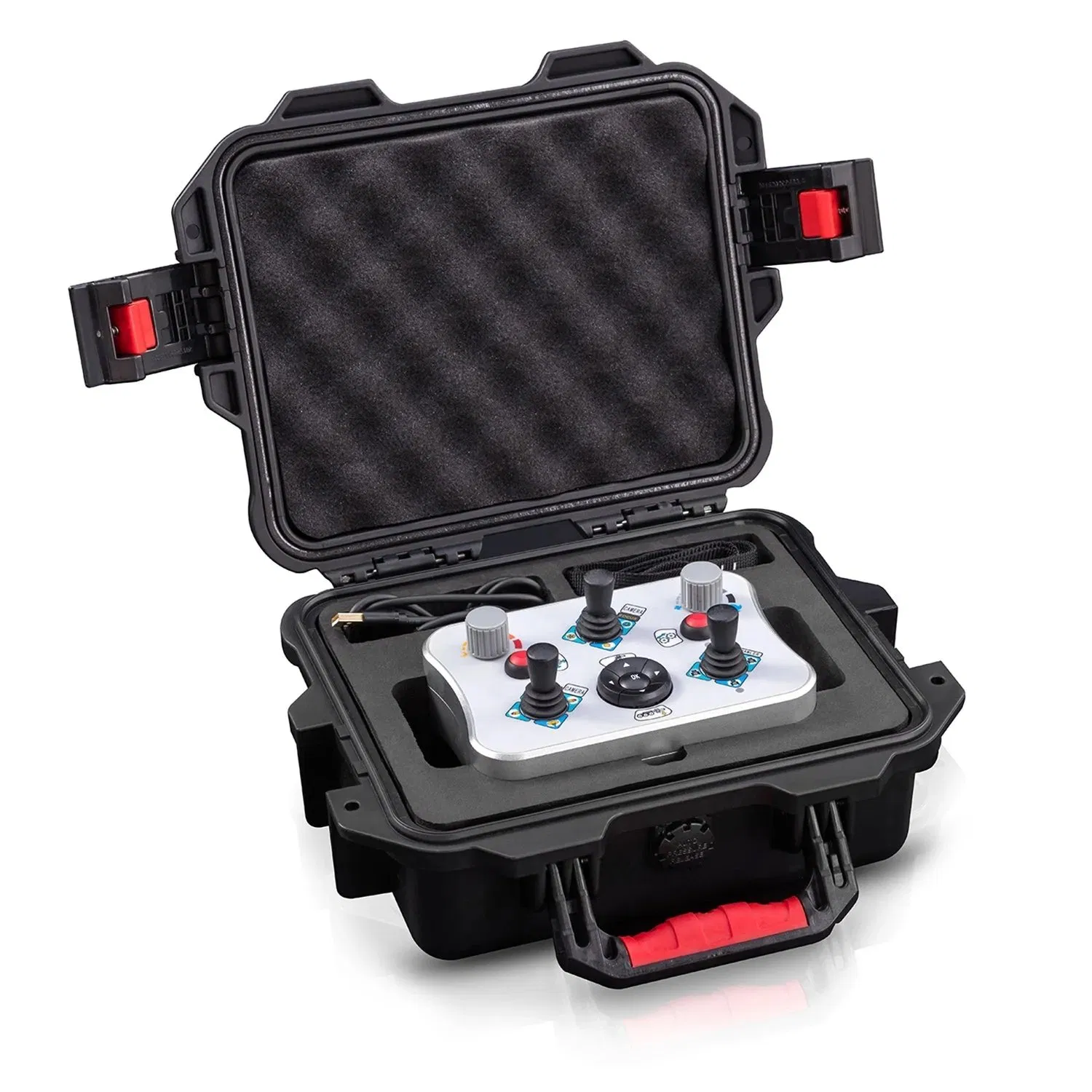

Main Controller
Cloud data interaction & reporting

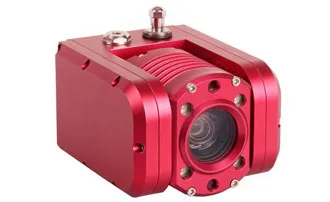

HD P&T Camera
10X Optical zoom, Laser measurement

Product Application

Our pipeline inspection solutions are widely applied to infrastructure development, including:

Municipal drainage network construction
Geophysical prospecting & Urban development
Water conservancy and hydro power
National defense infrastructure maintenance

Service & Support

Warranty: 12-month standard warranty with lifelong maintenance support.

Training: Detailed operational manuals and English training videos provided.

Quality: Every machine is strictly tested before packaging for zero-failure performance.

OEM: Support for custom branding and logo printing on hardware.

Frequently Asked Questions

What is the diameter range for this robot?

The X5-HT is suitable for pipelines ranging from DN300 to DN800, with crawler options supporting DN250 to DN650.

Is the robot waterproof for underwater use?

Yes, both the crawler and camera are IP68 rated, allowing operation in water depths of up to 10 meters.

How is the cable managed during inspection?

The system includes an electric motorized cable reel that can retract the cable automatically or manually, with an accurate counter.

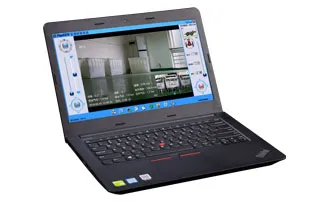

Can I use my own laptop to control the robot?

Yes, the system is designed to be compatible with any notebook computer acting as the main control system via wireless connection.

What kind of report does the software generate?

The pre-installed software captures video and screenshots to automatically evaluate and output inspection reports meeting industry standards.

What happens if the machine encounters an issue?

We provide technical support within 24 hours. The modular design allows for easy disassembly and part replacement.
