Sewer Pipe CCTV and Sonar Inspection Amphibious Inspection Crawler

Customization:	Available
Technology:	Wireless
Style:	Zoom Lens

Basic Information

Model NO.

TVS-8000

Type

CCTV Camera

Sensor

CCD

HDMI Format

1080P

Resolution

1920*1080

Kind

Autofocus Lens

Certification

CE, ISO9001, ISO4001

Feature

Waterproof, High Definition

Pipe Diameter

600-2000mm

Transmission

WiFi

Product Description

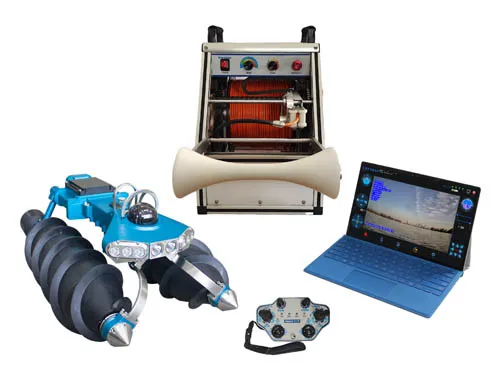

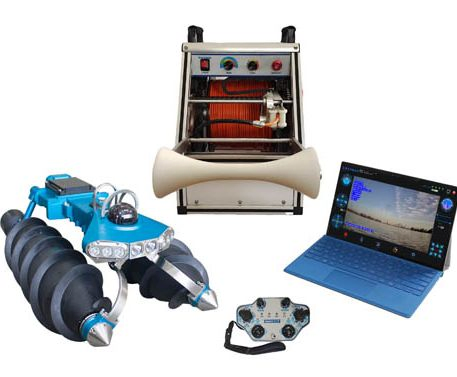

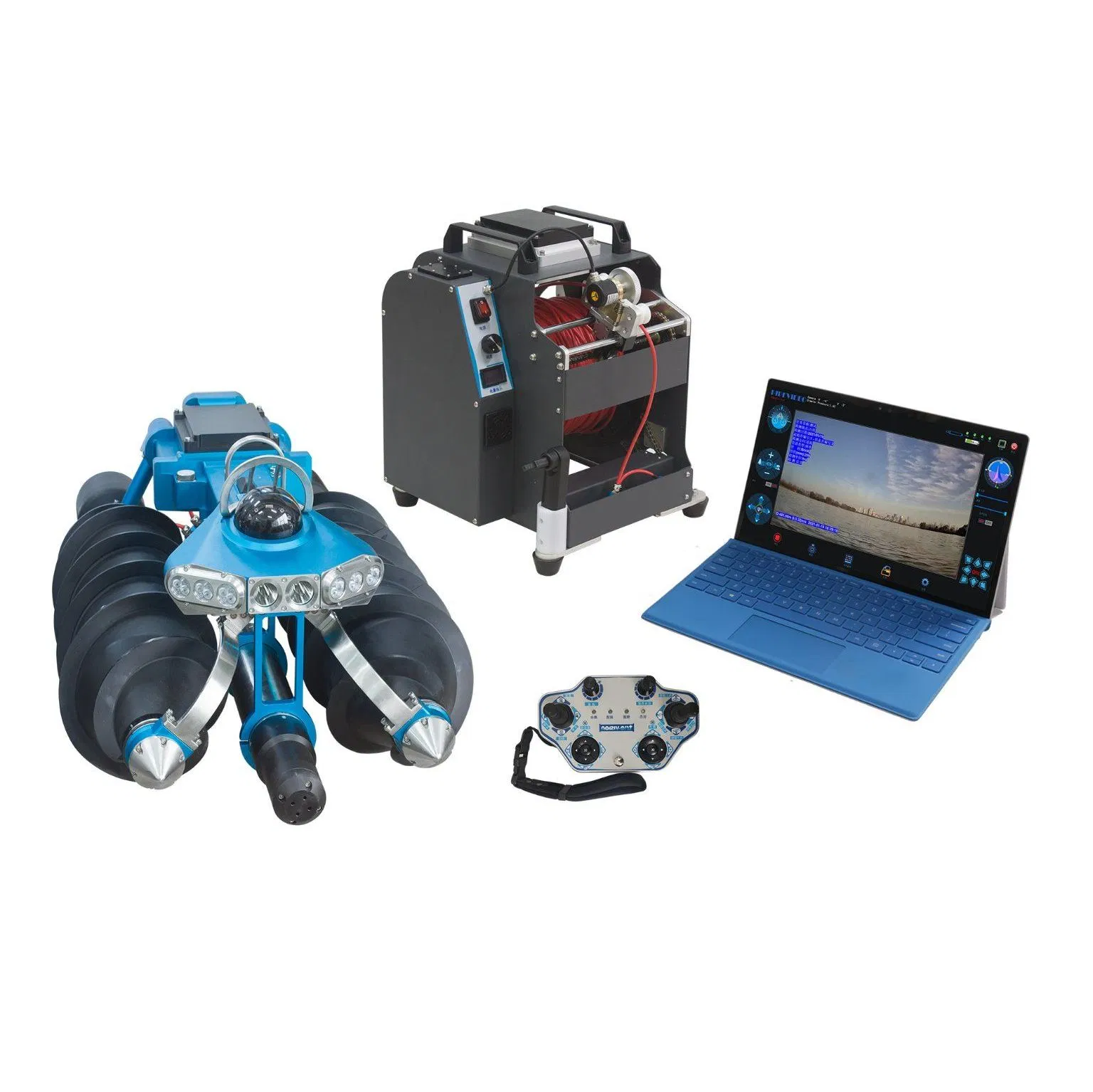

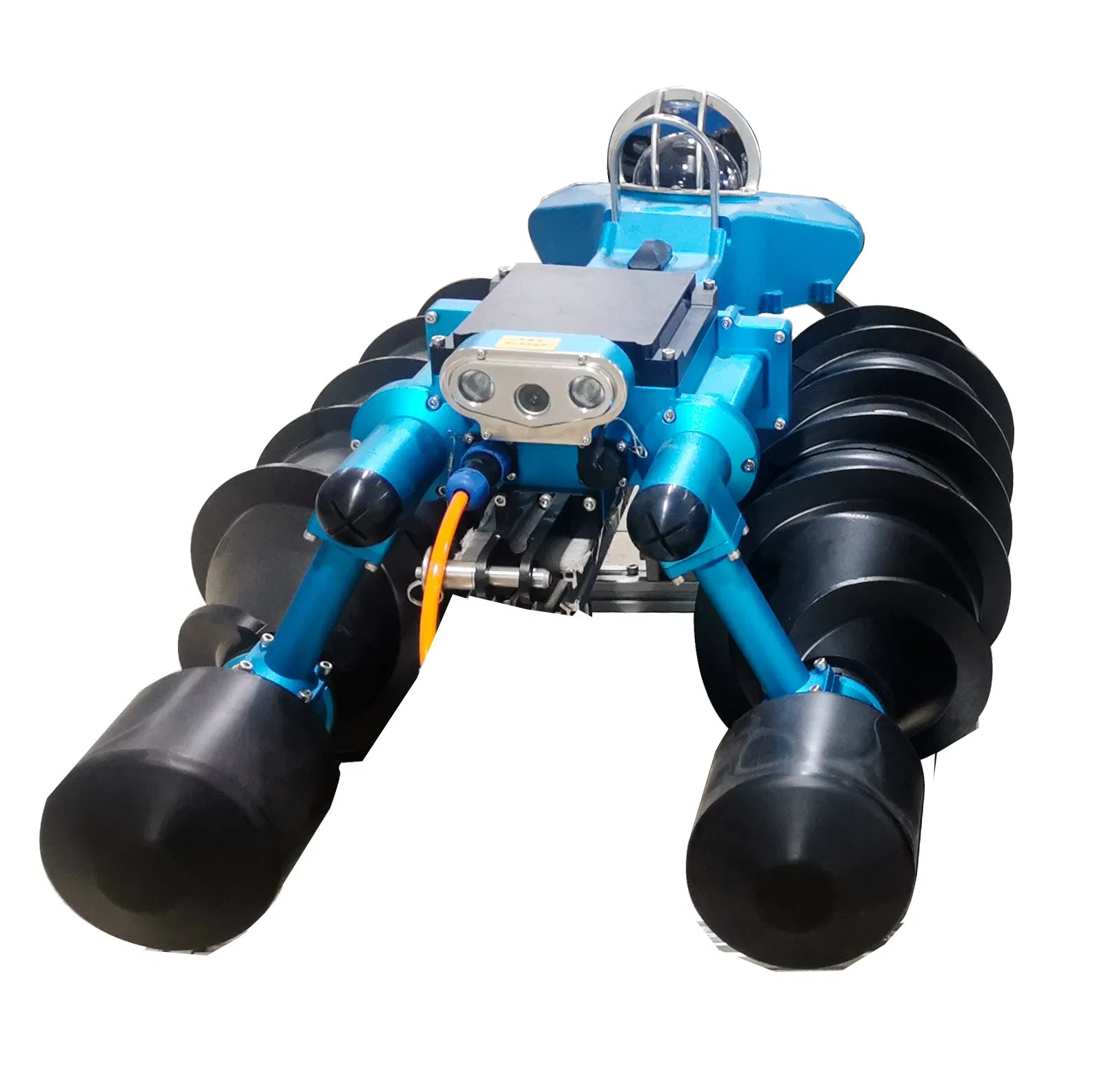

Remote Control Spiral Robotic Sewer/Water Pipe Inspection Camera System

This CCTV and sonar sewer/water pipe inspection camera system adopts a spiral propulsion structure, making it suitable for complex environments such as water surfaces, mud, and swamps. Equipped with a 360° pan-tilt-zoom camera, it provides high-definition inspection images. The high-brightness LED array is designed for large pipes, canals, and box culverts. An optional sonar probe allows for underwater surface imaging to detect cross-sections and silt depth simultaneously.

Key Features & Applications

Versatile Applications Water pipes with mud, large river canals, box culverts, and swampy terrain where standard crawlers fail.

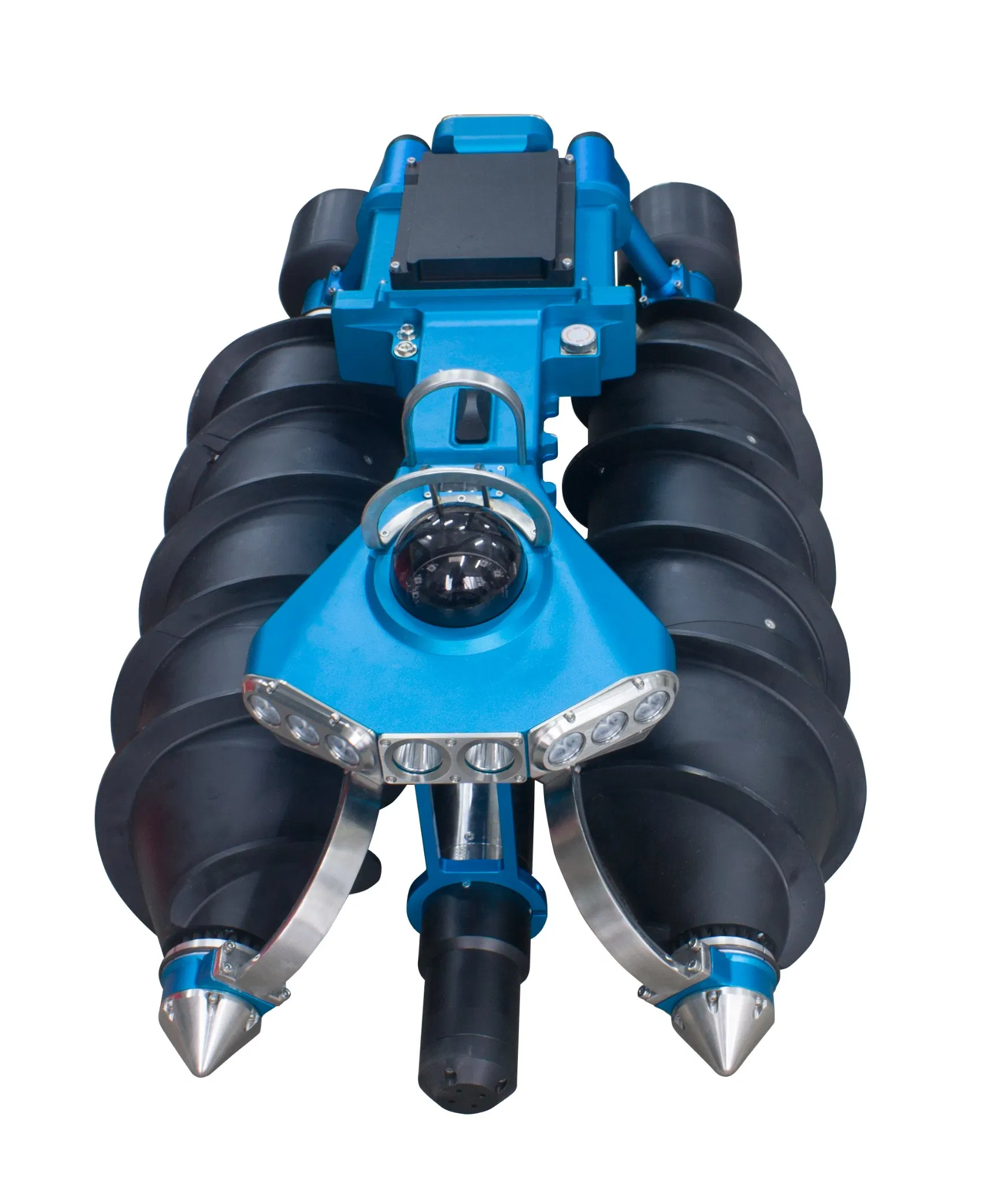

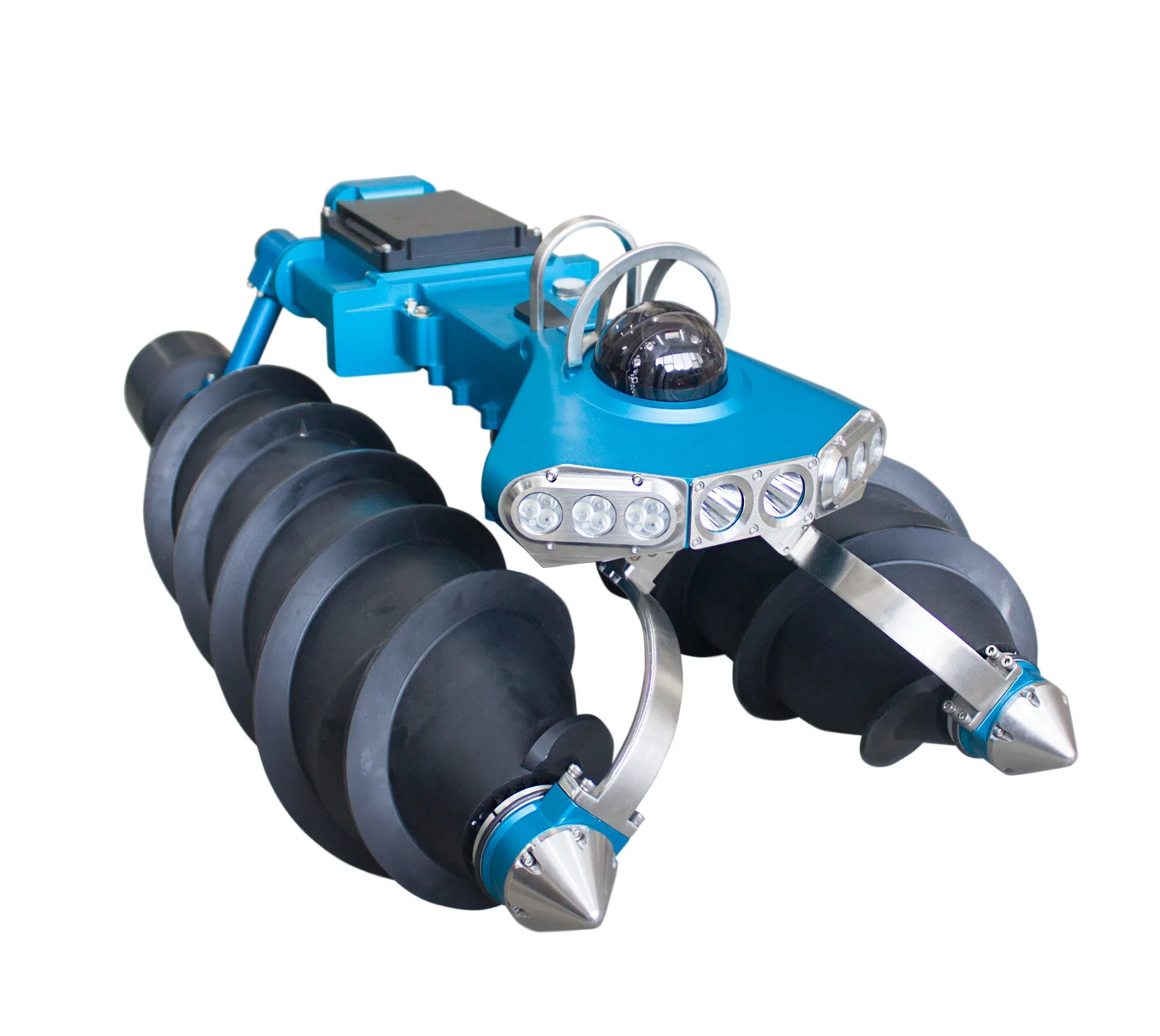

Advanced Crawler Designed for DN 600 and above with spiral propulsion for overwater and silt navigation.

360° HD Camera Front 2MP and Rear 1.3MP cameras with full rotation for comprehensive visual inspection.

Intelligent Control Compatible with Android/Windows systems, featuring wireless control and auto-diagnosis functions.

Technical Specifications

Component	Details
Crawler	Pipe diameter ≥DN600; Double DC brushless motor; Spiral propulsion; 512 Hz sonde; Dimension: 900520310mm; Weight: 18kg.
Camera	HD resolution (Front 2MP, Rear 1.3MP); 360-degree rotation.
Cable Drum	Automatic winding; Tensile floating cable (200m/300m); WIFI/Network transmission.
Sonar Probe	Optional; Frequency 2Mhz; Inspection range 125mm-6000mm; Built-in pitch/roll sensor.
Software	360-degree continuous scan; Intelligent noise filtering; Easy-to-operate interface.

Service & Capabilities

Standard Warranty: 12 months or 2,000 operating hours. Extended coverage up to 36 months is available. We provide 24/7 technical assistance and global spare parts supply.

Our technical team provides integrated, reliable, and innovative pipeline inspection products. We are committed to understanding unique field application requirements through breakthrough innovations.
