The GT108 Pipe inspection camera is widely used across various industries, including technical supervision, energy, electric power, petrochemical, shipbuilding, rail transit, food and medicine, municipal management, aerospace, and research institutes.

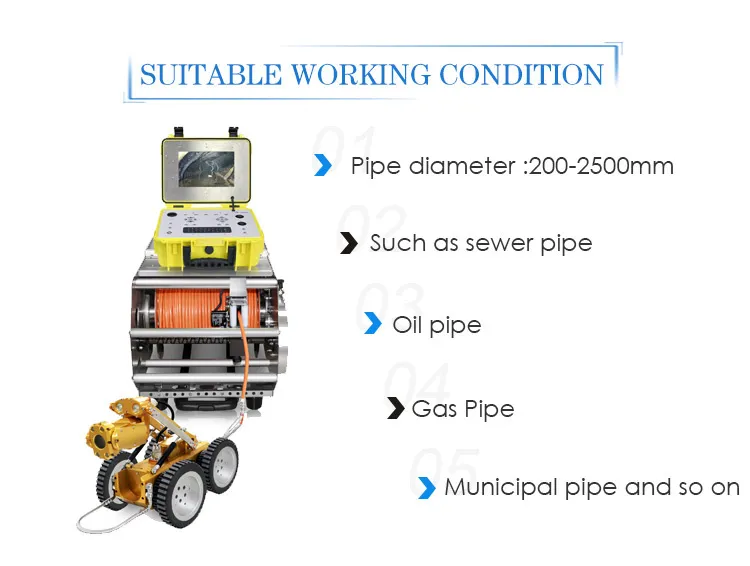

Designed for pipe diameters ranging from 200mm to 2500mm, with customizable cable lengths to meet specific project needs.

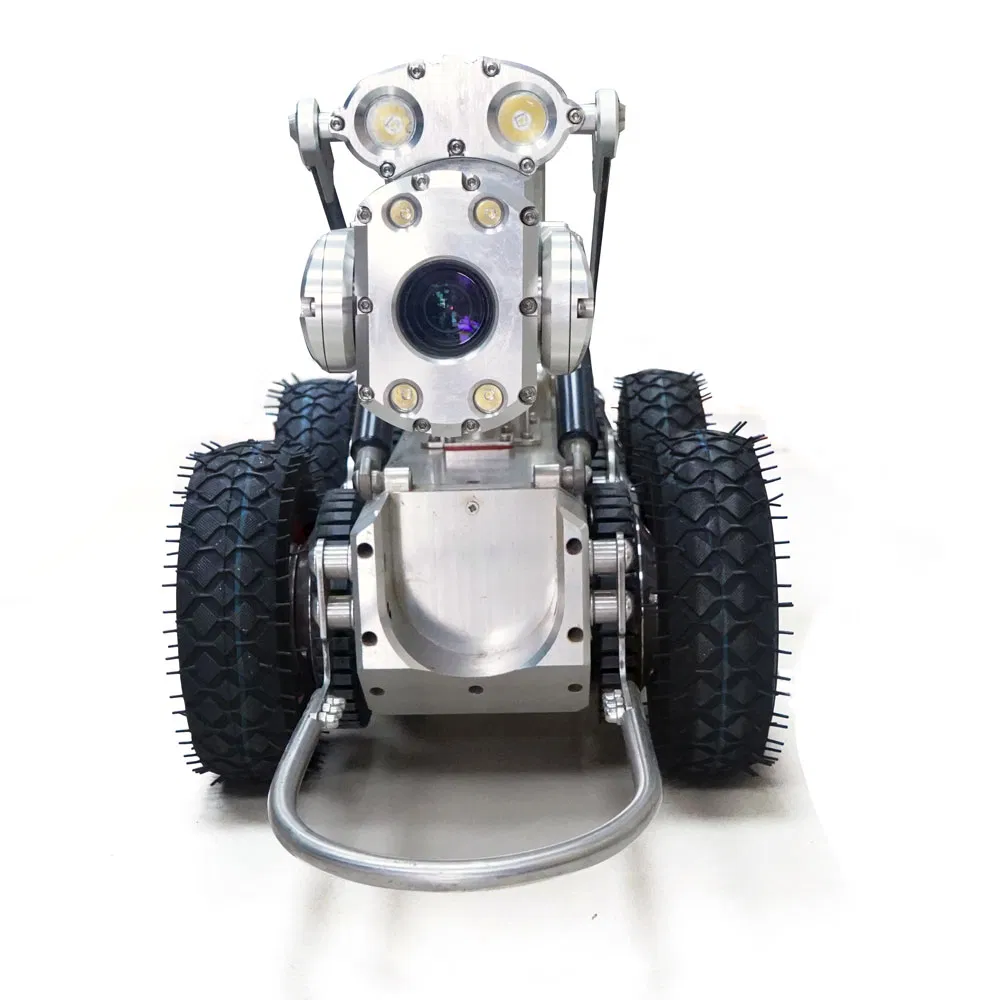

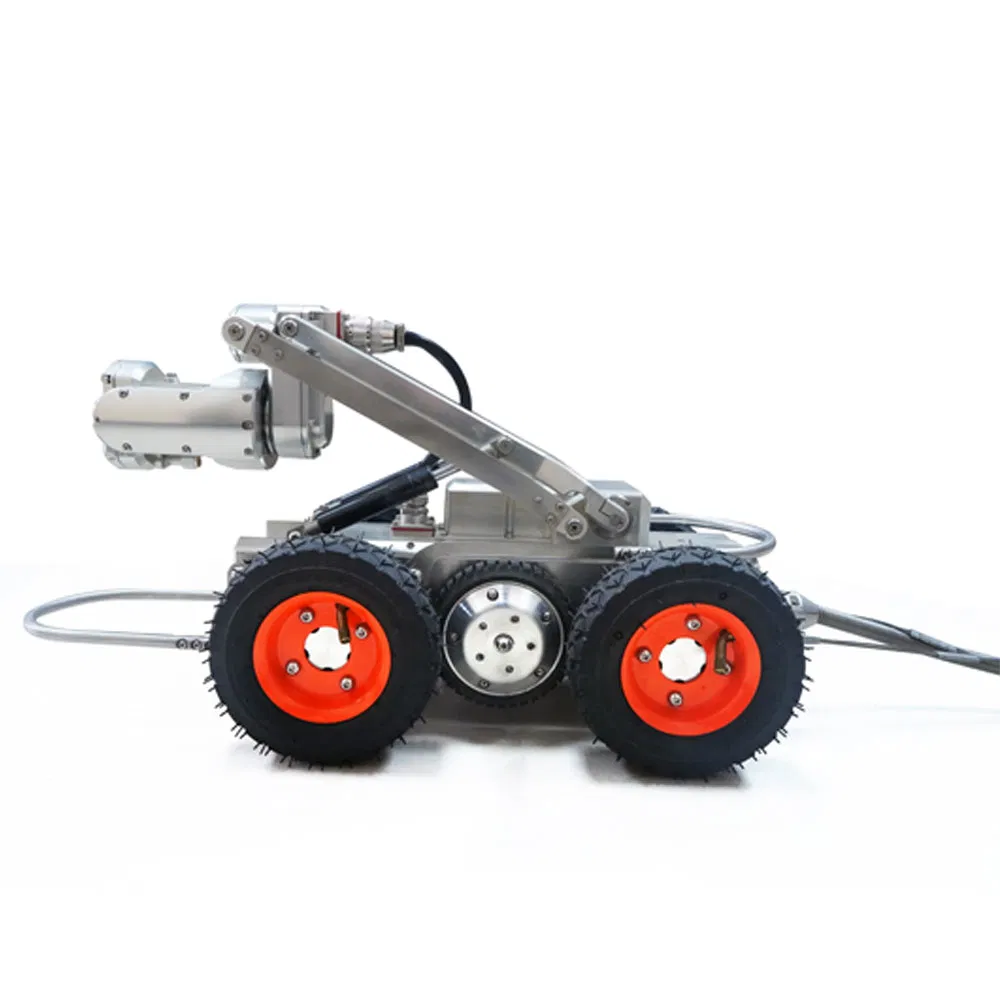

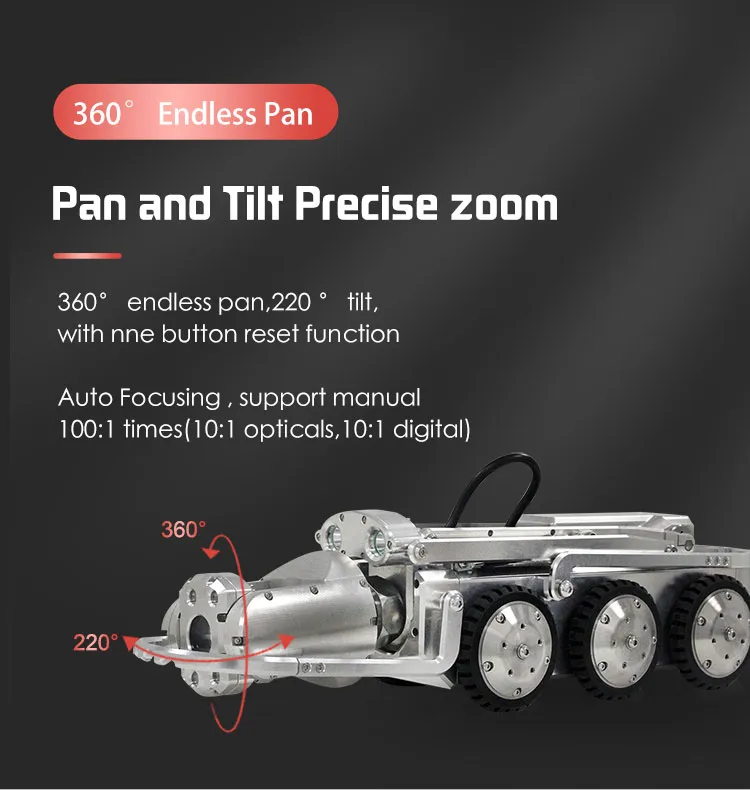

This industrial crawling robot serves as a replacement for manual labor in hazardous or confined spaces. It provides real-time, high-definition image data. Operators can control the crawler's movement (forward, backward, turning) and the lens (rotation, overturning, focusing) via a touch-button interface with local playback capabilities.

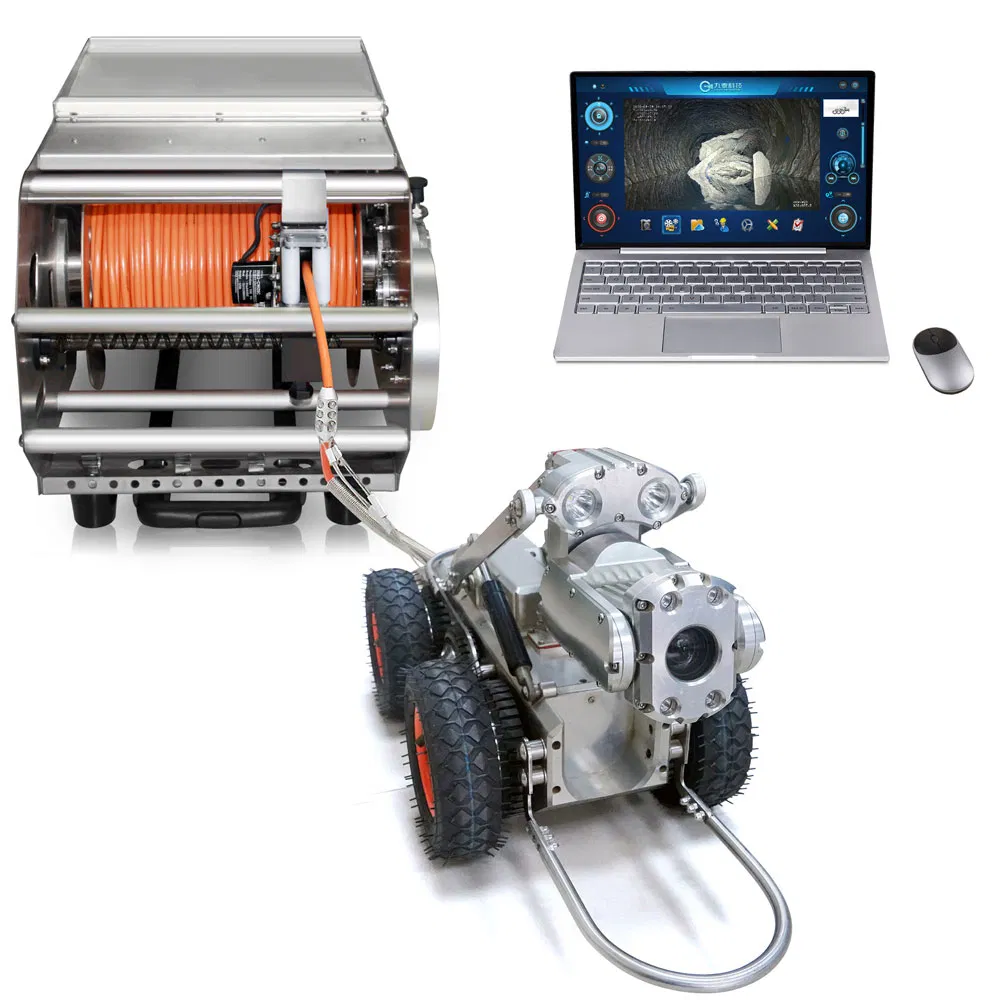

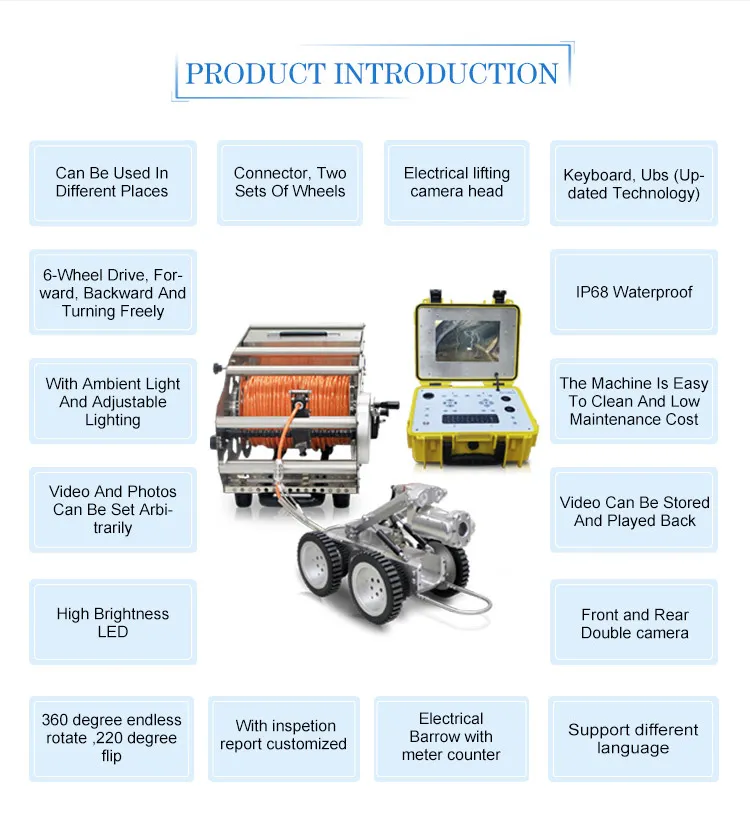

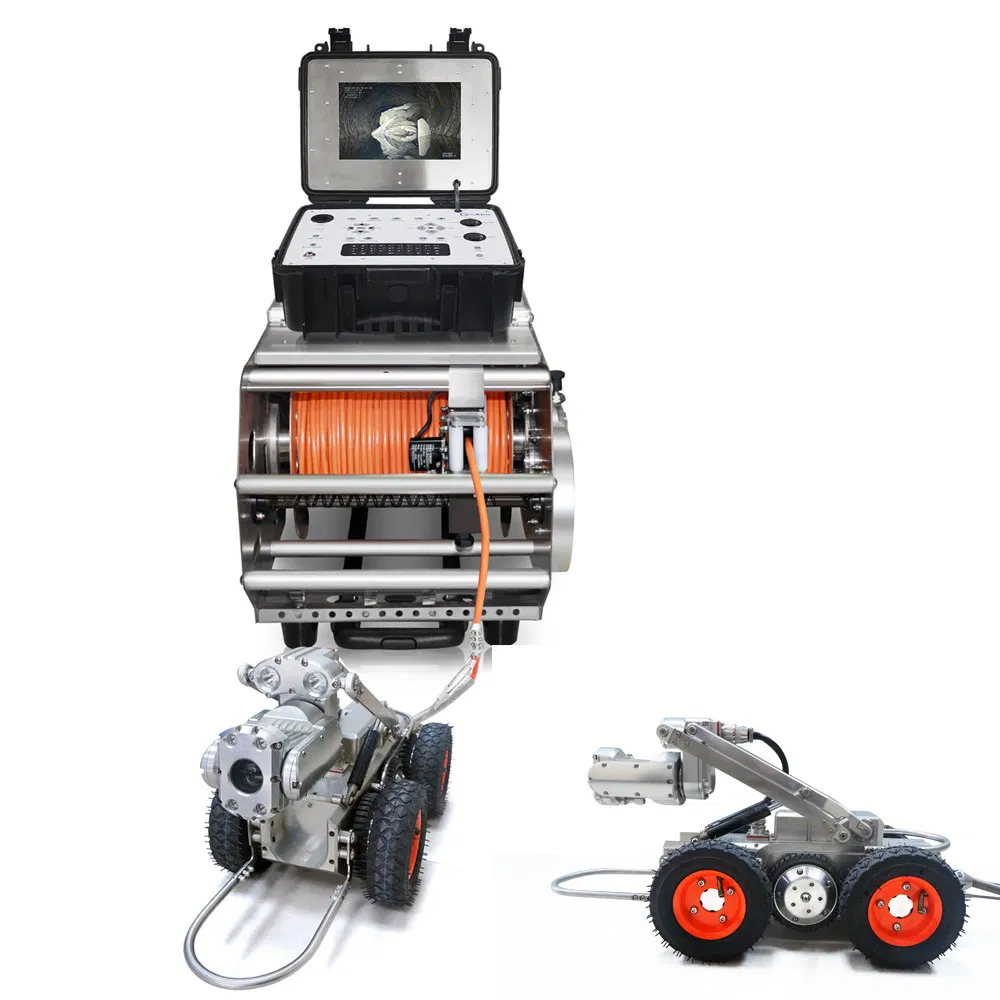

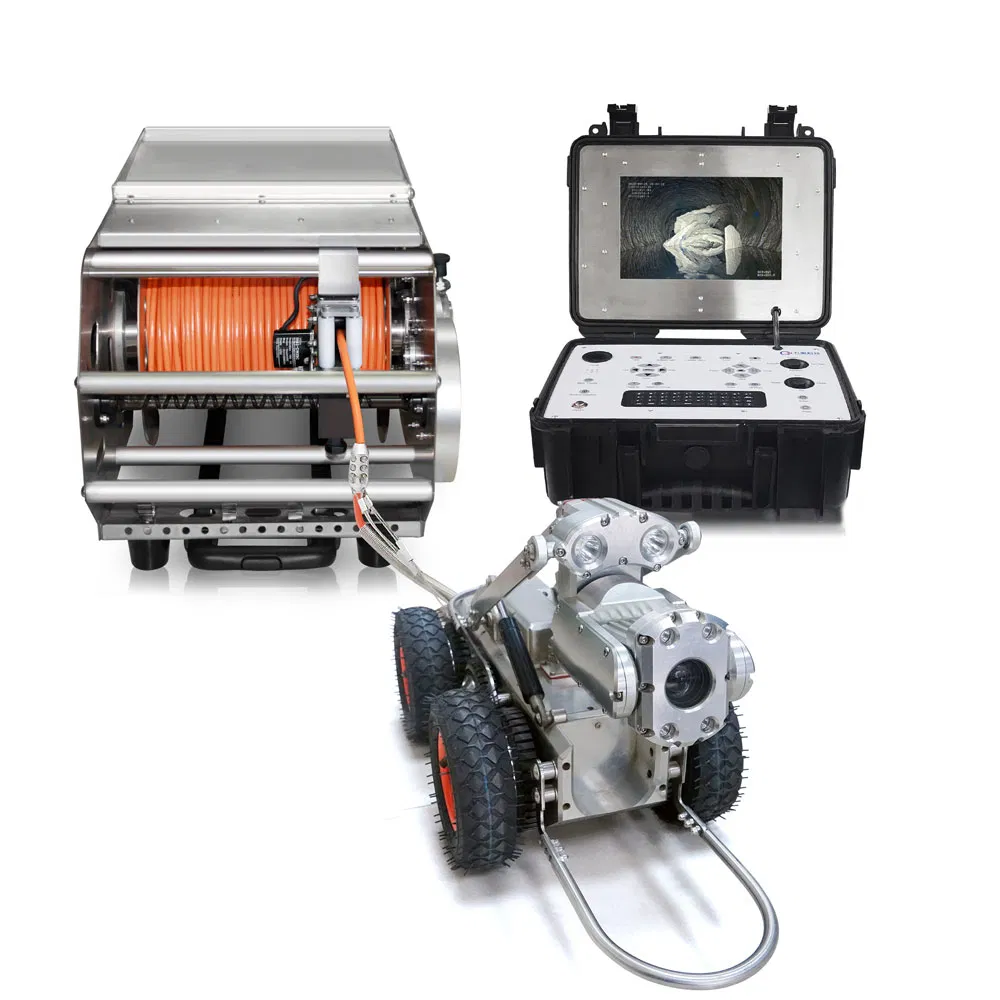

The complete system consists of a 10-inch controller, an electric paying-off car (manual customization available), the crawler body, a high-resolution lens, and connecting cables.
| Parameter | Specifications |
|---|---|
| Suitable Diameter | Pipe diameter: 200-2500mm |
| Cable Length | Standard 100m (Customized Available) |

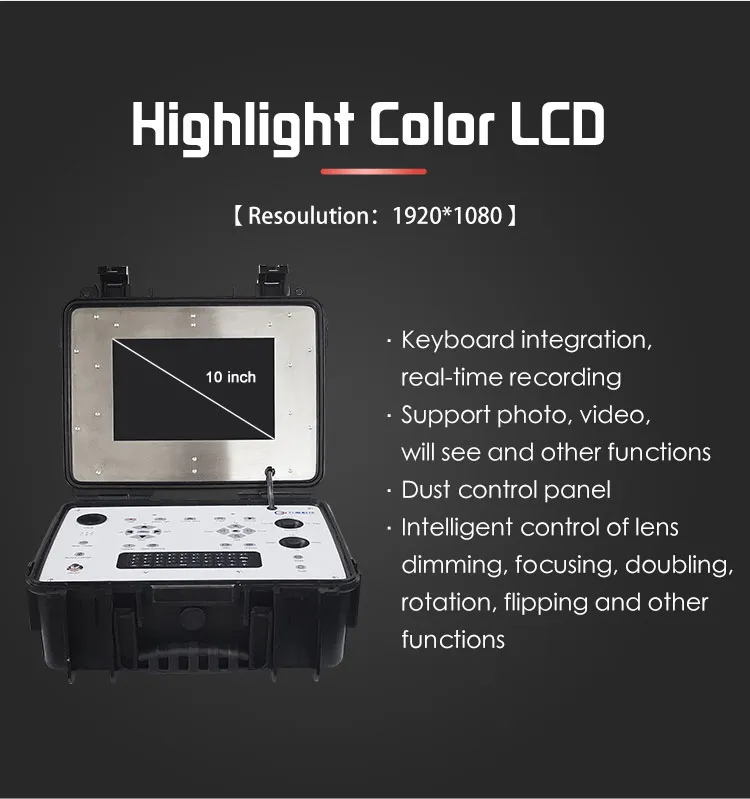

| Screen Size | 10 inch |
| Resolution | 1920*1080P |
| Pixel | 2,000,000 / 1,000,000 (Customized) |
| Camera Lifting Height | 120mm |
| Crawler Wheels | 110mm / 150mm |

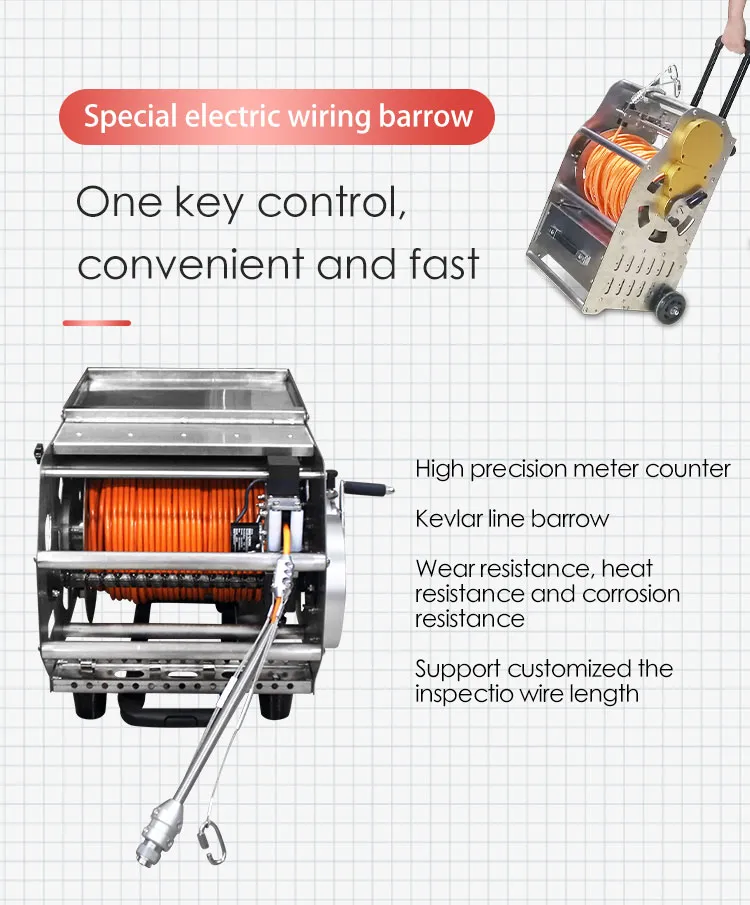

| Barrow Type | Electrical Barrow |
