Trio-Vision Lp-1 Sewer Crawler Laser Scan Inspection System

1 / 5

Trio-Vision Lp-1 Sewer Crawler Laser Scan Inspection System

Customization:	Available
Accuracy:	<1mm
Horizontal Line:	1

Send Inquiry

Product Description

Technical Specifications

Model NO.	LP-1
Vertical Lines	1
Transport Package	Carton
Origin	China
HS Code	9031809090
Production Capacity	100 Pieces Per Year

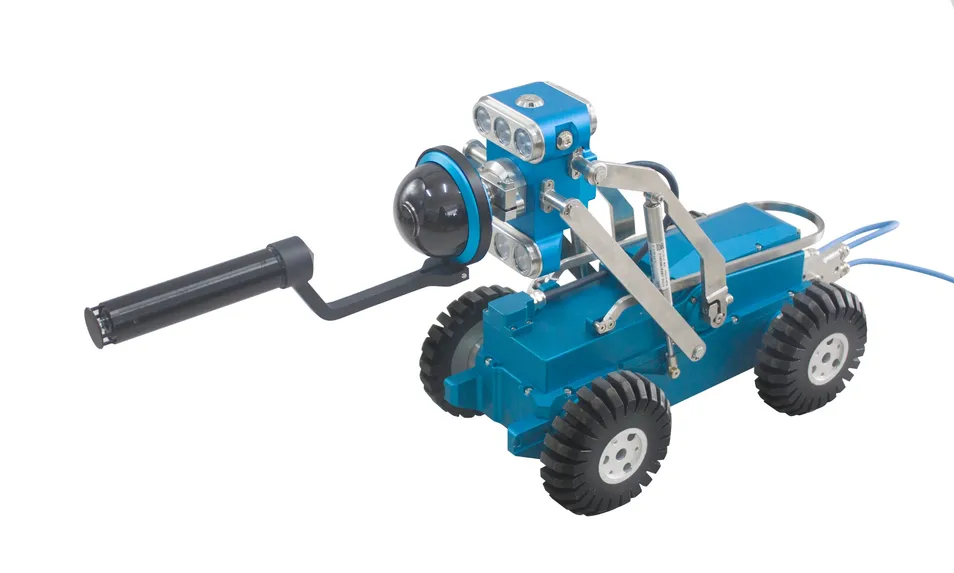

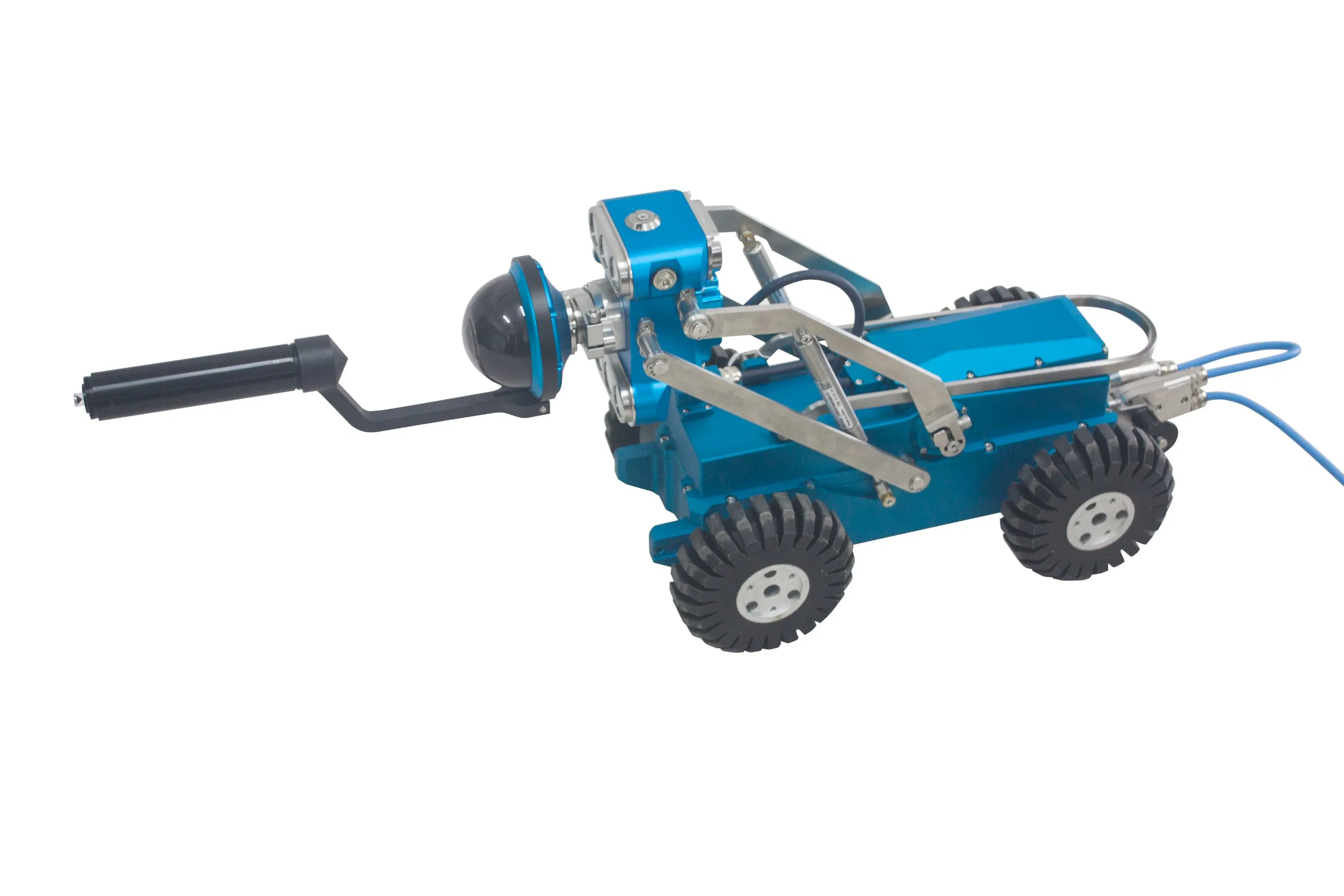

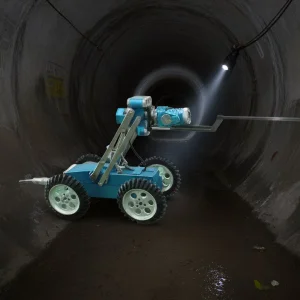

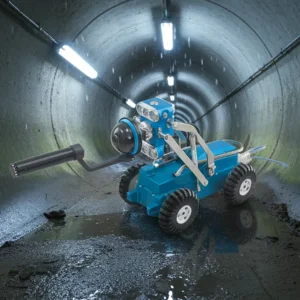

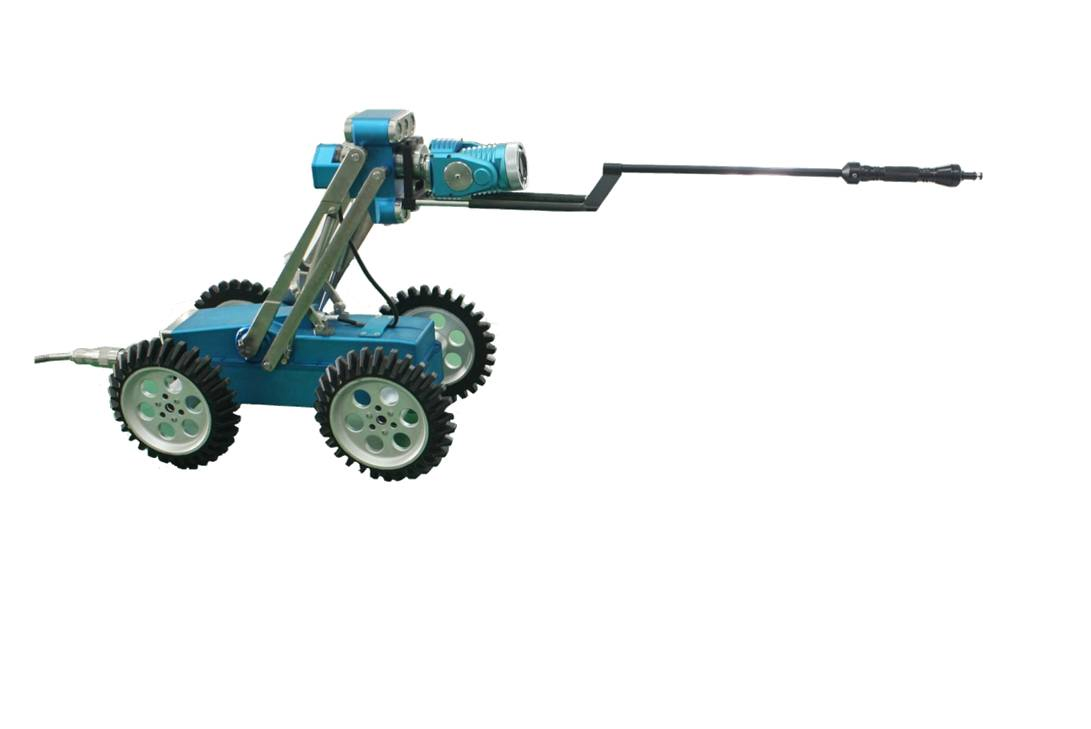

Laser Profiler Inspection Crawler System

The Profiler provides pipeline engineers and contractors with highly accurate empirical data on ovality, capacity, and other conditions in new and existing pipelines. By attaching to an existing CCTV Camera, resulting images are analyzed using innovative 'machine vision' software. Suitable for pipe diameters from 100 mm up to 2000 mm.

📐 Applications

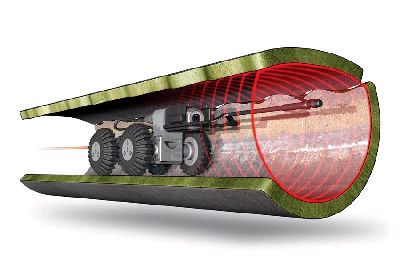

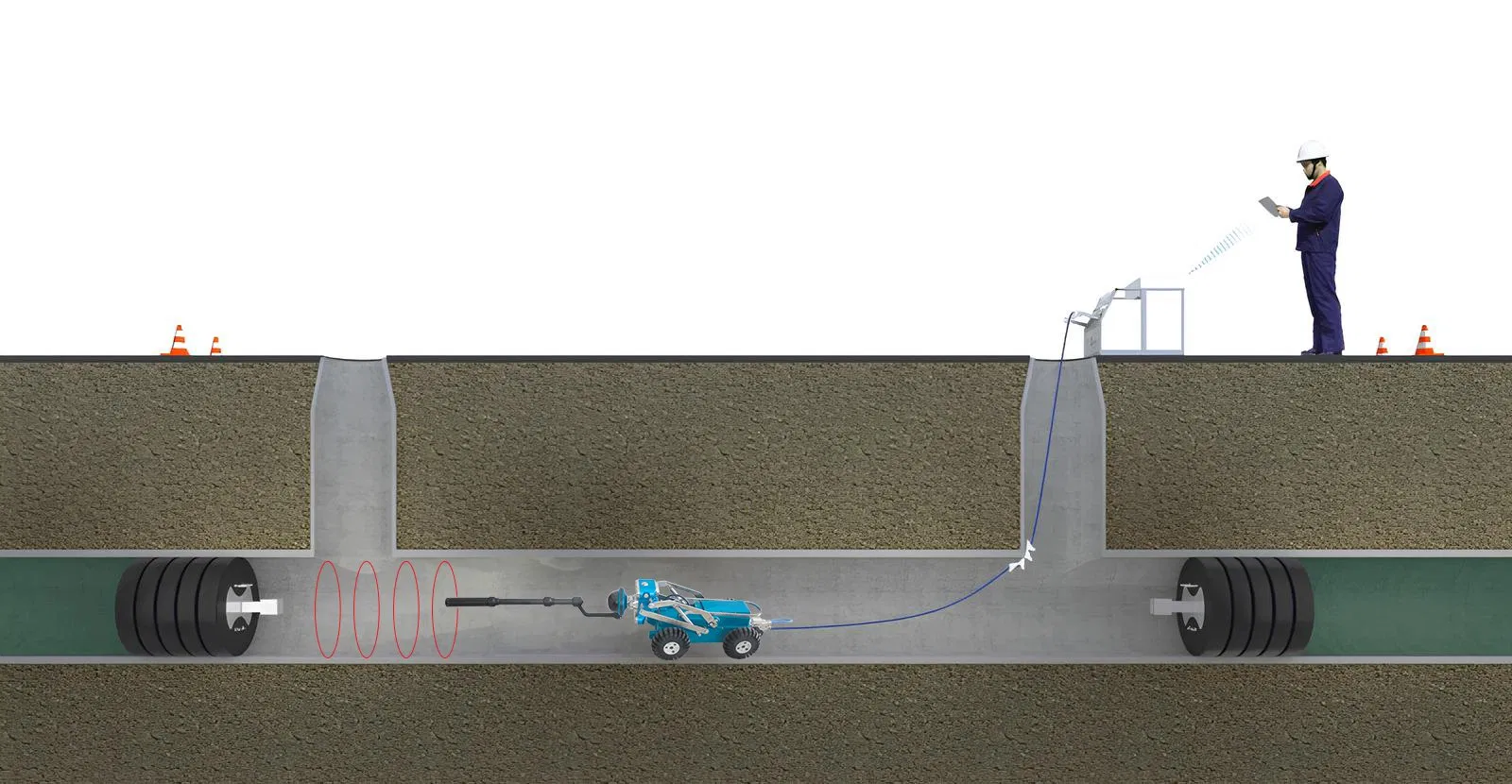

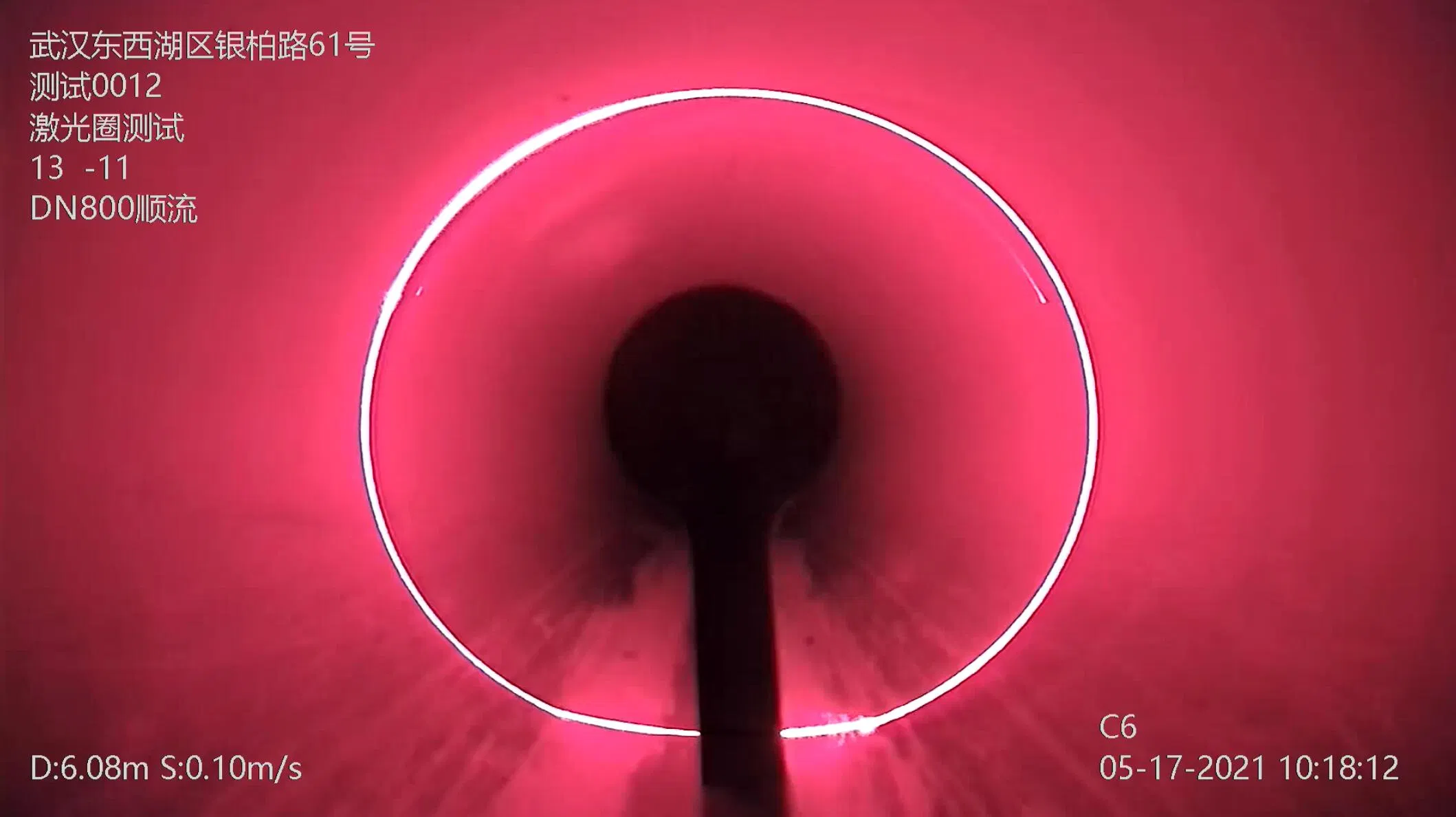

Projects radial laser light perpendicular to CCTV camera line of sight.
Easily attaches to existing CCTV cameras or transporters.
Captures single frames for analysis in JPEG, BMP, or TIFF formats.

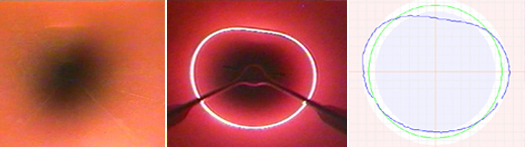

Displays cross-sectional amplitude graphs for the entire pipe length.
Obtains actual pipe degradation data via profiling tools.

⚙️ Laser Head LP-1 Details

Voltage: 3V
Laser: 650nm
Working Temp: -20 to 60°C
Inspection Range: 100-2000mm

🚀 Key Features

Operates in pipe sizes from 100mm to 2000mm.
High-strength carbon fiber and aluminum construction.
Internally battery powered (rechargeable); no electrical connections required.
Software compatible with TV inspection vehicles or remote computers.
Supports frame capture from video files, CDs, or DVDs.

Service & Support

Standard Warranty: 12 months or 2,000 operating hours.

Extended Warranty: Optional coverage up to 36 months.

Global Support: 24/7 technical assistance and spare parts supply.

Training: On-site or remote operation and maintenance training.

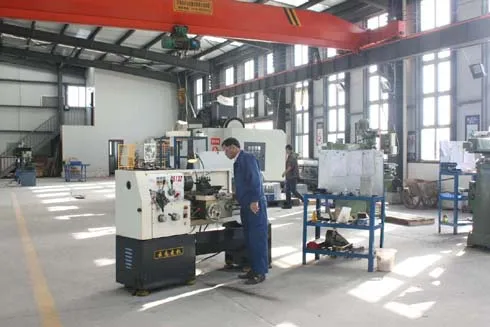

Our company is committed to providing integrated, reliable, and innovative pipeline inspection products to serve global customers. Through our experienced international network, we focus on understanding unique field requirements and delivering breakthrough innovations.

Why Choose Us?

OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs support
Turnkey project solutions

Other Products

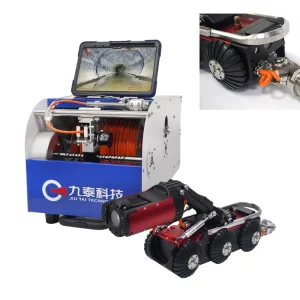

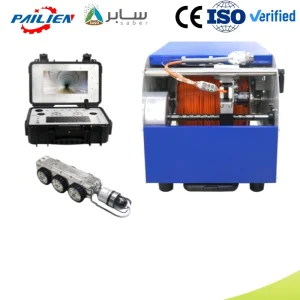

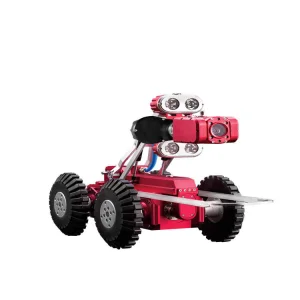

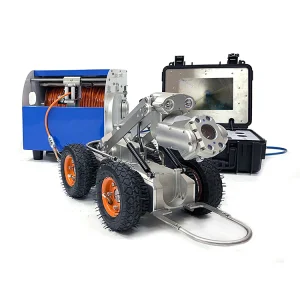

CCTV pipe inspection cameras

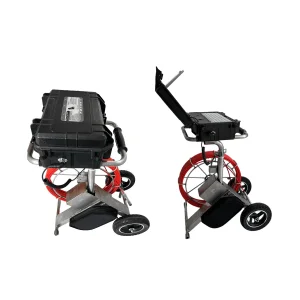

Pole and Pushrod cameras
Sonar & Amphibious inspection systems

Frequently Asked Questions

Q: What is the typical lead time for orders? A: Standard models are usually shipped within 15–30 days, while customized units require 30–45 days.

Q: Is overseas after-sales service available? A: Yes, we provide global support through partnered service centers in key regions.

Q: Can the equipment be customized for specific pipe sizes? A: Yes, the system is designed to operate in pipe sizes ranging from 100mm through 2000mm and we offer tailored attachments.

Q: What documents are provided for international export? A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and COC.

Q: Does the system require a constant power connection during use? A: No, the unit is internally battery-powered and rechargeable, requiring no external electrical connections during operation.

Q: How do I initiate a purchase or request a quote? A: You can reach out to us for a professional quote, and once details are confirmed, the order can be finalized with a PO.
