Drain and Snake Under Wells Inspection Crawler Robot Vehicle Inspection Pipe Camera

1 / 5

Drain and Snake Under Wells Inspection Crawler Robot Vehicle Inspection Pipe Camera

Customization:	Available
Technology:	Wireless
Style:	Pan/Tilt

Send Inquiry

Product Description

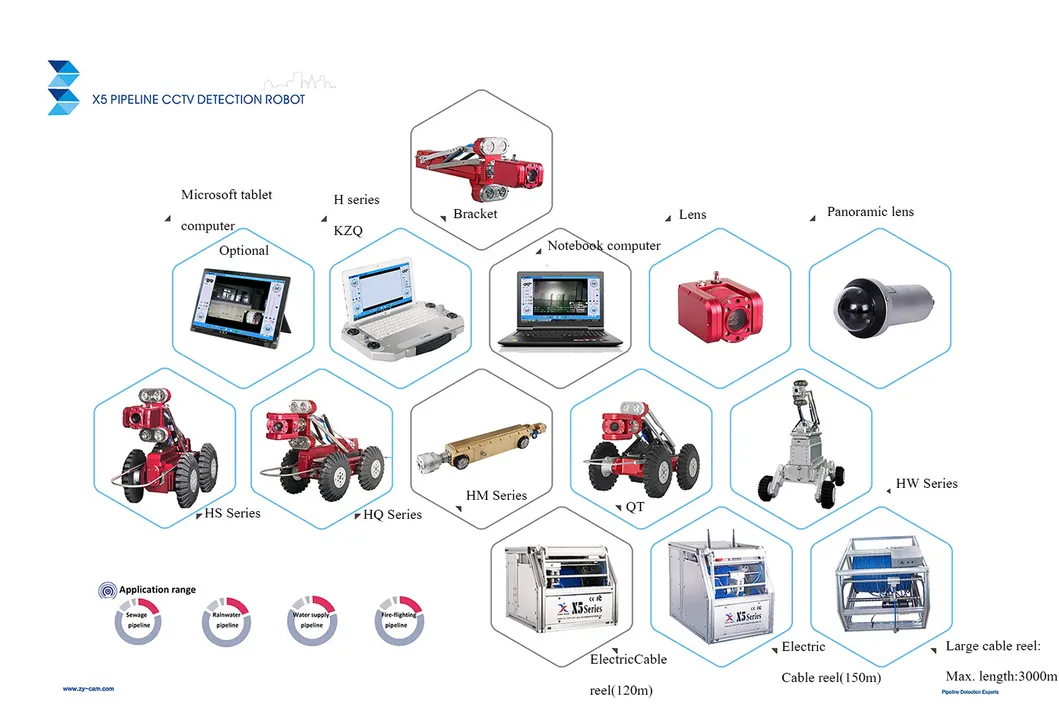

CCTV Underwater Pipe Inspection Crawler Robot (X5-HT)

Basic Specifications

Model NO.X5-HT

TypeCCTV Camera

SensorCMOS

KindAutofocus Lens

CertificationCE, FCC, RoHS, ISO9001: 2000

FeatureWaterproof, HD, Mini Size, Vandal-proof

Effective Distance≧30m

Sensor Size1/3 inch

Waterproof GradeIP68

Depth of Water10 Meters

Pipeline Diameter250-650mm

Lens MaterialAnti-Scratch Sapphire Glass

Cable LengthStandard 150m

Production Capacity1000 Sets Per Month

Product Description

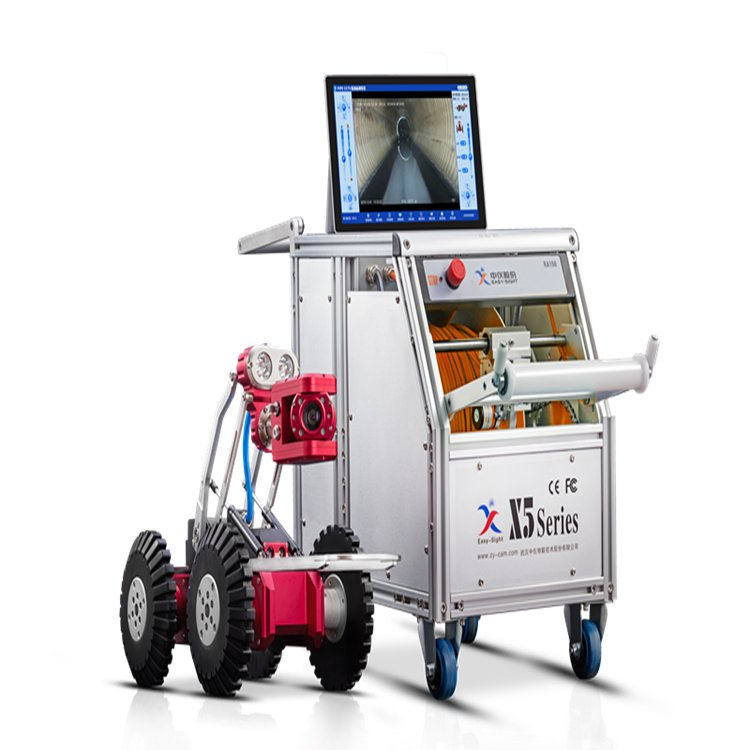

The X5-HT pipeline CCTV Inspection robot is a professional-grade solution designed on the basis of an industrial personal computer (IPC) system. It utilizes a laptop interface instead of traditional controllers, allowing for real-time defect image acquisition and immediate testing report generation.

Equipped with a fish-eye lens and integrated panorama analysis software, the system generates a 360-degree image of the inner pipe wall. This allows for quantitative measurement of pipe diameter, crack width, and sediment conditions through precise gradient curve data.

⭐ Key Advantages:

High-Definition Light Source: Superior visibility in dark environments.
Digital Transmission: Technological innovation for stable, fast data transfer.
Quick Deployment: Convenient and efficient detection with minimal setup time.
Robust Performance: Waterproof and explosion-proof design for demanding industrial use.

Technical Parameters

Component	Technical Specifications

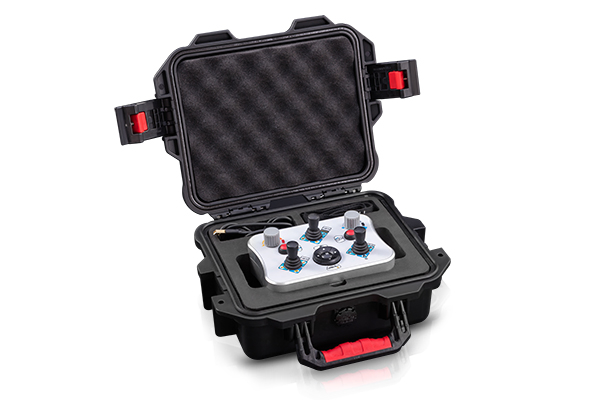

Main Controller	Notebook computer control; Wireless control; Real-time data display (distance, attitude, time); Dual interface for front and rear sights.
Electric Cable Reel	Standard length 120M-150M; Two-core cable for reduced failure rate; Automatic retractable mechanism.

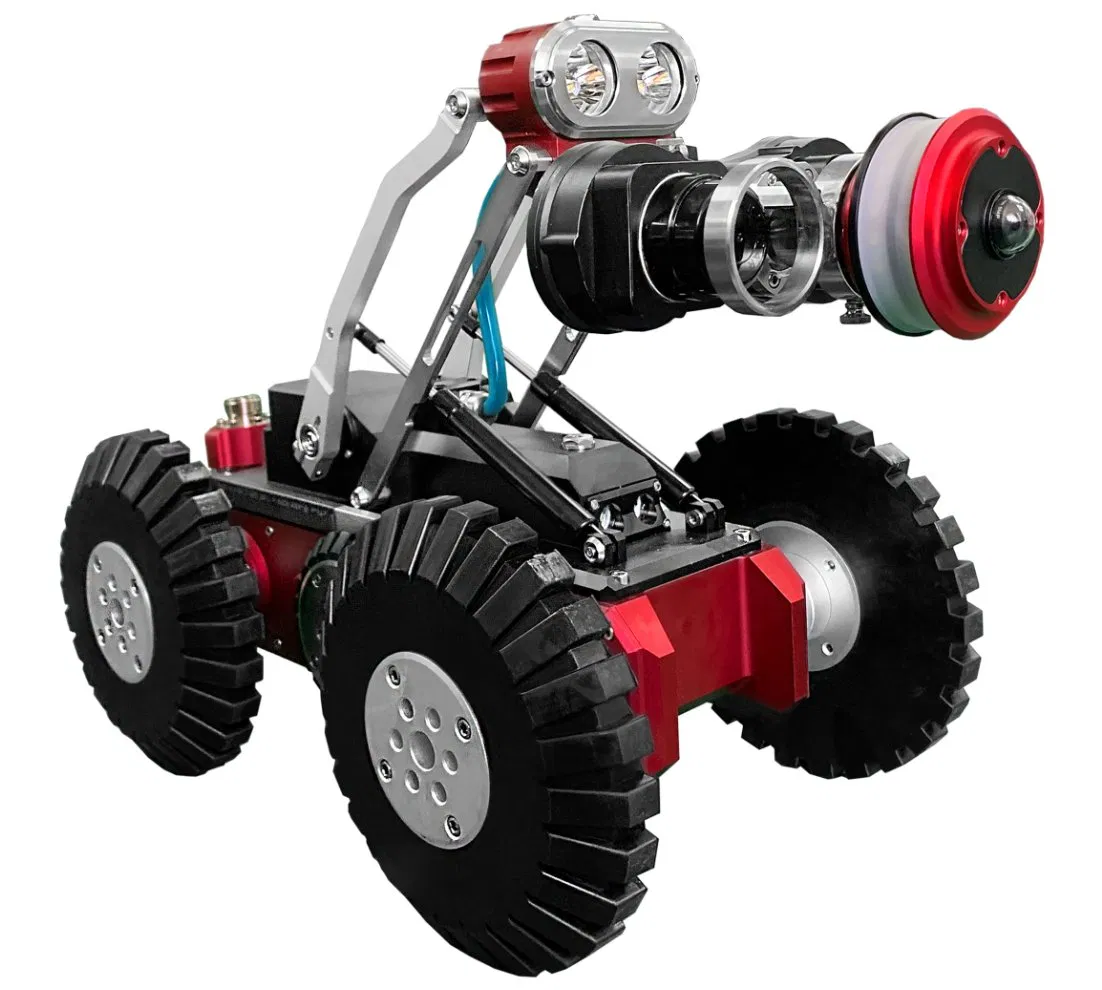

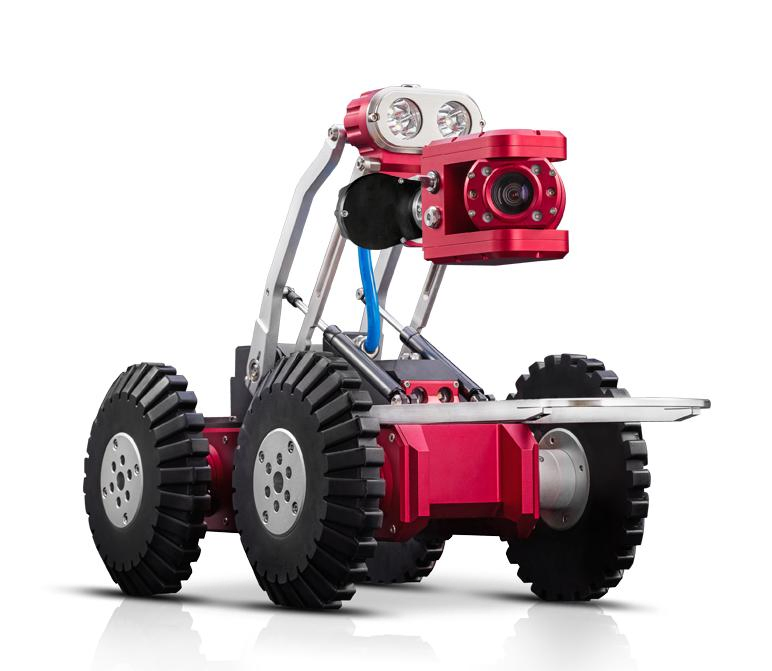

Crawler Unit	IP68 (10m depth); DN250mm--DN650mm range; Material: Brass, stainless steel, aluminum alloy; Electric lift frame.
Camera System	High resolution 2592*1520; 360° radial limitless rotation; One-click reset; 0.1Lux sensitivity; 4 LED lights.

Applications & Industry Reach

Our inspection robots are widely applied to infrastructure development, including geophysical prospecting, urban development, municipal construction, national defense, and hydro power projects. The system is highly effective for drainage network maintenance and pipeline restoration analysis.

Service & Warranty

Warranty: 12-month standard warranty from arrival at destination; lifelong maintenance support.
Quality Assurance: Every machine is strictly tested and verified before packaging.
Training: Detailed English operational manuals and training videos are provided.
OEM Services: Custom brand logo printing is available free of charge.

Frequently Asked Questions

1. What is the waterproof capability of the X5-HT? The system is rated IP68, meaning it is completely dust-tight and can be submerged in water up to 10 meters deep.

2. Which pipe sizes can this crawler inspect? The X5-HT is designed for pipeline diameters ranging from 250mm to 650mm.

3. Does the camera support full rotation? Yes, the camera features electric rotation with 360° radial limitless rotation and a one-click reset function for easy navigation.

4. How is the machine controlled? The system uses a laptop or tablet as the main controller via wireless control, providing a familiar and flexible user interface.

5. What happens if the machine encounters a fault? We provide technical support within 24 hours. The modular design allows for easy parts replacement, and we offer lifelong services for all products.

6. How is the equipment protected during shipping? We use standard plywood cases with internal foam padding and waterproof plastic bags to ensure the machine arrives in perfect condition.
