X5-Hl Laser Profiling Scanner with Pipe Crawler System

1 / 5

X5-Hl Laser Profiling Scanner with Pipe Crawler System

Customization:	Available
After-sales Service:	Spare Parts Offered
Warranty:	12 Months

Send Inquiry

Product Description

Basic Info.

Model NO.

X5-HL

Type

Sewer Inspection

Resolution

1920*1080

Water Proof

IP68

Pipeline Diameter

300-1000mm

Distance

150/300 Meters

Application

Municipal Sewer Pipe

Capacity

100 Sets Per Month

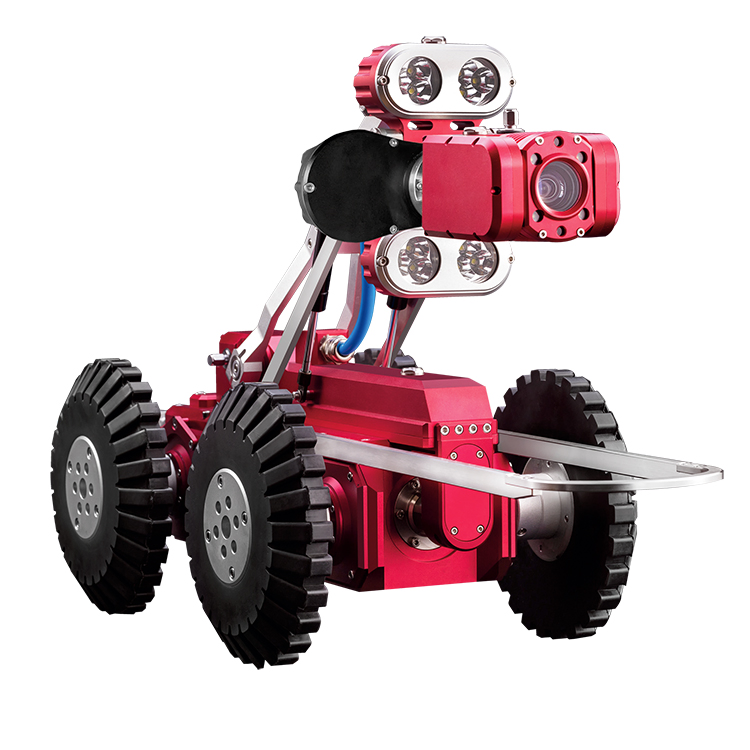

X5-HL Laser Profiling Scanner With Pipe Crawler System

(Model: X5-HS, 300-1000mm pipe)

Integrated Monitoring Platform

This platform supports users to track real-time location and manage camera systems online efficiently.

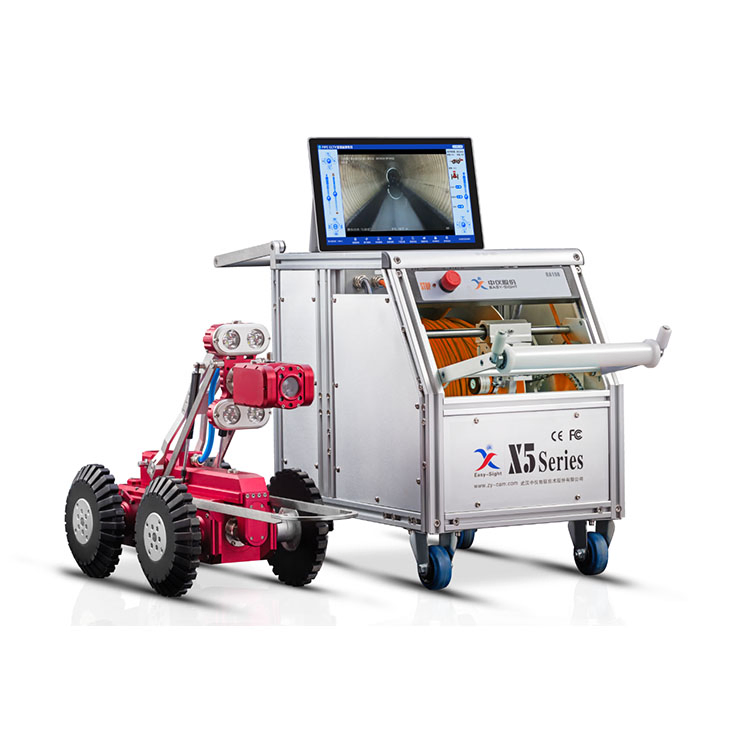

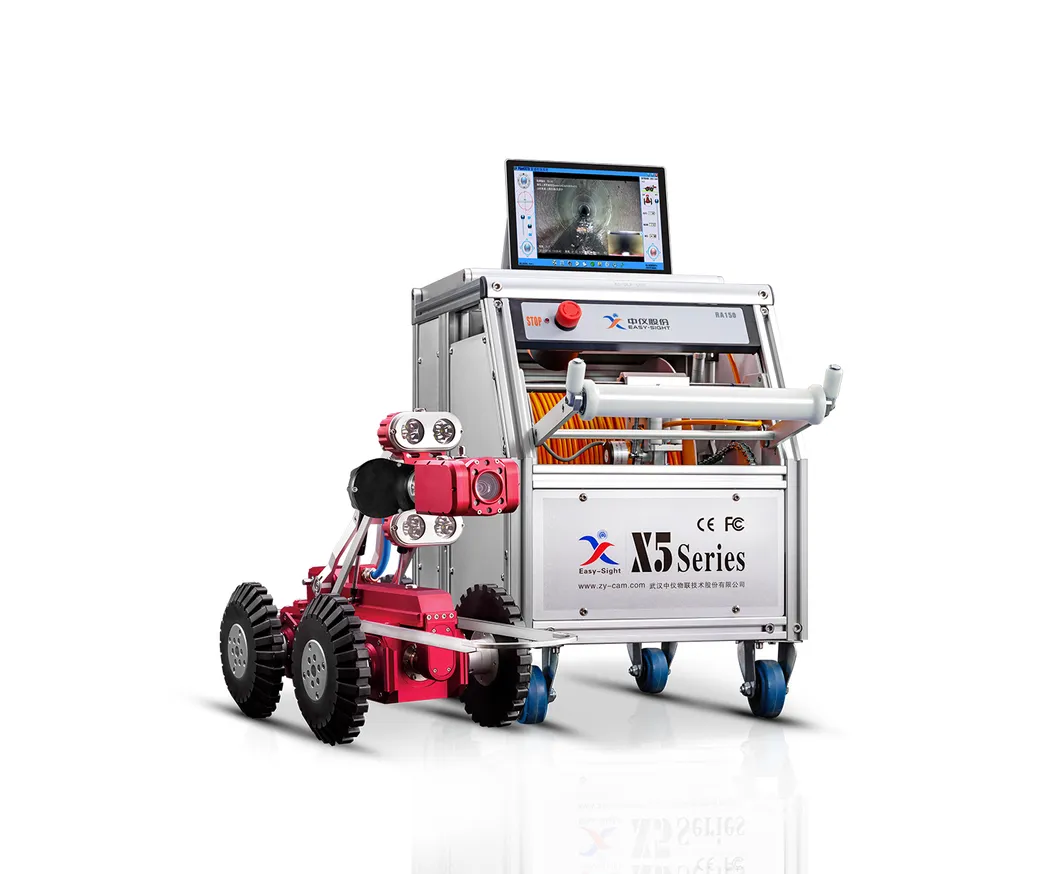

The X5-H series pipeline inspection robot combines high-definition CCTV with a panoramic camera and laser profiling scanner. This system consists of a crawler, panorama camera, laser scanner, cable drum, and main control unit.

Technical Parameters

Component	Features & Specifications
Main Controller	- Compatible with any notebook computer - Wireless control functionality - Real-time display of date, time, distance, and crawling attitude - Dual interface for front and rear sights
Electric Cable Reel	- Standard length: 150M (Max 300M) - Two-core cable to reduce joint failure - Automatic retractable cord system

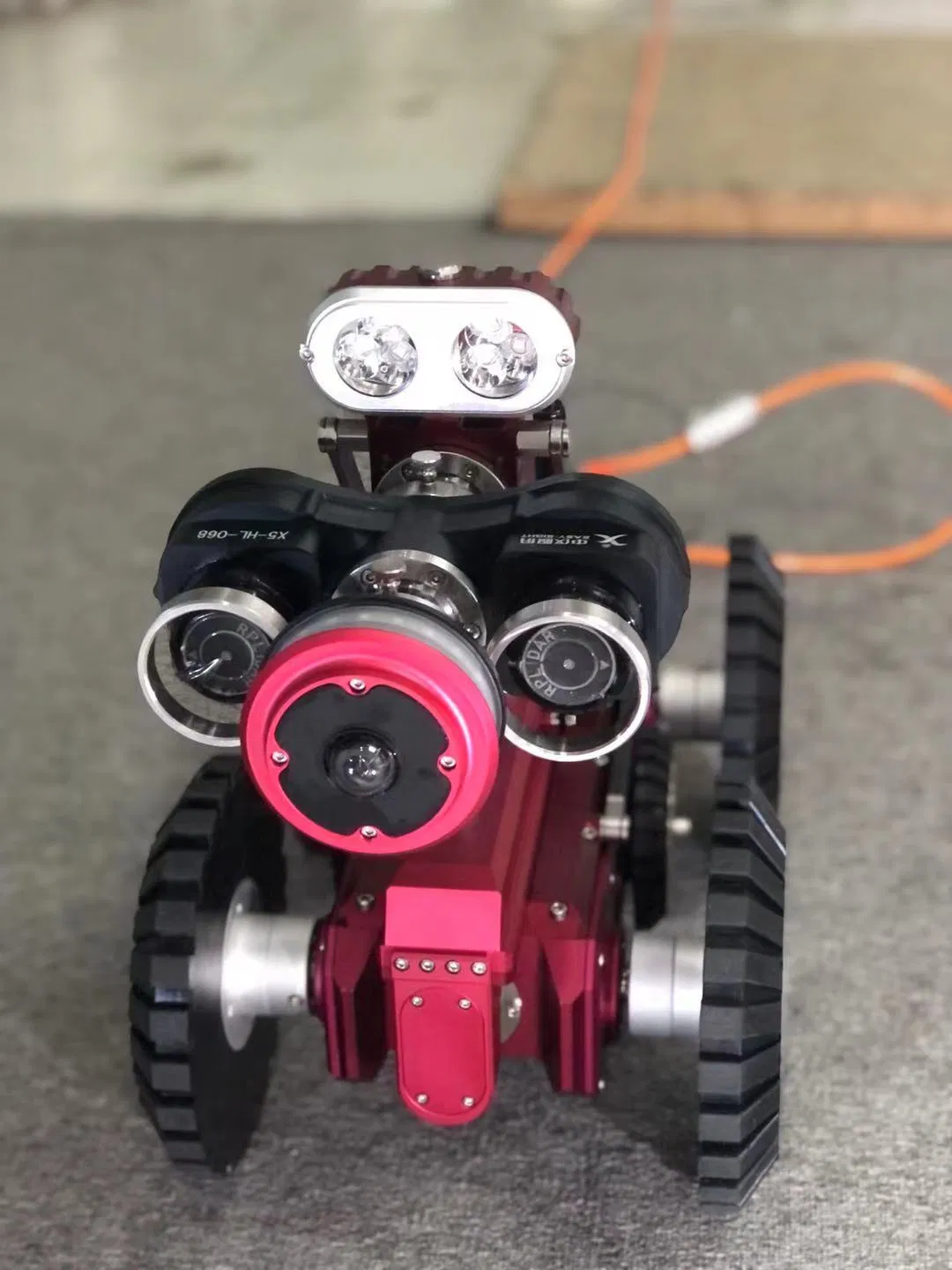

Crawler	- IP68 waterproof up to 10 meters - Applicable for DN300mm--DN1000mm pipes - Electric lift frame, removable - 12 front LED lights + 2 rear highlight LEDs
PTZ/Panorama Camera	- 1920*1080 High Resolution - 360° radial limitless rotation - Sensitivity 0.1Lux with four integrated LEDs

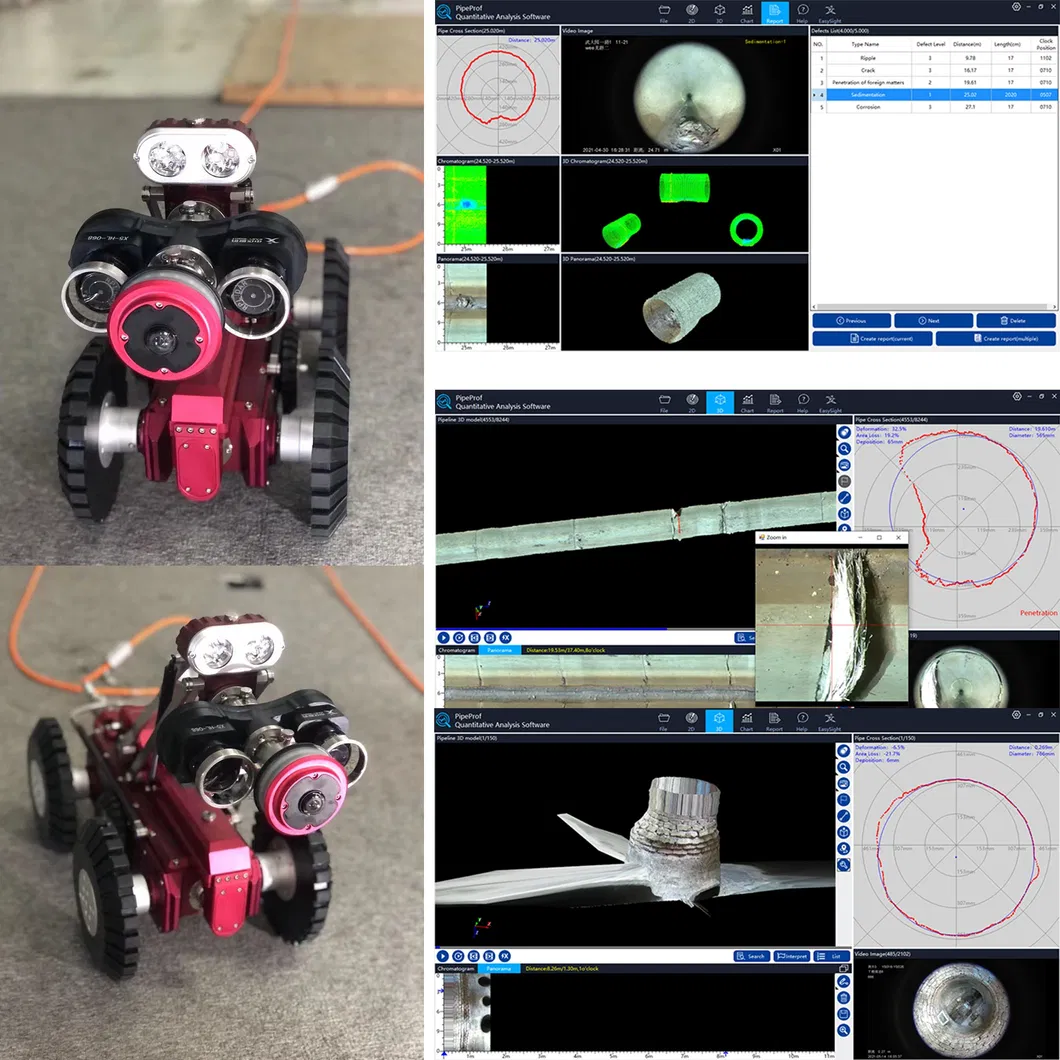

Quantitative Inspection & Analysis Software

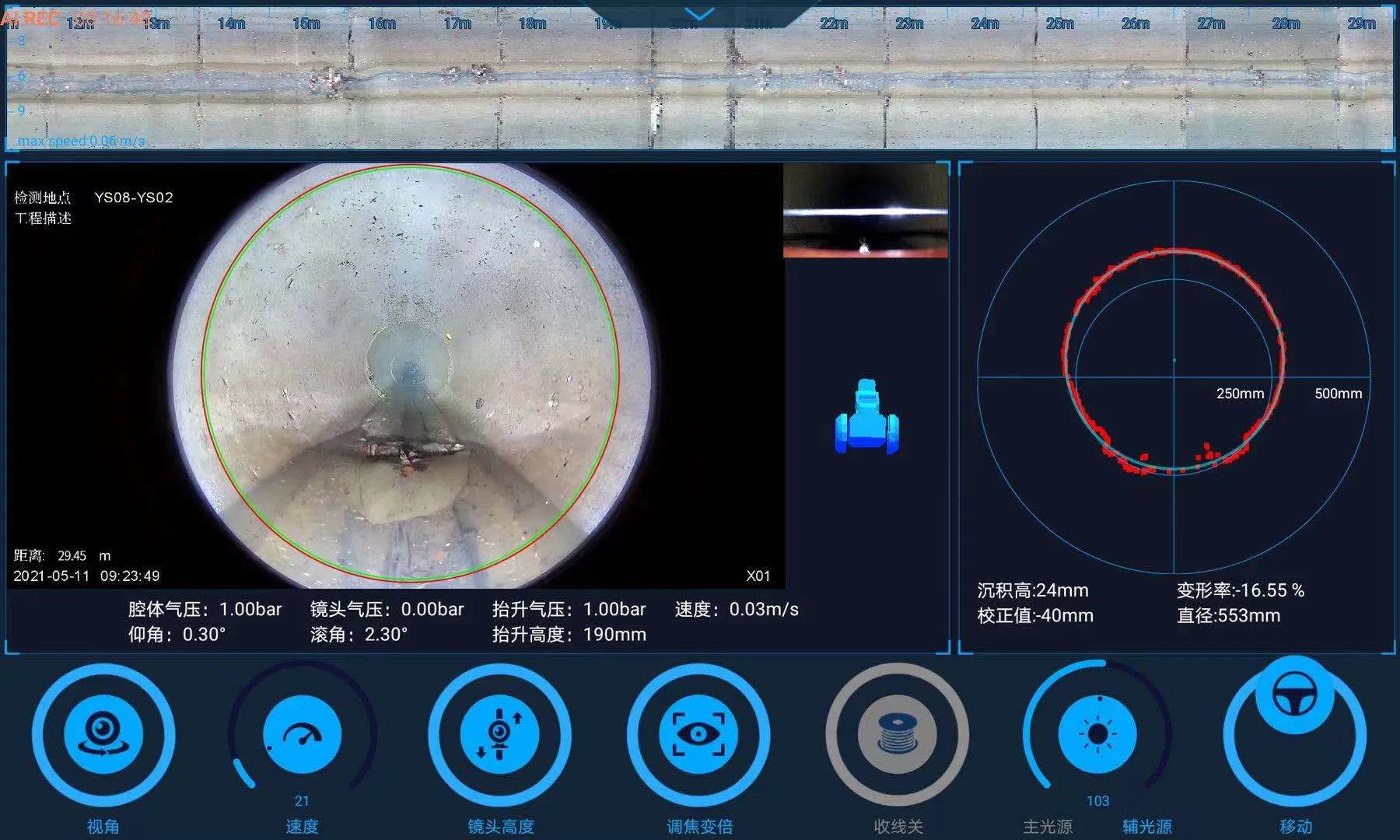

PipeScan Software: Real-time display and recording of camera feeds. Features include pipeline slope curve mapping, internal deposition judgment, and realistic 2D/3D restoration of inner pipe walls.

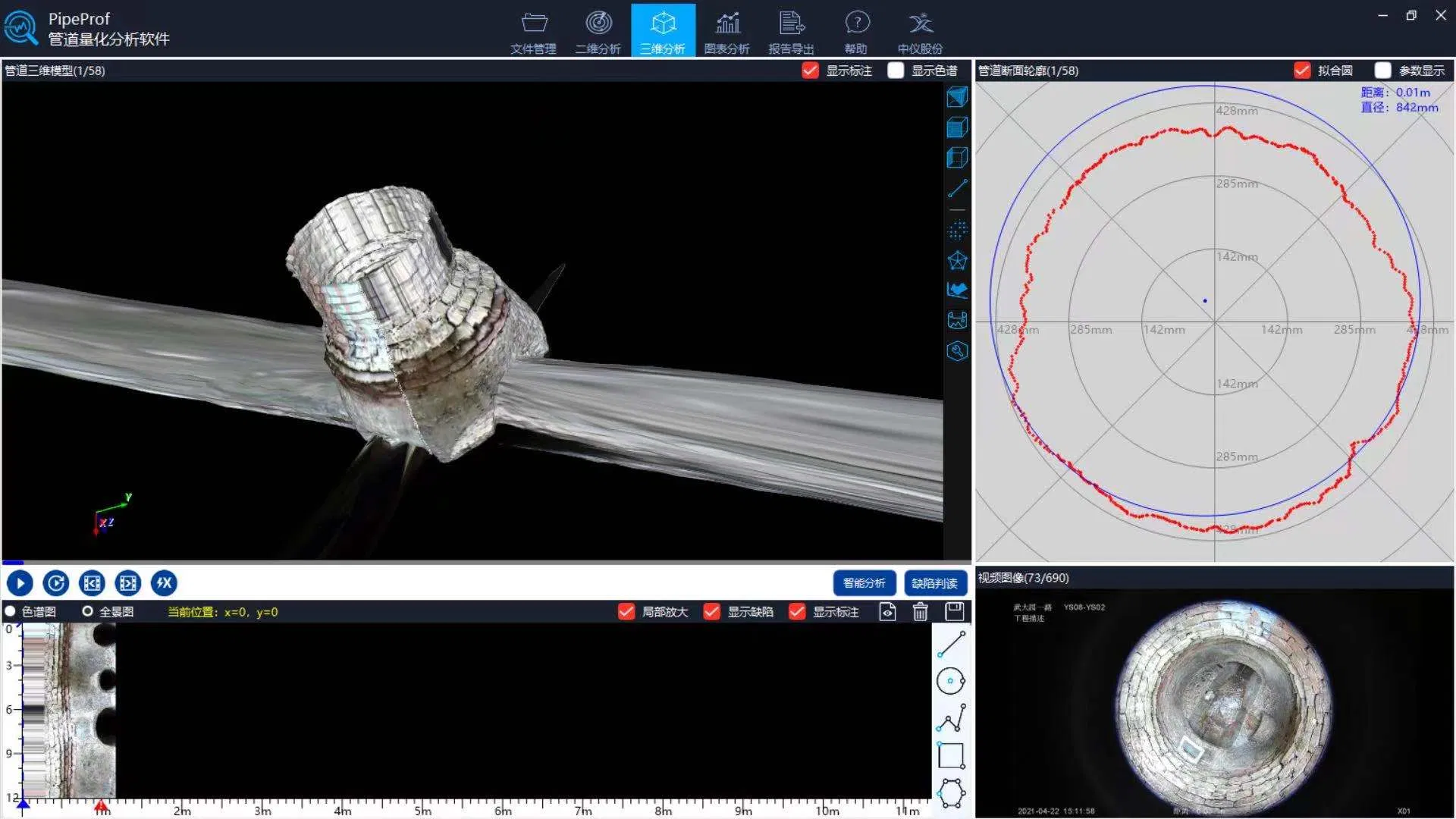

PipeProf Analysis: Generates panoramic three-dimensional models. Conducts 2D/3D analysis of pipe panorama, reads defects, and displays deformation rates and deposition charts.

System Advantages

Ultra-Light Design: Lightweight master control, cable reel, and crawler for easy transport.
Fast Deployment: Quick assembly on site with wireless data transmission options.
High Definition: HD camera paired with powerful highlight combination light sources.
Stability: Entire unit is waterproof and built for stable performance in harsh conditions.
Ease of Maintenance: Easy to disassemble with a high-reliability control system.

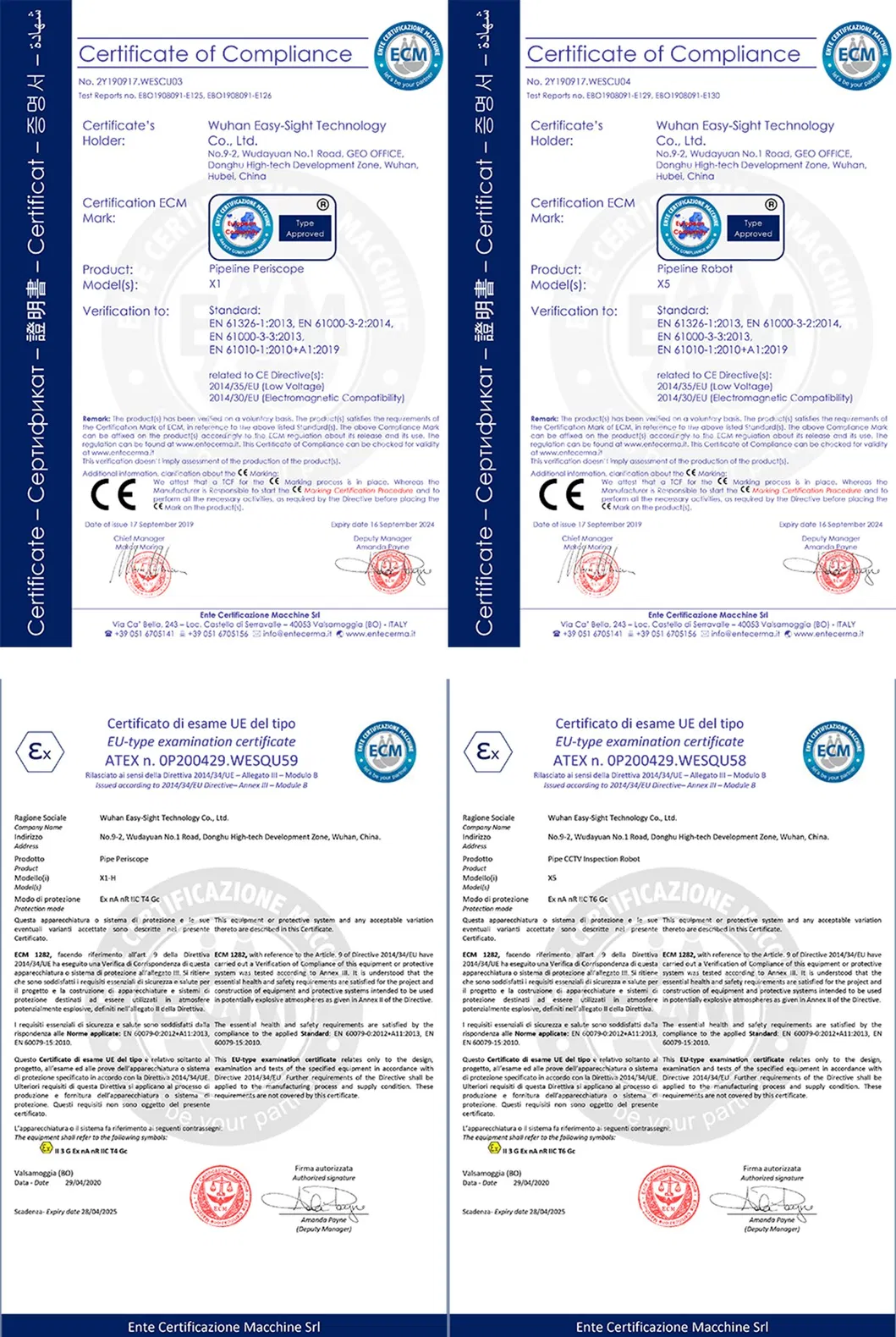

International Certifications

The systems have received international approvals including CE, FCC, ATEX, and ISO, ensuring safety and quality standards worldwide.

Exhibitions & Packaging

Our Service Commitment

Warranty: 12-month standard warranty from arrival date with lifelong maintenance support.

Technical Support: Specialized services for pipeline detection, maintenance, and repair solutions.

Training: Detailed English operational manuals and free training sessions are provided to ensure correct operation.

OEM Services: Custom brand logo printing is available free of charge for OEM orders.

Frequently Asked Questions (FAQ)

What kind of packaging is used for shipping?

We use standard plywood craft cases. The machine is protected by a thickening plastic bag for waterproofing and a foam layer to prevent damage from shaking during transport.

Is the equipment safe during long-distance transportation?

Yes. Our packaging accounts for all damage factors. Our shipping agents are highly experienced in safe international transportation to ensure your parcel arrives in good condition.

How do I install and operate the crawler system?

The machine is pre-installed before shipping. We provide detailed training videos and English user manuals. Most customers can successfully operate the system through self-learning.

What should I do if the machine encounters a technical fault?

Please contact us immediately. We respond within 24 hours to provide solutions. Do not attempt to fix complex internal components without professional guidance.

What is the warranty period for this pipeline robot?

We provide a 12-month warranty starting from the date the commodity arrives at the destination port, along with lifelong technical services.

Is training available for new users?

Yes, we offer detailed operational manuals and training CDs in English. We also provide free training at our facility where technicians teach correct operational methods.
